PRODUCT INFORMATION

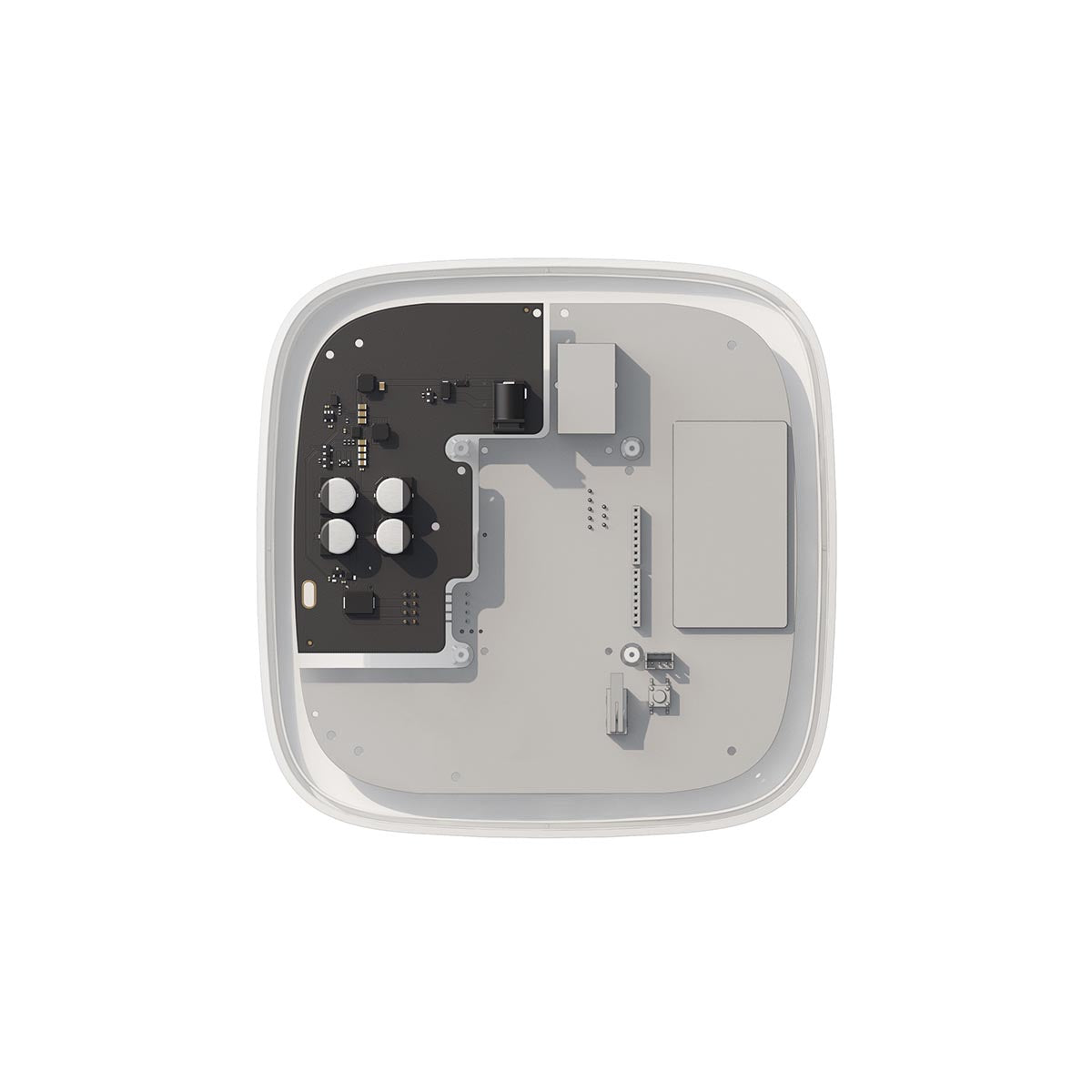

The Ajax 6V PSU for Hub 2, Hub 2 Plus and ReX 2 is a power supply unit for connecting the Hub 2, Hub 2 Plus control panels or ReX 2 range extender to 4.2-16v low-voltage power sources or external portable battery. Ajax 6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
Compatibile with the Hub 2, Hub 2 Plus and ReX 2
Product Code: 20763.78.NC
FEATURES OF THE AJAX 6V PSU:
- Protecting facilities lacking electricity With an alternative 6 V power supply unit, your hub can operate from an external battery without being connected to the facility's power grid
SPECIFICATIONS OF THE AJAX 6V PSU:
| Compatibility | Hub 2, Hub 2 Plus and ReX 2 |
| Recommended batteries | Zinc air and alkaline batteries with 4.2–16 V⎓ operating power |
| Input voltage | 4.2-16 V |
| Output voltage | 4.8 V ± 5% |
| Switch-on voltage | 4.2 V ± 2.5% |
| Switch-off voltage | 3 - 3.4 V (depending on the load) |
| Maximum input current | 2.2 A at 4.2 V; 0.5 A at 16 V |
| Maximum output current | 1.5 A |
| Connection | Plug socket - 6.5 × 2 mm |
| Plug | 5.5 × 2.1 mm |
| Operating temperatures range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Product dimensions | 98 mm x 70 mm x 17 mm |
| Product Weight | 26g |
| Package dimensions | 175 mm x 105 mm x 28 mm |
| Mass of unit packed | 250g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax 6V PSU for Hub 2, Hub 2 Plus and ReX 2
