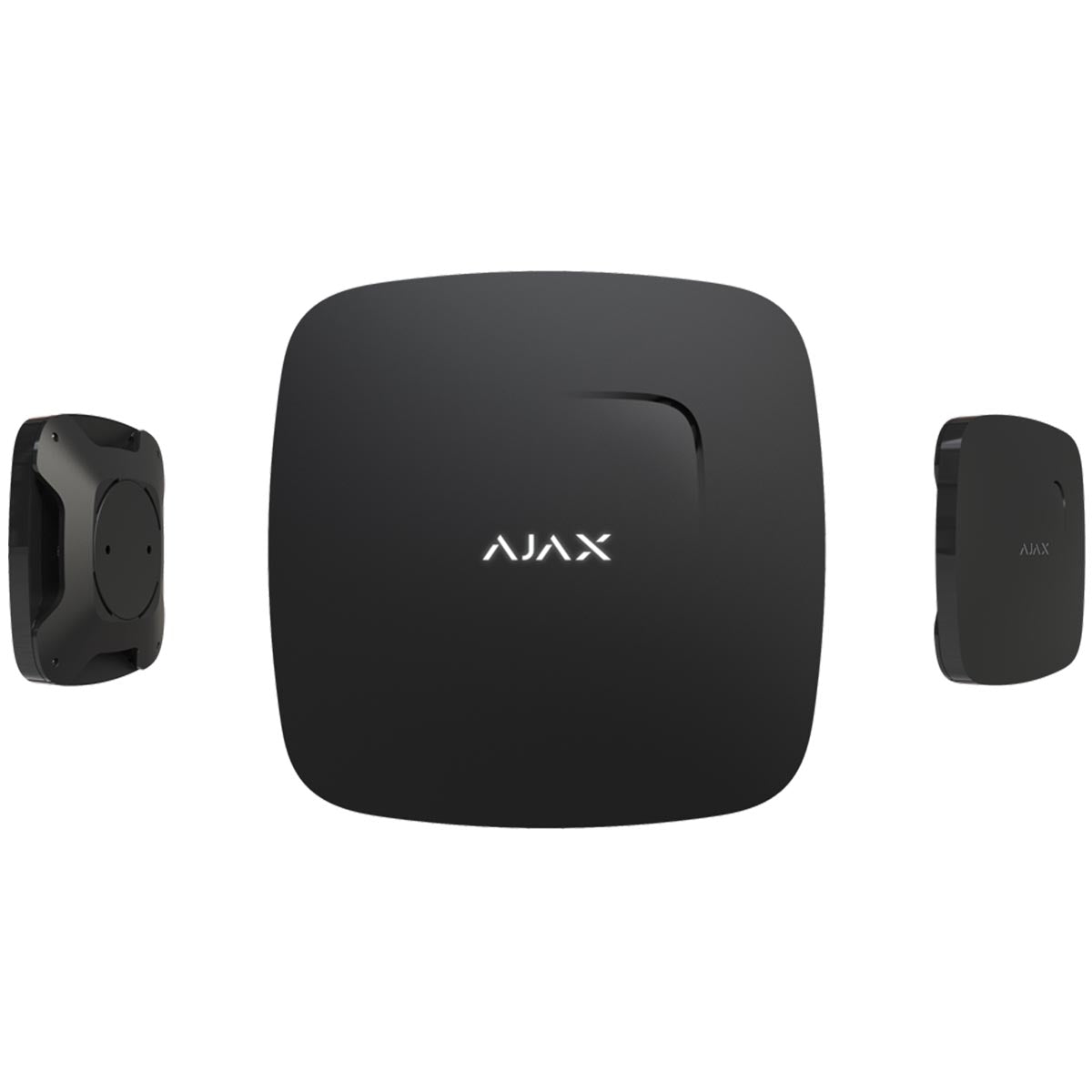

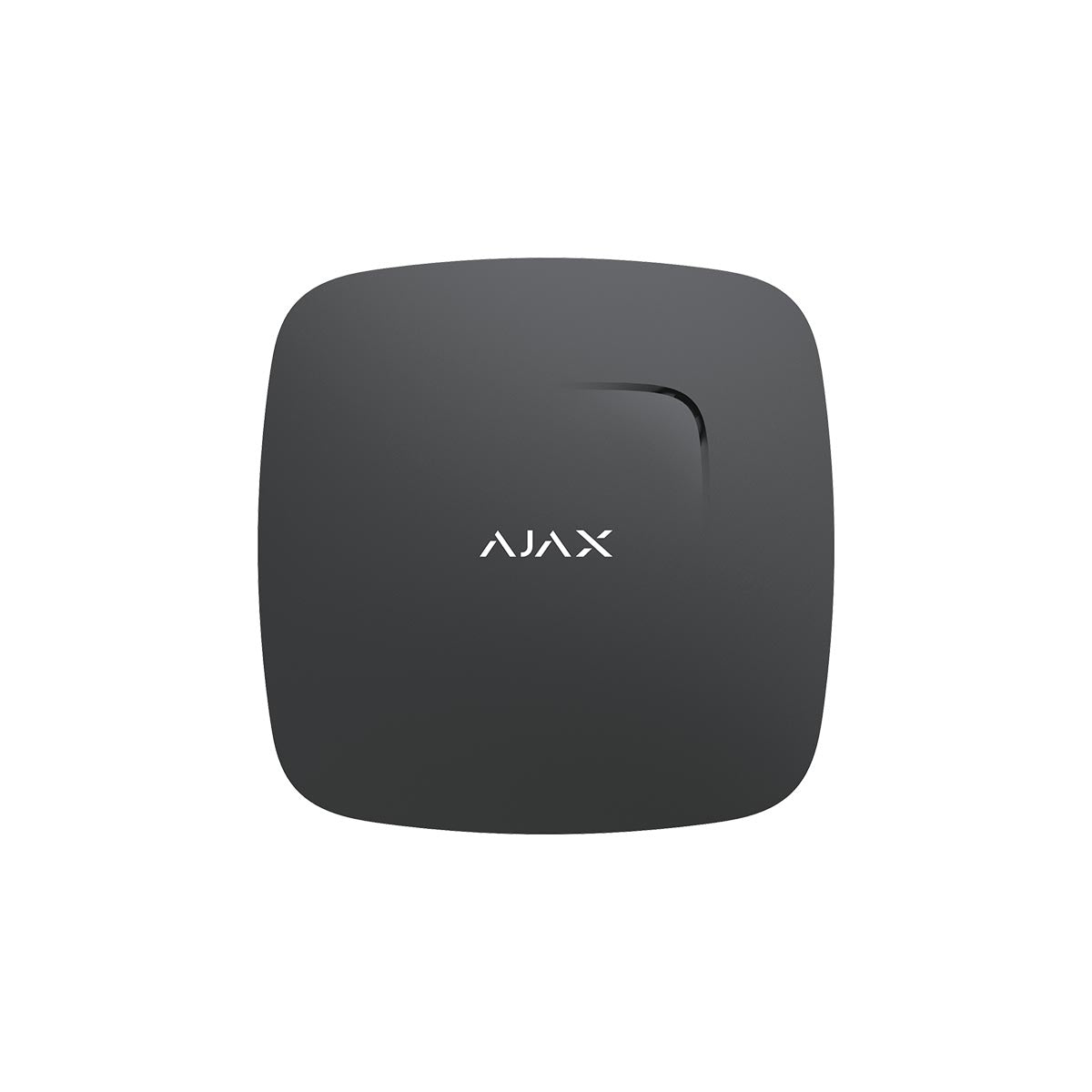

The Ajax FireProtect Black is a wireless fire detector with a temperature sensor that monitors security in the room twenty-four hours a day and immediately notifies of smoke and sharp jumps in temperature.
The device detects smoke by means of a camera with photoelectric sensor. If no smoke is emitted, the additional detector registers temperature increases in the room.
Independently tests the smoke chamber and gives prompt notification of the need to dust.
Please note: FireProtect operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with All Ajax Hubs, Range Extenders, ocBridge Plus and uartBridge.
Product Code: 8188.10.BL1
FEATURES OF THE AJAX FIREPROTECT:
- Wireless sensor detects smoke and rising temperatures in a room without the smoke
- Built-in battery (lasts up to 4 years)
- Communication range of 1300m (in an open space/line of sight)
- Can work autonomously using Ajax ocBridge Plus and Ajax uartBridge receivers and a smart Hub control panel
- It can operate independently from the hub, emitting a fire alarm by means of a built-in siren(85Db). Several detectors indicate an alarm simultaneously.
- Detector is set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated).
- Quick and Easy installation
INSTALLATION AND SETUP
The Ajax FireProtect comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
SPECIFICATIONS OF THE AJAX FIREPROTECT:
|Compatibility||All Ajax Hubs, Range Extenders, ocBridge Plus and uartBridge|
|Classification||Radio channel smoke detector with temperature sensor and built-in siren|
|Type of detector||Wireless|
|Sensing element||Photoelectric and temperature sensors|
|Activation threshold||+59°С ±2°С|
|Type of notification||Sound/light|
|Volume of built-in siren||85 dB|
|Alarm signal delivery time||0.15 s|
|False alarm filter||Yes|
|Power supply||2 x CR2 batteries, 3V (Backup battery: CR2032)|
|Battery life||Up to 4 years|
|Communication range with central unit||Up to 1,300 m in an open space|
|Two-way communication between devices||Yes|
|Operating frequencies||868.0-868.6 MHz|
|Self-adjusting RF output power||Up to 20 mW|
|Block encryption based on AES algorithm||Yes|
|Detector polling period||12−300 s|
|Additional temperature sensor||Available|
|Operating temperature range||From 0°С to +65°С|
|Permissible humidity||Up to 80%|
|Protection against fraud||Yes|
|Remote setting and testing||Yes|
|Product Dimensions||132 mm х 132 mm × 31 mm|
|Packaging Dimensions||165 mm x 160 mm x 35 mm|
|Mass of unit packed||480g|
|Warranty||24 months limited Manufacturer’s warranty. The warranty does not cover batteries|
WHAT’S IN THE BOX:
1 x Ajax FireProtect Black
