PRODUCT INFORMATION
The Ajax Hub 2 Plus Starter Kit includes all the essentials to get started with a reliable wireless alarm system. The Ajax Hub 2 Plus comes with a power supply, battery backup and communication channels that is integrated into the control panel.
THE AJAX HUB 2 PLUS STARTER KIT INCLUDES:
1 x Ajax Hub 2 Plus White
1 x Ajax MotionProtect White
1 x Ajax DoorProtect White
1 x Ajax SpaceControl White
PLEASE NOTE: FOR DETAILED INFORMATION ON THE DEVICES INCLUDED IN THE KIT, PLEASE CLICK ON THE INDIVIDUAL LINKS ABOVE.
Setting up the system is easy. Install the Ajax App, plug in the 220V power supply to the Hub and connect to the internet. Scan the Hub’s QR code using the App and you are on your way to connect all the other devices included in the kit. Insert a SIM card into the Hub to ensure continuous operation during internet failure.
No SIM card is included in the Kit and Justworx IoT SIM Card can be purchased separately.
ALWAYS IN TOUCH AND CONNECTED
An internet connection is crucial the Ajax System to enable reliable and stable alarm transmission communication to the armed response company as well as all the users registered on the Ajax App.
The Ajax Hub 2 Plus has 4 communication channels and supports LTE. Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up.
AJAX HUB 2 PLUS CONTROLLED VIA AJAX APP
The use of Apps to change settings is reliable and convenient. The Ajax App allows users with administration rights to manage the security of the facility, change settings of the hub as well as devices connected to it, create scenarios and monitor events. The App can be controlled from a smart phone, tablet or PC from anywhere in the world as long as there is an internet connection.
AJAX MOBILE APP DOWNLOAD
AJAX MOTIONCAM COMPATIBILITY
The Ajax MotionCam is compatible with the Ajax Hub 2 Plus and can be added to the kit. The Ajax MotionCam is an indoor motion detector with a built-in camera that takes pictures when the alarm is triggered and send the images via the Ajax App directly to you phone.
AJAX HUB 2 PLUS KIT INDIVIDUAL DEVICE FEATURES:
AJAX HUB 2 PLUS WHITE
- Up to 200 detectors
- Up to 100 cameras
- Up to 200 app users
- Up to 25 alarm groups
- Up to 64 scenarios
- Communication range is up to 2000 m without obstacles (for example, walls, doors, inter-floor constructions.
- Battery backup - up to 15 hours (Power supply 110 – 240VAC)
- The Ajax system informs the user about alarms and events in three ways: push notifications, SMS, and phone calls.
AJAX MOTIONPROTECT WHITE
- Built-in battery (lasts up to 5 years)
- Monitors an area within a 12m radius
- Communication range of 1700m (in an open space/line of sight)
- Pet Immune (ignores pets with weight of up to 20 kg and height up to 50 cm)

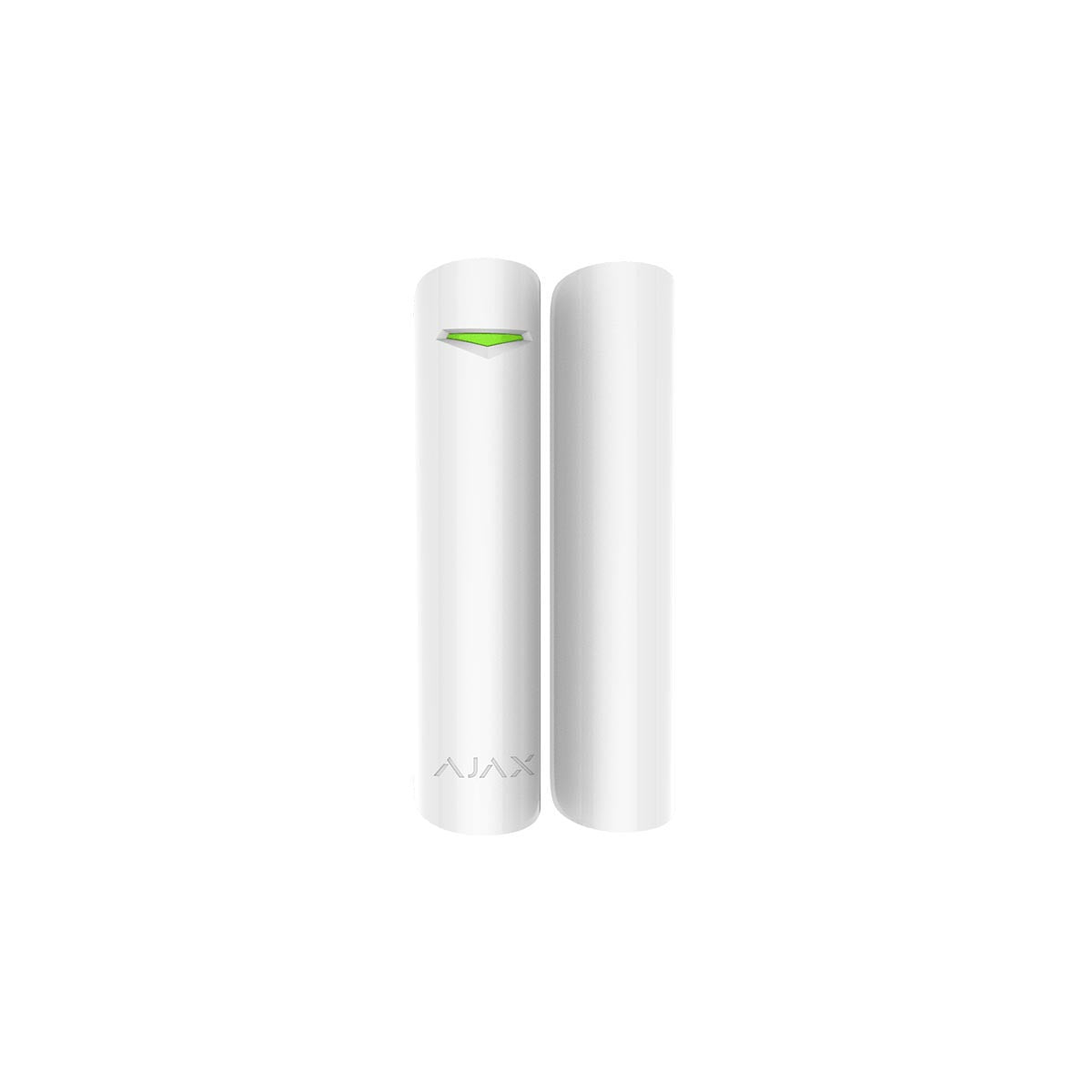

AJAX DOORPROTECT WHITE
- Wireless Indoor detector
- Built-in battery (lasts up to 7 years)
- Communication range of 1200m (in an open space/line of sight)
- DoorProtect opening sensor protects even windows that are open for ventilation
- External contact is available for connecting third-party detectors
AJAX SPACECONTROL WHITE
- Calls for help in case of emergency
- Activates full or partial alarm modes
- Indicates command execution with color blink
- Double or long press against accidental activation
GENERAL SPECIFICATIONS:
Packaging dimensions | 300mm(l) x 230mm(w) x 150mm(h) |
Mass of unit packed | 1100g |
Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries |
WHAT’S IN THE BOX:
1 x Ajax Hub 2 Plus White
1 x Ajax MotionProtect White
1 x Ajax DoorProtect White
1 x Ajax SpaceControl White
