D10 SMΔRT+ Sliding Gate Operator: Built for High-Volume Performance
The D10 SMΔRT sliding gate operator is purpose-built for high-volume applications, offering unmatched reliability and advanced technology to meet the demands of commercial and industrial environments.
Designed to handle gates weighing up to 1000kg, rated for up to 750 daily operations and with a maximum speed of 26m/minute (varies with load), it delivers consistent, powerful performance day in and day out.
Application: Commercial/Industrial
What Sets the D10 SMΔRT+ Apart?
FEATURES OF THE D10 SMART+ MOTOR:
- Speed and Safety: The D10 Smart motor moves even the heaviest of gates in a flash, protecting against tailgating and ensures safe entry and exit to and from the premises.
- Smart hardware: Easy access to mounting hardware, backward compatibility (drop-in replacement) on existing D10 and A10 base plates, optimised cable routing and a dedicated accessory tray for complimentary solutions such as GSM modules.
- Smart connectivity and control: Set the gate limits, auto-close and unique profiles for everyone using the gate with the user-friendly smartphone app.
- Smart security: Built-in vibration sensor can be connected to a third-party device to notify you if the gate motor is being tampered with.
- Uninterrupted security and convenience: The D10 SMART motor comes with a dependable 24V battery backup system. (Batteries not included)
- Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless experience
- Easy Installation: Saving installers time and effort with its industry-leading design
ACCESSORIES FOR CENTURION D10 SMART+ GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 2 x 12V 7.2AH SLA Batteries or 2 x 12V 8AH Gel Batteries
- Steel Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra 4G Intercom Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D10 SMART Anti Theft Bracket
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile and GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Centurion SMART PowerPack
- Clearline Gate Motor Lightning and Surge Protector
SPECIFICATIONS OF THE D10 SMART MOTOR:
| Technical Specifications | D10 SMΔRT+ | |
| Input Voltage1 | 110V - 240V AC 50/60Hz | |
| Current Consumption (Mains) | 590mA | |
| Battery Charger Current Output | 1.8A @ 27.6V +/- 5% (52W) | |
| Maximum number of Operations per day | 7503,6 | |
| Duty Cycle - Mains Present2,3 | 45% | |
| Motor Power Supply | Battery-driven (Standard Capacity - 2x12V5 7Ah) | |
| Current Consumption (Motor at Rated Load) | 8A | |
| Input/Output Sink Currents (Max. Accessory Current Draw) | ||
| I/O 1-4 | 100mA (24V) | |
| I/O 5 and 6 | 3A (24V) 10sec Pulse | |
| Fuse Protection | Type | Rating |
| Main Control Card | Serviceable | 35A Mini ATO |
| Aux. Supply | Resetable Fuse | 24V 3A (10sec Pulse) |
| Charger (Mains Supply) | Nonserviceable | 3A slow-blow |
| Motor Push Force - Starting | 40kgf | |
| Motor Push Force - Rated | 30kgf | |
| Gate Mass - Maximum | 1000kg | |
| Gate Length - Maximum | 50m8 | |
| Gate Speed (Varies with Load)4 | Max: Up to 26m/min Rated: Up to 21m/min |
|
| Wireless Communication | BLE and Wi-Fi (2.4Ghz) | |
| Receiver Code Storage Capacity | 1500 Remotes | |
| Degree of protection | IP54 | |
| Product Dimensions (Motor only) | 205 mm (L) x 295 mm (W) x 390 mm (H) | |
| Product Weight | ||
| Packaging Dimensions | 2000 mm (L) x 350 mm (W) x 570 mm (H) | |
| Mass of unit packed | 15500g | |
| Warranty | 24 Months limited Manufacturer's warranty | |
Additional information pertaining to the Centurion D10 SMART+ motor specifications:
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
Warnings and Limitations on the Centurion D10 SMART+ Motor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Centurion D10 SMART+ Sliding Gate Motor

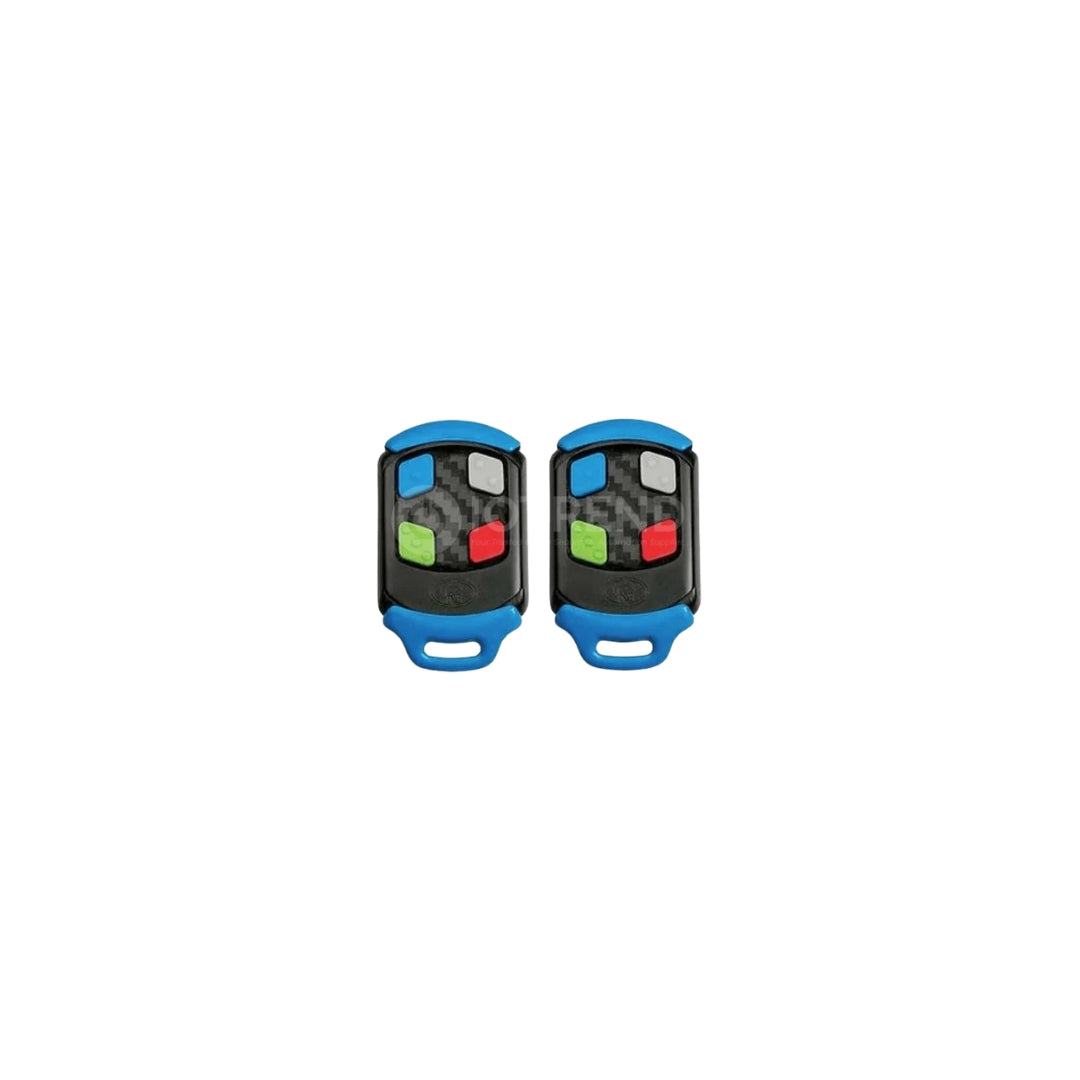

2 x Centurion Nova 4 Button Remotes

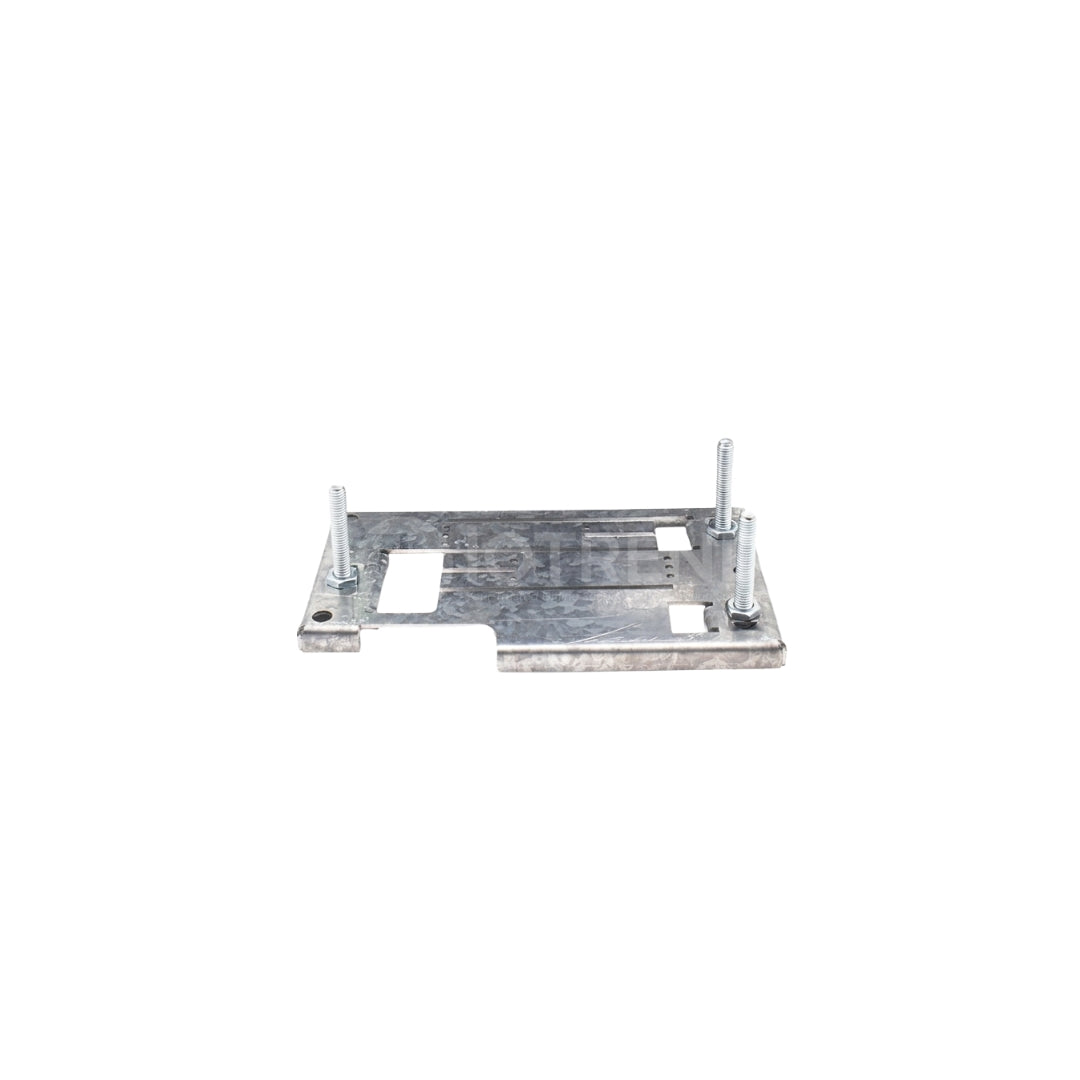

1 x Centurion Baseplate

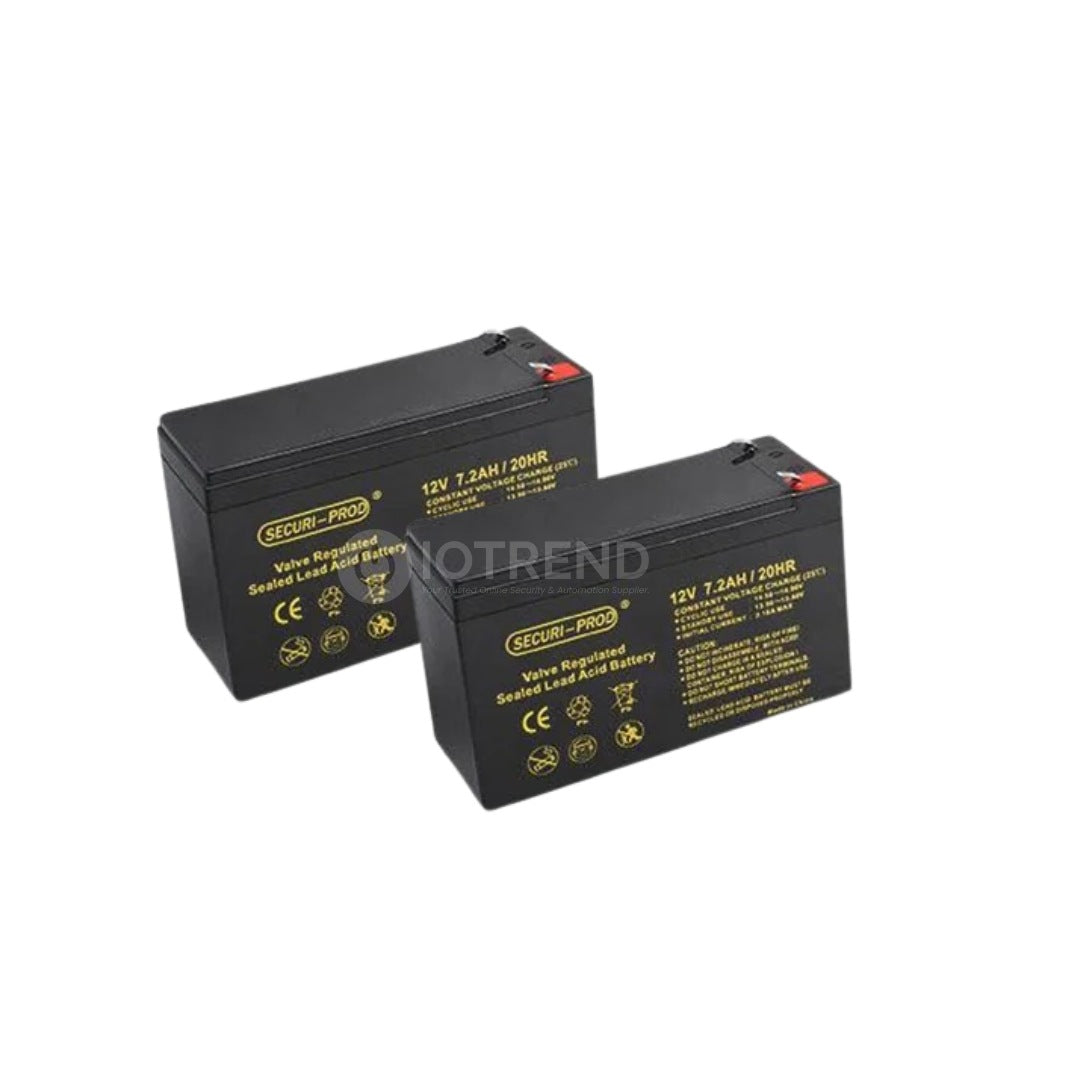

2 x Securi-Prod Batteries

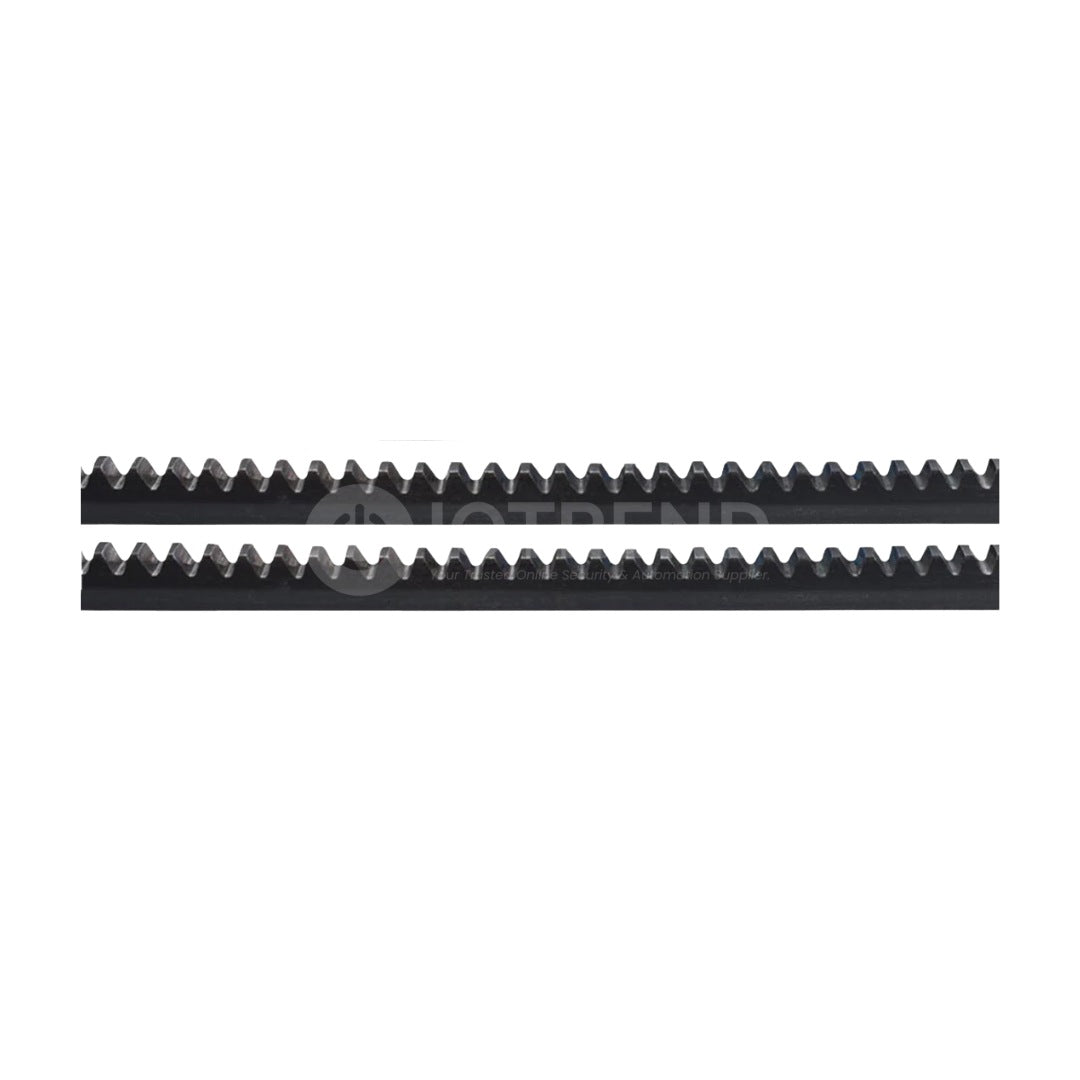

2 x 2 Meter Steel Rack
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
