PRODUCT INFORMATION

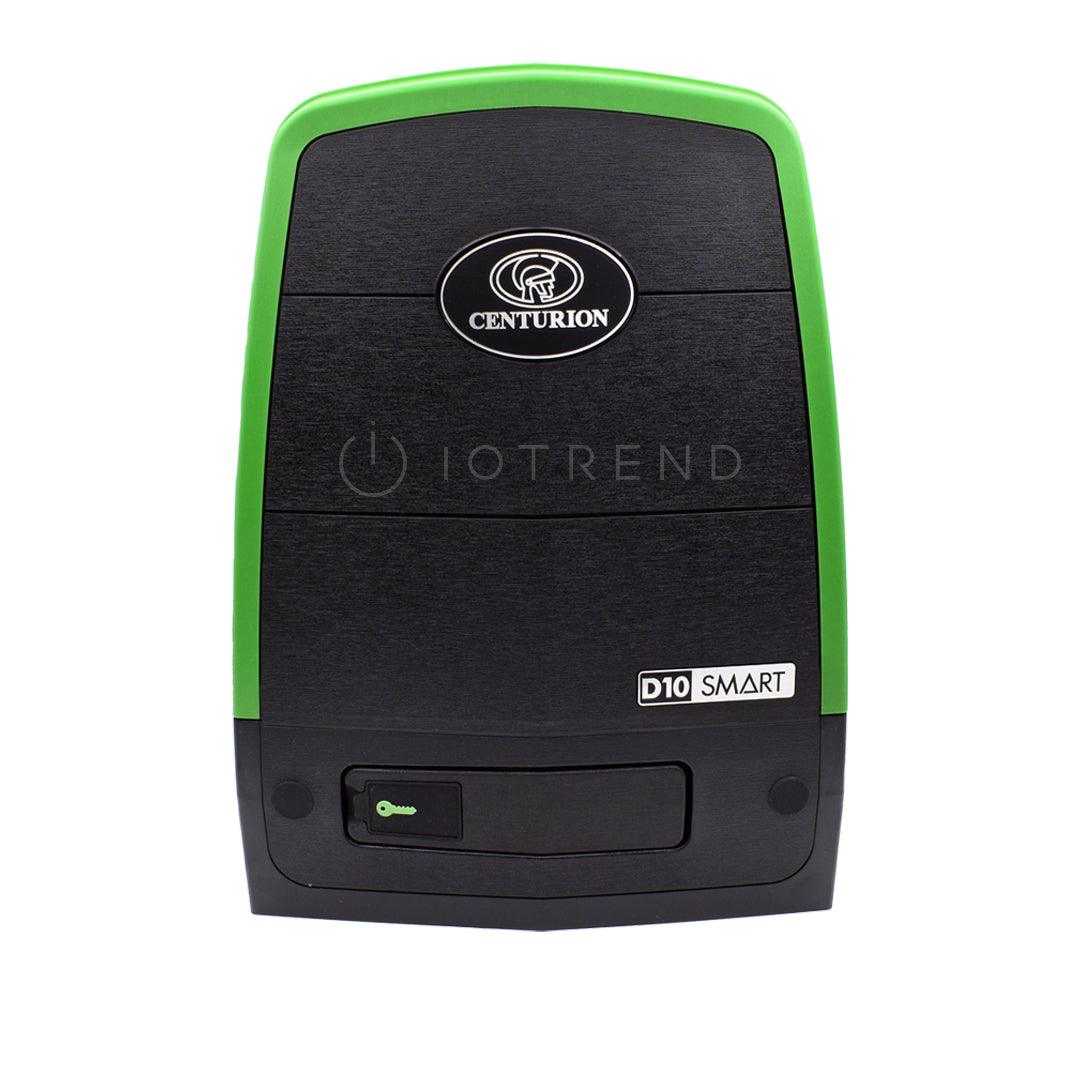

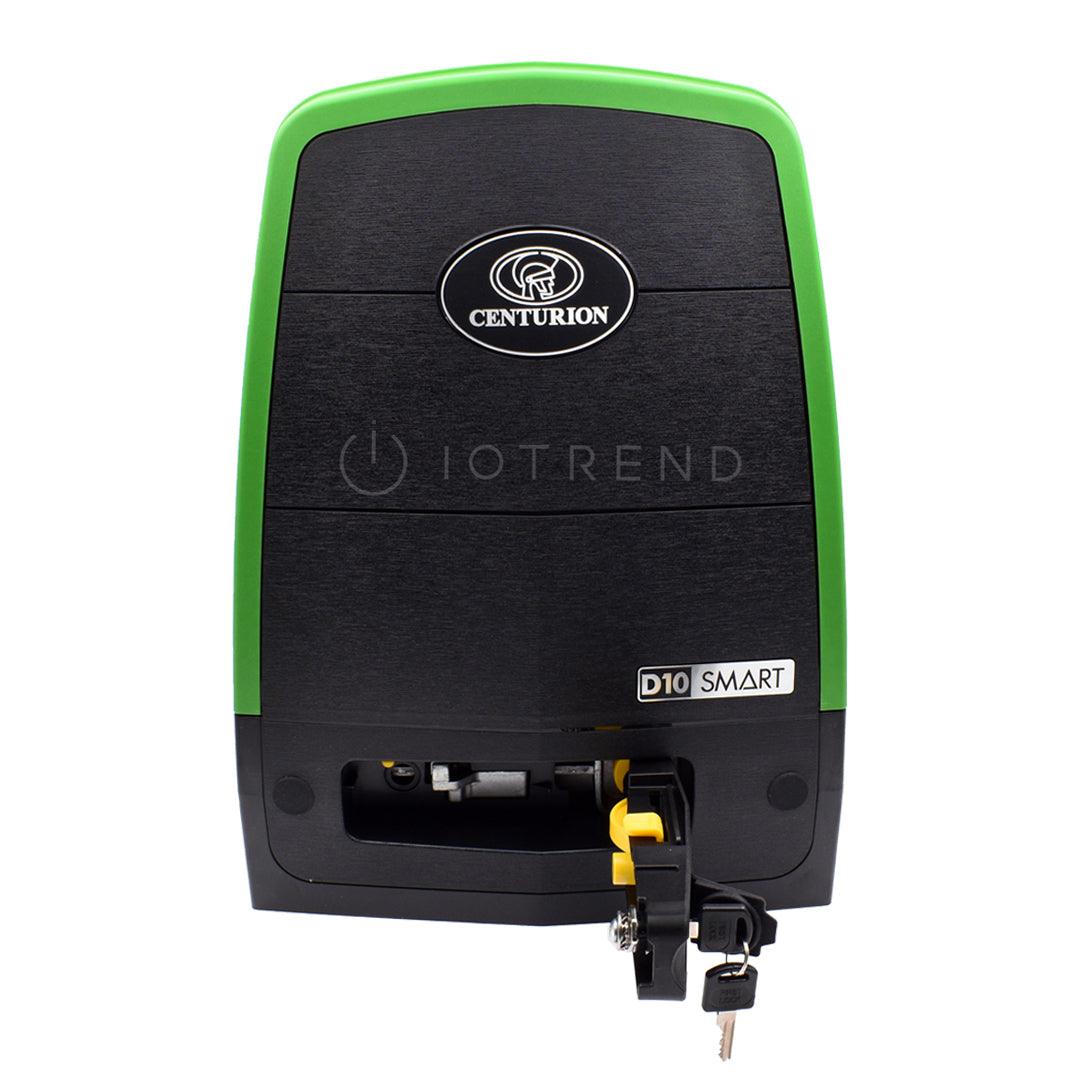

The Centurion D10 SMART Sliding Gate Motor Only Sliding Gate Motor is a legendary high-volume performer for sliding gates up to 1000kg. The Centurion D10 SMART Sliding Gate Motor Only now offers you speed, security, endurance and reliability, quicker and easier than with any other gate motor in the D10's class, thanks to SMART technology and wireless connectivity.
Installer Manual. User Guide.
Features
- Attractive styling
- SMART speed• SMART hardware
- SMART connectivity
- SMART SECURITY
- SMART diagnostics
- Uninterrupted security and convenience
Specifications
| Brand | Centurion |
| Model | D10 SMART |
| Compatible remotes | Nova 1 Button, 2 Button and 4 Button |
| Compatible backup batteries | Securi-Prod 12v 7.2Amp and Securi-Prod 12V 8Amp batteries |
| Compatible controller PCB | SmartX controller |
| Compatible antitheft bracket | D10 SMART Bracket |
| Compatible safety beams | Photon SMART wireless beams |
| Compatible rack | Steel rack |
| Input voltage | 90V - 240V AC ± 10% @ 50Hz *1 |
| Current consumption (Mains) | 250mA |
| Battery charger current output | 1.8A @ 27.4V ± 1% |
| Maximum number of operations per day | 750 |
| Duty cycle - Mains present | 45% |
| Motor voltage | 24V DC |
| Motor power supply | Battery-driven (Standard Capacity - 2 x 12V 7.2Ah) |
| Current consumption (motor at rated load) | 8A |
| Motor push force - starting | 40Kgf |
| Gate mass - maximum | 1000Kg |
| Gate length - maximum | 50m |
| Drive Pinion | 17T Module 4 |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 1500 Remote buttons |
| Receiver frequency | 433.92Mhz |
| Degree of protection | IP54 |
| Gate motor dimension | 295mm(l) x 205mm(w) x 390mm(h) |
| Packaging dimensions | 282mm(l) x 350mm(w) x 470mm(h) |
| Mass of unit packed | 13Kg |
| Warranty | 24 Months carry-in product manufacturer's warranty |
Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.

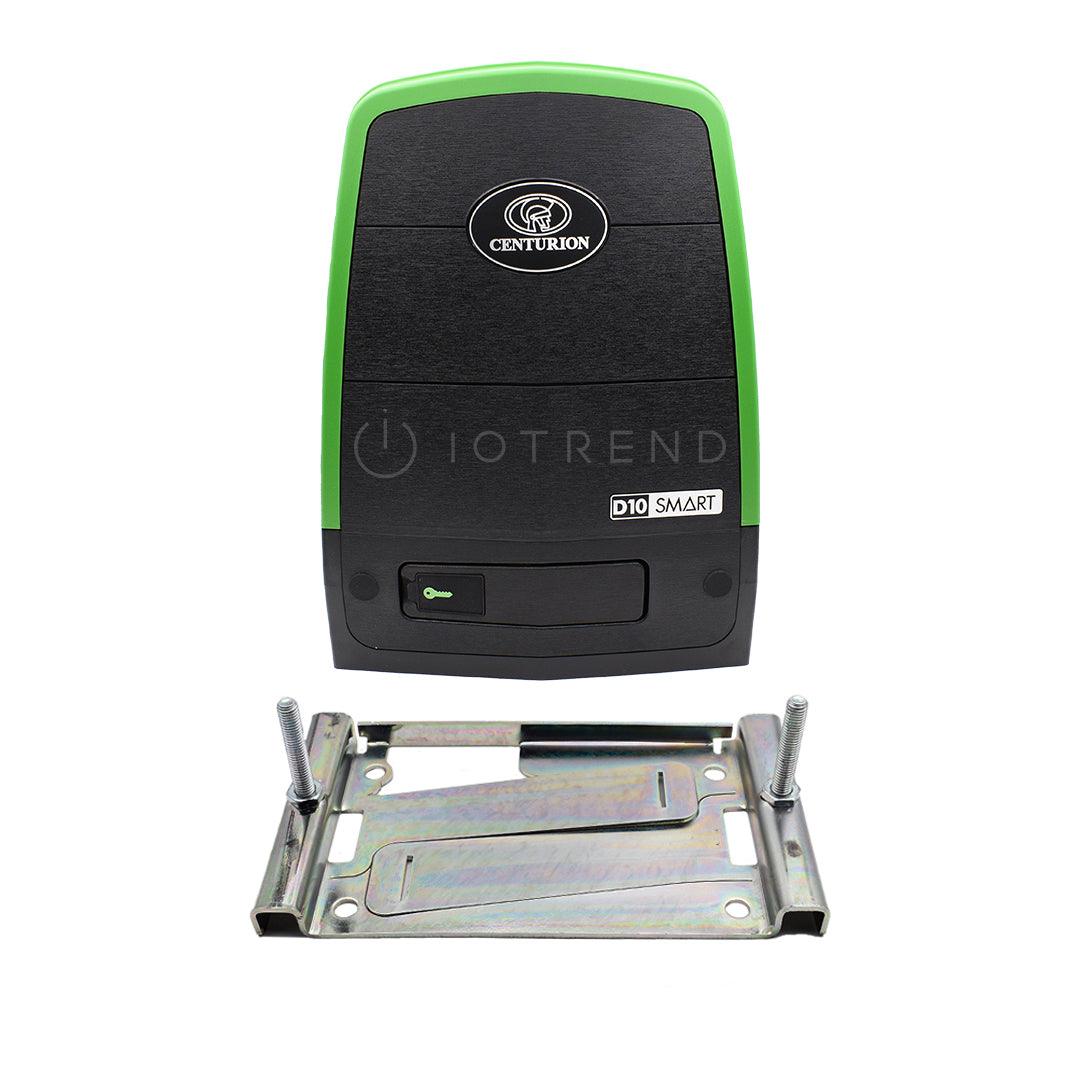

What’s in the box
1 x Centurion D10 SMART Motor
1 x Base plate
BATTERIES AND REMOTES ARE NOT INCLUDED AND SOLD SEPARATELY
