PRODUCT INFORMATION
D10 Turbo SMΔRT+ Sliding Gate Operator
The D10 Turbo SMΔRT+ is the high-speed performer in the SMΔRT+ sliding gate range, engineered for high-traffic environments where rapid access, controlled movement and consistent uptime are essential. It is well suited to residential estates, commercial sites and light-industrial entrances requiring high daily throughput without compromising reliability or safety.
Application: Residential/Light-Industrial
Please note: Batteries are not included with the motor.
What Sets the D10 Turbo SMΔRT+ Apart?
FEATURES OF THE D10 TURBO SMART+ MOTOR:
- Speed and Safety: The D10 Turbo Smart motor moves even the heaviest of gates in a flash, protecting against tailgating and ensures safe entry and exit to and from the premises.
- Smart hardware: Easy access to mounting hardware, backward compatibility (drop-in replacement) on existing D10 and A10 base plates, optimized cable routing and a dedicated accessory tray for complimentary solutions such as GSM modules.
- Smart connectivity and control: Set the gate limits, auto close and unique profiles for everyone using the gate with the user-friendly smartphone app.
- Smart security: Built-in vibration sensor can be connected to a third-party device to notify you if the gate motor is being tampered with.
- Uninterrupted security and convenience: The D10 Turbo SMART motor comes with a dependable 24V battery backup system. (Batteries not included)
- Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless experience
- Easy Installation: Saving installers time and effort with its industry-leading design
ACCESSORIES FOR CENTURION D10 TURBO SMART+ GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 2 x 12V 7.2AH SLA Batteries or 2 x 12V 8AH Gel Batteries
- Steel Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra 4G Intercom Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D10 SMART Anti Theft Bracket
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile and GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Centurion SMART PowerPack
- Clearline Gate Motor Lightning and Surge Protector
SPECIFICATIONS OF THE D10 TURBO SMART+ GATE MOTOR:
| Technical Specifications | D10 TURBO SMΔRT+ | |
| Input Voltage1 | 110V - 240V AC 50/60Hz | |
| Current Consumption (Mains) | 590mA | |
| Battery Charger Current Output | 1.8A @ 27.6V +/- 5% (52W) | |
| Maximum number of Operations per day | 7503,6 | |
| Duty Cycle - Mains Present2,3 | 25% | |
| Motor Power Supply | Battery-driven (Standard Capacity - 2x12V5 7Ah) | |
| Current Consumption (Motor at Rated Load) | 10A | |
| Input/Output Sink Currents (Max. Accessory Current Draw) | ||
| I/O 1-4 | 100mA (24V) | |
| I/O 5 and 6 | 3A (24V) 10sec Pulse | |
| Fuse Protection | Type | Rating |
| Main Control Card | Serviceable | 35A Mini ATO |
| Aux. Supply | Resetable Fuse | 24V 3A (10sec Pulse) |
| Charger (Mains Supply) | Nonserviceable | 3A slow-blow |
| Motor Push Force - Starting | 24kgf | |
| Motor Push Force - Rated | 18kgf (Maximum) | |
| Gate Mass - Maximum | 250kg | |
| Gate Length - Maximum | 100m8 | |
| Gate Speed (Varies with Load)4 | Max: Up to 43m/min Rated: Up to 34m/min |
|
| Packaging Dimensions | 282 mm (L) x 350 mm (W) x 480 mm (H) | |
| Mass of unit packed |
12000g |
|
Additional information pertaining to the D10 Turbo Smart+ motor specifications:
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
Warnings and Limitations on the Centurion D10 Turbo Smart+ Motor:
- All installations must be done by a suitable qualified technician
- Under no circumstances may any of the components be modified.

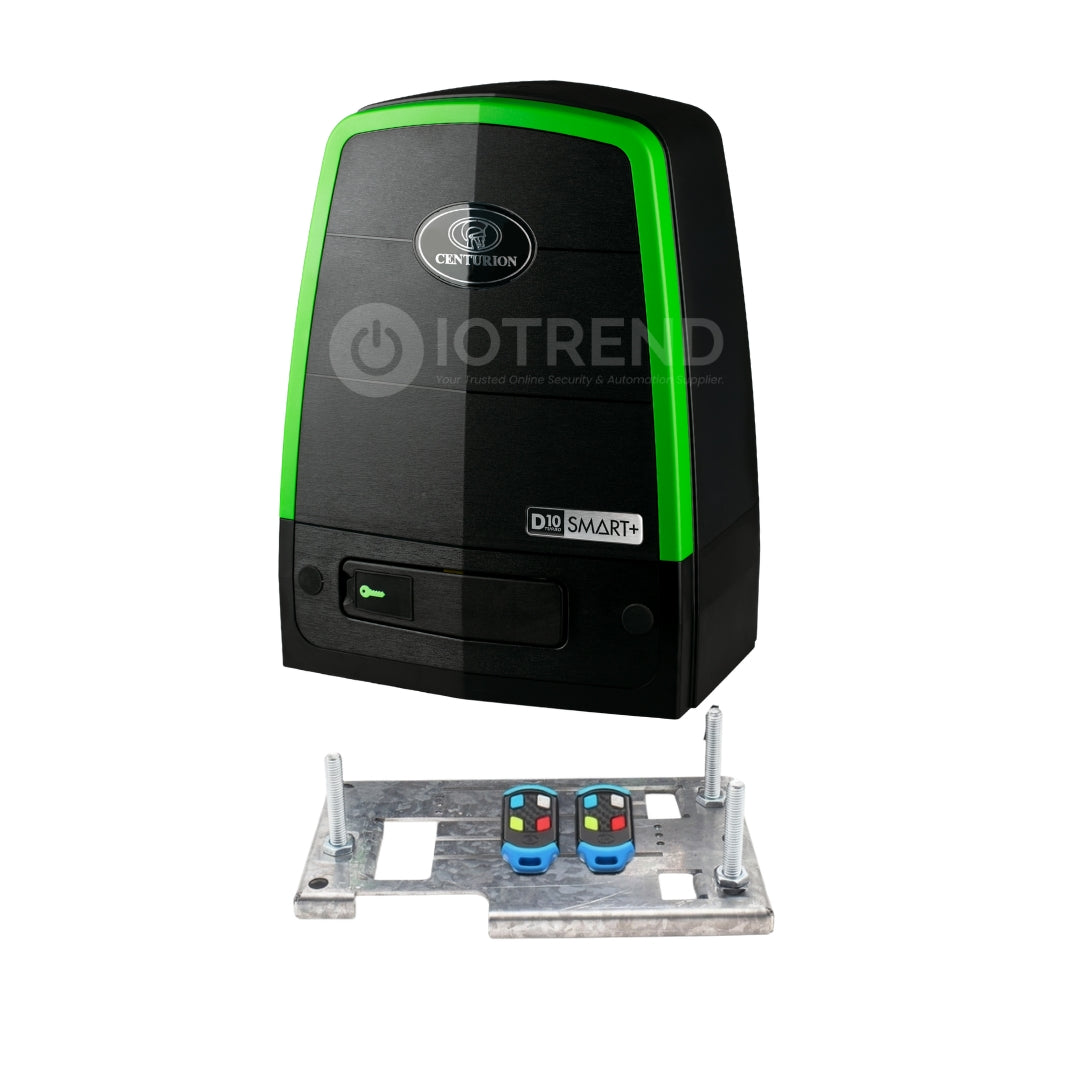

WHAT’S IN THE BOX:
1 x Centurion D10 Turbo SMART Sliding Gate Motor
2 x Centurion Nova 4 Button Remotes
1 x Centurion Baseplate
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
