PRODUCT INFORMATION
D20 SMΔRT+ Sliding Gate Operator: Heavy-Duty Performance
The D20 SMΔRT+ is the heavy-duty industrial sliding gate operator in the SMΔRT+ range, engineered for high-demand commercial and industrial entrances where reliability, durability and consistent uptime are critical.
Application: Heavy Industrial/Commercial
Please note: Batteries and Remotes are not included in the motor.
What Sets the D20 SMΔRT+ Apart?
FEATURES OF THE CENTURION D20 SMART+ SLIDING GATE MOTOR WITH REMOTES:
- Smooth and strong: The powerful motor treats even the most massive gates like a featherweight, moving silky smooth and ensuring a long and healthy lifespan
- Alert and agile: Reliable Hall Effect technology keeps track of the gate position at all times and ensures pin-point stopping. The motor also boasts advanced safety features and cutting-edge obstruction technology, ensuring that your gate isn’t only secure, but completely safe
- Staying power: The D20 SMART’s starting and stopping power makes it the best in its class and the die-cast aluminium gearbox is the very definition of rugged. Being so strong means that the motor will last longer as its parts are never put under any serious stress
- SMART hardware: Best experience for installers with easy access to mounting hardware, backward compatibility (drop-in replacement) on existing A10 base plates, optimized cable routing and a dedicated accessory tray for complementary solutions such as GSM modules
- SMART connectivity: Set the gate limits, speed, automatic closing and unique profiles for everyone using the gate.
- SMART Security: The custom designed theft-deterrent bracket threads through the gearbox. Additionally, the unit has a built-in vibration sensor that can be linked to an alarm to notify you of tampering with the motor.
- SMART diagnostics: The MyCentsys Pro mobile app connects wirelessly to the gate motor and gives you instant access to advanced in-app diagnostics and logs, monitoring system health in real time and saving you time and effort
ACCESSORIES FOR CENTURION D20 SMART+ GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 2 x 12V 7.2AH SLA Batteries or 2 x 12V 8AH Gel Batteries
- Steel Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra 4G Intercom Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D20 SMART Anti Theft Bracket
- Gooseneck
- Gate wheels, 100mm V Profile
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Centurion SMART PowerPack
- Clearline Gate Motor Lightning and Surge Protector
- 24V Siren
SPECIFICATIONS OF THE CENTURION D20 SMART+ SLIDING GATE MOTOR
| Technical Specifications | D20 SMΔRT+ | |
|---|---|---|
| Input voltage | 110V - 240V AC 50/60Hz1 | |
| Current consumption (Mains) | 590mA | |
| Battery charger current output | 1.8A @ 27.6V +/- 5% (52W) | |
| Maximum number of operations per day | 750.2, 5 | |
| Duty cycle - Mains present2, 3 | 45% | |
| Motor voltage | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x12V5 7Ah)3 | |
| Current consumption (motor at rated load) | 9A | |
| Input / Output sink currents (Max accessory current draw) | ||
| I/O 1-4 | 100mA (24V) | |
| I/O 5 and 6 | 3A (24V) 10sec Pulse | |
| Motor push force - starting | 52kgf | |
| Motor push force - rated | 39kgf | |
| Gate mass - maximum | 2000kg | |
| Gate length - maximum | 50m | |
| Gate speed (varies with load)2, 5 | Max: Up to 18m/min Rated: Up to 16m/min |
|
| Manual Override | Lockable lever with key release | |
| Drive Pinion | 13T Module 4 | |
| Operations in standby with 2x 7.2Ah batteries | Power Saving (15m/min 20kgf) | Normal (18m/min 20kgf) | |
| Half day2, 3, 4 | 101 | 55 | |
| Full day2, 3, 4 | 80 | 45 | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| Onboard receiver type | CENTURION rolling code (Keeloq encryption) multichannel | |
| Receiver code storage capacity | 1500 Remotes6 | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13500g | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 480mm high |
Additional information pertaining to the D20 SMART+ motor specifications:
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
Warnings and Limitations on the Centurion D20 SMART+ Motor:
- All installations must be done by a suitable qualified technician
- Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:

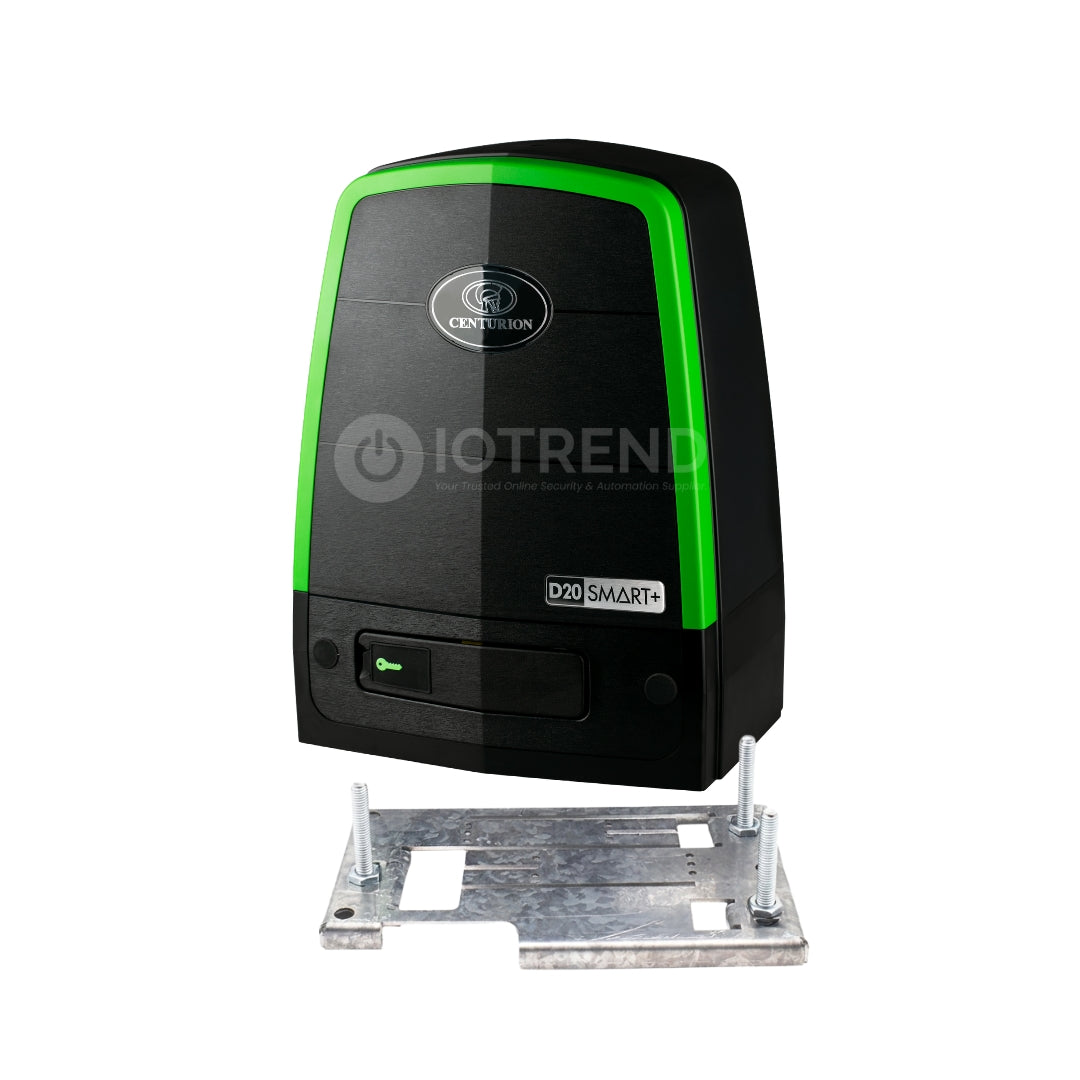

1 x Centurion D20 SMART+ Sliding Gate Motor (No Remotes or Batteries)
1 x Centurion Baseplate
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
