PRODUCT INFORMATION
Product Code:

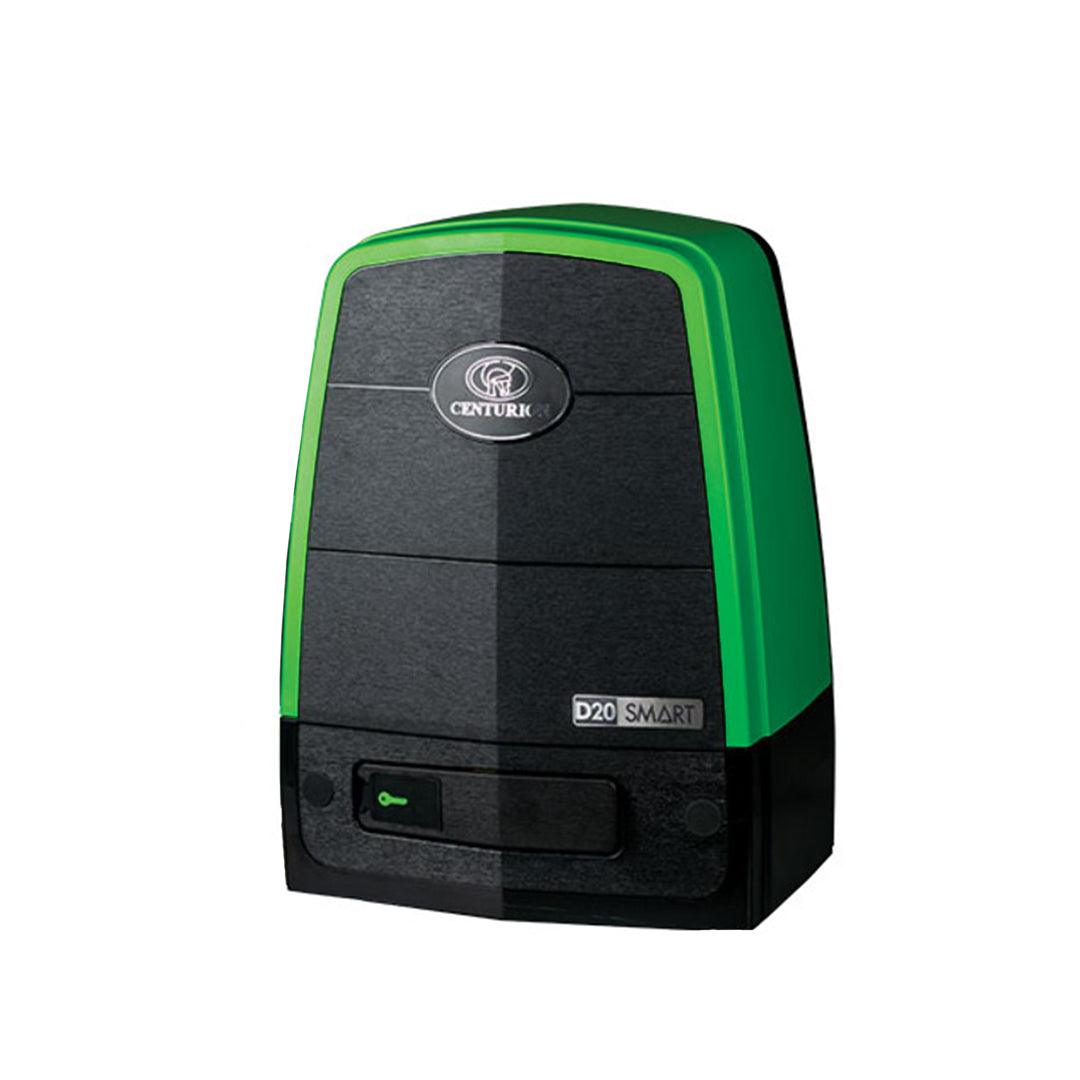

D20 SMART sliding gate motor for heavy gates
When it’s time to beef up security, you need real muscle, the kind that only the number one in access automation can deliver. Introducing the brand new D20 SMART industrial sliding gate motor. If your high-volume site calls for the kind of security that never backs down even when it’s pushed beyond the limits of other gate motors, make the intelligent choice and get the D20 SMART.
FEATURES:
- Strong enough to move a 2t gate
- Easy “drop-in” replacement for existing A10 sites
- SMART technology makes the D20 SMART as intelligent as it’s solid
- Installer-friendly design with easy access to mounting hardware, optimised cable routing and a dedicated accessory tray
- Smooth and strong
- Alert and agile – highly reliable Hall Effect technology keeps track of the gate position at all times, and ensures pin-point stopping
SPECIFICATIONS:
| Brand | Centurion |
| Input voltage | 90V - 240V AC +/-10% @ 50Hz1 |
| Current consumption (Mains) | 250mA |
| Motor voltage | 24V DC |
| Motor power supply | Battery-driven (Standard Capacity - 2x 7.2Ah)3 |
| Current consumption (motor at rated load) | 9A |
| Motor push force - starting | 52kgf |
| Gate mass - maximum | 2000kg |
| Gate length - maximum | 25m |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | CENTURION rolling code (Keelog encryption) multichannel |
| Degree of protection | IP54 |
| Product dimension | 205mm(L) x 295mm(W) x 390mm(H) |
| Package dimension | 282mm(L) x 350mm(W) x 470mm(H) |
| Mass of unit packed | 13Kg |
| Warranty | Manufacturer Warranty |
WHATS IN THE BOX:
1 x Centurion D20 Smart Gate Motor
