PRODUCT INFORMATION
The Centurion D5 Evo SMART Sliding Gate Motor Kit with Steel Rack combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone.
The D5 Evo SMART sliding gate motor is packed with advanced – yet intuitive and user-friendly – functionality to make your life easier.
Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
The D5 Evo SMART sliding gate motor is suitable for gates with a maximum weight of 500kg.
The Centurion D5 Evo SMART Sliding Gate Motor Kit with Steel Rack Includes:
- 1 x Centurion D5 Evo Smart Motor
- 1 x Baseplate

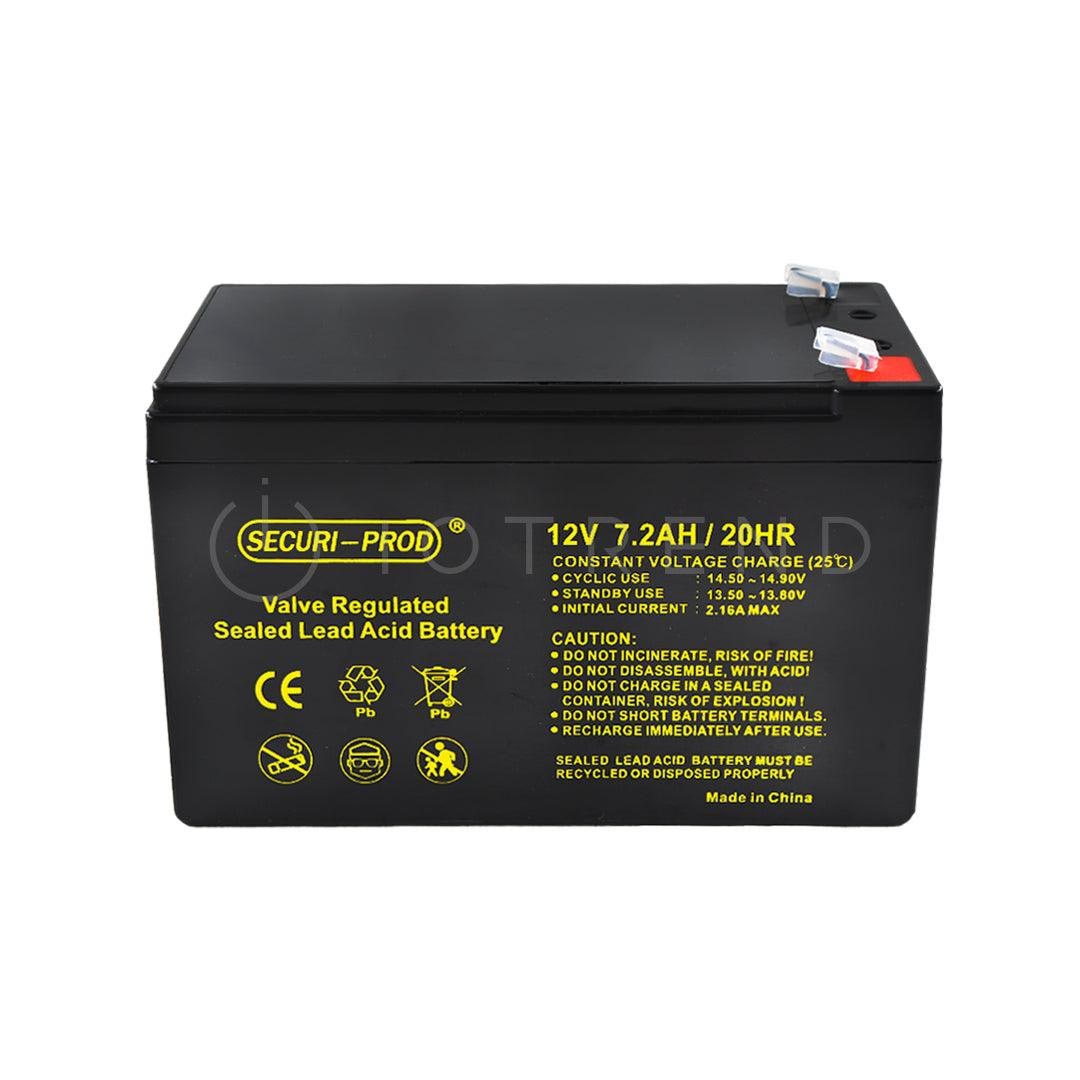

- 1 x Securi-Prod 12V 7.2AH SLA Battery
- 2 x Centurion Nova 4 Button Remotes

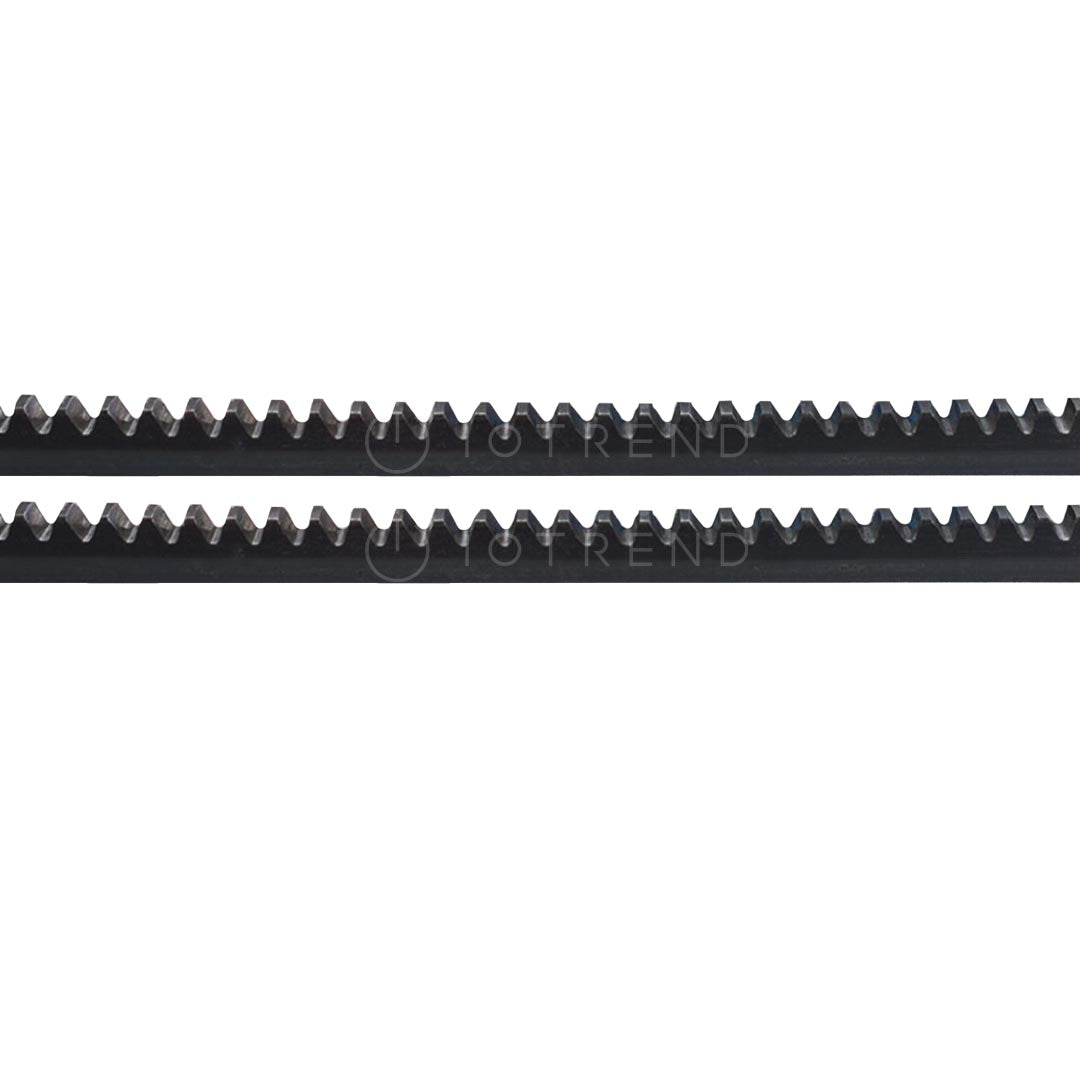

- 2 x 2m Steel Rack (4 meters)
FEATURES OF THE D5 EVO SMART MOTOR:
- Seamless Control: Manage your gate with maximum convenience, control and flexibility with the user-friendly smartphone app
- Intelligent Insights: Advanced notifications, alarms, monitoring and reporting keep you informed and in control
- Uninterrupted Security and Convenience: Dependable battery-driven technology ensures seamless operation even during power outages
- Effortless Setup: Wireless configuration and smartphone control make installation a breeze
- Enhanced Security: The improved theft-resistant cage and advanced position control system offer unparalleled peace of mind
- Ultimate Versatility: Individually configurable inputs and outputs allow for harmonious integration with your SMART ecosystem
ACCESSORIES FOR CENTURION D5 EVO SMART GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 1 x 12V 8AH Gel Battery
- Nylon Raz Rack, Angle Nylon Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D5 Evo SMART Anti-Theft Bracket
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Clearline Gate Motor Lighting and Surge Protector
SPECIFICATIONS OF THE D5 EVO SMART MOTOR:
| Input voltage (1) | 110V - 240V AC 50/60Hz (1) |
| Current consumption (mains) | 320mA peak |
| Dx12V Battery charger current output | 1.8A @ 14.3V +/- 5% (28W) |
| Maximum number of operations per day | 150 (3,6) |
| Duty cycle - Mains present (2,3) | 50% |
Motor power supply |
Battery-driven (Standard Capacity - 1x12V) |
| Current consumption (motor at rated load) | 15A |
| Input / Output sink currents (Max. accessory current draw) | I/O 4 and I/O 5: 100mA (12V) |
| O6: 3A (12V) 10sec Pulse | |
| Fuse Protection | Type | Rating |
| Main Control Card | Serviceable | 35A |
| Aux. Supply | Resettable Fuse | 12V 600mA (10sec Pulse) |
| Charger (Mains Supply) | Non-serviceable | 3A slow-blow |
| Motor push force – starting | 30kgf |
| Motor push force – rated | 17kgf |
| Gate mass – maximum | 500kg |
| Gate length – maximum | 20m |
| Gate speed (varies with load) (4) | Maximum: Up to 24m/min Rated: Up to 19m/min |
| Manual Override | Lockable with key release |
| Operations whilst in Battery backup mode with 7.2Ah Battery | Operating Modes |
| Up to 24m/min 7kgf | Up to 18m/min 17kgf | |
| Half day (5,6,8) | 90 | 44 |
| Full day (5,6,8) | 70 | 35 |
Collision Sensing |
Electronic |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 1500 Remotes (7) |
| Receiver frequency | 433.92MHz |
| Degree of protection | IP55 |
| Packaging Dimensions | 2000 mm (L) x 240 mm (W) x 510 mm (H) |
| Mass of unit packed | 18500g |
| Warranty | 24 months limited Manufacturer’s warranty (excludes battery) |
Additional information pertaining to the D5 Evo Smart motor:
1. Can operate off a solar supply
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase Battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
Warnings and Limitations on the Centurion D5 Evo Smart Motor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Centurion D5 Evo SMART Sliding Gate Motor
1 x Base Plate
1 x Securi-Prod 12V 7.2AH SLA Rechargeable Battery
2 x Centurion Nova 4 Button Remotes
2 x 2m Steel Rack
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
