PRODUCT INFORMATION
Smart Wi-Fi Pan & Tilt Camera
The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree field of view and smart tracking function, you won’t need to worry about missing a thing.
Smart night vision with Smart IR.
With Smart IR, the intensity of the infrared LEDs automatically adjusts to prevent overexposure in night vision mode, so you will get more details of the object or person captured at night.
Smart Tracking
When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.
Communication Anytime
Talk to your loved ones and deter unwelcome strangers – all by using the C6N’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.
FEATURES OF THE EZVIZ C6N WIFI PAN/TILT 2MP CAMERA:
SPECIFICATIONS OF THE EZVIZ C6N WIFI PAN/TILT 2MP CAMERA:
| CAMERA | |
| Image Sensor | 1/4" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45°vertical |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| VIDEO | |
| Video Compression | H.264 |
| Video Bit Rate | Adaptive bit rate |
| NETWORK | |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | AP paring |
| Protocol | Ezviz Cloud proprietary protocol |
| Interface Protocol | Ezviz Cloud proprietary protocol |
| WI-FI | |
| Standard | IEEE802.11b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| IMAGE | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission |
| INTERFACE | |
| Storage | MicroSD card slot (Max. 256GB) |
| Power | Micro USB |

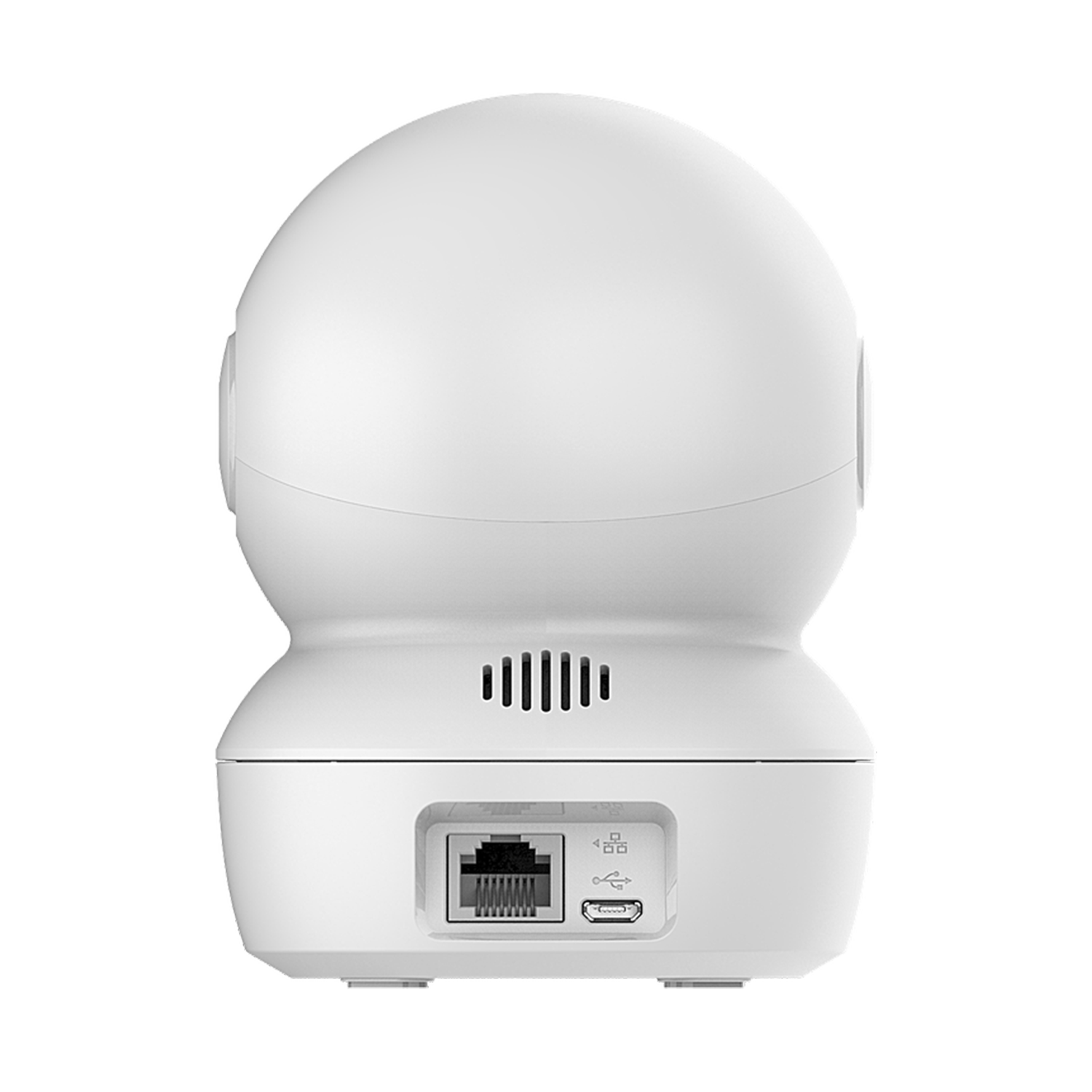

| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| GENERAL | |
| Power Supply | DC 5V/1A |
| Power Consumption | 5W max |
| IR Range | MAX. 10m |
| Operating Environment | Temperature: -10° C to 45° C , Humidity: 95% or less (non-condensing) |
| Certifications | FCC / UL / CE / WEEE / REACH / ROHS |
| Product Dimensions | 88mm x 88.2mm x 119mm |
| Product Weight | 218g |
| Packaging Dimensions | 103mm x 103mm x 168mm |
| Mass of unit packed | 600g |
| Warranty | 12 months limited Manufacturer’s warranty |
PLEASE NOTE: NO MICRO SD CARD INCLUDED WITH THE C6N WIFI PAN/TILT 2MP CAMERA.
WHAT’S IN THE BOX:
1 x C6N 2MP camera
1 x Base
1 x Screw Kit
1 x Power Cable 3m (9.8 ft.)
1 x Drill Template
1 x Power Adapter
1 x Quick Start Guide
