R 695.00 Incl. VAT
R 899.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

PRODUCT BROCHURE CC599-15

Smart security catering for every household

Step into a realm of enhanced indoor security with the latest H6c Pro. Thanks to its rotation and patrol feature, this smart camera dynamically captures every corner with no detail unnoticed. Responding with unmatched agility to human motion and sudden clamors, it propels tracking into new levels. With a newly designed touch call button, the H6c Pro ensures you’re always connected to your family, no matter the distance.

Connect to your loved ones

Stay connected with your families is of great significance. No worries if your baby cries, this smart camera keeps you informed when human voices are detected. What’s more, a simple tap on the camera is all it takes when your elderly parents need to reach out to you, which is the simplest way to start a video call.

360° Protection with customized patrol

The H6c Pro pans and tilts automatically to eliminate blind spots with its unique patrol mode . You can even customize patrol pattern in accordance with your very special home, leaving no corner uncovered.

Overall Patrol

Customize Patrol

Pan horizontally

Follow the order of pre-set points (Up to 4 points)

Elevating visual protection in every angle

The H6c Pro unveils a panoramic vision over your indoor domain. It can deftly rotate to capture every detail in your room, such as the position of your little kids or your flurry pets, protecting your home from day to night.






H6c Pro

Specifications
Model CS-H6c-R105-1L2WF
Camera
Image sensor F1.6@1/3" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264/H.265
Video Bit Rate Adaptive bit rate.
Max. Resolution 1920 × 1080
Frame Rate Max:25fps; Self-Adaptive during network transmission
Network
Smart Alarm Motion Detection, Human Detection, Human Tracking, Noise Detection, Auto Patrol
Wi-Fi Pairing AP Paring
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Interface
Storage Micro SD card slot (Max. 512G)
Power Type-C

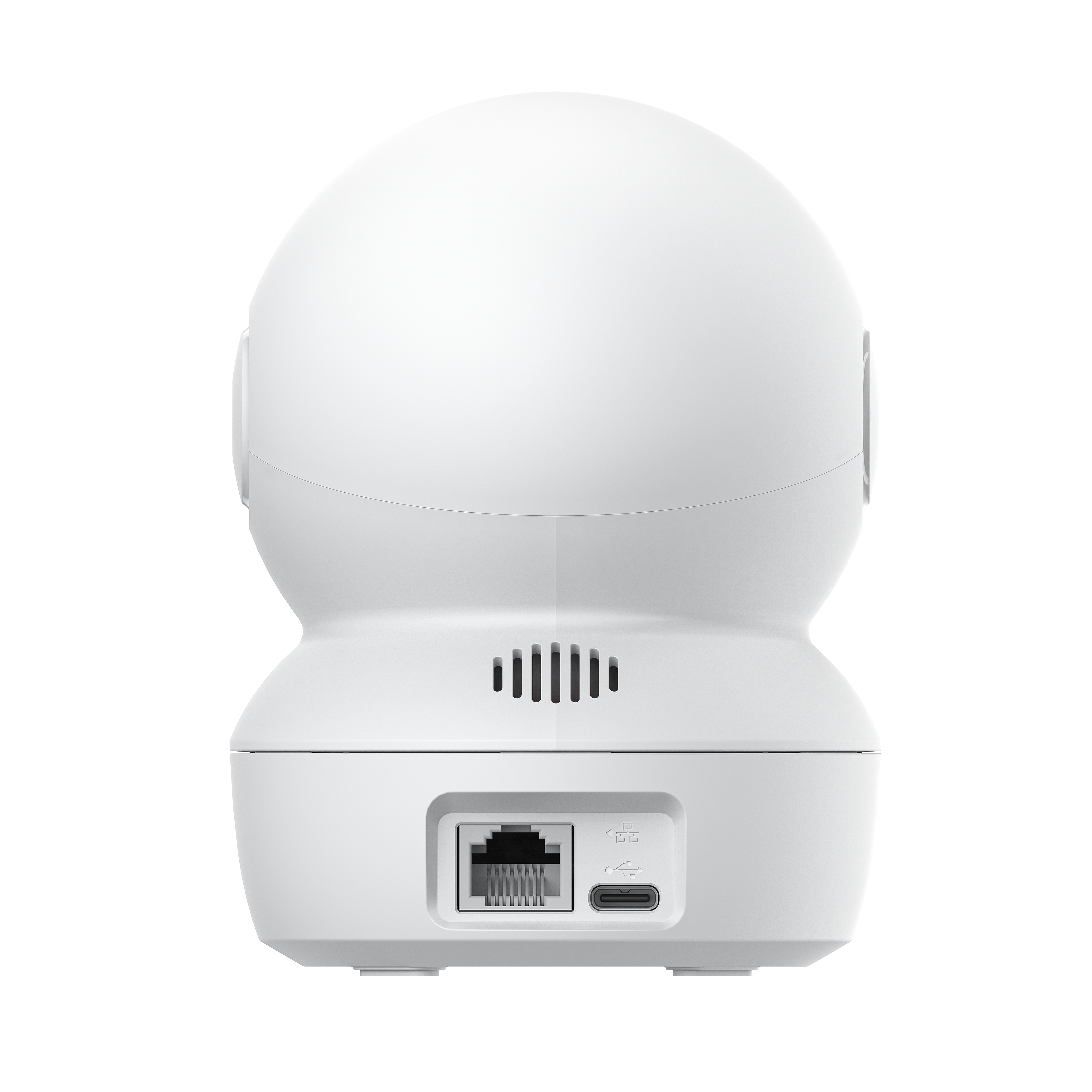

Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP) 19 dBm
Antenna Gain 1.9 dBi
General
Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/1A
Power Consumption Max. 5W
IR Range Max. 10 meters (32.81ft)
Dimensions 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
Bare Weight 218g (0.48lb)
WHAT'S IN THE BOX:
 Camera
- Power Adapter
- Power Cable
- Drill Template

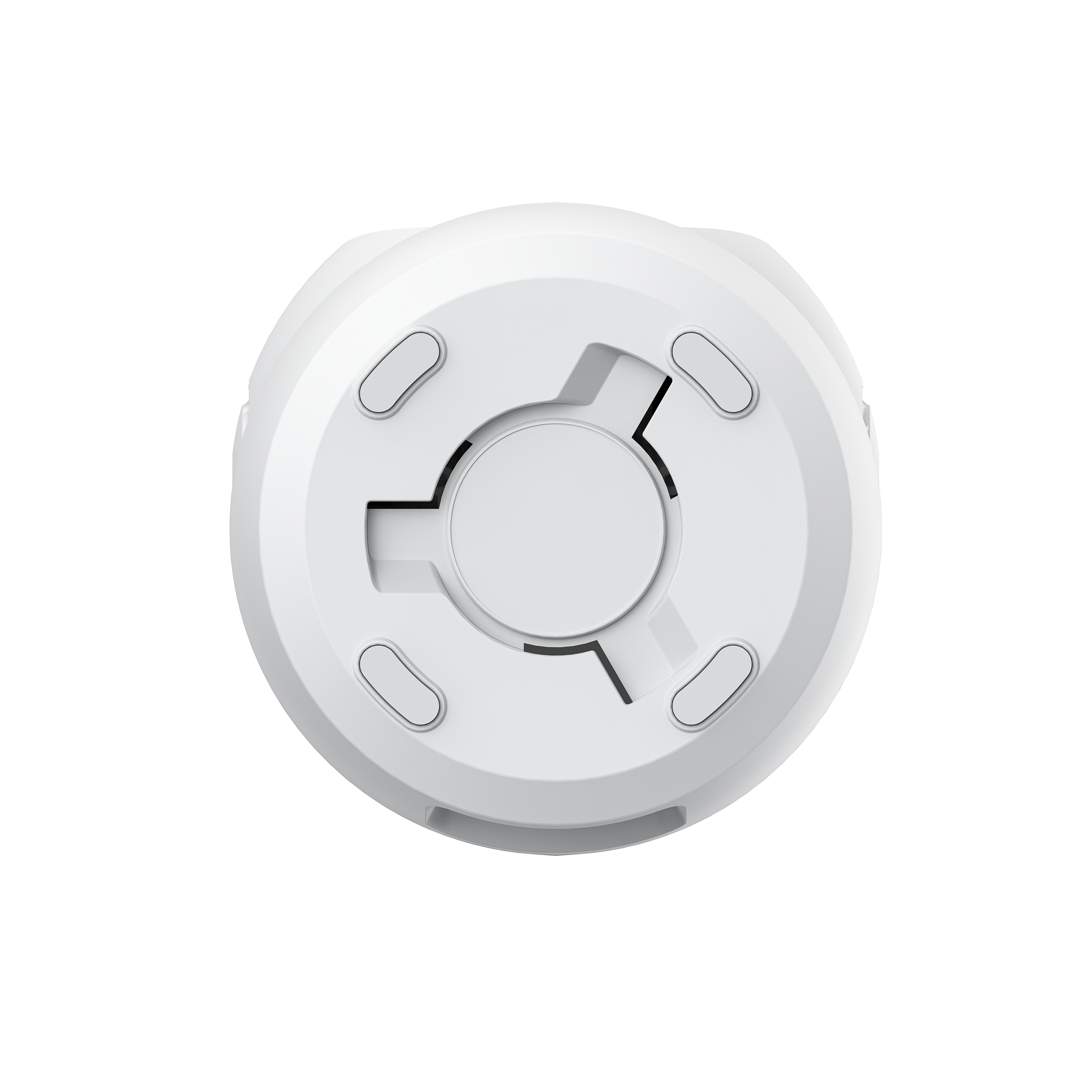

- Mounting Plate
- EZVIZ Screw Kit
- Regulatory Information
- Quick Start Guide
CE / UL / WEEE / REACH / RoHS / UKCA
