PRODUCT INFORMATION
The Takex PB-10NS Photoelectric Beam Detector Flush Mount 10m Range offers a discrete solution where a surface mount product is unsuitable or unsightly.
It is perfect for covert/prestige applications including ATM machines, motor driven shutters, windows, and corridors.
The unit features a miniature control box for easy installation with two sensor cords that can be cut to length as required.
Product Code: PB-10NS
FEATURES OF THE PB-10NS PHOTOELECTRIC BEAM SENSOR:
- Miniaturized control box for easy installation
- Sensor cord can be cut to length as required
- Easy Installation
- Supplied with flush mounting plates for sensor heads
- Built-in Sensitivity Adjustment

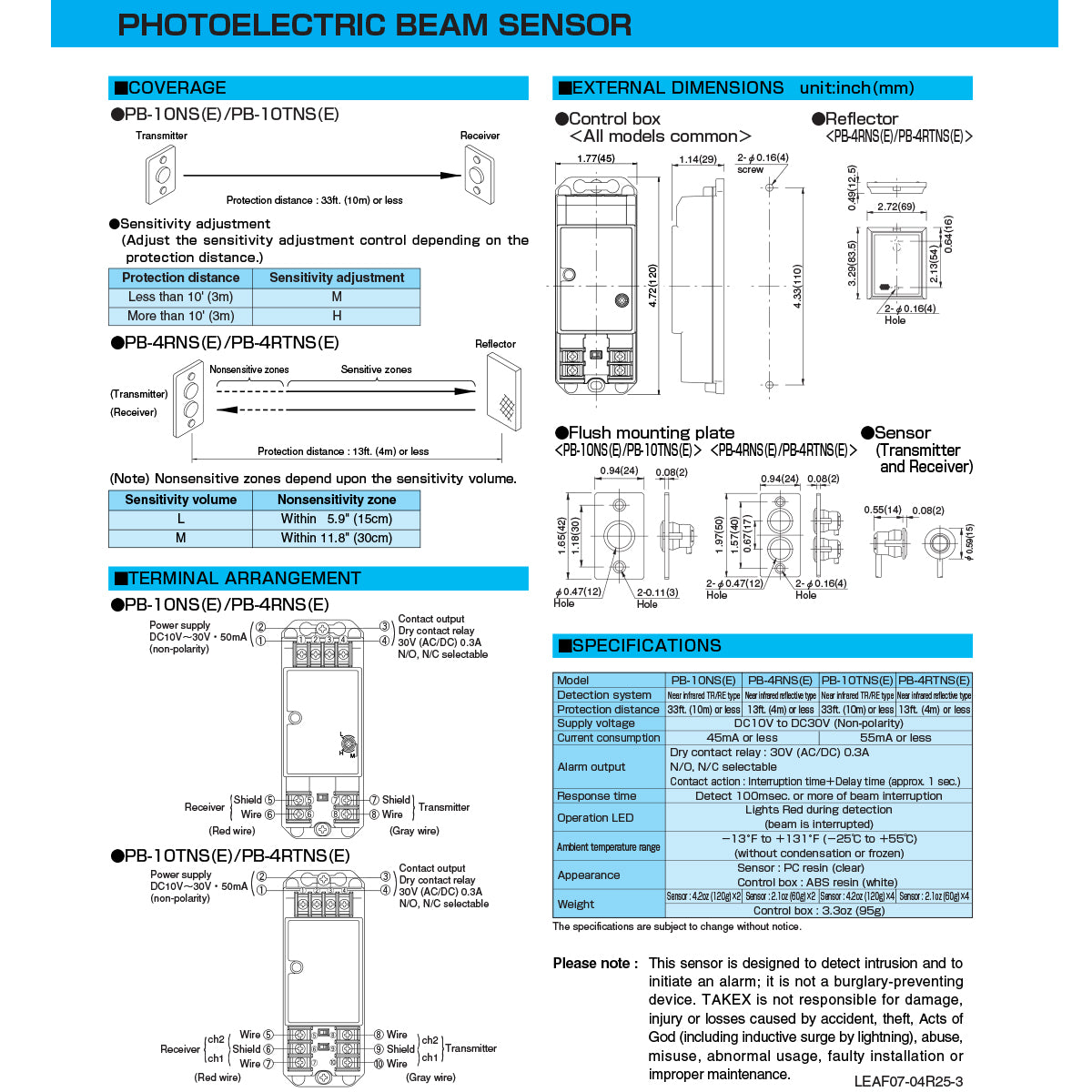

SPECIFICATIONS OF THE PB-10NS PHOTOELECTRIC BEAM SENSOR:
| Type | Single Beam |
| Detection system | Near infrared TR/RE type |
| Detection distance | 10m or less |
| Response time | Detect 100msec. or more of beam interruption |
| Supply voltage | DC10V to DC30V (non-polarity) |
| Current consumption | 45mA or less |
| Alarm output | Dry contact relay: 30V (AC/DC) 0.3A |
| N/O, N/C selectable | |
| Contact action - Interruption time＋Delay time (approx. 1 sec.) | |
| LED indicator | Lights Red during detection |
| (beam is interrupted) | |
| Sensor | PC resin (clear) |
| Control box | ABS resin (white) |
| Ambient temperature | -25°C to +55°C (without condensation or frozen) |
| Product Dimensions | 45 mm (L) x 29 mm (W) x 120 mm (H) |
| Product Weight Sensor | 120g each |
| Product Weight Control Box | 95g |
| Packaging Dimensions | 167 mm (L) x 82 mm (W) x 90 mm (H) |
| Mass of unit packed | 415g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the PB-10NS Photoelectric Beam Sensor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex PB-10NS Mini Single IR Beam
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
