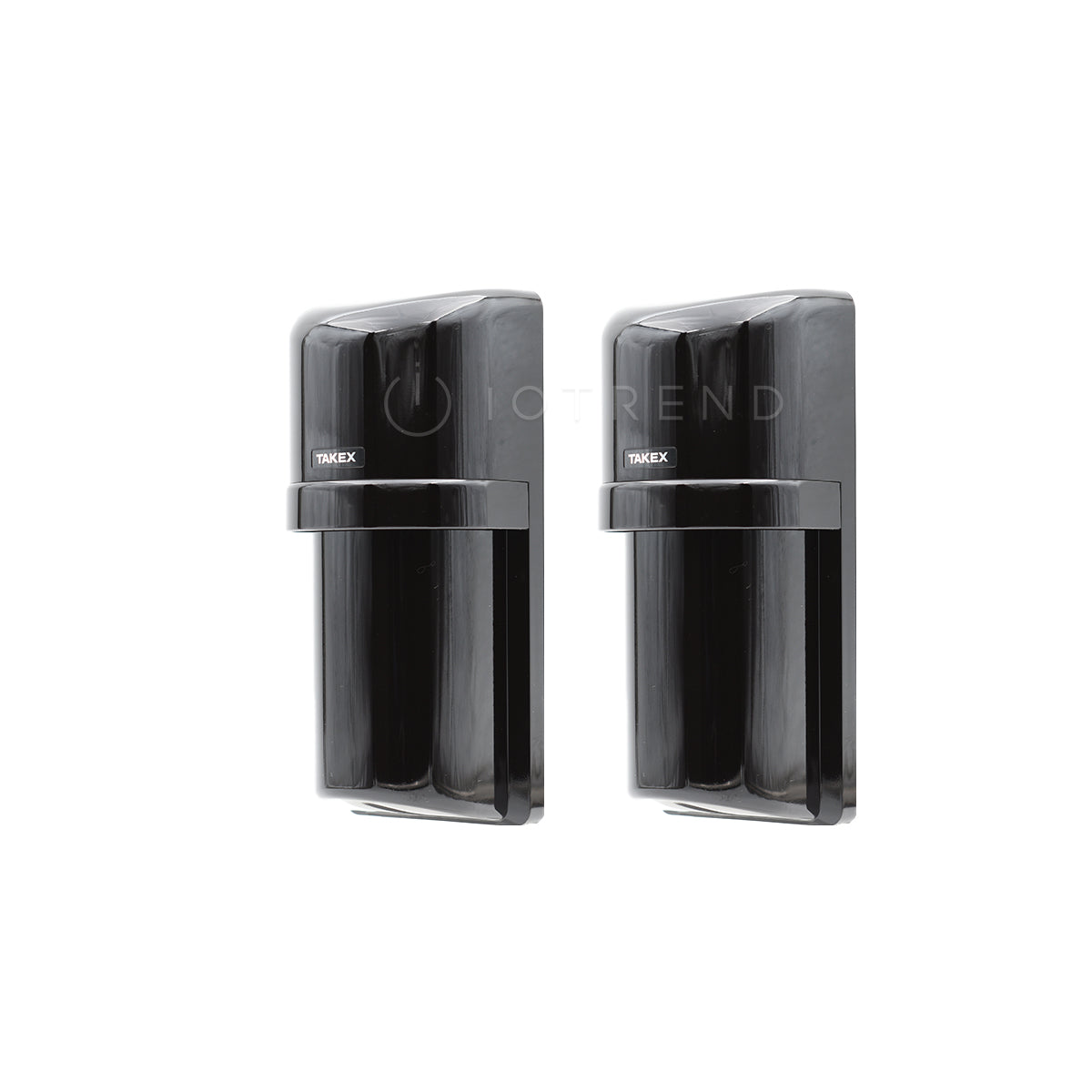

PRODUCT INFORMATION
The Takex PB-30TK Infrared Twin Beams 30m features the Takex patented ‘double modulation’ technology for unsurpassed immunity to sunlight and artificial light sources such as automobile headlights and fluorescent light.
The Takex PB-30TK photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. The unique twin beams are synchronized to work together to reinforce the range and stability in severe weather conditions.

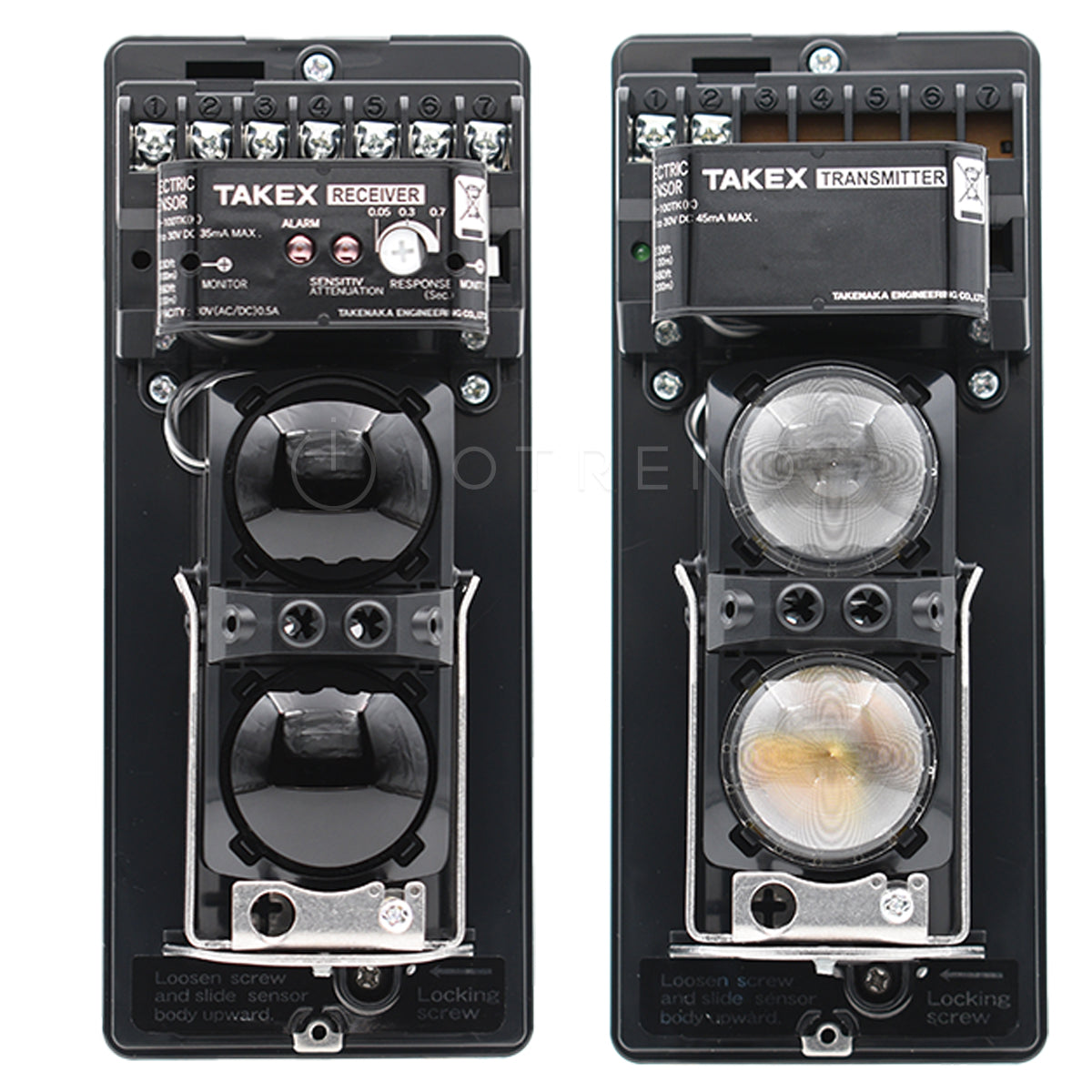

Installation is hassle-free as the system has a rotary optical system for easy installation, and the special lens design aids in proper alignment. The units therefore do not have to be mounted face to face and the beam direction cannot be discerned by simple observation.
The PB-30TK twin beams are ideal for protecting windows, doors, fence lines, entrances, and driveways. They can be installed indoor or outdoor with coverage distances of up to 30m outdoor and 60m indoor.
Please note: The Takex TK series Twin Beams are ‘Single Channel’ units for simple beam systems.
Product Code: PB-30TK
FEATURES OF THE PB-30TK PHOTOELECTRIC BEAM SENSORS:
- 2 x Synchronized high power beams
- Double modulation for unsurpassed light immunity
- Auto-gain control (AGC)
- 50,000 lux sunlight immunity
SPECIFICATIONS OF THE PB-30TK PHOTOELECTRIC BEAM SENSORS:
Type | Twin Beam |
Detection system | Simultaneous breaking of 2 beams |
Infrared beam | LED pulsed beam, Double modulation |
Detection distance | Outdoor 30m or less | Indoor 60m or less |
Max. arrival distance | Outdoor 300m or less |Indoor 300m or less |
Frequency Selection | Single Channel |
Response time | 50msec. to 700msec. (Variable at pot) |
Supply voltage | 10V to 30VDC (non-polarity) |
Current consumption | 53mA or less |
Alarm output | Dry contact relay output form C |
Contact action - Interruption time + delay time (1 to 3 sec.) | |
Contact capacity - 30V AC/DC, 0.5A or less | |
Tamper output | Dry contact relay N/C |
Action - Activated when cover is detached | |
Contact capacity - 30V AC/DC, 0.5A or less | |
LED indicator | Red LED (Receiver) |
・ON: when an alarm is initiated. | |
Functions | Monitor jack output, AGC circuit, Frost proof cover |
Mounting position | Indoor / Outdoor |
Wiring | Terminals |
Appearance | PC resin (wine red) |
Ambient temperature | -25°C to +60°C |
IP Rating | IP54 |
Product Dimensions Transmitter | 73 mm (L) x 71.5 mm (W) x 170 mm (H) |
Product Dimensions Receiver | 73 mm (L) x 71.5 mm (W) x 170 mm (H) |
Product Weight Transmitter | 380g |
Product Weight Receiver | 400g |
Packaging Dimensions | 177 mm (L) x 165 mm (W) x 79 mm (H) |
Mass of unit packed | 875g |
Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on PB-30TK Photoelectric beam sensors:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex PB-30TK Infrared Twin Beams 30m
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
