PRODUCT INFORMATION

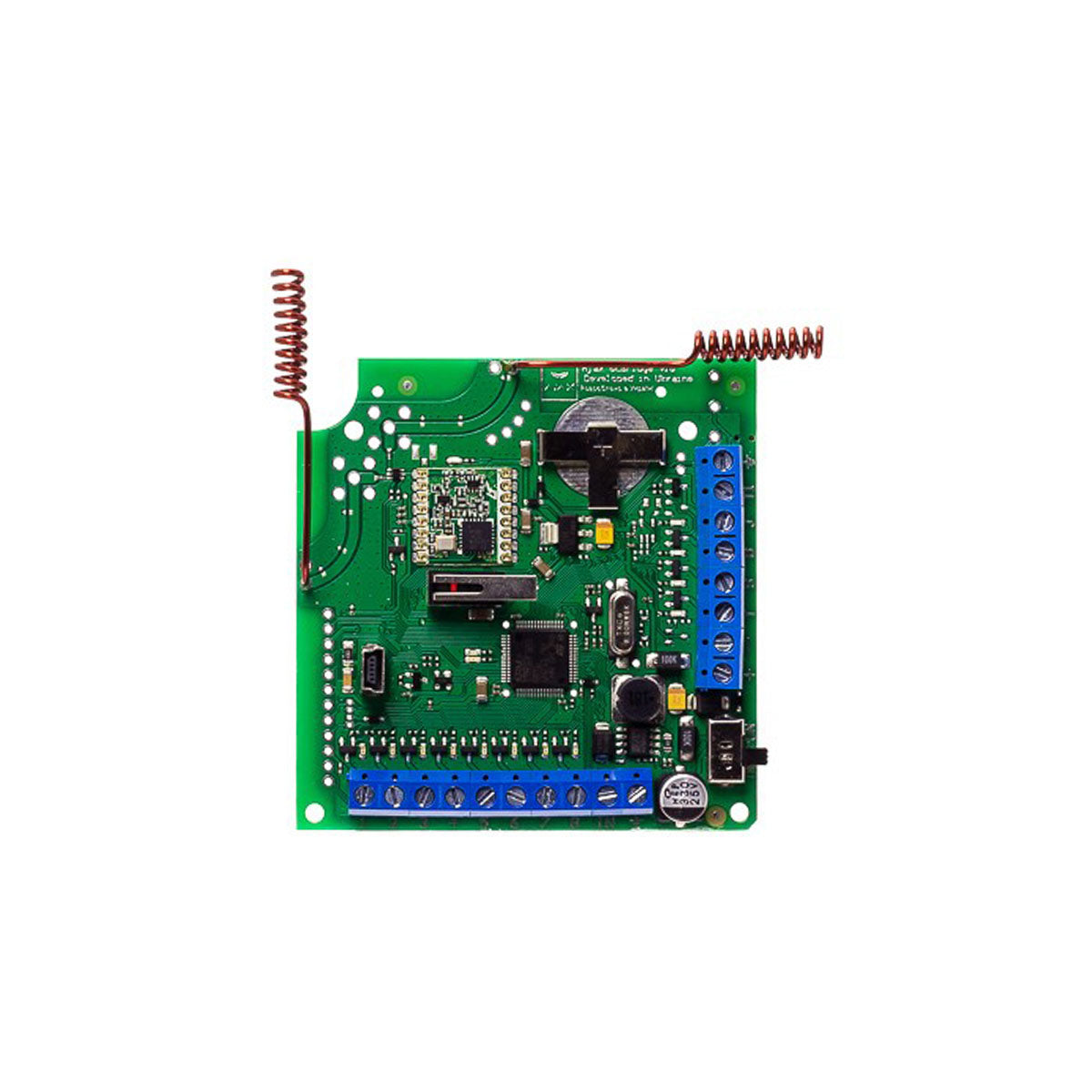

The Ajax ocBridge Wired Alarm Receiver Module is used to connect Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas.
Product Code: 7296.14.NC1
Please note: Connection to Ajax Hubs is not supported.
The Ajax ocBridge Wired Alarm Receiver Module is compatible with Ajax MotionProtect, Ajax MotionProtect Plus, Ajax, Ajax DoorProtect, Ajax SpaceControl, Ajax GlassProtect, Ajax CombiProtect, Ajax FireProtect, Ajax FireProtect Plus and Ajax LeaksProtect.
FEATURES OF THE AJAX OCBRIDGE RECEIVER MODULE:
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Two-way communication
- Principle of operation is when the detector activates, the device sends the information to the central unit, which raises an alarm.
- The device allows setting up the detector, performing radio communication tests and detection areas tests using PC
- The device is installed into the body of the wired central unit, in a sealed enclosure.
SPECIFICATIONS OF THE AJAX OCBRIDGE RECEIVER MODULE:
| Compatibility | Ajax MotionProtect, Ajax MotionProtect Plus, Ajax, Ajax DoorProtect, Ajax SpaceControl, Ajax GlassProtect, Ajax CombiProtect, Ajax FireProtect, Ajax FireProtect Plus and Ajax LeaksProtect |
| Classification | Receiver of wireless detectors |
| Installation method | Indoors |
| Compatibility | Wired and hybrid security systems |
| Number of security areas | 8 |
| Number of service areas | 4 |
| Loops | NO/NC, EOL and 2EOL |
| Maximum number of detectors | 99 |
| Alarm signal delivery time | 0.15s |
| Power supply voltage | 8 -14V DC (miniUSB – 5V only for setup) |
| Communication range with detectors | Up to 2,000m in an open space |
| Two-way communication with detectors | Yes |
| Operating frequencies | 868.0 - 868.6 MHz |
| Self-adjusting RF output power | Up to 25 mW |
| Block encryption based on AES algorithm | Yes |
| Device polling period | 12 – 300s |
| Capability of external antenna connection | Yes |
| Software update feature | Yes |
| Operating temperature range | -10°С to +40°С |
| Permissible humidity | Up to 90% |
| Anti-sabotage | Protection against fraud jamming detection |
| Setting up and testing | Via configurator for PC |
| Interface | MiniUSB |
| Product dimensions | 95mm x 92mm x 18mm |
| Product weight | 139g |
| Packaging dimensions | 170mm x 170mm x 50mm |
| Mass of unit packed | 200g |
| Warranty | 24 months limited Manufacturer's warranty |
WHAT’S IN THE BOX:
1 X Ajax ocBridge Wired Alarm Receiver Module
