PRODUCT INFORMATION

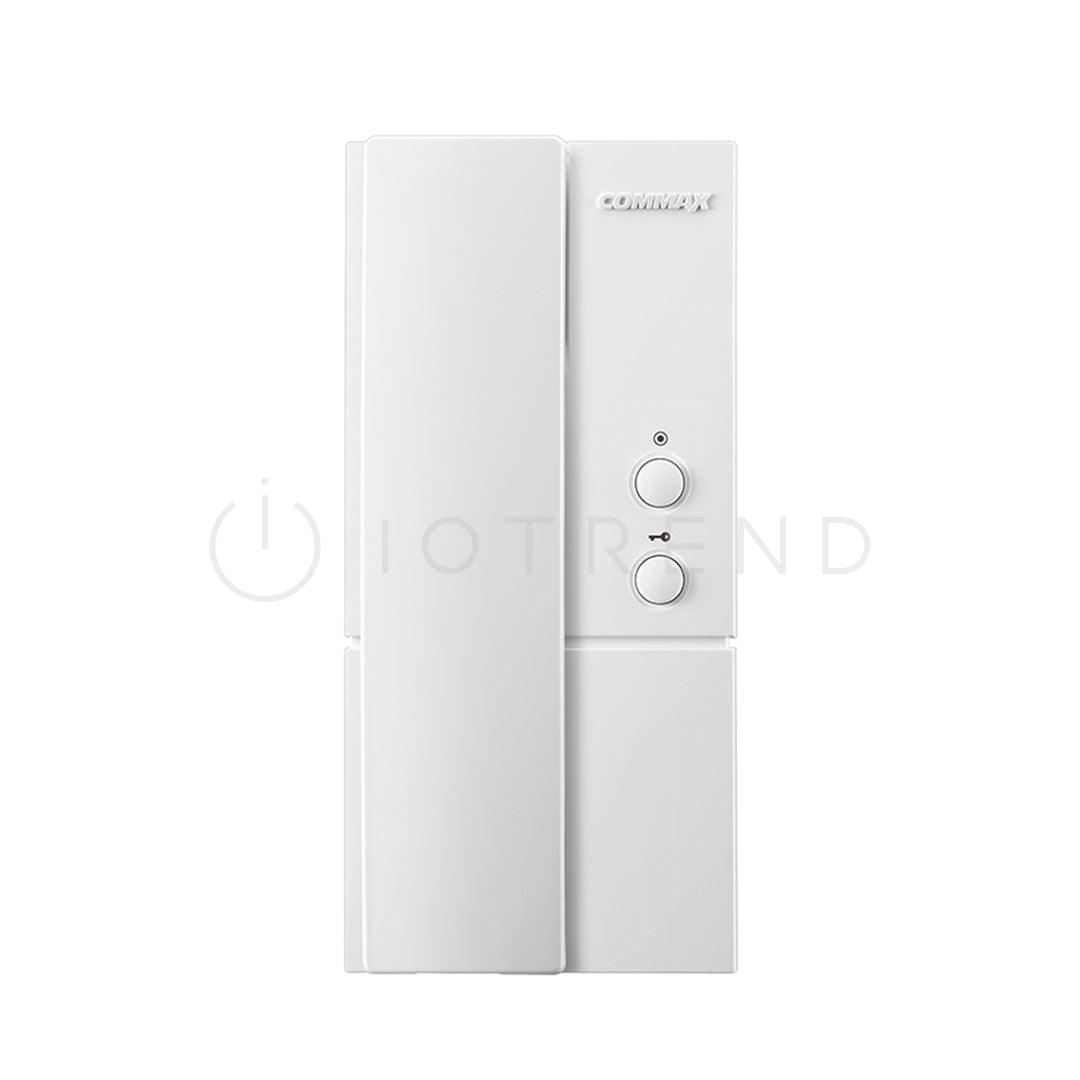

The COMMAX DP-LA01M Master Handset is an indoor audio intercom unit designed for use in COMMAX 1-to-2 door entry systems. It functions as the main communication handset, allowing users to speak to visitors at the gate station and communicate with a secondary (slave) handset.
This unit is powered via the slave handset (DP-LA01S), making installation straightforward while keeping wiring clean and efficient
Key Features:
- Master handset for 1-to-2 intercom systems
- Two-way audio communication with gate/door station
- Intercommunication between handsets (master ↔ slave)
- Door release function via handset button
- Surface-mounted design for easy installation
- Volume control adjustment on master unit
System Role:
- Acts as the primary control handset in the system
- Receives calls from the gate station and secondary handset
- Controls audio volume and communication priority
- Enables door/gate unlocking from inside
➡️ The master handset does not require direct mains power — it is powered through the connected slave handset
SPECIFICATION
| Power Source | AC 110/220/230/240V 50/60Hz |
| Mount Type | Surface-mounted type |
| Wiring |
Call: 2 wires Door Release: 2 wires Master/Slave: 6 wires |
| Output Power | Call : High 400mW Low 100mW |
| Distance |
100m(0.65Ø) 150m(0.8Ø) |
| Product Dimensions | 39mm(L) x 107mm (W) x 195mm (H) |
| Mass of unit packed | 510g |
| Warranty | Manufacturers Warranty |
WHAT'S IN THE BOX:
1 x COMMAX - 1-2 Master Handset DP-LA01(M)
