PRODUCT INFORMATION
Product Code: CDV-77M
Clear and waterproof surface with AF(Anti-fingerprinting) application monitor that has 7 inch wide display LCD.
FEATURES:
- Colour 7" TFT LCD Display
- 220VAC Operating Voltage 3W standby and 15W operating
- 4 Wire connectivity up to 30m using 0.65mm wire diameter
- Expandable to two video consoles, two audio handsets and one CCTV camera
- 12VDC Pinhole video gate station
- Built-in white LED
- PAL/NTSC convertible
- Video talk and door lock release enable (both individual and public entrance)
- Support 2 Monitors, 2 Cameras and 2 Interphones
- Illuminance sensor
- Wall-mounted type
- House call and talk
- Built-in white LED
SPECIFICATIONS:
| Power source | AC 100-240V, 50/60Hz |
| Operating temp. | 0℃~40℃ |
| Distance |
Door camera 1, 2 : 28m(0.5Ø) Floor Distributor: 30m(0.65Ø) |
| Mount type | Wall-mounted type |
| Wiring |
Door camera: 4 wires Interphone: 4 wire |
| Consumption | Max.15W/standby 3W |
| Product Dimensions | 180mm(L) x 244mm(W) x 18mm(H) |
WHAT'S IN THE BOX:

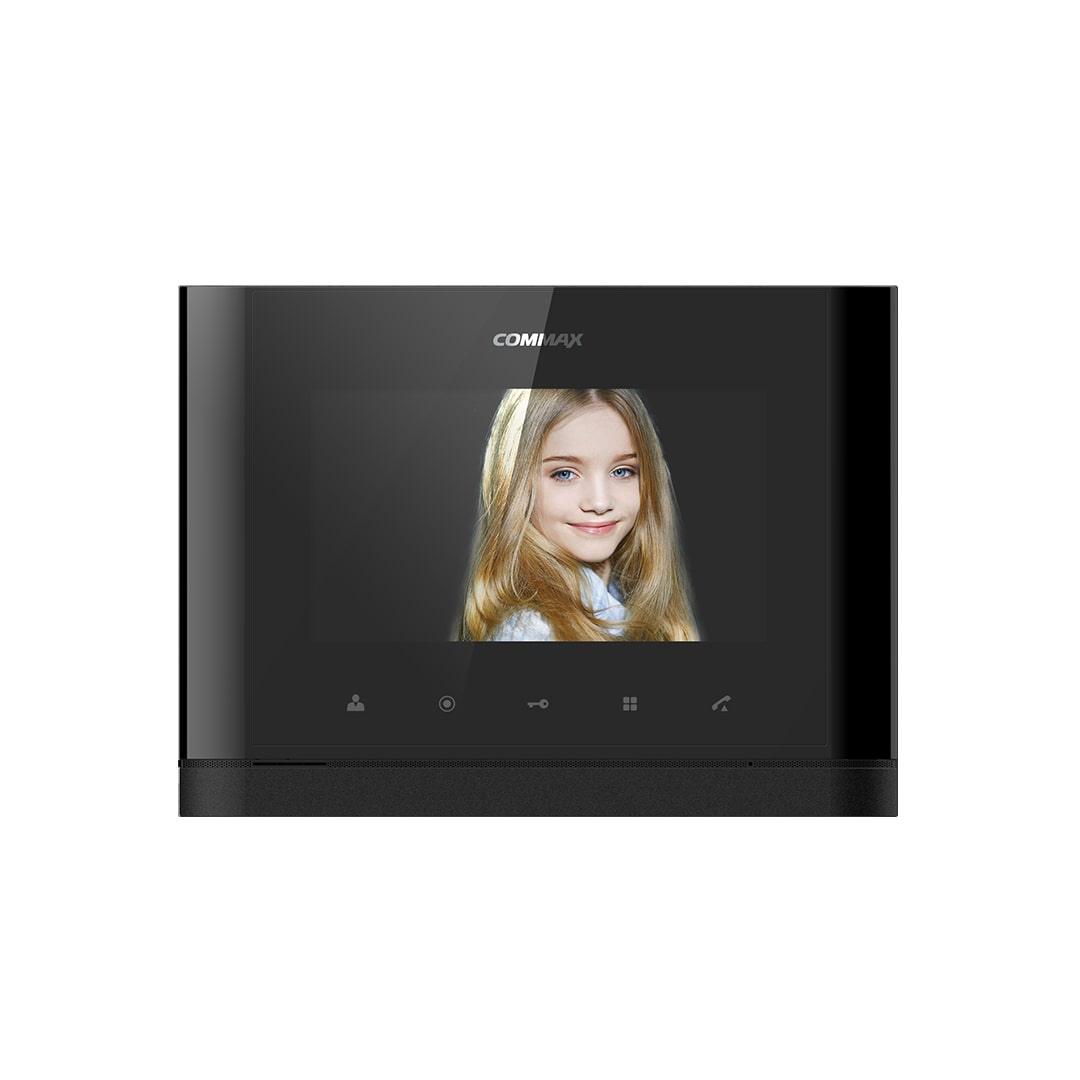

1 x Commax 7" Console Black Video Intercom Only
