PRODUCT INFORMATION
Solo. Solar. Sophisticated

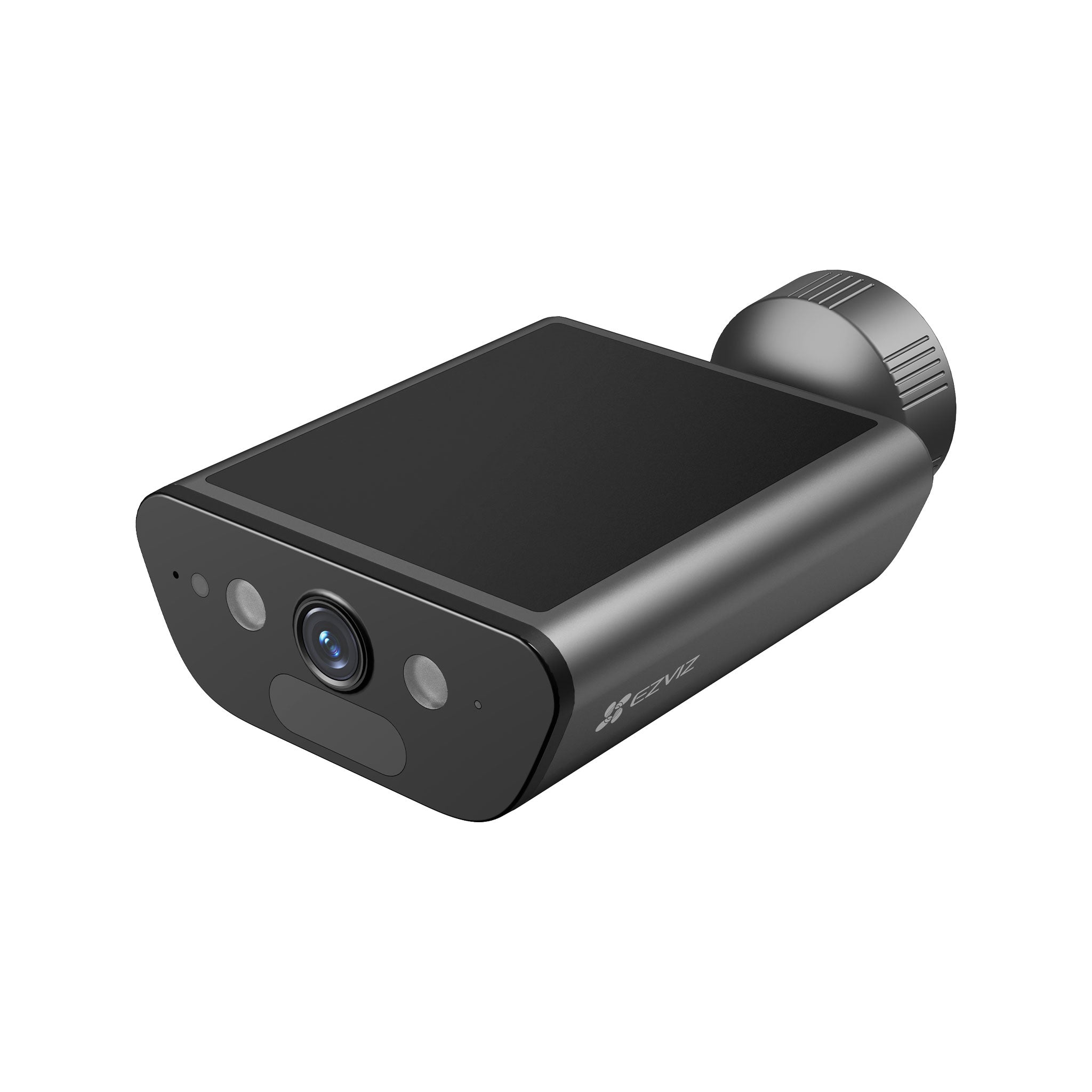

The EB5 presents itself with the highest functionality and smartness of EZVIZ, but the least concerns regarding installation and daily maintenance. It comes packed with an intuitive collection of smart detections upon human and vehicle, sends instant alerts and records important moments in 4K video. With its sleek and gray appearance, it fits well into low-key exterior house design. By consuming green solar energy instead of wired power, the family no longer has to worry about the security-related electricity bill.
No electricity wiring available but desire continuous power? The EB5 turns every ray of the sunshine as its free source of energy. Only two hours of direct sunlight every day keep the camera running nonstop.2
Even when it’s rainy season, the onboard 10,400mAh large battery ensures the EB5 operates up to 180 days uninterruptedly
FEATURES OF THE EZVIZ EB5 Solar Wi-Fi Camera
SPECIFICATIONS ON EZVIZ EZVIZ EB5 Solar Wi-Fi Camera:
| Camera | ||
|---|---|---|
| Model | CS-EB5-R100-2F8WFL | |
| Specifications | ||
| Image Sensor | 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 2.8mm@ F1.6 Diagonal angle: 135° Horizontal angle: 113° Vertical angle: 60° |
|
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Day & Night | IR-cut filter with auto-switching, MAX. 30 m / 98 ft IR | |
| DNR | 3D DNR | |
| Night Vision Distance | IR Distance:15m, Color Night Vision Distance:15m | |
| Max Resolution | 3840 × 2160 | |
| Frame Rate | Max. 15fps, self-adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate | |
| Max. Bitrate | 4 Mbps | |
| NETWORK | ||
| Bluetooth | Supports | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n，802.11ax | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal | |
| Transmission Rate | 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Minimum Network Requirement |
8 Mbps | |
| FUNCTION | ||
| Smart Alarm | AI-powered human shape detection AI-powered vehicle detection / Two-Way Talk |
|
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark | |
| STORAGE | ||
| Local Storage | MicroSD card slot (Max. 512GB) | |
| Cloud Storage | Ezviz Cloud Storagee (Subscription required) | |
| GENERAL | ||
| Battery | 10400 mAh | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
|
| IP Grade | IP65 | |
| Power Supply | DC 5V/2A (Adapter needs to be purchased separately) | |
| Power Consumption | Max. 10W | |
| Certifications | CE / REACH / WEEE / RoHS | |
| Product Dimensions | 166 × 103 × 54 mm | |
| Product Weight | 466g | |
| Packaging Dimensions | 227 × 167 × 64 mm | |
| Package Weight | 822g | |
| Warranty | 12 months limited Manufacturer’s warranty | |
1. Please update your camera to the latest firmware version to use the full AOV functions.
2. Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m2, SMQ. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual charging efficiency may be higher or lower depending on sunlight intensity and other environmental factors, and the actual hours of camera use may also vary due to the frequency of camera activities and other environmental factors.
3. Data from EZVIZ Lab’s test results, under the condition that the camera only operates with the fully charged onboard battery and does not consume additional power converted by the integrated
solar panel. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual use may vary due to environmental factors and the frequency of camera activities.
4. The EB5 only supports working with the EZVIZ Solar Panels that use Type-C charging cables. The add-on solar panel is not included in the EB5 package. Please verify the product compatibility before making a purchase.
5. Amazon Alexa and Google Assistant are not available in certain languages and countries.
6. The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
7. To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
8. When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the EB5 is able to detect movements at a distance of up to 25meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
9. The spotlights will not flash when color night vision mode is enabled.
10. Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
2. Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m2, SMQ. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual charging efficiency may be higher or lower depending on sunlight intensity and other environmental factors, and the actual hours of camera use may also vary due to the frequency of camera activities and other environmental factors.
3. Data from EZVIZ Lab’s test results, under the condition that the camera only operates with the fully charged onboard battery and does not consume additional power converted by the integrated
solar panel. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual use may vary due to environmental factors and the frequency of camera activities.
4. The EB5 only supports working with the EZVIZ Solar Panels that use Type-C charging cables. The add-on solar panel is not included in the EB5 package. Please verify the product compatibility before making a purchase.
5. Amazon Alexa and Google Assistant are not available in certain languages and countries.
6. The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
7. To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
8. When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the EB5 is able to detect movements at a distance of up to 25meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
9. The spotlights will not flash when color night vision mode is enabled.
10. Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
WHAT'S IN THE BOX:
| - EB8 4G Camera (x1) |
| - Drill Template (x1) |
| - Screw Kit (x1) |
| - Type C Cable (x1) |
| - SIM Card Adapter (x1) |
| - Regulatory Information (x2) |
| - Quick Start Guide (x1) |
