PRODUCT INFORMATION

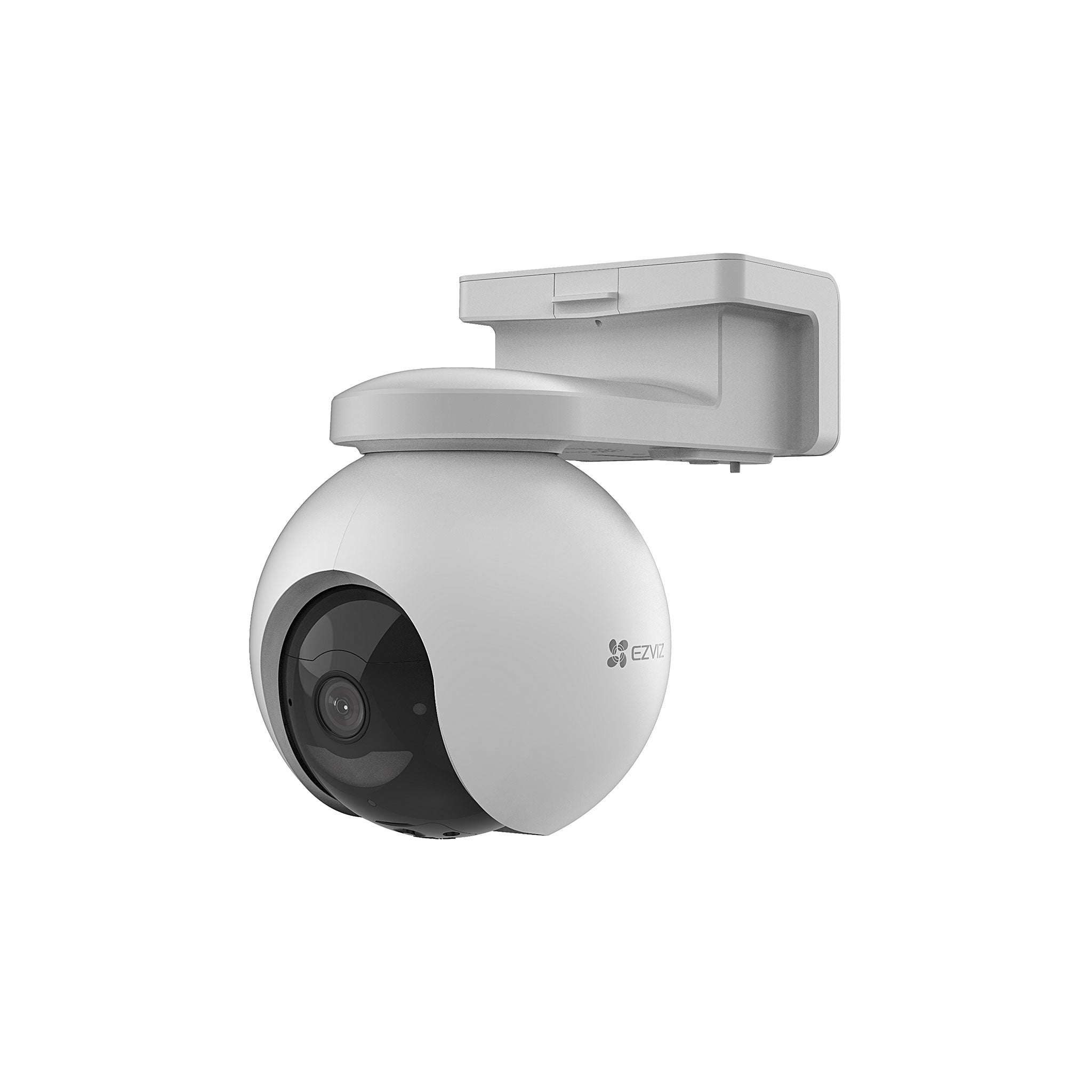

Now, it’s easier than ever to put security in action in the places you care about most. EZVIZ’s newest camera overcomes installation limitations caused by networks or electricity. The EB8 4G is battery-powered with no strings – or cords – attached. It operates on 4G LTE networks in the outdoors where Wi-Fi may not be available. It also inherits key features from EZVIZ's popular outdoor pan & tilt predecessors to provide smart and reliable protection 24/7.
FEATURES OF THE EZVIZ EB8 4G PT Wi-Fi Camera
SPECIFICATIONS ON EZVIZ EZVIZ EB8 4G PT Wi-Fi Camera:
| Camera | ||
|---|---|---|
| Model | CS-EB8 (3MP,4GA) | |
| Specifications | ||
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor | |
| Shutter Speed | Self-adaptive shutter | |
| Lens: | Viewing angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical) |
|
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Day & Night | IR-cut filter with auto-switching, MAX. 30 m / 98 ft IR | |
| DNR | 3D DNR | |
| Night Vision Distance | IR 15 m，Color Night Vision 15 m | |
| Max Resolution | 2304 x 1296 | |
| Frame Rate | Max. 15fps, self-adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Quad-HD;Full- HD; Hi-Def. Adaptive bit rate. | |
| Max. Bitrate | 1.5 Mbps | |
| NETWORK | ||
| Frequency Bands | EU: | |
| LTE FDD: B1/B3/B7/B8/B20/B28 | ||
| LTE TDD: B38/B40 | ||
| LA： | ||
| LTE FDD: | ||
| B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66 | ||
| LTE TDD: | ||
| B38/B40 | ||
| NOTE: This is a 4G Only Camera | ||
| FUNCTION | ||
| Smart Alarm | Smart human motion detections / Two-Way Talk / GPS | |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark | |
| STORAGE | ||
| Local Storage | MicroSD card slot (Max. 512GB) | |
| Cloud Storage | Ezviz Cloud Storagee (Subscription required) | |
| GENERAL | ||
| Battery | 10400 mAh | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
|
| IP Grade | IP65 | |
| Power Supply | DC 5V/2A (Adapter needs to be purchased separately) | |
| Power Consumption | Max. 10W | |
| Certifications | CE / WEEE / RoHS / UKCA/ REACH | |
| Product Dimensions | 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch) | |
| Product Weight | 835g | |
| Packaging Dimensions | 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch) | |
| Package Weight | 1072g | |
| Warranty | 12 months limited Manufacturer’s warranty | |
1 Please note that the EB8 4G camera only operates with a 4G network and does not work with a Wi-Fi connection. The list of supported regions and carriers is continually updated; please find the full list at ezviz.com.
2 The GPS function is able to run properly only when the camera is installed in an open, outdoor environment. If you install the camera in an indoor space inside a building, the GPS may not function properly.
3 The camera battery life may vary due to the stability and/or signal strength of network carriers, environmental factors, and the frequency of camera activities.
4 The solar panel is not included in the kit. Currently the EZVIZ EB8 4G supports connecting with EZVIZ’s specific solar panels with type-C charging ports. Please verify compatibility before making a purchase.
5 Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making any purchase.
6 The spotlight will not flash when the Color Night Vision mode is enabled.
7 Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors
2 The GPS function is able to run properly only when the camera is installed in an open, outdoor environment. If you install the camera in an indoor space inside a building, the GPS may not function properly.
3 The camera battery life may vary due to the stability and/or signal strength of network carriers, environmental factors, and the frequency of camera activities.
4 The solar panel is not included in the kit. Currently the EZVIZ EB8 4G supports connecting with EZVIZ’s specific solar panels with type-C charging ports. Please verify compatibility before making a purchase.
5 Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making any purchase.
6 The spotlight will not flash when the Color Night Vision mode is enabled.
7 Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors
WHAT'S IN THE BOX:
| - EB8 4G Camera (x1) |
| - Drill Template (x1) |
| - Screw Kit (x1) |
| - Type C Cable (x1) |
| - SIM Card Adapter (x1) |
| - Regulatory Information (x2) |
| - Quick Start Guide (x1) |
