PRODUCT INFORMATION

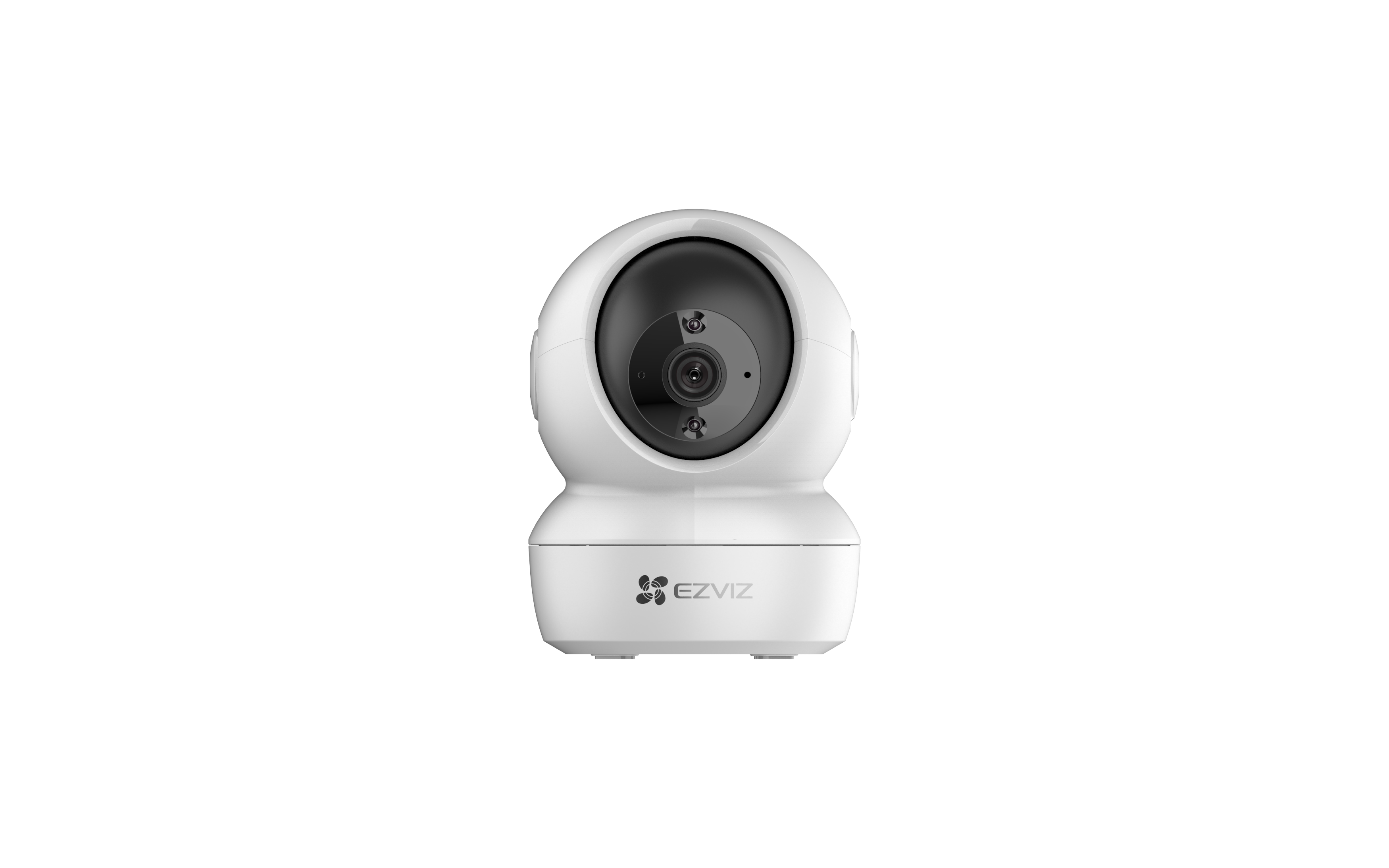

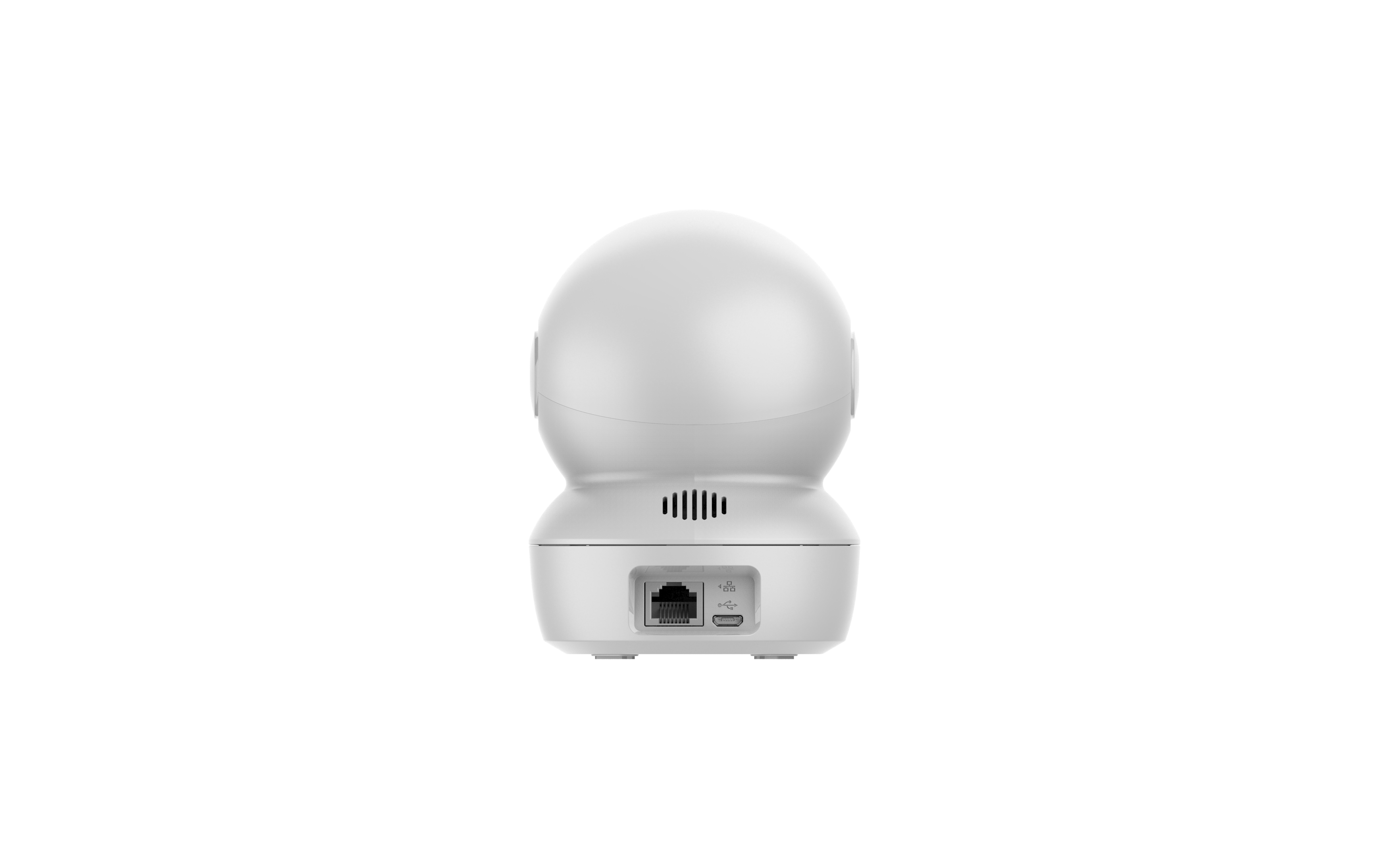

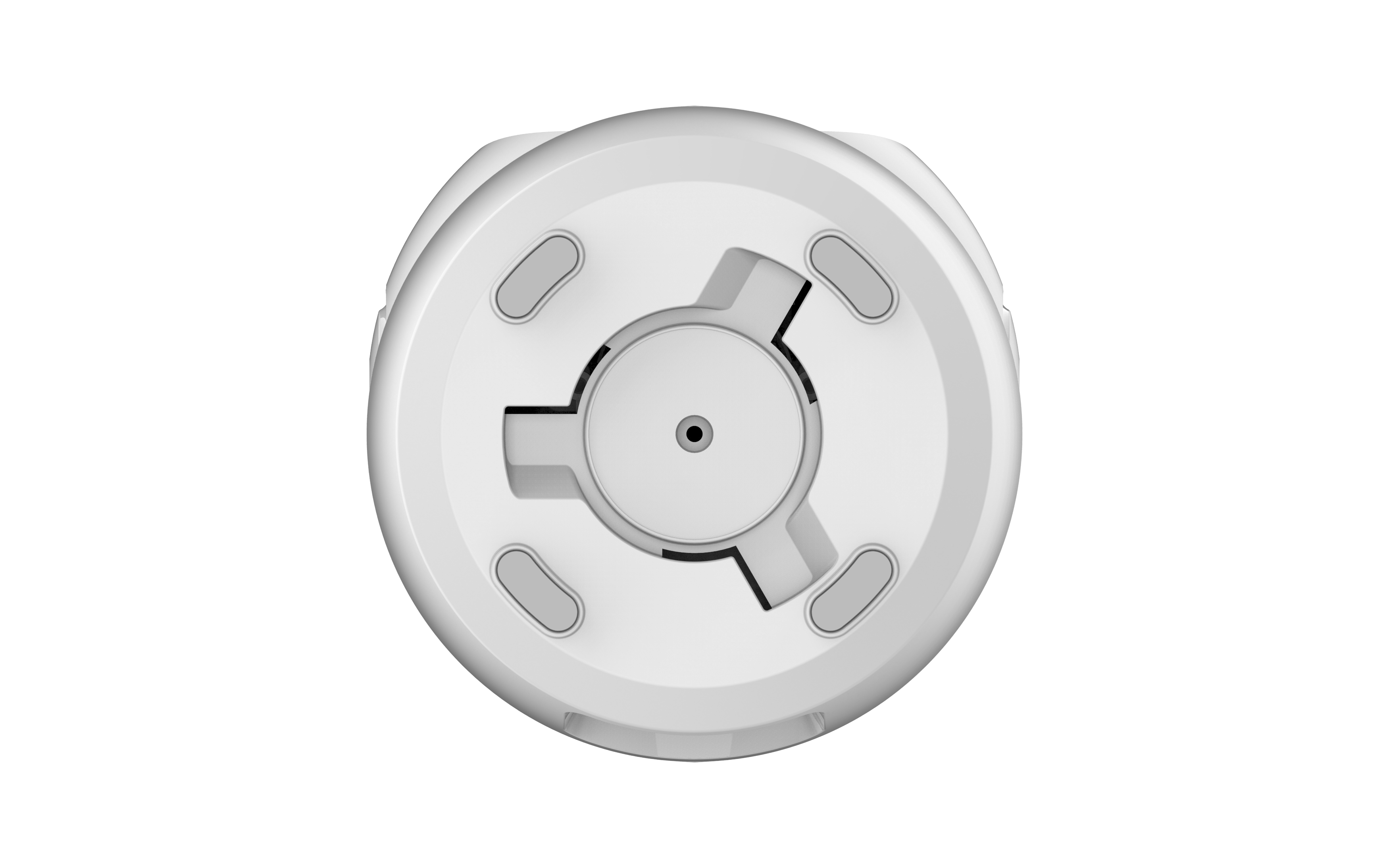

| CS-H6c (3MP,W1) |
| Specifications | |
|---|---|
| Camera | |
| Image Sensor | F2.4 @ 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| IR Night Vision Distance | Up to 10 m (33 ft) |
| Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day & Night Switch | IR-cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 4MP, 2560 × 1440 |
| Frame Rate | Max: 20 fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
| Storage | |
| Local Storage | Supports microSD card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Network | |
| Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| General | |
| Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) |
| Packaging | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) |
| Net Weight | 218 g (7.69 oz) |
| Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
| Power | |
| Power Supply | DC 5V / 1A |
| Power Consumption | Max. 5 W |
WHAT'S IN THE BOX:
| - EZVIZ BC1c Camera | |
| - Magnetic Base | |
| - Screw Base | |
| - USB Cable | |
| - Pin | |
| - Drill Template | |
| - Screw Kit | |
| - Regulatory Information | |
| - Quick Start Guide |
