EZVIZ HP7 Intercom
SALE 16% OFF
EZVIZ HP7 Intercom
EZVIZ HP7 Intercom
EZVIZ HP7 Intercom

EZVIZ HP7 Intercom

R 3,159.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

PRODUCT BROCHURE CC599-15

A connected choice for safer, smarter home access

It’s time to upgrade your old intercom to be internet connected, remotely accessible and app controllable. EZVIZ’s first-ever HP7 Video Doorphone maximizes the convenience for homeowners to view, talk, and grant access to visitors even if they’re not home. It also enhances home safety, as the 2-in-1 outdoor camera and phone helps record videos in 2K clarity and detect people with real-time mobile notifications.

Built to be reliable for houses and villas

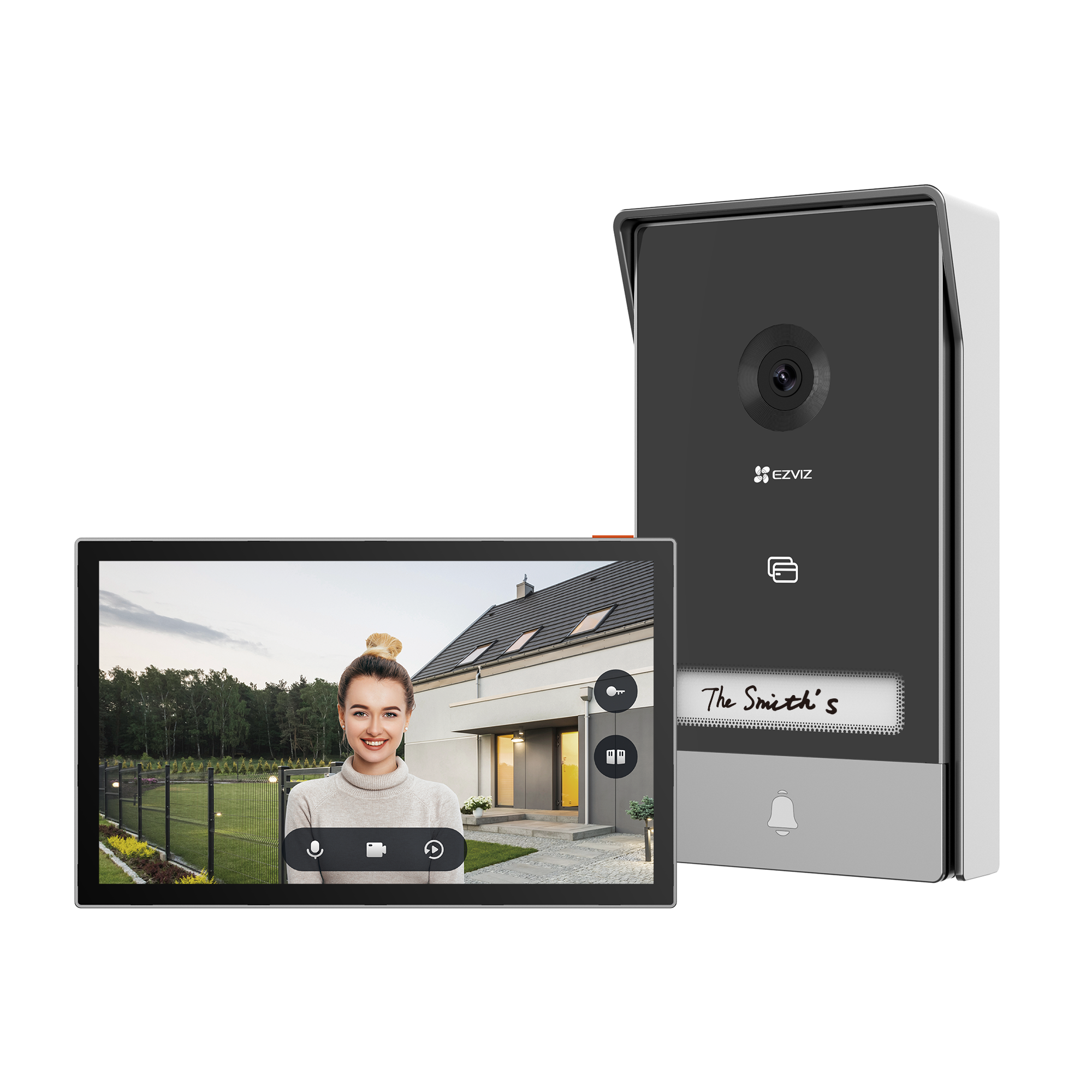

The HP7 is ideal for anyone who seeks to replace their bulky intercom in a renovated home, or for those who are moving into a spacious villa and need convenient communication and confident security. This stylish kit combines a 2-in-1 outdoor video doorbell with a large indoor monitor and easily fits any home style.

An all-in-one touch monitor to communicate & control

The 7-inch color touch screen is where you set up and manage your outdoor doorphone, respond to visitors, and save important video clips. Whenever a visitor rings your door, the indoor screen will automatically light up to let you know who’s outside.

FEATURES OF THE EZVIZ HP7 Smart Home Video Doorphone


SPECIFICATIONS ON EZVIZ HP7 Smart Home Video Doorphone




Camera
Model CS-HP7-R105-1W2TFC
Specifications
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Shutter Speed Self-adaptive shutter
Lens



2.0 mm @ F2.2,viewing angle: 162° (Diagonal)




Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
DNR 2D / 3D DNR


Max Resolution 2048 × 1296
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m

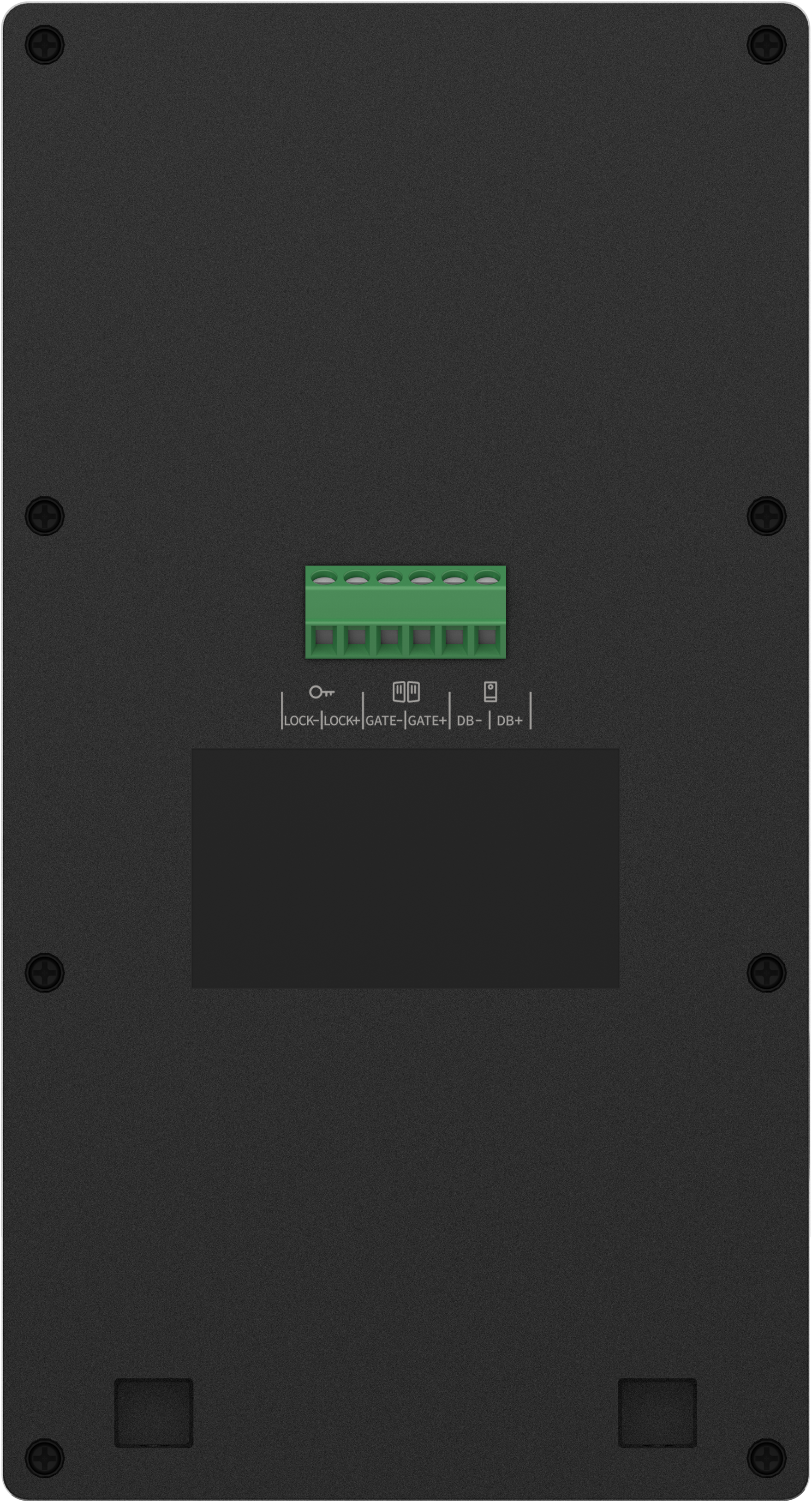

Terminal - Doorbell Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
NETWORK
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth Support 20 MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps

Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1(10 M / 100 M adaptive Ethernet port)

FUNCTION
Multiple ringtones Up to 20 ringtones
Functions Live view, playback, two-way talk, video call

STORAGE
Local Storage MicroSD card slot (Max. 512GB)
Cloud Storage Ezviz Cloud Storagee (Subscription required)
GENERAL

Operating Conditions -10°C to 45°C, humidity 95% or less (non-condensing)
IP Grade IP67
Power Supply DC 24V / 1A
Power Consumption 8w, Max, 24 W
Certifications CE / REACH / WEEE / RoHS
Product Dimensions 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Product Weight Net weight:855 g (30.16 oz)
Packaging Dimensions 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
Package Weight With package: 1825 g (64.37 oz)
Warranty 12 months limited Manufacturer’s warranty

  • Amazon Alexa and Google Assistant are not available in certain languages and countries.
  • The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
  • Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.

WHAT'S IN THE BOX:
- Monitor( Including Wall bracket) & Intercom Panel
- Drill Template for Monitor & Intercom
- Screw Kit (x2) and Screwdriver
- Name Card (x2) & Badges (x3)
- Wires and Wire Connectors
- Regulatory Information (x2) & Quick Start Guide
- Power Adapter for Monitor and DC 24V Power Supply Jack Connector Cable
