PRODUCT INFORMATION
Product Code: IC HA/200

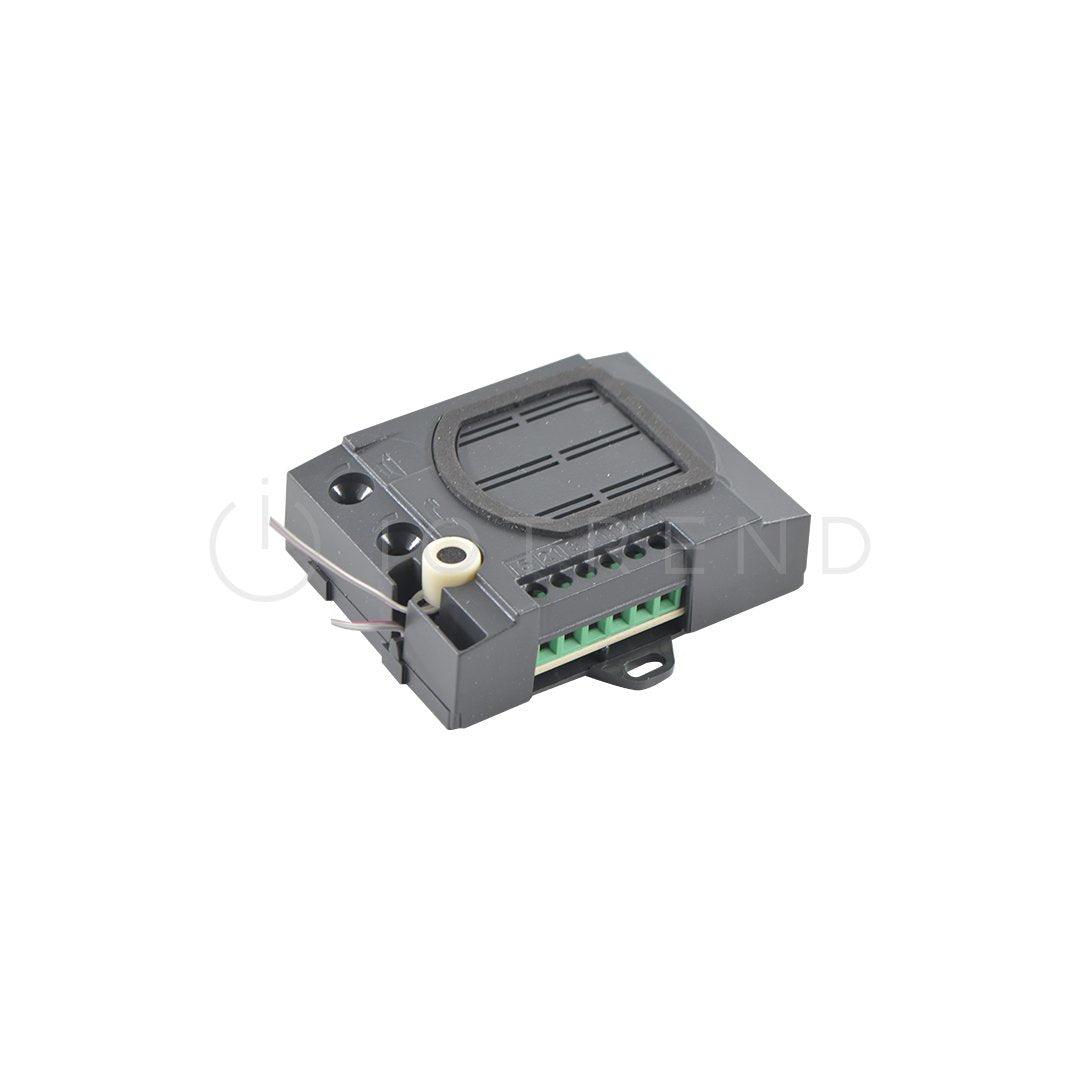

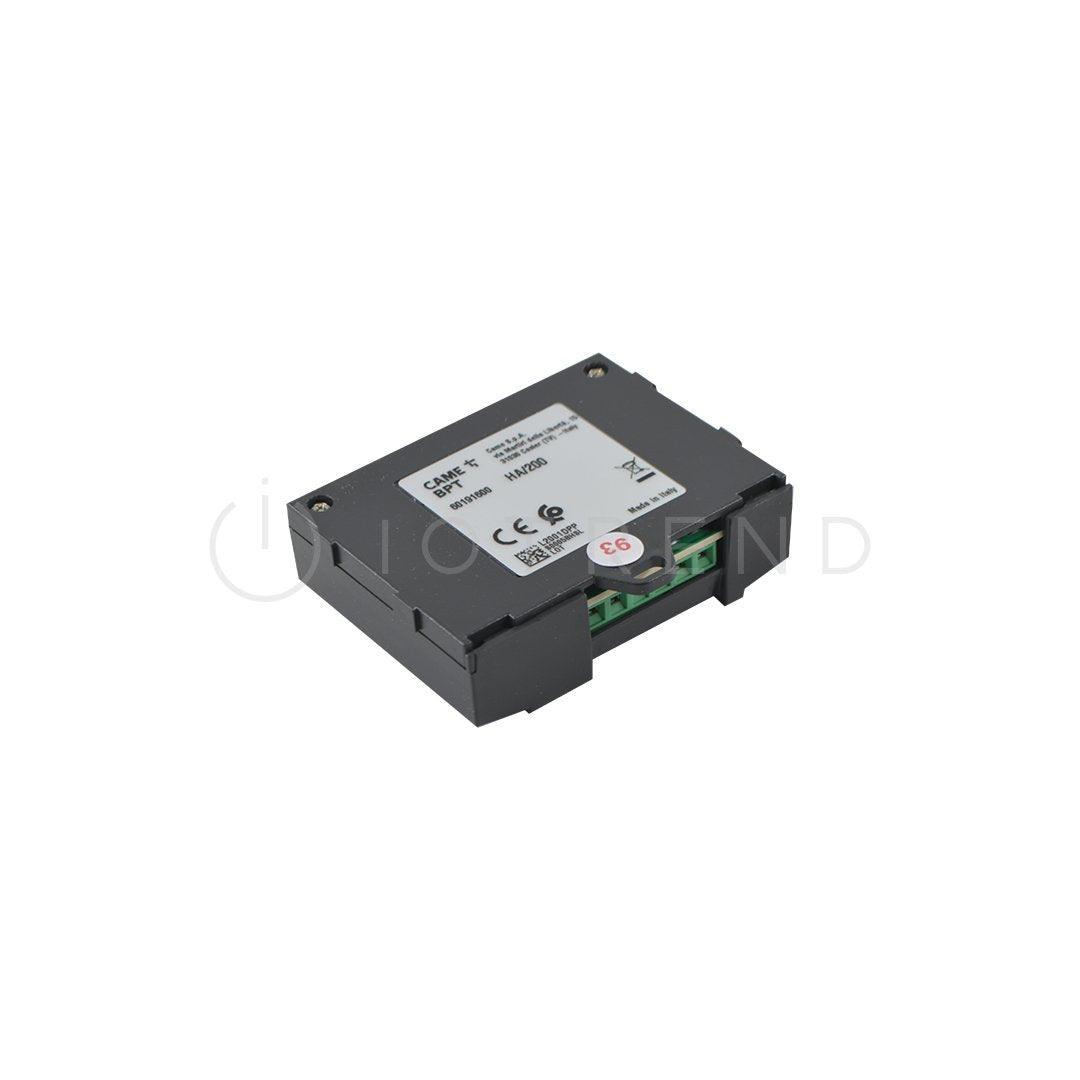

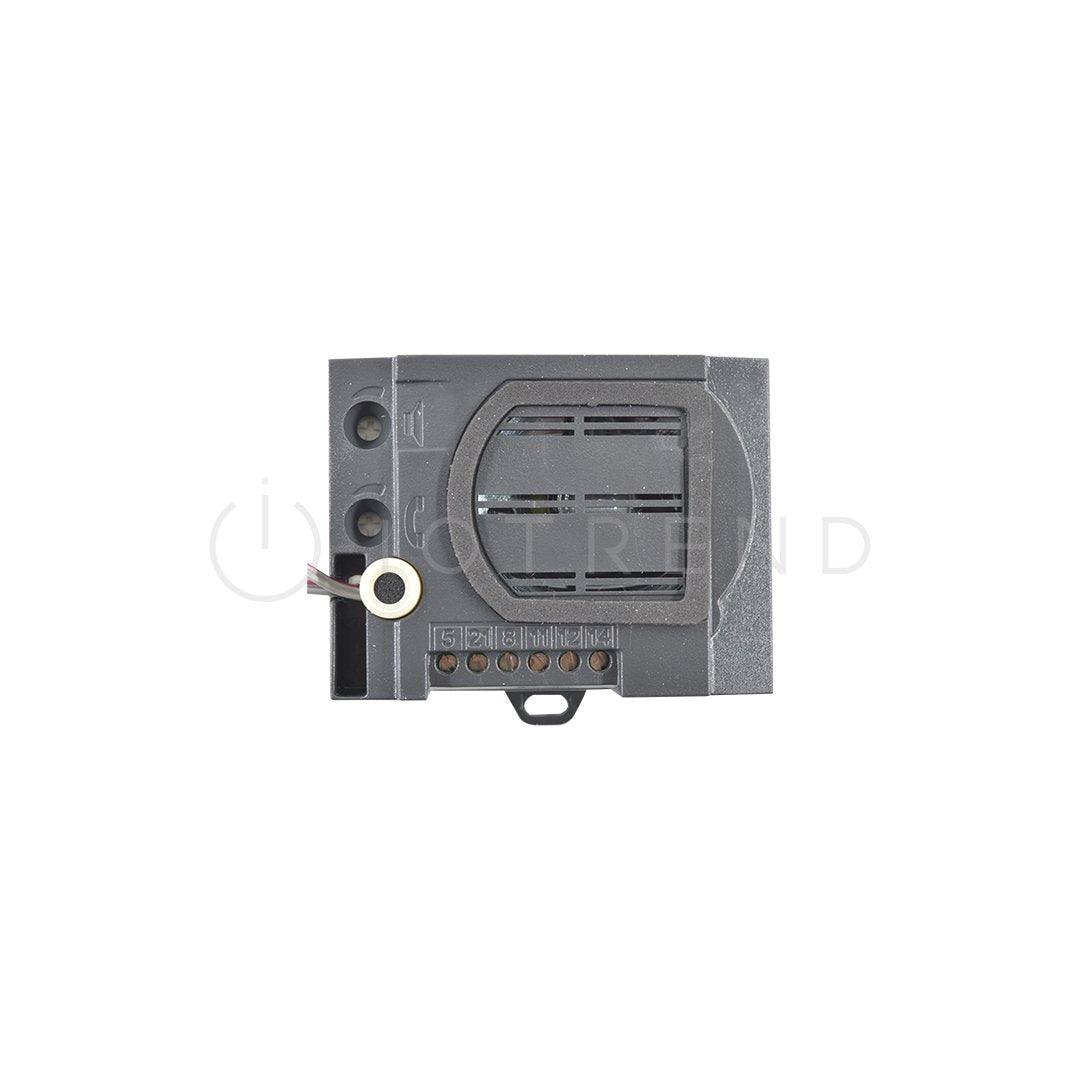

The BPT HA/200 Audio unit comes complete with a loudspeaker and a microphone, both with adjustable volume level control, making it a very useful module. The audio module is designed to deliver noise free, high quality audio from a BPT gate station/entry panel to the audio handset indoors. The audio module is compatible with all BPT TARGA Gate Stations/Entry Panels, which includes the surface mounted aluminium, flush fitted stainless steel and vandal resistant versions.
FEATURES:
• Loudspeaker
• Noise free audio.
• Entry panel volume control
• Receiver volume control
SPECIFICATIONS:
| Supply voltage | 12V DC |
| Current demand | Max. 50mA |
| Working temperature range | -15 to + 50°C |
| Product dimensions | 76mm(l) x 23mm(w) x 57mm(h) |
| Package dimensions | 100mm(l) x 75mm(w) x 40mm(h) |
| Mass of unit packed | 82g |
| Warranty | Manufacturers Warranty |
WHAT'S IN THE BOX
1 x BPT Audio Module HA200
