PRODUCT INFORMATION

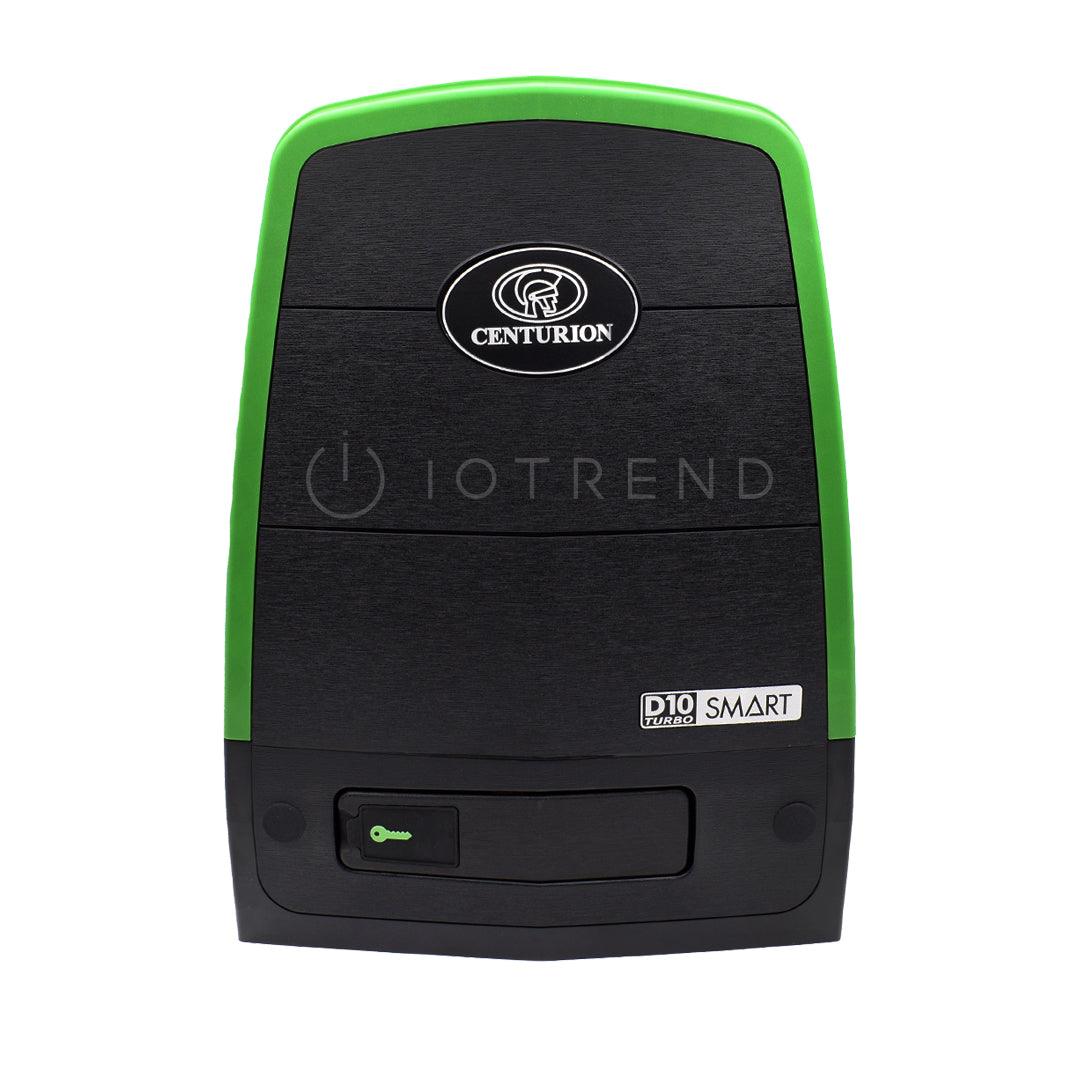

The Centurion D10 Turbo SMART Sliding Gate Motor includes 2 x Securi-Prod 12V 7.2AH Batteries and 2 x Centurion Nova 4 Button Remotes. The Centurion D10 Turbo Smart is a legendary high-volume performer for sliding gates up to 1000kg.
The D10 Turbo SMART now offers you speed, security, endurance and reliability, quicker and easier than with any other gate motor in the D10's class, thanks to SMART technology and wireless connectivity.
Installation Manual User Guide
Features
- Attractive styling
- SMART speed
- SMART hardware
- SMART connectivity
- SMART SECURITY
- SMART diagnostics
- Uninterrupted security and convenience
Specifications
| Brand | Centurion |
| Model | D10 Turbo SMART |
| Compatible remotes | Nova 1 Button, 2 Button and 4 Button(2 Included) |
| Compatible backup batteries | Securi-Prod 12v 7.2Amp(2 Included) and Securi-Prod 12v 8Amp batteries |
| Compatible controller PCB | SmartX controller |
| Compatible antitheft bracket | D10 SMART Bracket |
| Compatible safety beams | Photon SMART wireless beams |
| Compatible rack | Steel rack |
| Input voltage | 90V - 240V AC ± 10% @ 50Hz *1 |
| Current consumption (Mains) | 250mA |
| Battery charger current output | 1.8A @ 27.4V ± 1% |
| Maximum number of operations per day | 750 |
| Duty cycle - Mains present | 25% |
| Motor voltage | 24V DC |
| Motor power supply | Battery-driven (Standard Capacity - 2 x 12V 7.2Ah) |
| Current consumption (motor at rated load) | 10A |
| Motor push force - starting | 24Kgf |
| Gate mass - maximum | 1000Kg |
| Gate length - maximum | 50m |
| Drive Pinion | 20T Module 4 |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 1500 Remote buttons |
| Receiver frequency | 433.92Mhz |
| Degree of protection | IP54 |
| Gate motor dimension | 295mm(l) x 205mm(w) x 390mm(h) |
| Packaging dimensions | 282mm(l) x 350mm(w) x 470mm(h) |
| Mass of unit packed | Kg |
| Motor and Remote Warranty | 24 Months carry-in product manufacturer's warranty |
| Battery Warranty | Refer to return policy |
What’s in the box
1 x Centurion D10 Turbo SMART Motor
1 x Base plate
2 x Securi-Prod 12V 7.2AH batteries
2 x Centurion Nova 4 Button remote
