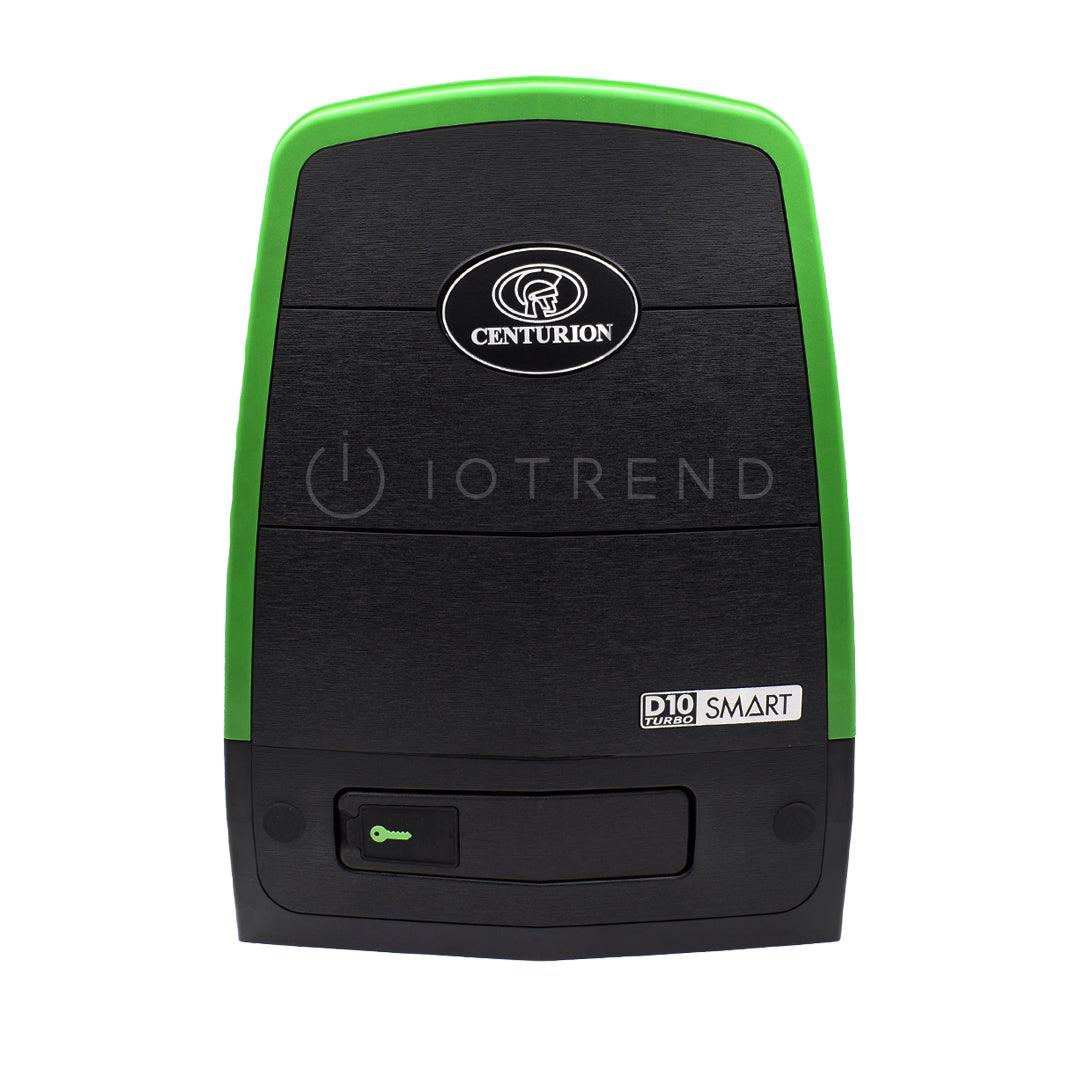

Centurion D10 Turbo SMART Sliding Gate Motor Only

R 10,499.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION


The Centurion D10 Turbo SMART Sliding Gate Motor is a legendary high-volume performer for sliding gates up to 1000kg. The D10 Turbo SMART now offers you speed, security, endurance and reliability, quicker and easier than with any other gate motor in the D10's class, thanks to SMART technology and wireless connectivity.

Installation Manual  User Guide

Features
• Attractive styling
• SMART speed
• SMART hardware
• SMART connectivity
• SMART SECURITY
• SMART diagnostics
• Uninterrupted security and convenience
• Operate wirelessly


Specifications

Brand Centurion
Model D10 Turbo SMART
Compatible remotes Nova 1 Button, 2 Button and 4 Button
Compatible backup batteries Securi-Prod 12v 7.2Amp and Securi-Prod 12v 8Amp batteries
Compatible controller PCB SmartX controller
Compatible antitheft bracket D10 SMART Bracket
Compatible safety beams Photon SMART wireless beams
Compatible rack Steel rack
Input voltage 90V - 240V AC ± 10% @ 50Hz *1
Current consumption (Mains) 250mA
Battery charger current output 1.8A @ 27.4V ± 1%
Maximum number of operations per day 750
Duty cycle - Mains present 25%
Motor voltage 24V DC
Motor power supply Battery-driven (Standard Capacity - 2 x 12V 7.2Ah)
Current consumption (motor at rated load) 10A
Motor push force - starting 24Kgf
Gate mass - maximum 1000Kg
Gate length - maximum 50m
Drive Pinion 20T Module 4
Collision Sensing Electronic
Operating temperature range -15°C to +50°C
Onboard receiver type Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity 1500 Remote buttons
Receiver frequency 433.92Mhz
Degree of protection IP54
Gate motor dimension 295mm(l) x 205mm(w) x 390mm(h)
Packaging dimensions 282mm(l) x 350mm(w) x 470mm(h)
Mass of unit packed 13.5Kg
Warranty 24 Months carry-in product manufacturer's warranty



Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.

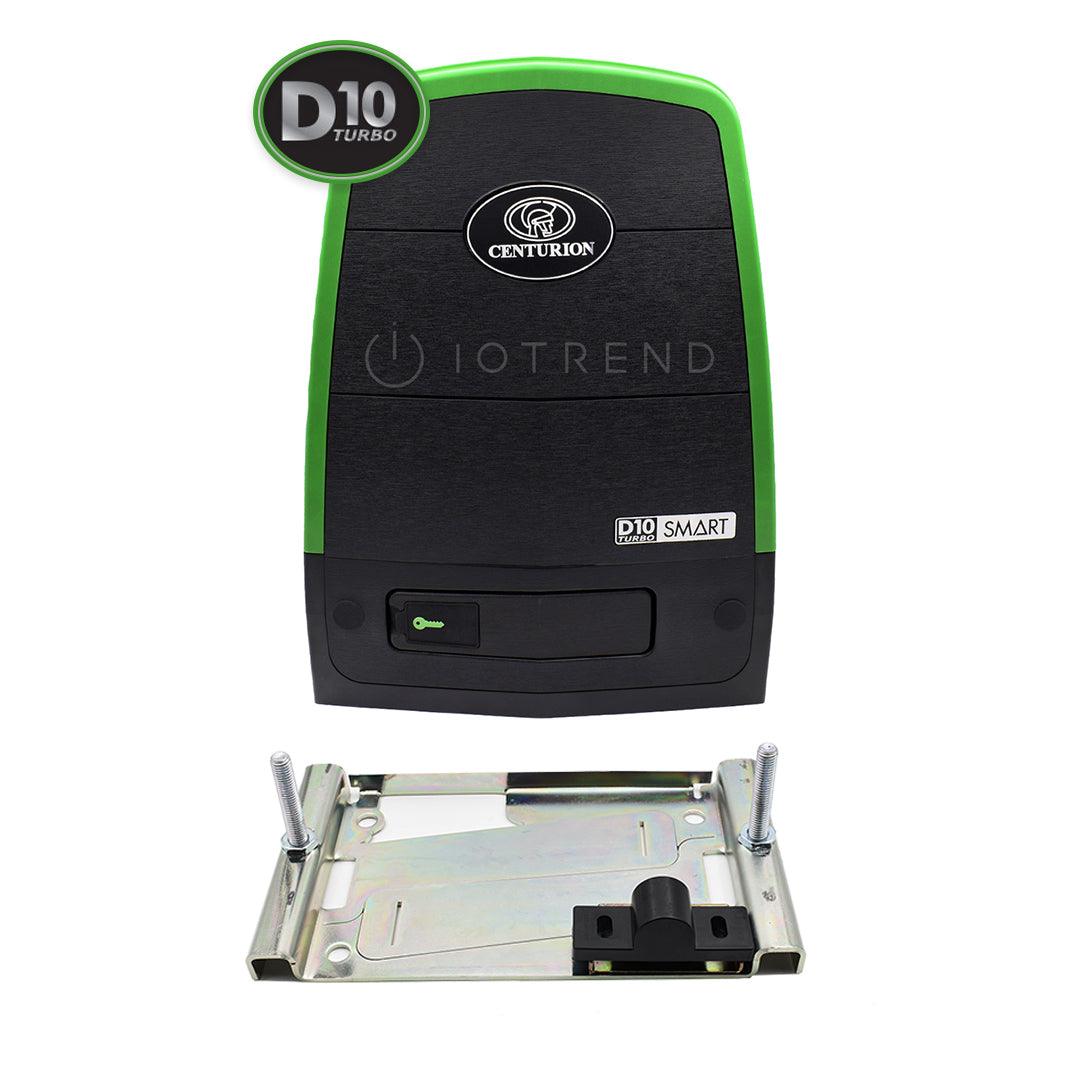

What’s in the box

1 x Centurion D10 Turbo SMART Motor
1 x Base plate
BATTERIES AND REMOTES ARE NOT INCLUDED AND SOLD SEPARATELY
