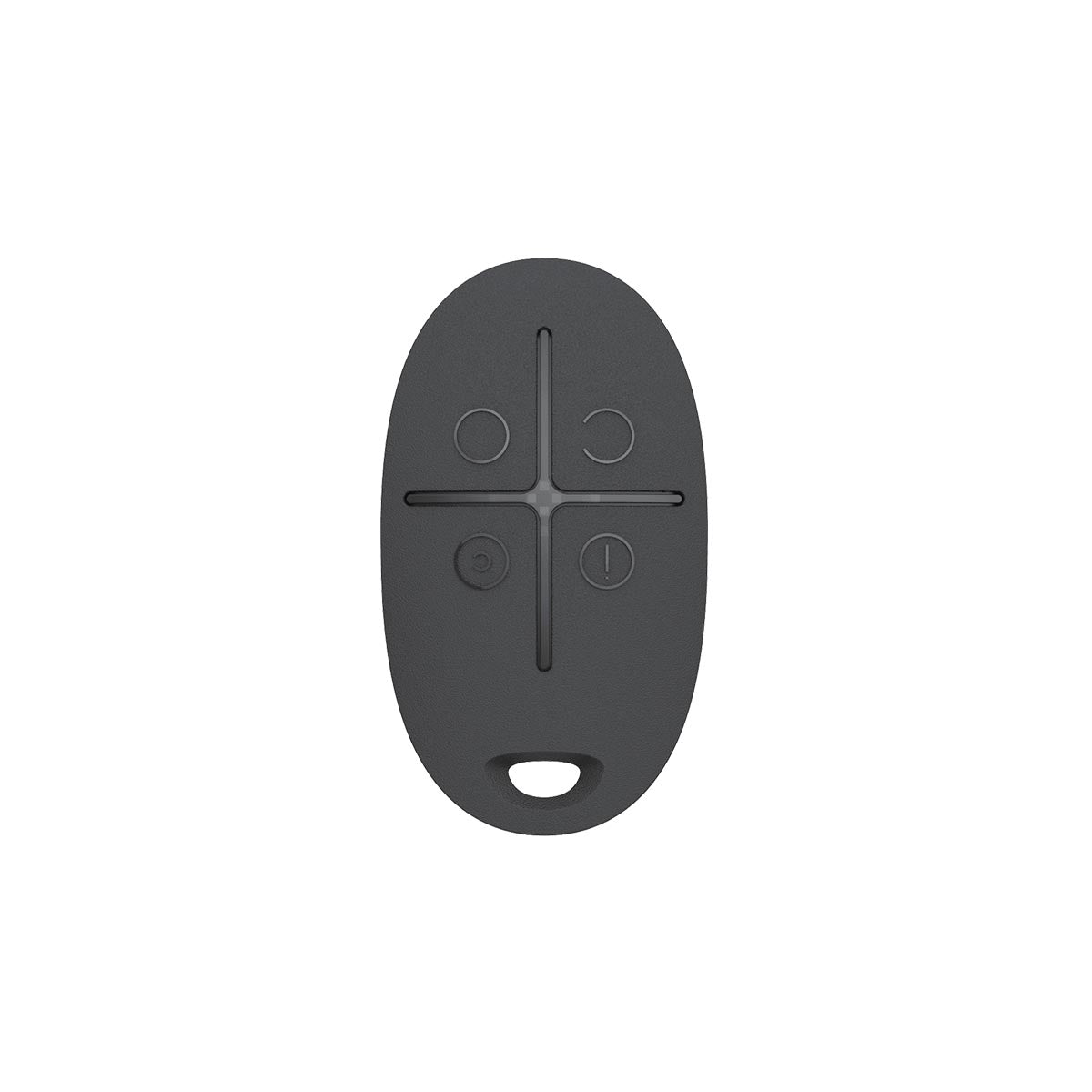

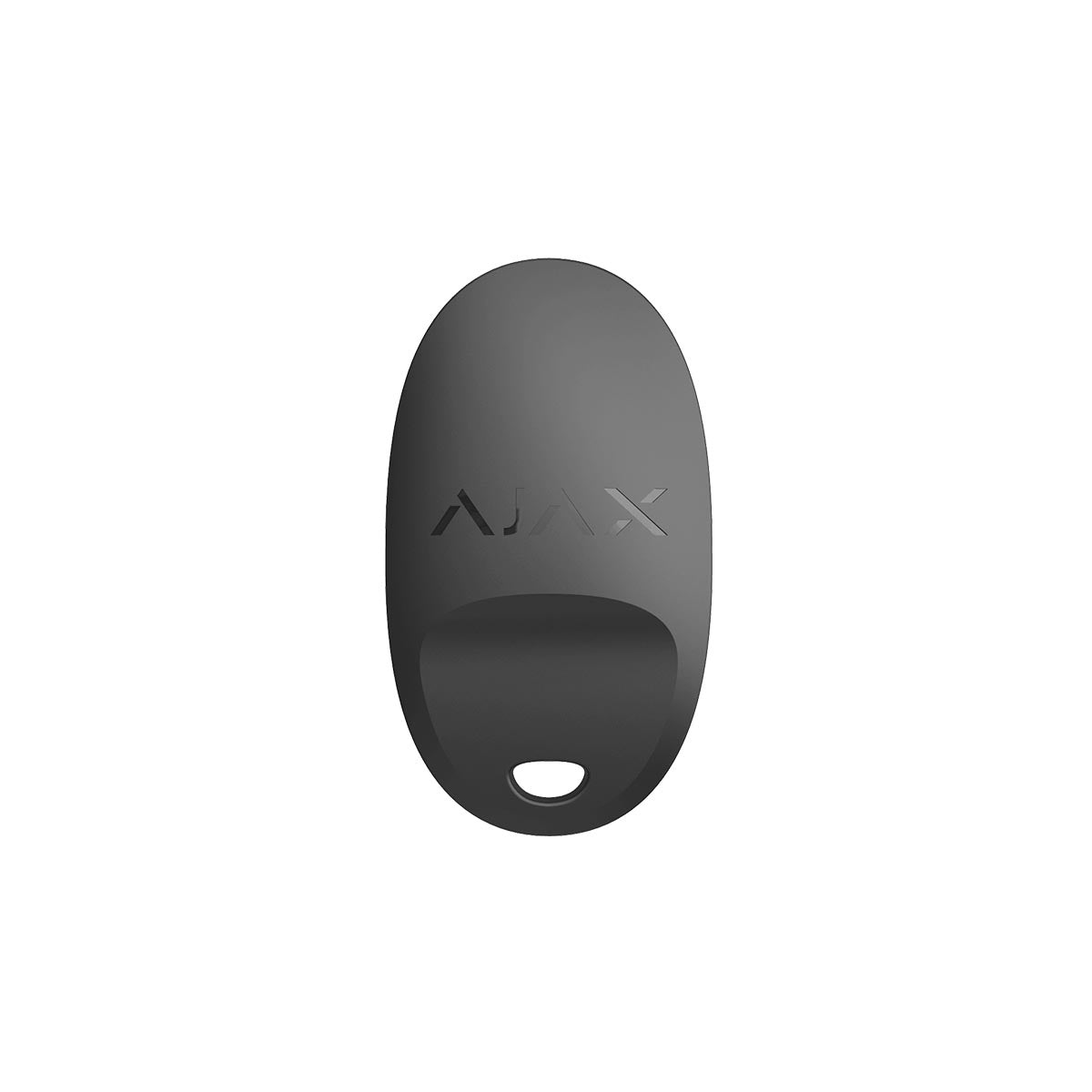

The Ajax SpaceControl Black is a key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.
As it is the two-way communication, you will know whether the system has received the Ajax SpaceControl command.
Please note: The Ajax SpaceControl operates as part of the Ajax system, the key fob is connected to the hub via the protected Jeweller protocol.
In addition, the key fob can be used to control any third-party security central unit through the uartBridge or ocBridge Plus integration module.
Compatible with all Ajax hubs, range extenders, ocBridge Plus, uartBridge.
Product Code: 6108.04.BL1
FEATURES OF THE AJAX SPACECONTROL:
- Calls for help in case of emergency
- Activates full or partial alarm modes

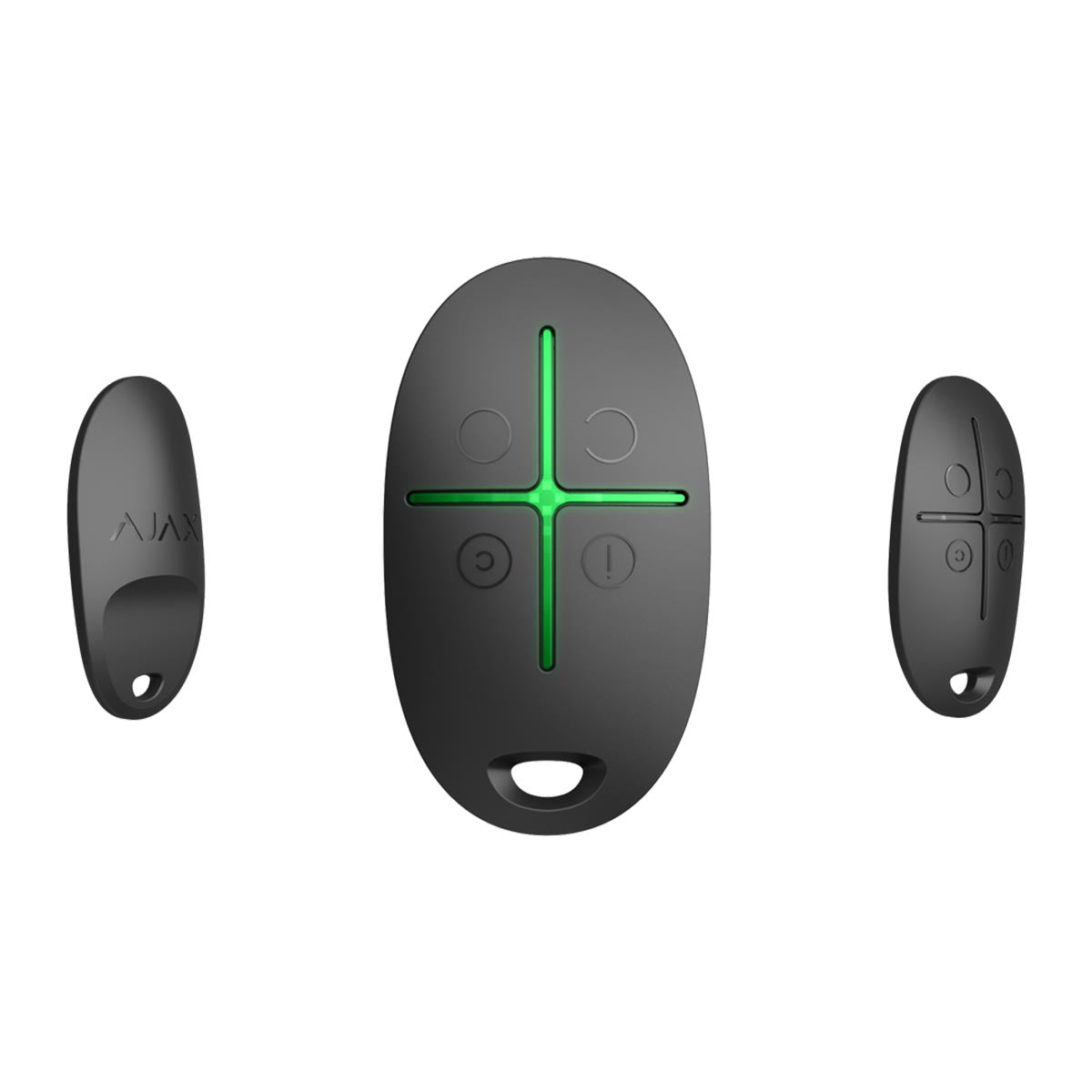

- Indicates command execution with color blink
- Double or long press against accidental activation
- Remote control and setup via the app iOS and Android-based mobile app for smartphones
INSTALLATION AND SET-UP
The Ajax SpaceControl comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.
SPECIFICATIONS OF THE AJAX SPACECONTROL:
|Compatibility||Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge|
|Classification||Four-button key fob with command delivery indication|
|Number of buttons||4|
|False alarm prevention||Yes, long press or double press (firmware version 220.127.116.11 or higher. Manufacture date from March 19, 2020)|
|Deactivation of the panic button||Available|
|Power supply||CR2032 battery, 3V|
|Battery life||Up to 5 years|
|Communication range with central unit||Up to 1,300 m in an open space|
|Two-way communication between devices||Yes|
|Operating frequencies||868.0-868.6 MHz|
|Self-adjusting RF output power||Up to 20 mW|
|Block encryption based on AES algorithm||Yes|
|Device polling period||12−300 s|
|Operating temperature range||-25°С to +50°С|
|Permissible humidity||Up to 95%|
|Certification||Grade 2, CE|
|Product Dimensions||65 mm × 37 mm × 10 mm|
|Packaging Dimensions||75 mm x 45 mm x 21 mm|
|Mass of unit packed||125g|
|Warranty||24 months limited Manufacturer’s warranty. The warranty does not cover batteries.|
WHAT’S IN THE BOX:
1 x Ajax SpaceControl Black
