PRODUCT INFORMATION

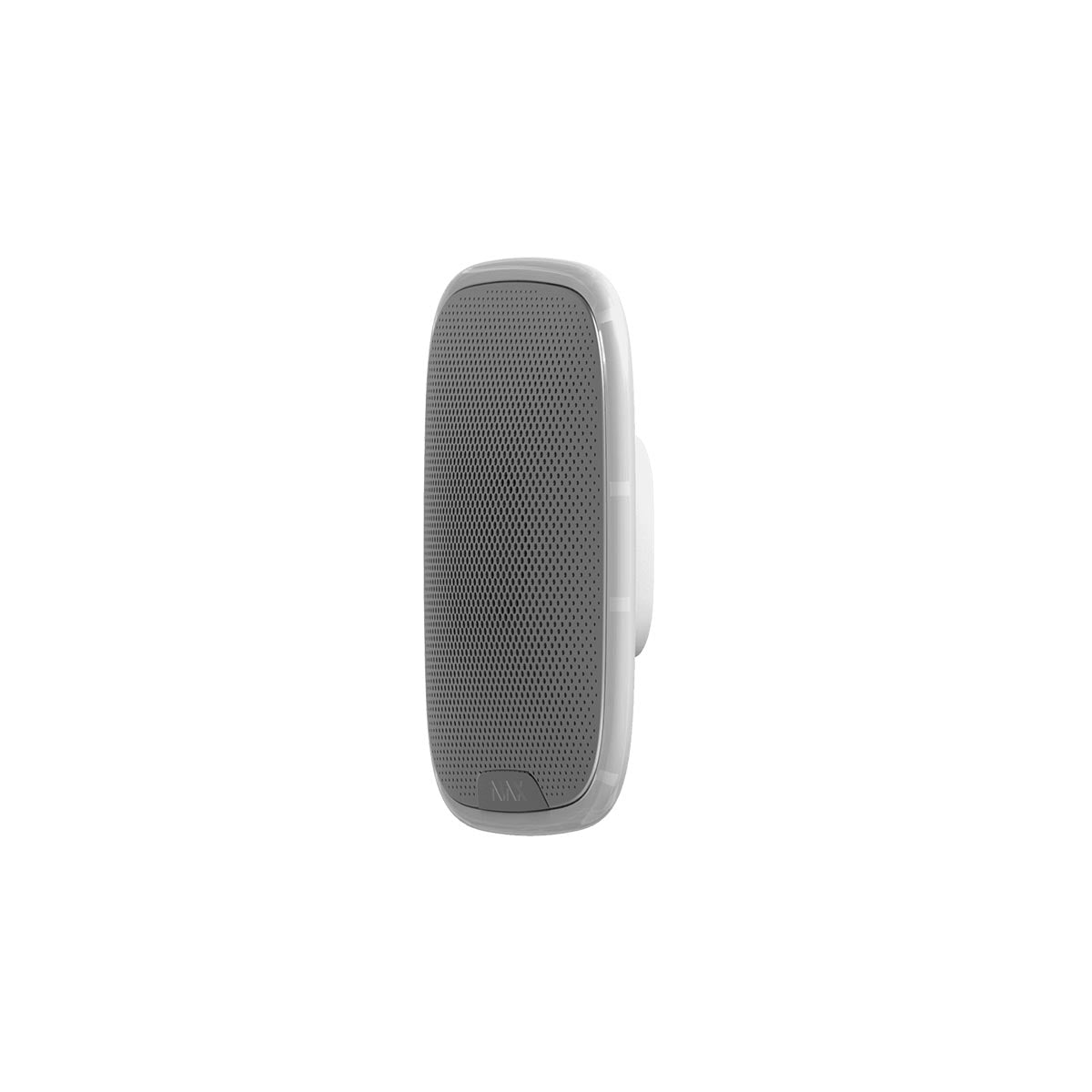

The Ajax StreetSiren White is a wireless siren suitable for both outdoor or indoor installation. The StreetSiren notifies of detector activation with an audible alarm and LED light to scare off intruders and alert neighbours.
The buzzer can be set to generate sound from 85 to 113 dB for an adjustable period from 3 seconds to 3 minutes, or it can be completely silent and respond only with LED indication.
Please note: StreetSiren operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with All Ajax hubs and radio signal range extenders
Product Code: 7830.07.WH1
FEATURES OF THE AJAX STREETSIREN:
- Wireless siren with LED frame and piezoelectric buzzer
- Outdoor and indoor installation
- Built-in battery lasts up to 5 years (Optionally a 12V DC power supply can be connected)
- Communication range of 1500m (in an open space/line of sight)
- Adjustable sound level of 85 – 113 dB at a distance of 1 m
- Adjustable alarm time of 3 seconds to 3 minutes
- Indicates armed/disarmed mode
- Recommended installation height — 2.5 meters and more
- Tampering resistant
- IP54 dust and moisture protection
- Set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated)
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax StreetSiren comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
SPECIFICATIONS OF THE AJAX STREETSIREN:
| Compatibility | All Ajax hubs and radio signal range extenders |
| Classification | Light and sound radio channel security sounder |
| Type of detector | Wireless |
| Installation method | Indoors/Outdoors |
| Type of notification | Sound/light |
| Alarm volume | From 85 to 113 dB at a distance of 1 m (Adjusted in the Ajax app) |
| Alarm length | From 3 s to 3 min (Adjusted in the Ajax app) |
| Indication of armed/disarmed status | Yes |
| Indication of entry/exit delays | Yes (With firmware version 3.50 and higher) |
| Chimes | Yes (With firmware version 3.73.1.0 and higher) |
| Alarm signal delivery time | 0.15 s |
| Power supply | 4 x CR123A batteries, 3V |
| Battery life | Up to 5 years |
| Mains supply | DC 12 V±20% |
| Communication range with central unit | Up to 1,500 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0-868.6 MHz |
| Self-adjusting RF output power | Up to 25 mW |
| Block encryption based on AES algorithm | Yes |
| Device polling period | 12−300 s |
| Operating temperature range | 25°С to +50°С |
| Operating humidity | Up to 95% |
| Protection class of body | IP54 |
| Protection against fraud | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Remote setting and testing | Yes |
| Certification | Grade 2, CE |
| Product Dimensions | 200 mm х 200 mm х 51 mm |
| Product Weight | 528g |
| Packaging Dimensions | 218 mm x 209 mm x 68 mm |
| Mass of unit packed | 925g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax StreetSiren White
