Ajax Keypad White
Regular price
R 1,595.00
R 1,939.00
17% OFF
Choose your payment plan, and pay from as little as
R 398.75
today.
Pay with Payflex
Payflex lets you split your purchase into 2, 3 or 4 equal interest-free instalments.
Pay the first instalment today at checkout. The remaining instalments are debited automatically every 30 days. 0% interest, no hidden fees when paid on time. Quick sign-up — just an ID and a SA debit or credit card. Your order ships immediately, no waiting.
Ask about Ajax Keypad White
Mon to Fri, 07:30 to 16:00. Closed weekends and public holidays.
or send us a message

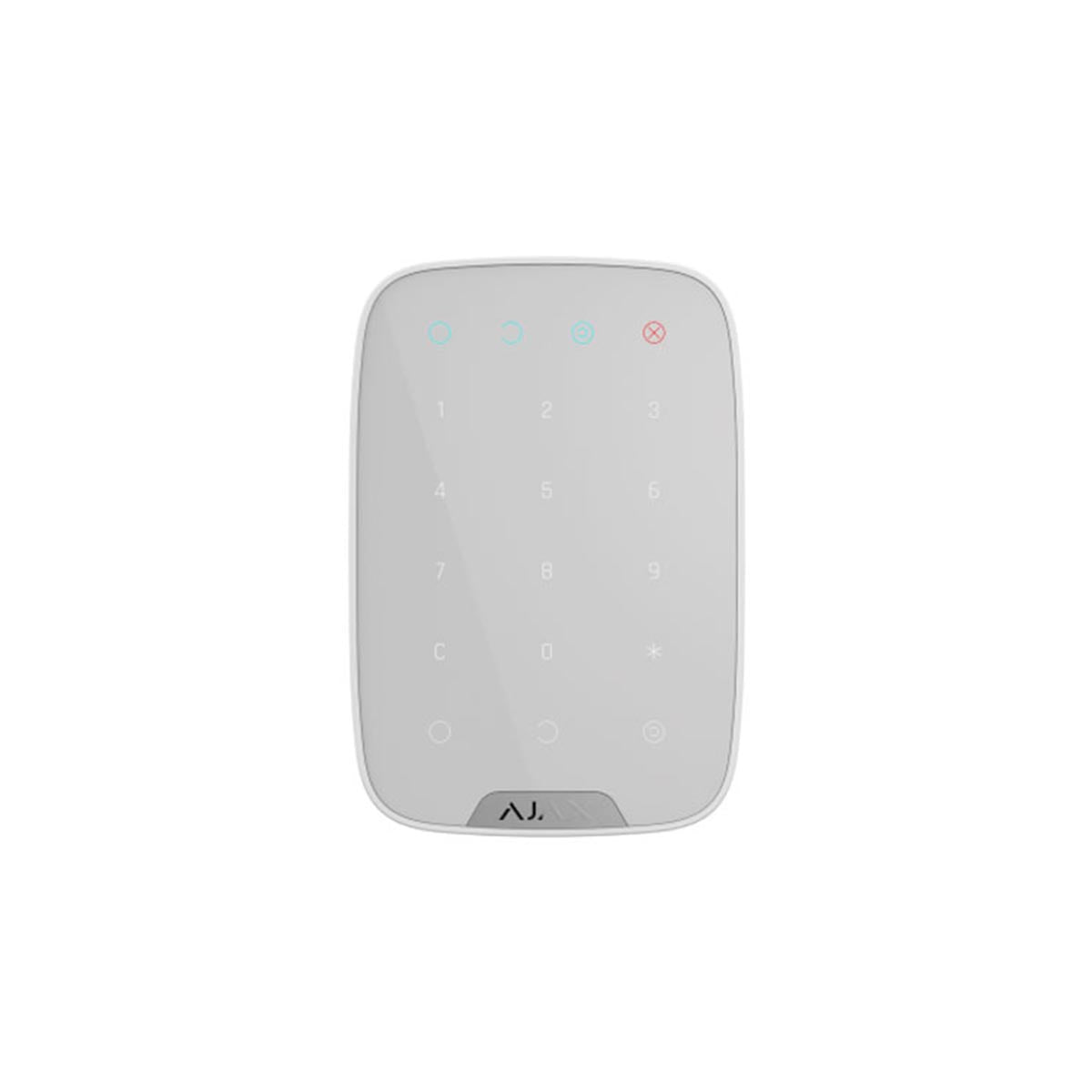

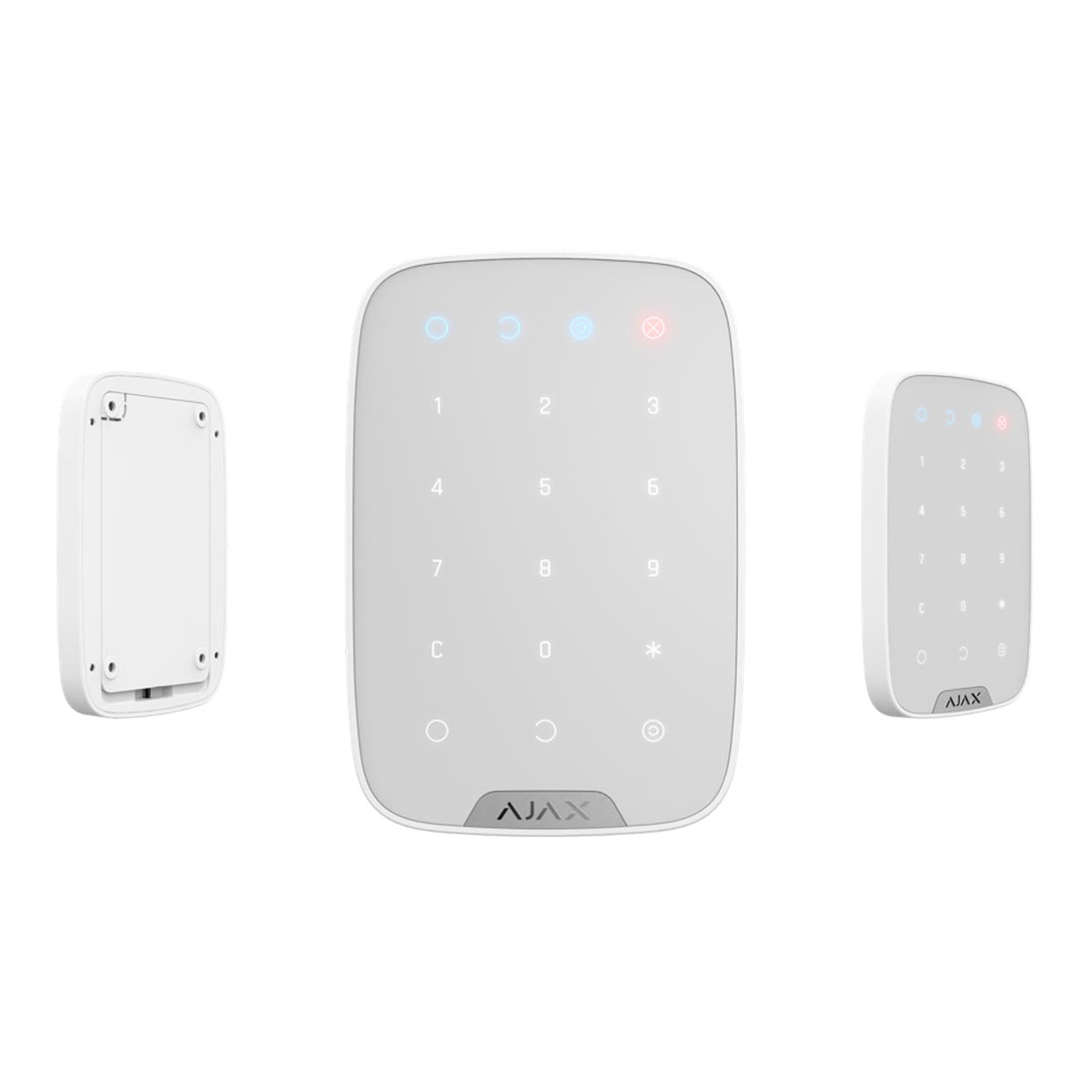

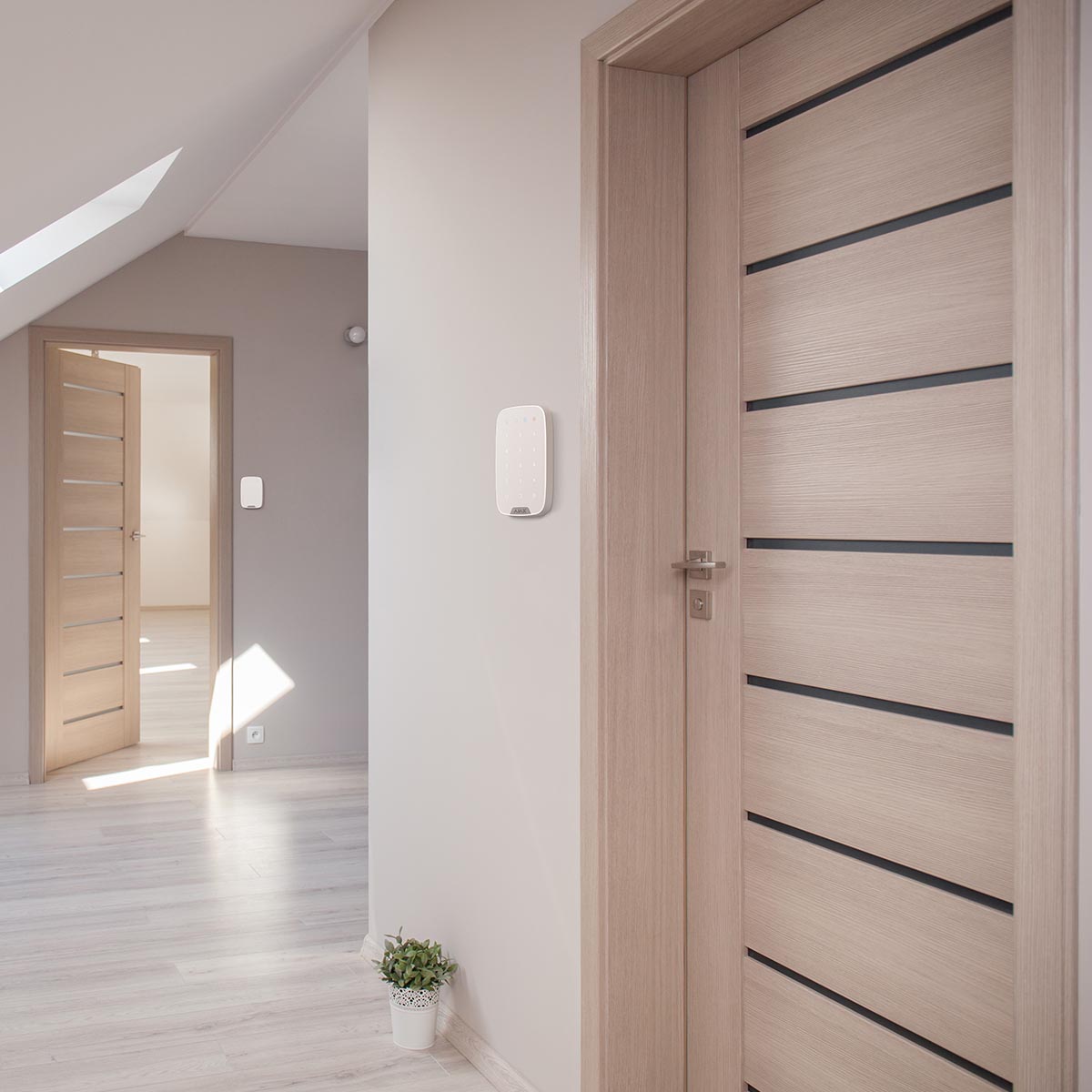

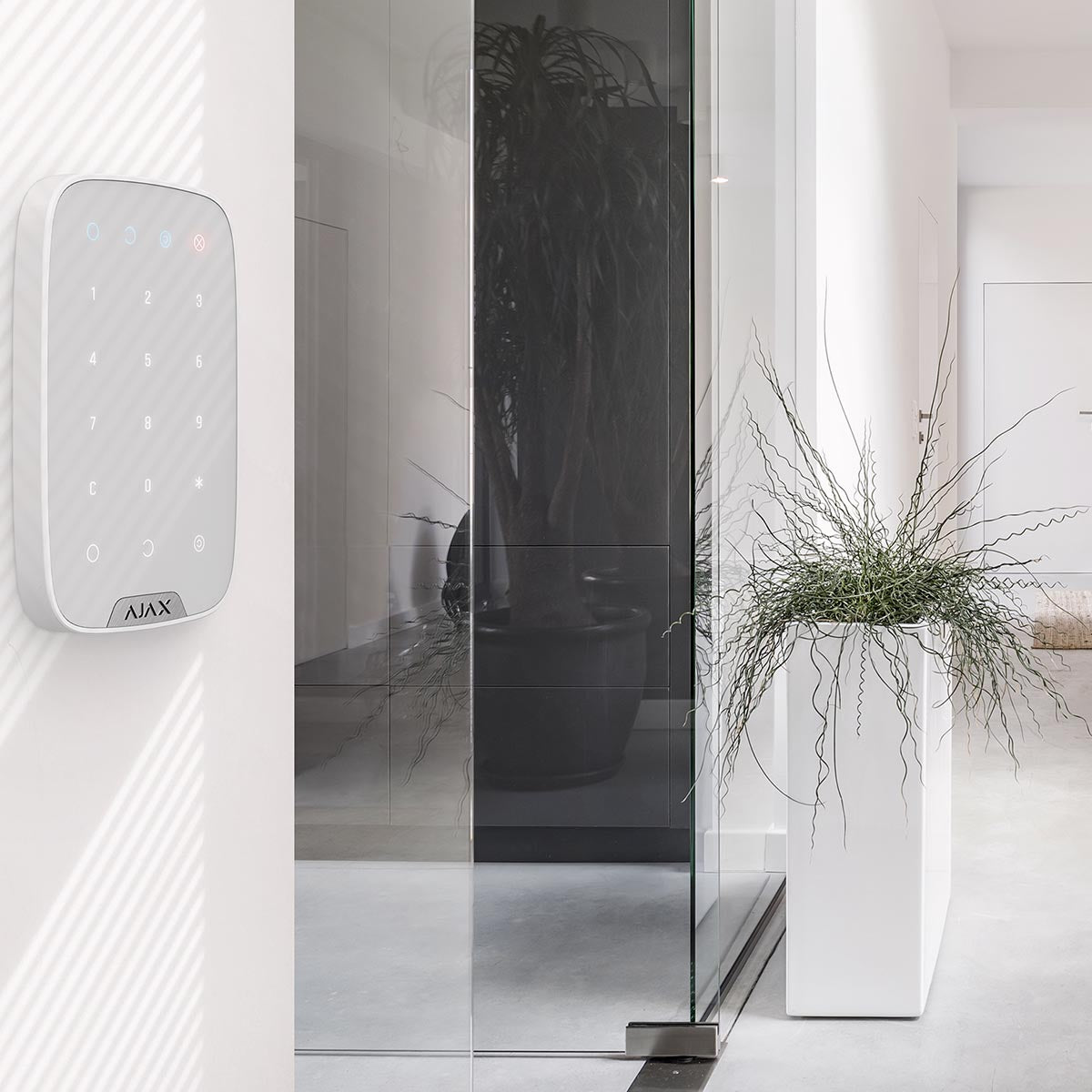

The Ajax Keypad White is a numeric touch keypad used for arming or disarming Ajax security system. It is mounted in the room near the entrance door to provide quick access to the keypad.
Please note: The Ajax Keypad operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Operates with all Ajax hubs and range extenders. Does not support connecting via ocBridge Plus or uartBridge integration modules.
Product Code: 8706.12.WH1
FEATURES OF THE AJAX KEYPAD:
- Clear button
- Function button
- Arming button
- Disarming button
- Night mode button
- Tamper button
- Activates the full security mode by pressing one button
- If the robber tries to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
- Keypad is blocked automatically if the incorrect code is entered too many times
- Communication range of 1700m (in an open space/line of sight)
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax Keypad White is ready to operate straight out the box, the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
SPECIFICATIONS OF THE AJAX KEYPAD:
| Compatibility | Operates with all Ajax hubs and range extenders |
| Classification | Radio channel touch keypad |
| Type of keypad | Wireless, touch |
| Installation method | Indoors |
| Number of buttons | 15 |
| Duress code | Yes |
| Protection against password attack | Yes |
| Protection against passcode guessing | Yes |
| Arming/disarming indication | Yes |
| Power supply | Battery - ААA batteries, 3 V (batteries are installed in pairs) |
| Battery life | Up to 2 years |
| Communication range with central unit | Up to 1,700 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0−868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Keypad scanning period | 12−300s |
| Temperature sensor | Available |
| Operating temperature range | -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Protection against fraud | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Remote setting and testing | Yes |
| Certification | Grade 2, CE |
| Product Dimensions | 150 mm х 103 mm х 14 mm |
| Product Weight | 197g |
| Packaging Dimensions | 192 mm x 137 mm x 17 mm |
| Mass of unit packed | 500g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax Keypad White
| SKU | CP430W |
|---|---|
| Installation | Installer recommended |
| Warranty | 24-month limited manufacturer warranty |
| Indoor / outdoor | Indoor |
| User capacity | 99 |
| Credential types | PIN / passcode |
| Power supply | Battery - ААA batteries, 3 V (batteries are installed in pairs) |
| Wired / Wireless | Wireless |
| System compatibility | Operates with all Ajax hubs and range extenders |
| Tamper protection | Yes |
| Night / backlit operation | Yes |
| What's in the box | 1 x Ajax Keypad White |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Type of keypad | Wireless, touch |
| Installation method | Indoors |
| Number of buttons | 15 |
| Duress code | Yes |
| Protection against password attack | Yes |
| Protection against passcode guessing | Yes |
| Arming/disarming indication | Yes |
| Battery life | Up to 2 years |
| Communication range with central unit | Up to 1,700 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0−868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Keypad scanning period | 12−300s |
| Temperature sensor | Available |
| Operating temperature range | -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Protection against fraud | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Remote setting and testing | Yes |
| Product Dimensions | 150 mm х 103 mm х 14 mm |
| Product Weight | 197g |
| Packaging Dimensions | 192 mm x 137 mm x 17 mm |
| Mass of unit packed | 500g |
Specifications verified against manufacturer documentation. Confirm critical requirements with our team before purchase.
