PRODUCT INFORMATION

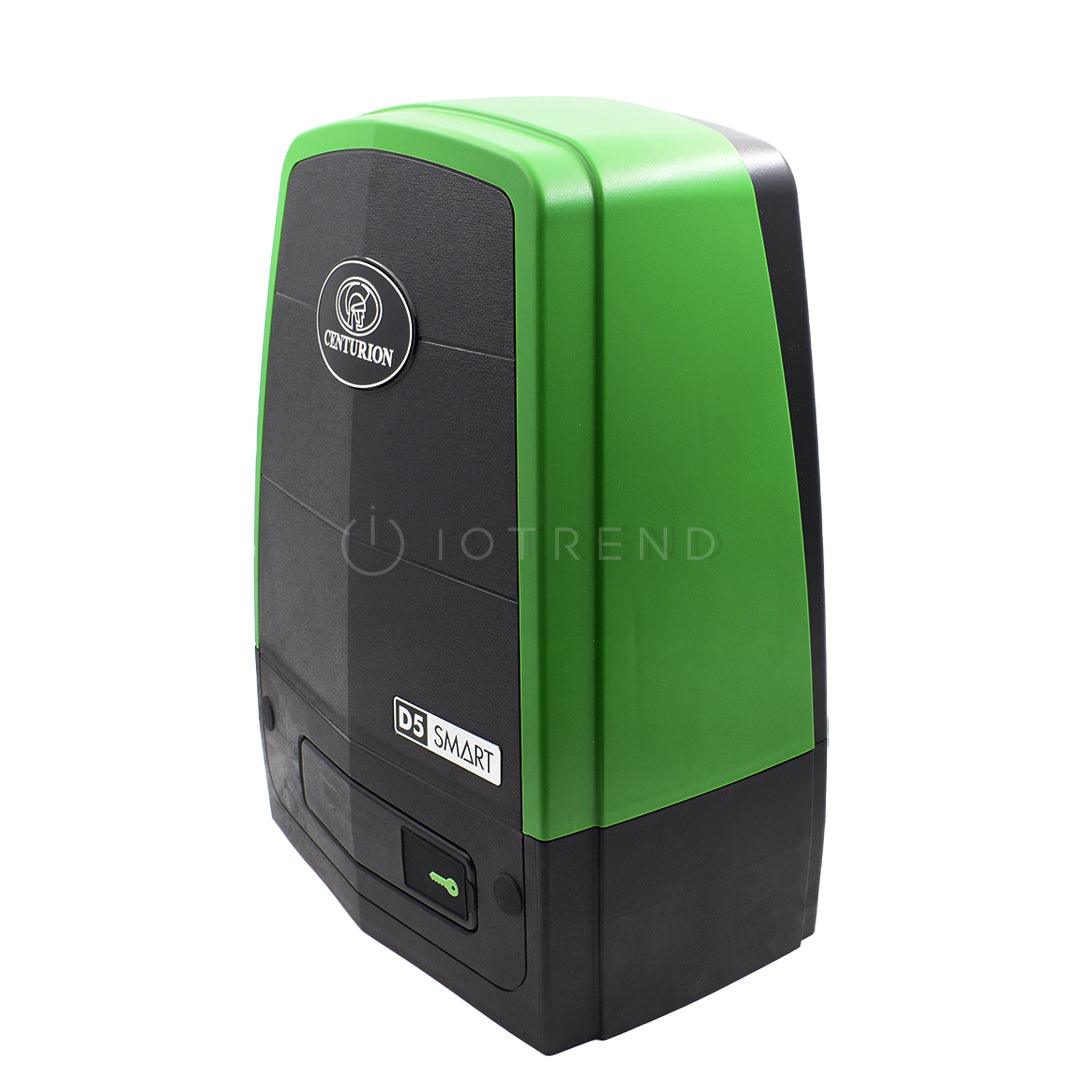

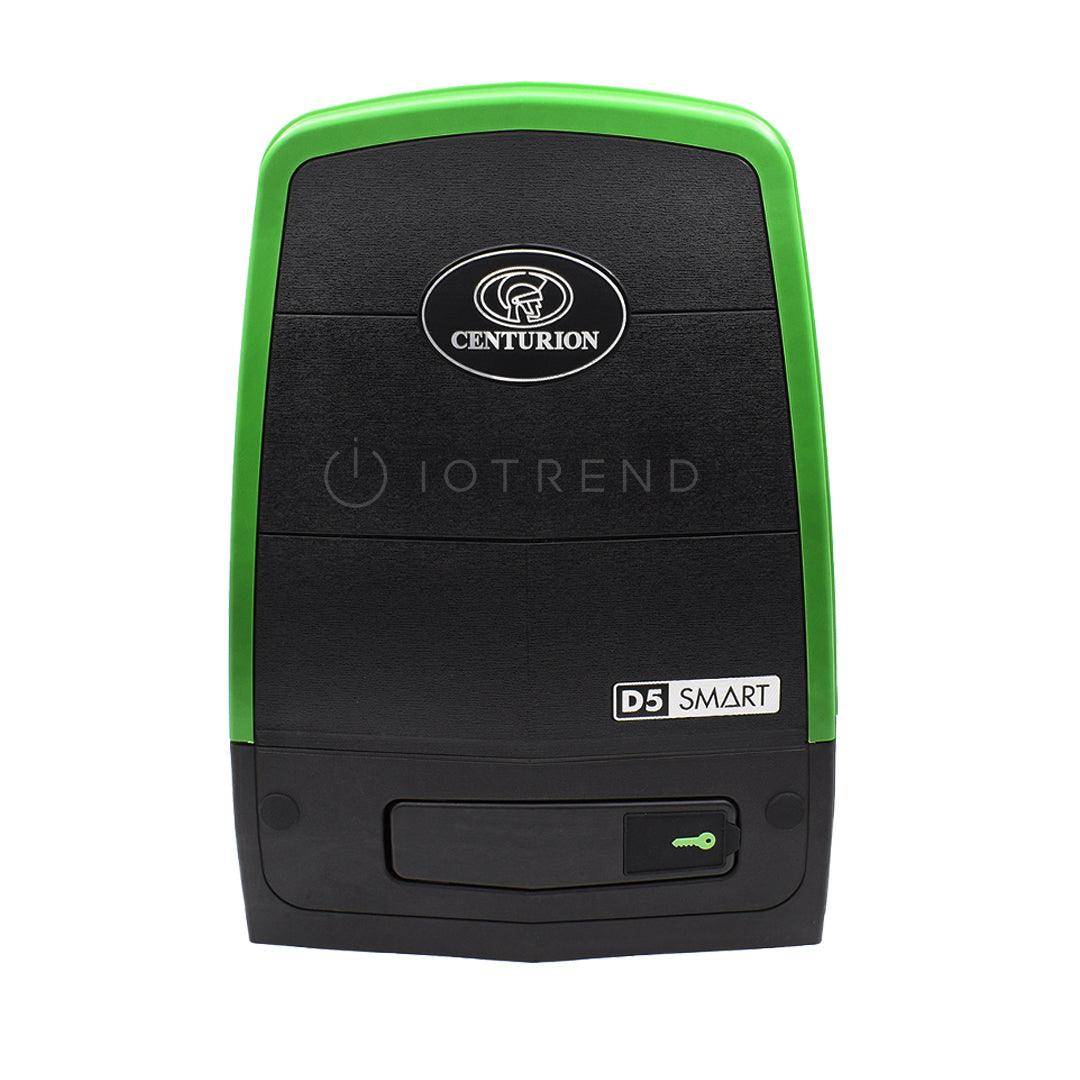

The Centurion D5 Smart Gate Motor Kit gate motor is a domestic and light industrial operator designed to open and close sliding gates weighing up to 500kg.

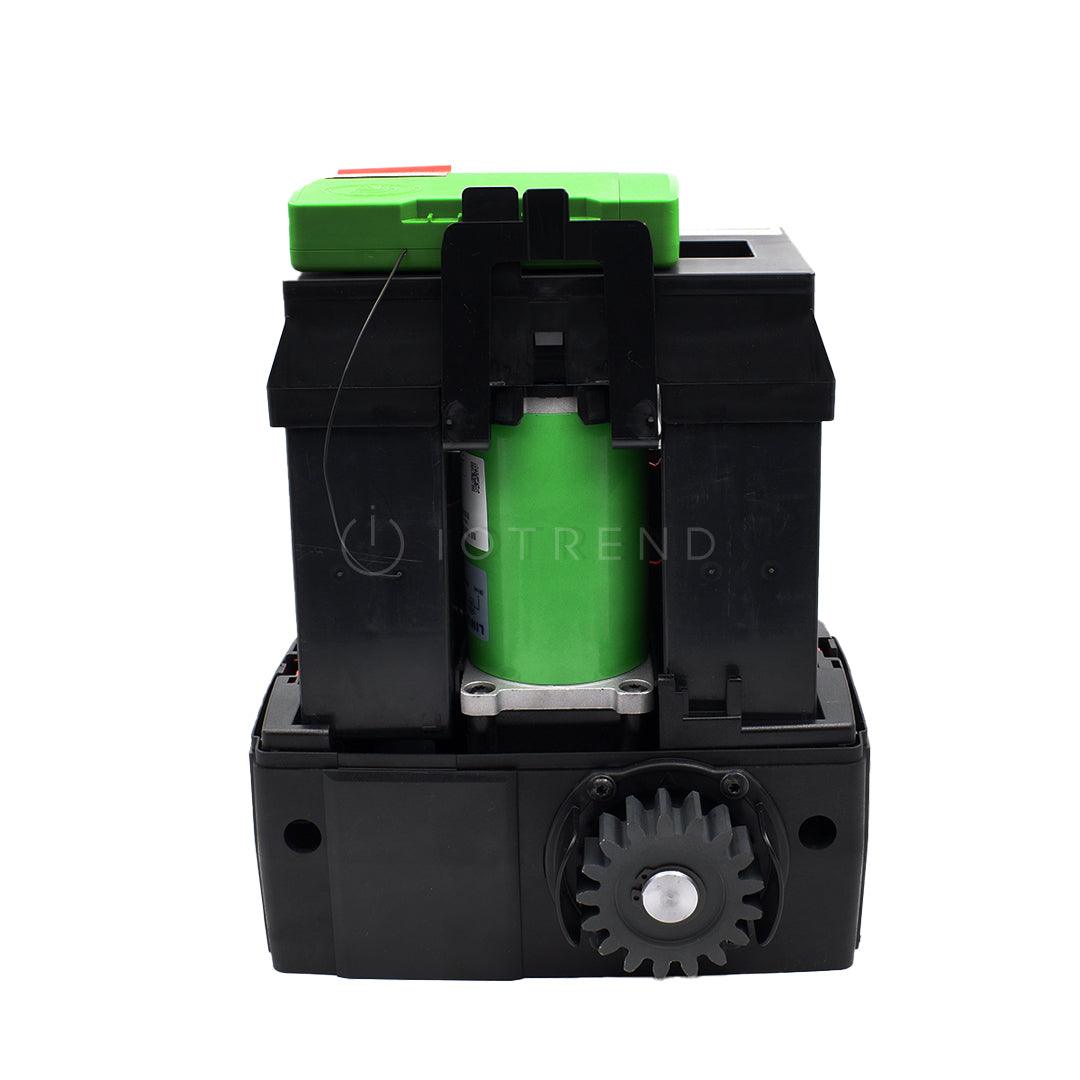

A custom designed gearbox moulded from robust engineering polymers, coupled to a powerful 24V DC motor, provides fast and reliable automation for entrances to homes and small housing estates.

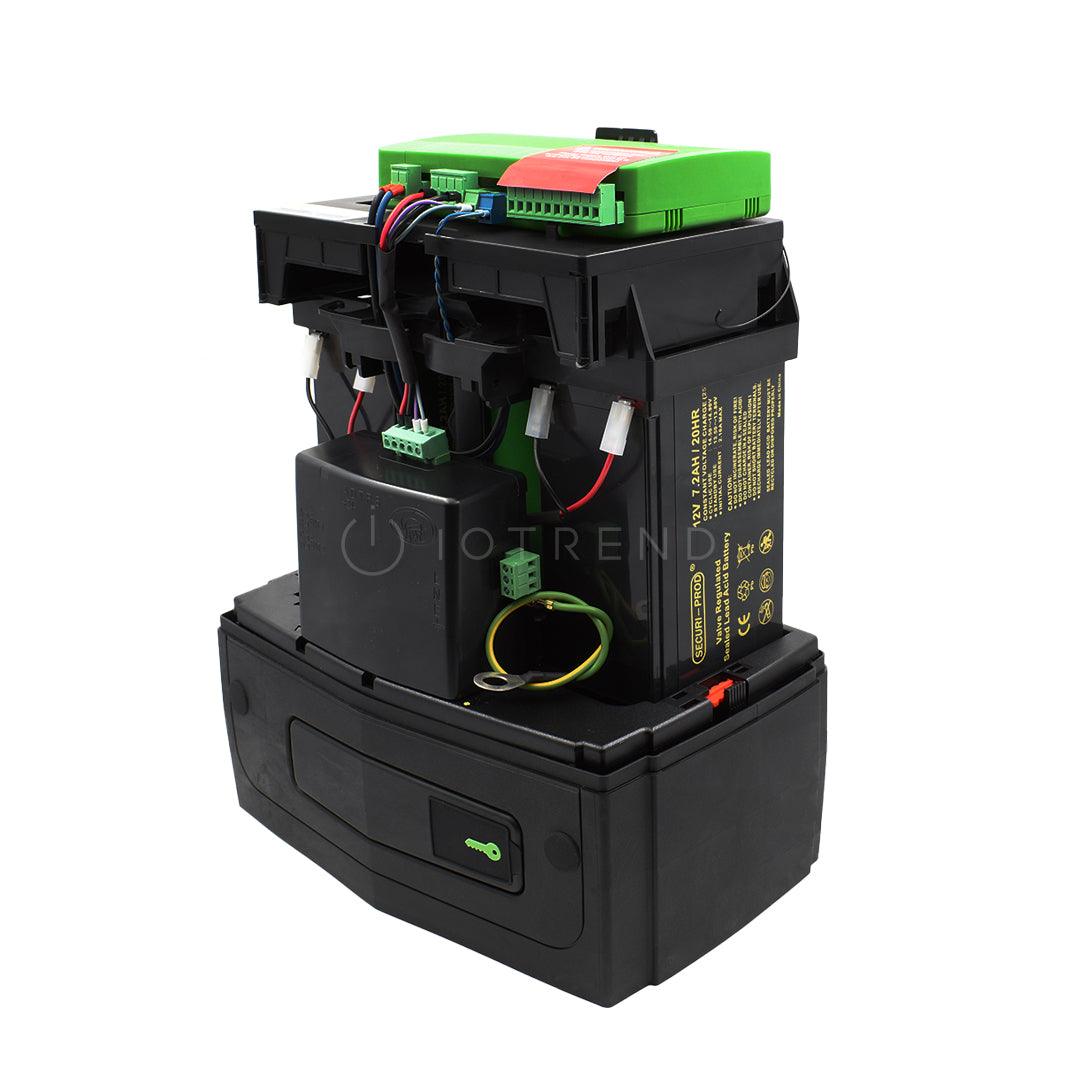

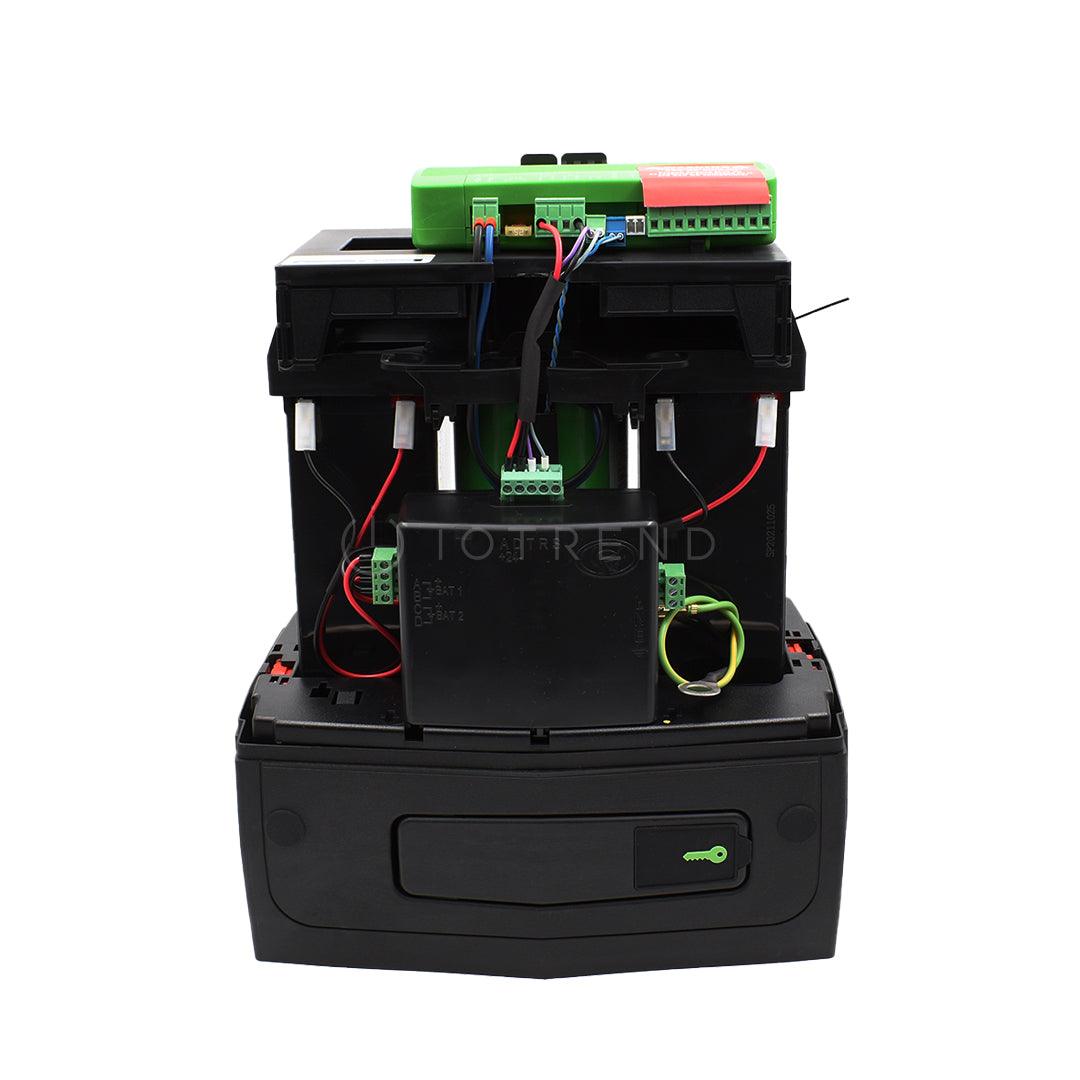

The system operates off two 12V 7.2AH Securi-Prod batteries (not included) housed inside the operator using a switch-mode charger to maintain the batteries in a fully-charged state. The batteries provide critical power failure protection.
A non-contact Hall Effect Sensor was selected to ensure reliability and positional accuracy. The Hall Effect Sensor is highly resistant to dust, oil, dirt or insect ingress, therefore ensuring that the D5 SMART opens and closes gates reliably and accurately.
Features:
- Speed
- The perfect balance between security and safety with a top speed of up to 36 meters per minute
- Diagnostics and logging
- Makes your life easier with advanced diagnostic feedback
- Intelligent logging and reporting
- Wireless user interface
- Wireless and effortless - easy setup and configuration from your smartphone
- Smart hardware
- Provides the best experience for installers and end-users alike with easy access to mounting hardware and optimized cable management for the neatest installation around
- All the most innovative technological features
- Onboard multichannel NOVA receiver with 1500 button memory
- Wireless and effortless – easy setup and configuration from your smartphone
- 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
- New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
- Vibration sensor that can be connected to a third-party device to notify you in the event that the gate motor is being tampered with
- Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
- Improved position control system incorporating hall effect technology - highly resistant to interference
- Individually-configurable inputs and outputs
- Convenient and intuitive single-action manual release
specifications
| Brand | Centurion |
| Model | D5 SMART |
| Compatible remotes | Nova 1 Button, 2 Button and 4 Button |
| Compatible backup batteries | Securi-Prod 12v 7.2Amp and Securi-Prod 12V 8Amp batteries |
| Compatible controller PCB | SmartX controller |
| Compatible Charger PCB | D5 SMART Charger PCB Assembly |
| Compatible antitheft bracket | D5 SMART Bracket |
| Compatible safety beams | Photon SMART Wireless Beams, i5 Wired Beams and Photon Semi Wireless Beams |
| Compatible rack | Raz Rack, Steel Rack and Angle Steel and Nylon Rack |
| Compatible cover | D5 Smart Replacement Cover |
| Input voltage | 90V - 240V AC ± 10% @ 50Hz *1 |
| Current consumption (Mains) | 200mA |
| Battery charger current output | 1.3A |
| Duty cycle - Mains present | 50% |
| Motor voltage | 24V DC |
| Motor power supply | Battery-driven (Standard Capacity - 2 x 12V 7.2Ah) |
| Current consumption (motor at rated load) | 13A |
| Motor push force - starting | 30Kgf |
| Gate mass - maximum | 500Kg |
| Gate length - maximum | 100m |
| Drive Pinion | 17T Module 4 |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 1500 Remote buttons |
| Receiver frequency | 433.92Mhz |
| Degree of protection | IP55 |
| Gate motor dimension | 275mm(l) x 181mm(w) x 373mm(h) |
| Packaging dimensions | 244mm(l) x 325mm(w) x 445mm(h) |
| Mass of unit packed | 9.1Kg |
| Warranty | 24 Months carry-in product manufacturer's warranty |
Instructions for use
• Refer to detailed installer manual.
Maintenance and care
• Ensure that the track is kept clear from stones, dirt or any obstruction. Gate brushes can be installed to assist in clearing the obstructions.
• Ensure that the Gate wheels V profile, Gate wheels U profile or Gateshox run freely.
• Manual override the motor and check that the gate runs freely without any obstruction.
• Check that the rack is properly secured to the gate and that it does not press down on the operator pinion at any point while opening or closing.
• Clean around the motor area to ensure that vegetation does not grow to close to the motor and pinion.
• Check that the key still opens and closes the camlock as well as the discuss lock for the Anti Theft bracket and lubricate if necessary.
• Inspect the inside of the motor by removing the cover and ensure that it is clear of any insects and dust.
Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.
What's in the box
1 x Gate Operator
2 x 4 Button Remotes

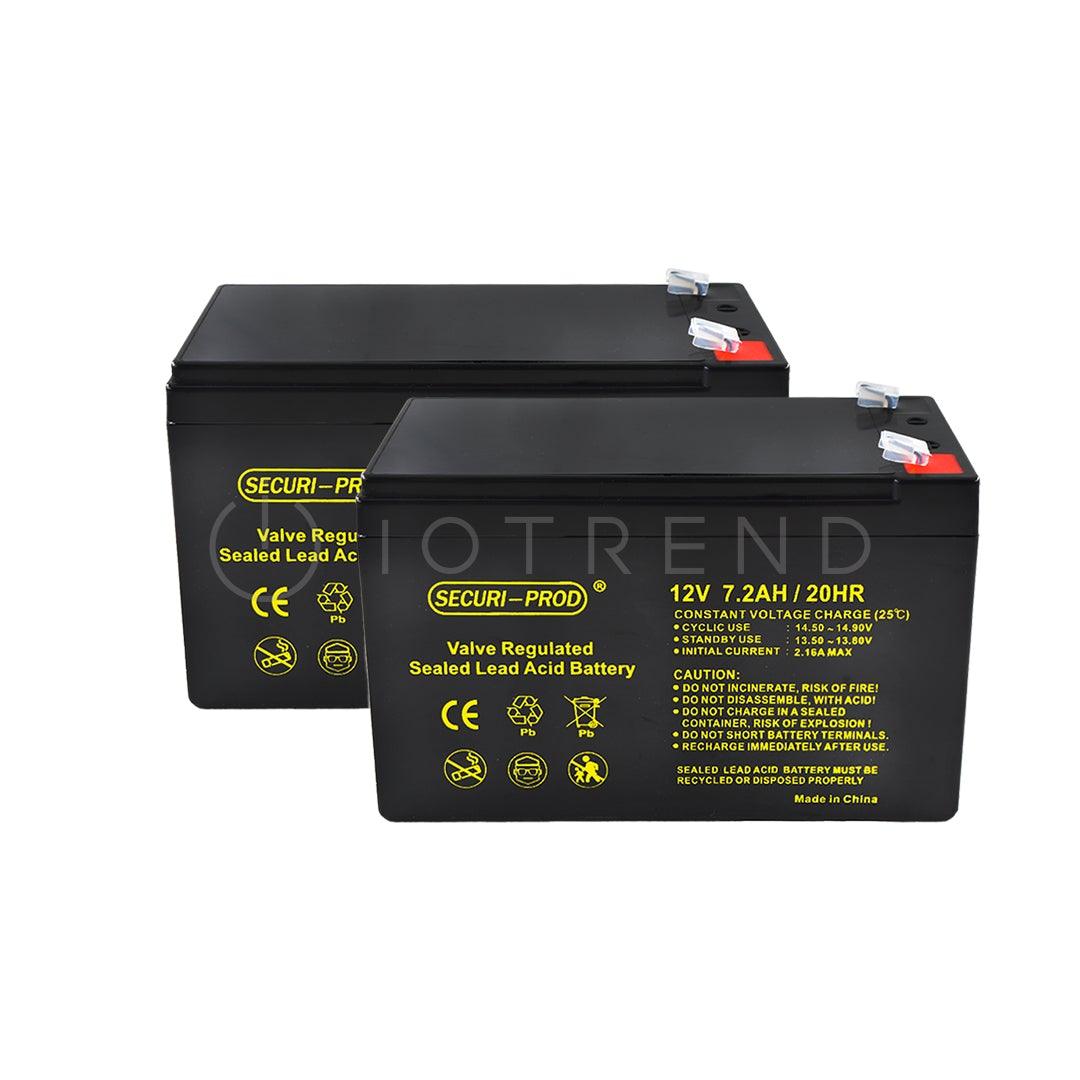

2 x 7.2AH Securi-Prod Batteries

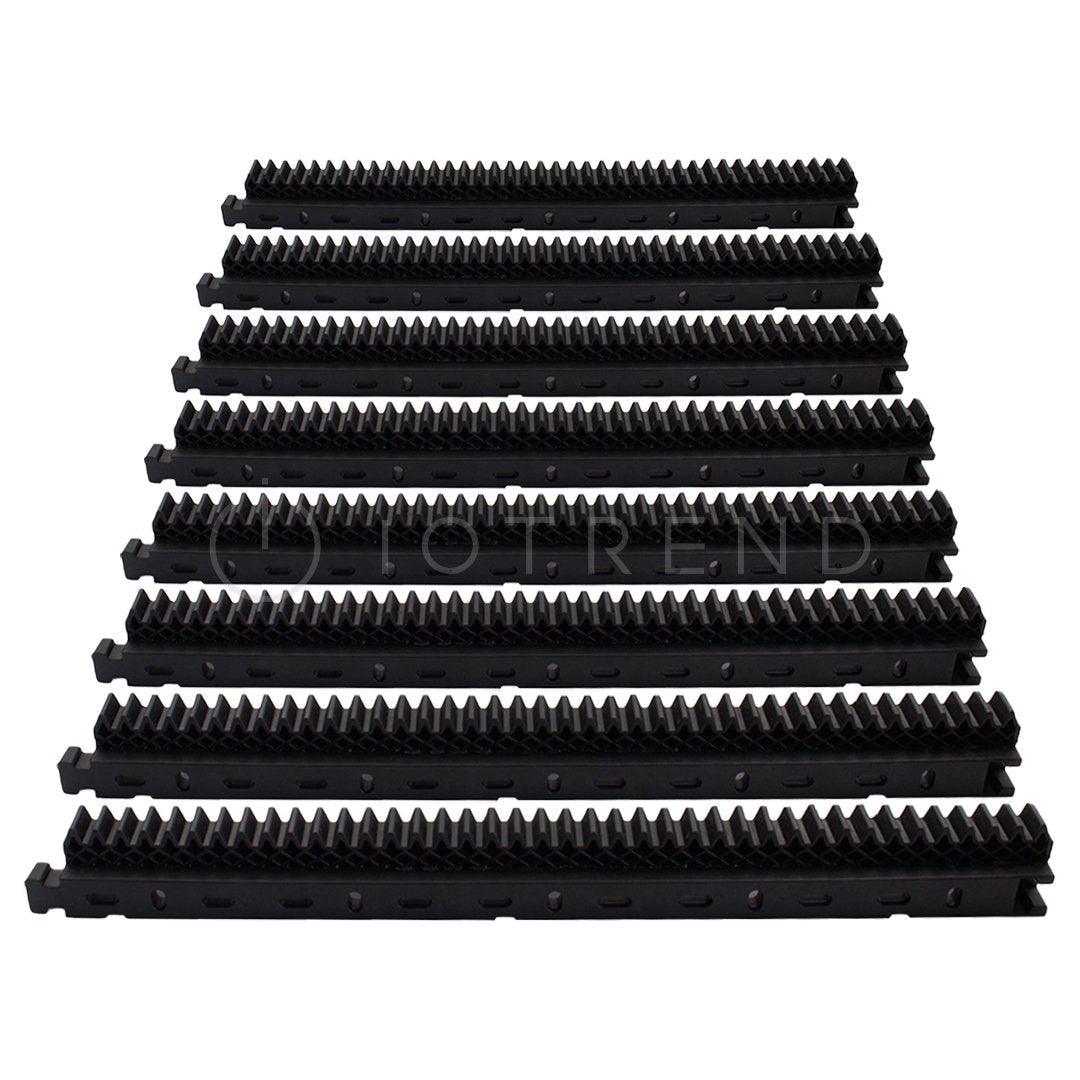

8 x 500mm Raz Rack From Securi-Prod (4 Meters)

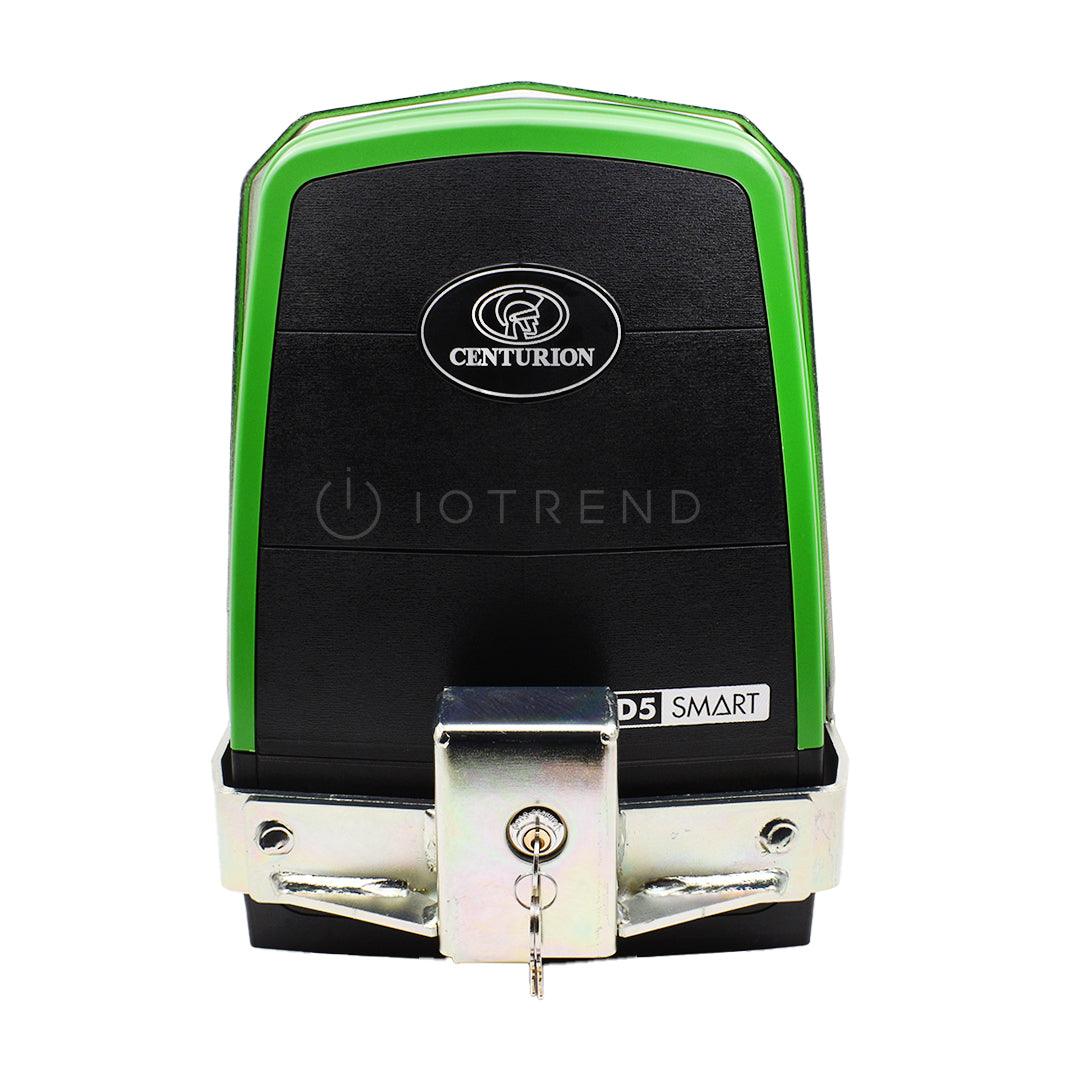

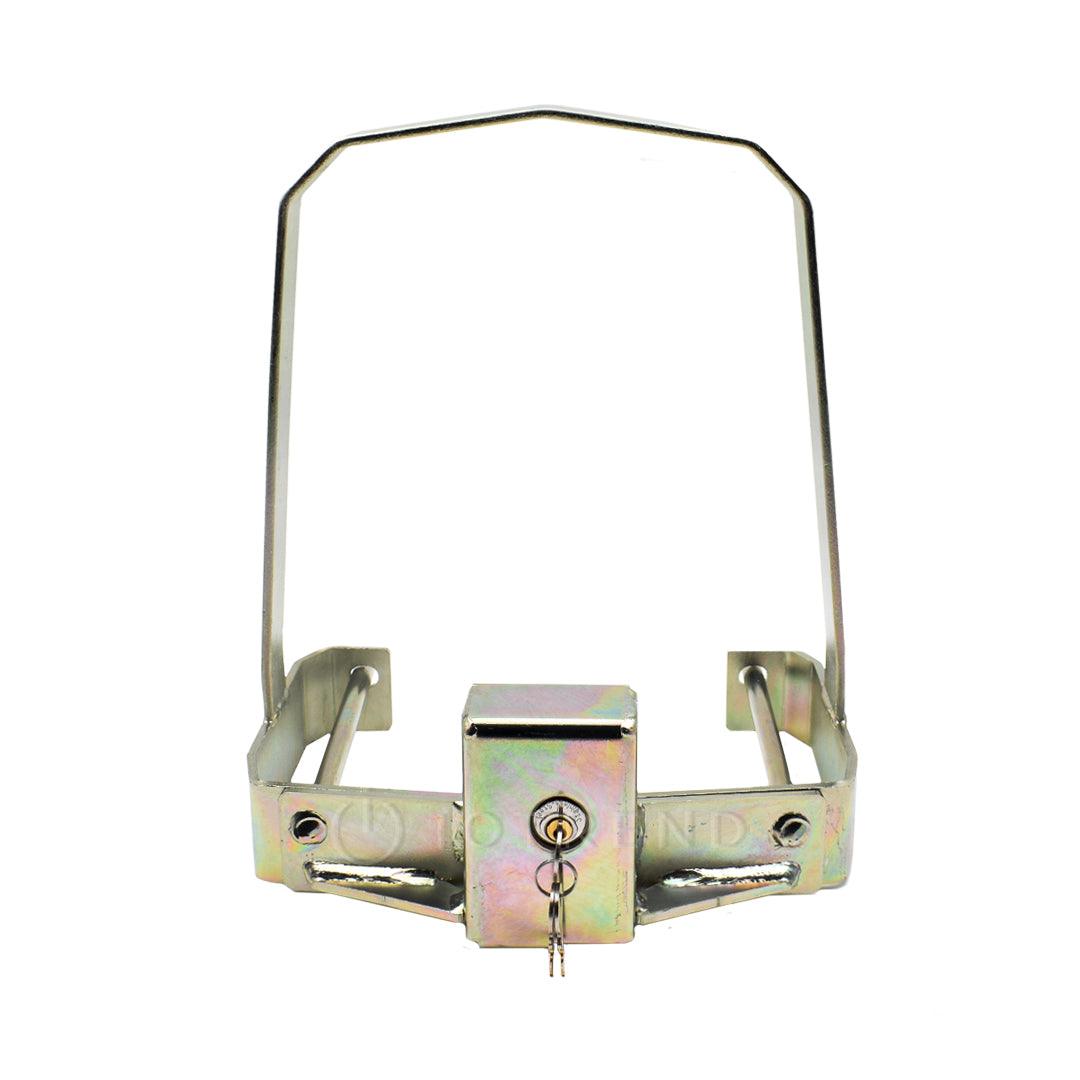

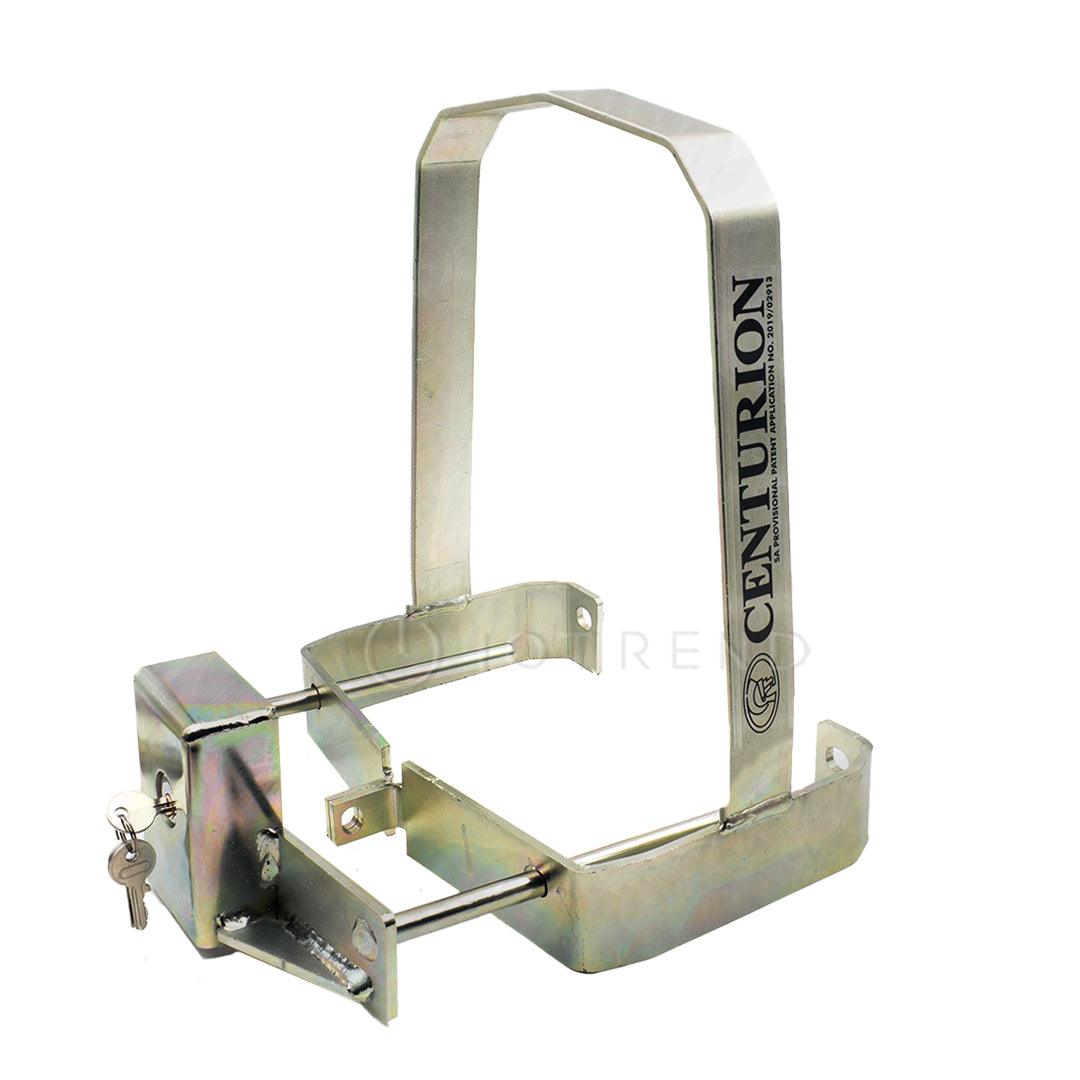

1 x D5 Smart Anti-theft bracket with integrated Pad Lock

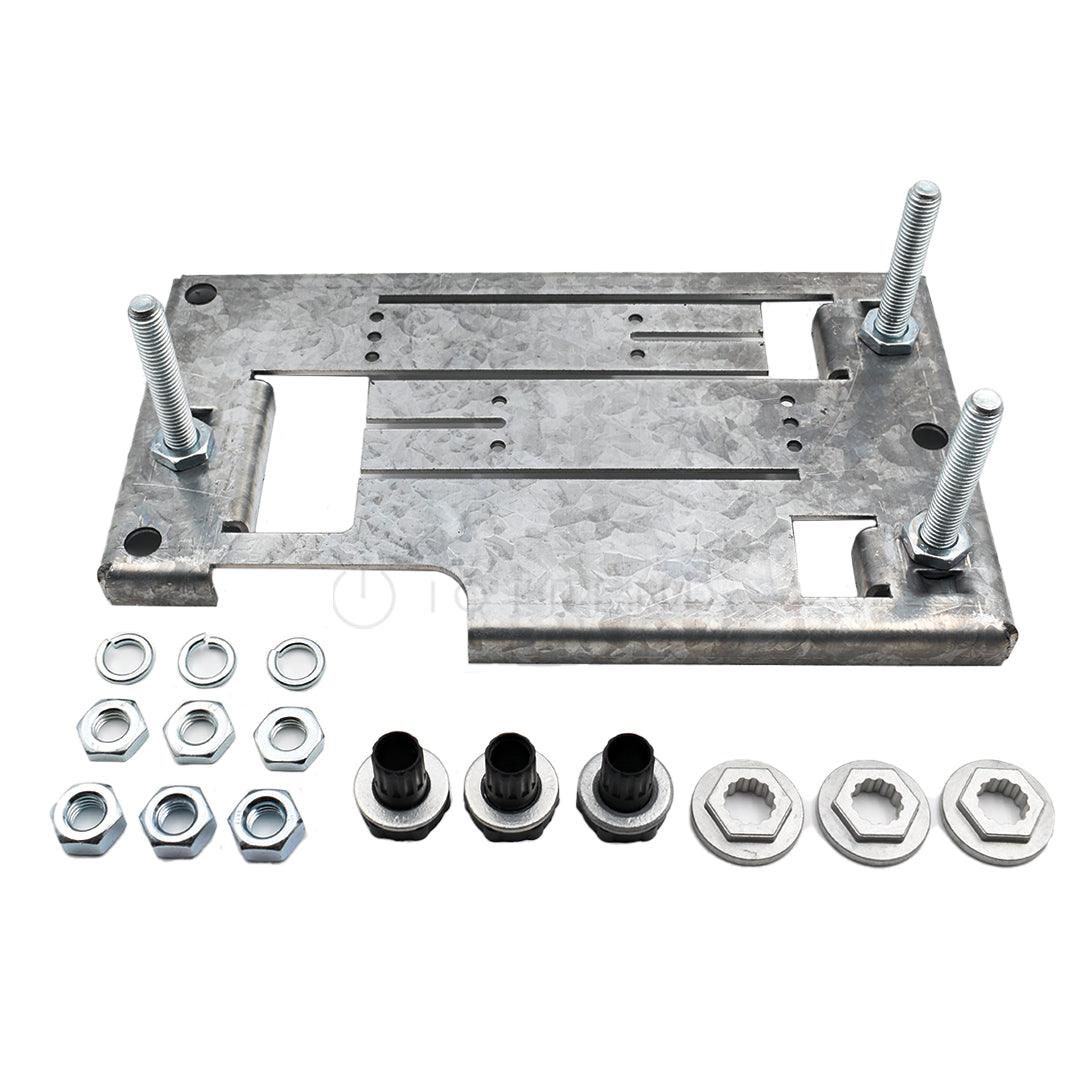

1 x Base Plate
1 x Manual
