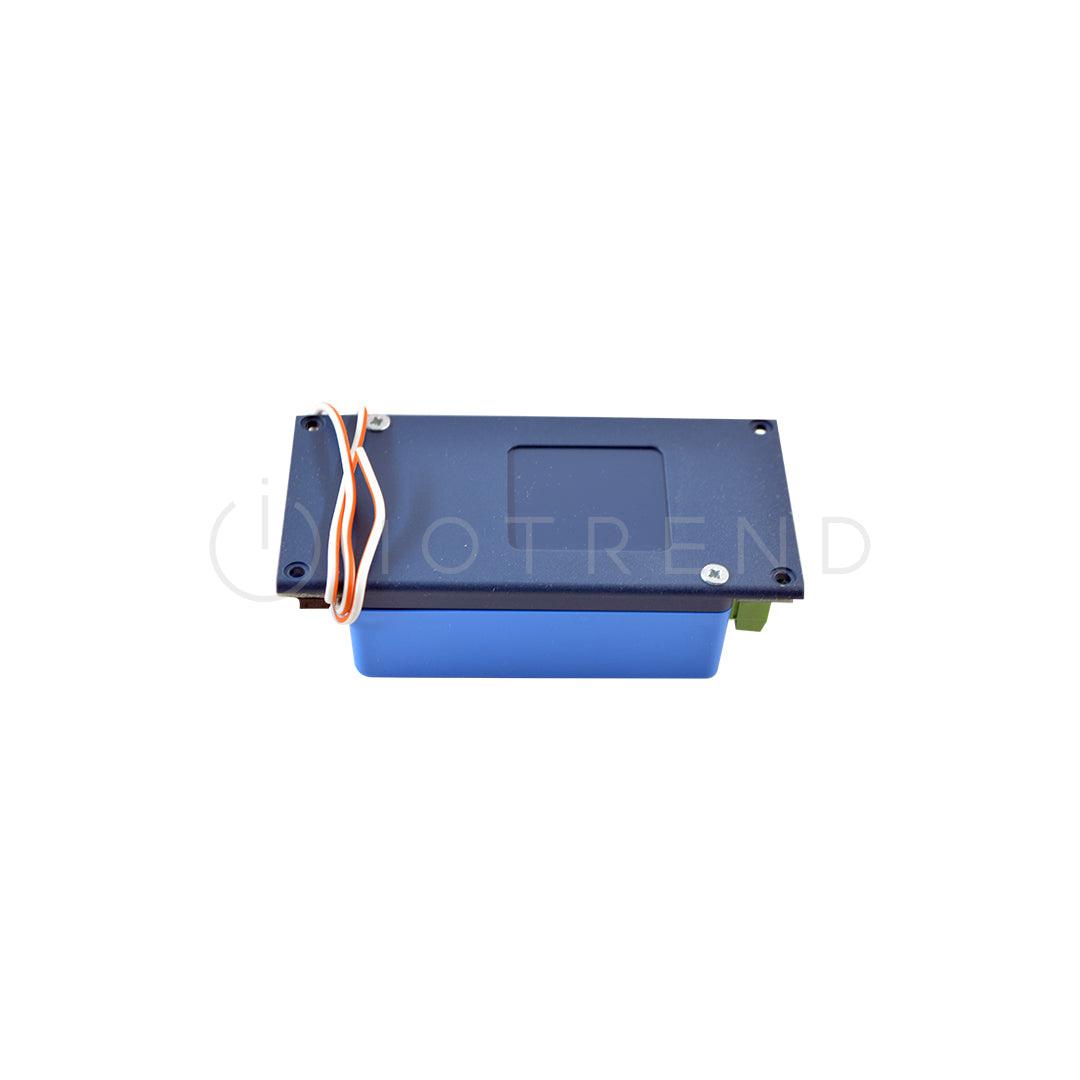

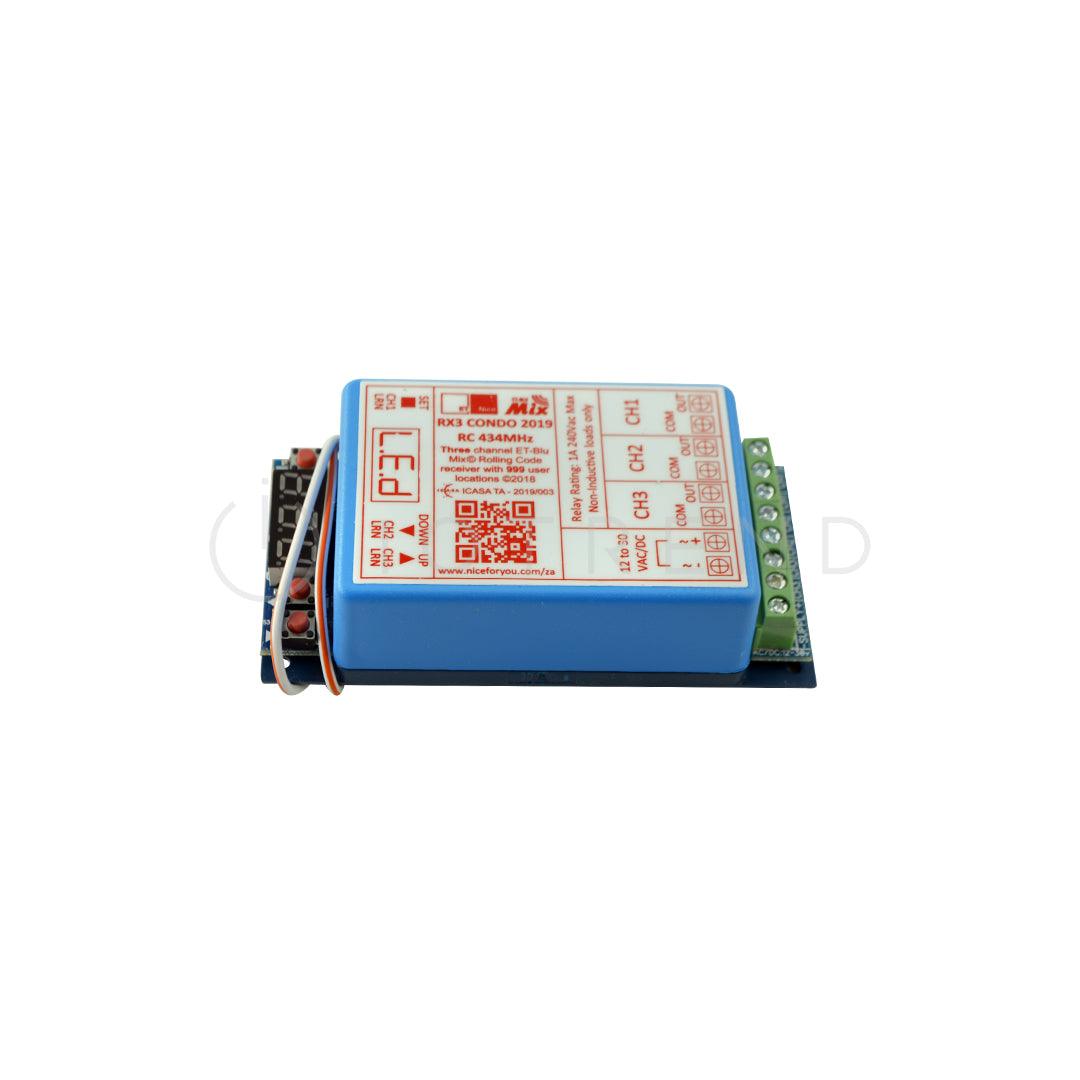

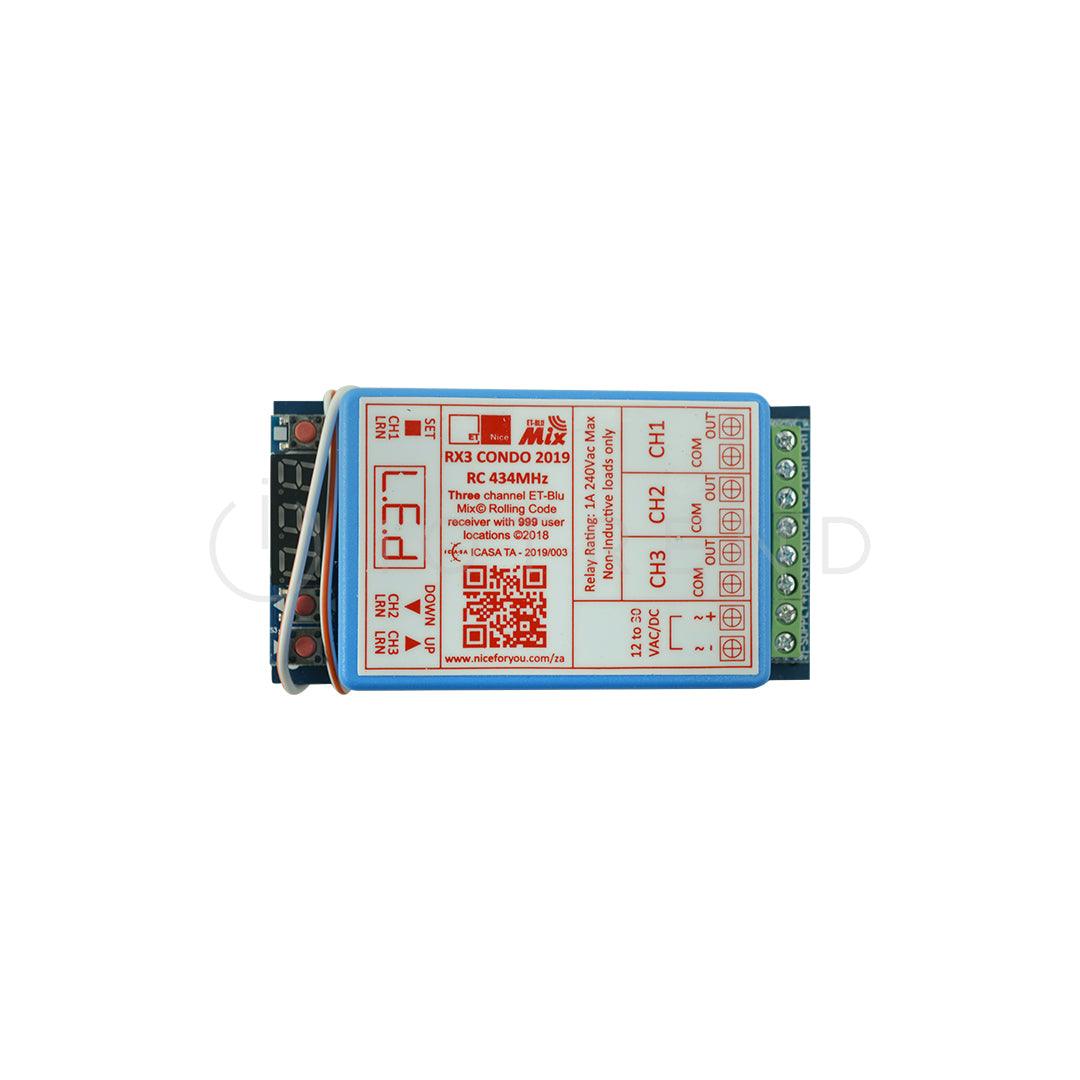

ET 3 Channel Rolling Code Receiver Condo 434mHz

R 349.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION



Product Code: 02046-000

The ET Receiver 3 Channel Rolling Code. Keeloq Rolling-code format – high level of security. The frequency of the product is 433.92MHz. The latch/non-latch/pulse (sustained or delay) mode – configured per channel. The colour of product is blue

Specifications

  • Compatible with both ET BLU MIX and ET BLUE © rolling code formats
  • 999 user memory locations. Each user can be configured to use all three channels
  • Individual memory location erasing without the need to have the transmitter present
  • 3 digit, 7 segment LED display for ease of setup and user memory location identification
  • Each channel can be individually setup to either latch, momentary on or one shot pulse mode
  • Channel pulse length can be setup to any time between 1 and 254 seconds in one shot pulse mode
  • Channel status memory - On power-up any latch channel will return to its last status at the time of power failure
  • Radio frequency signal strength diagnostics facility to test for frequency interference (Remote Jamming)
  • Last 30 transactions log
  • User memory back-up facility using the EEPROM copier unit

SPECIFICATIONS:

Input power 12 - 30v AC/DC
Peak current draw 50mA
Channel 1 peak load rating. (Dry contact relay) Up to 250v @ 5A
Channel 2 and 3 peak load rating. (FET. Pulls to 0V) 500mA @ 16V DC or 100mA @ 30V DC
Range. See transmitter specifications.
Frequency 433.92MHz (403.55MHz option available
User memory capacity RX3-CONDO RC - 999 users
Transaction log memory capacity RX3-CONDO RC - Last 30 transactions
Ingress protection IP10

What's in the box

  • ET 3 Channel Rolling Code Receiver Condo 434mHz
