PRODUCT INFORMATION
Solo. Solar. Sophisticated

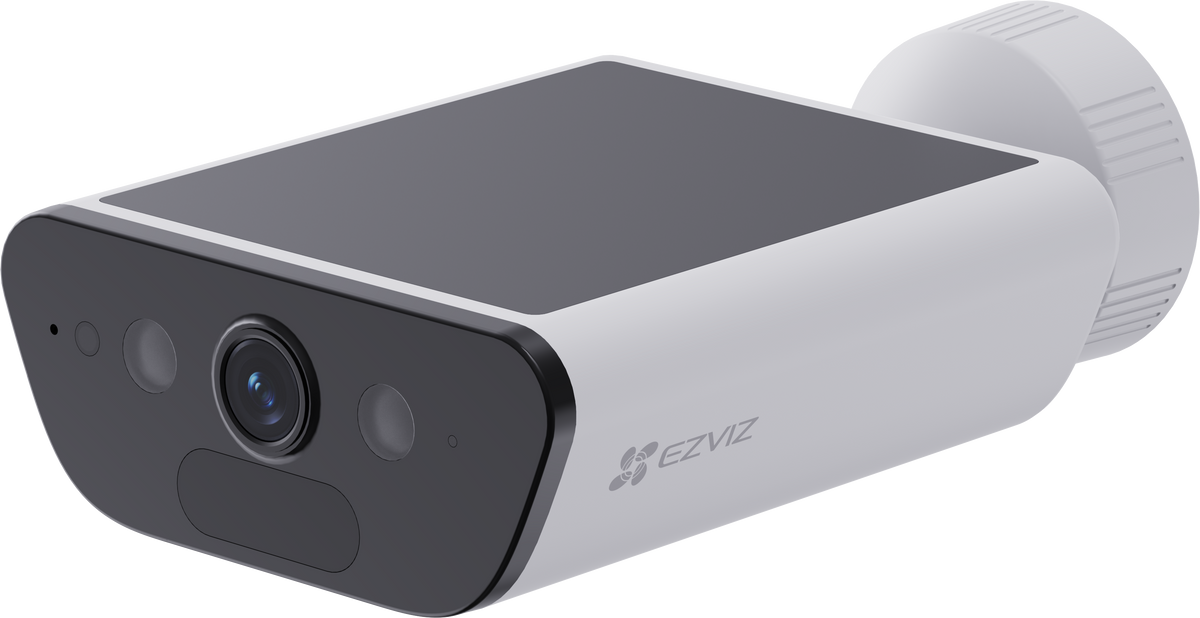

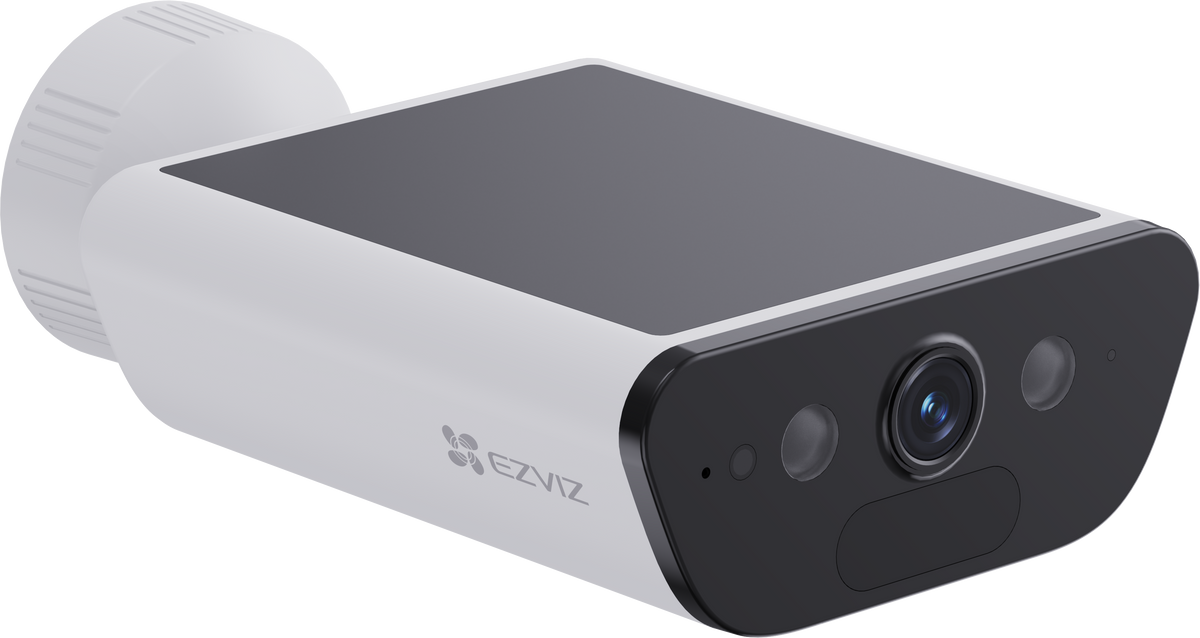

Meet the next-generation camera that lives up to your dream of simple, reliable and powerful home protection. The first-of-its-kind in EZVIZ’s reputable home camera lineup, the CB5 features 4K video, an integrated solar panel, advanced AI-powered detection functions, an Always-On Video Mode and much more of what you could or would want when choosing an all-in-one security camera. With just a single CB5, you can start enjoying non-stop peace of mind with minimal effort.
Solar style, green lifestyle
No electricity wiring available but desire continuous power? The CB5 turns every ray of the sunshine as its free source of energy. Only two hours of direct sunlight every day keep the camera running nonstop.²Even when it’s rainy season, the onboard 10,400mAh large battery ensures the CB5 operates up to 180 days uninterruptedly
FEATURES OF THE EZVIZ EB5 Solar Wi-Fi Camera
SPECIFICATIONS ON EZVIZ EZVIZ EB5 Solar Wi-Fi Camera:
| Specifications | ||
|---|---|---|
| Model | CS-CB5-R100-2F8WFL | |
| Camera | ||
| Image Sensor | 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor | |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) | |
| Day & Night | IR-Cut filter with auto-switching | |
| DNR | 3D DNR | |
| Night Vision | IR Distance:15m, Color Night Vision Distance:15m | |
| Video & Audio | ||
| Max. Resolution | 3840 × 2160 | |
| Frame Rate | 15fps. Self-Adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. | |
| Audio Bit Rate | Self-Adaptive | |
| Max. Bitrate | 4 Mbps | |
| Network | ||
| Bluetooth | Supports | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20 MHz | |
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal | |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud proprietary protocol | |
| Interface Protocol | EZVIZ Cloud proprietary protocol | |
| Minimum Network Requirement | 8Mbps | |
| Function | ||
| Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Detection | |
| Two-way Talk | Supports | |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark | |
| Storage | ||
| Local Storage | Supports Micro SD slot for local storage (Up to 512G) | |
| Cloud Storage | EZVIZ cloud storage | |
| General | ||
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) | |
| IP Grade | IP65 | |
| Power Supply | DC 5V/2A (Compatible power adapter needs to be purchased separately) | |
| Battery Capacity | 10400 mAh | |
| Power Consumption | Max. 10W | |
| Product Dimensions | 166 × 103 × 54 mm | |
| Packaging Dimensions | 227 × 167 × 64 mm | |
| Weight |
Net Weight: 466g With Package: 822g |
|
| Package Weight | 822g | |
| Warranty | 12 months limited Manufacturer’s warranty | |
1. Please update your camera to the latest firmware version to use the full AOV functions.
2. Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m2, SMQ. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual charging efficiency may be higher or lower depending on sunlight intensity and other environmental factors, and the actual hours of camera use may also vary due to the frequency of camera activities and other environmental factors.
3. Data from EZVIZ Lab’s test results, under the condition that the camera only operates with the fully charged onboard battery and does not consume additional power converted by the integrated
solar panel. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual use may vary due to environmental factors and the frequency of camera activities.
4. The EB5 only supports working with the EZVIZ Solar Panels that use Type-C charging cables. The add-on solar panel is not included in the EB5 package. Please verify the product compatibility before making a purchase.
5. Amazon Alexa and Google Assistant are not available in certain languages and countries.
6. The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
7. To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
8. When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the EB5 is able to detect movements at a distance of up to 25meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
9. The spotlights will not flash when color night vision mode is enabled.
10. Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
2. Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m2, SMQ. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual charging efficiency may be higher or lower depending on sunlight intensity and other environmental factors, and the actual hours of camera use may also vary due to the frequency of camera activities and other environmental factors.
3. Data from EZVIZ Lab’s test results, under the condition that the camera only operates with the fully charged onboard battery and does not consume additional power converted by the integrated
solar panel. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual use may vary due to environmental factors and the frequency of camera activities.
4. The EB5 only supports working with the EZVIZ Solar Panels that use Type-C charging cables. The add-on solar panel is not included in the EB5 package. Please verify the product compatibility before making a purchase.
5. Amazon Alexa and Google Assistant are not available in certain languages and countries.
6. The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
7. To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
8. When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the EB5 is able to detect movements at a distance of up to 25meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
9. The spotlights will not flash when color night vision mode is enabled.
10. Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
WHAT'S IN THE BOX:
| - Camera |
| - Power Cable |
| - Screw Base |
| - Drill Template |
| - EZVIZ Screw Kit |
| - Regulatory Information |
| - Quick Start Guide |
