PRODUCT INFORMATION
Reliably on guard, smartly in action

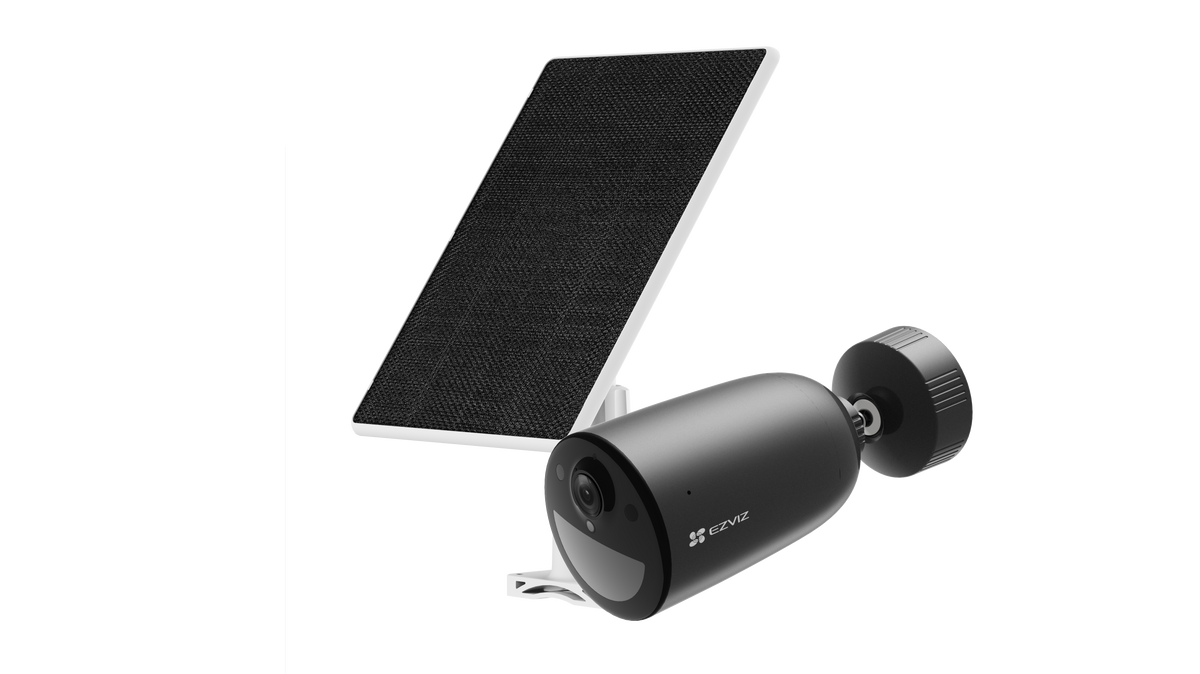

Meet the EB3 Solar Panel Kit, where cutting-edge AOV technology meets endless power. With its smart 5W solar panel, this battery-powered camerastays charged and ready, freeing you from cables and constant recharging.Enjoy crystal-clear coverage and all-day recording, backed by Wi-Fi 6 and smart detection. Perfect for securing your backyard, farm, or garage with minimal effort and maximum peace of mind.
Non-stop solar power, set-and-forget
The EB3 is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the system will take free, green energy to keep the watch around the clock, all by itself. With just two hours of direct sunlight each day, you can enjoy uninterrupted monitoring near your premises.
Smarter detections are unlocked for free
Say goodbye to a long list of annoying alerts that only capture flying insects or falling leaves. The EB3 is capable of detecting people and cars in particular, while providing flexible settings for you to customize the detection area and sensitivity. It pushes notifications to your phone when it's truly worthy of your attention.
CS-EB3-R200-1K3WFL
FEATURES OF THE EZVIZ EB3 - 3MP 2K Battery WIFI Camera with Solar Panel
- 2K Resolution
- Always-On Video Mode
- AI-Powered Human / Vehicle Shape Detection
- 5W High Efficiency Solar Panel Included
- Up to 120 days of battery life
- Supported Wi-Fi 6 Network
- Two-Way Talk
- Active Defense Siren & Strobe Light
- Weatherproof Design
SPECIFICATIONS OF THEEZVIZ EB3 - 3MP 2K Battery WIFI Camera with Solar Panel:
| CAMERA | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm@ F1.6; 130° (Diagonal), 108° (Horizontal), 56° (Vertical) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| Night Vision | IR Distance:15m, Color Night Vision Distance:15m |
| COMPRESSION | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad-HD; Full HD; Hi-Def; Standard adaptive bit rate. |
| NETWORK | |
| Bluetooth | Supports |
| Wi-Fi Pairing | IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Protocol | Ezviz Cloud Proprietary Protocol |
| Interface Protocol | Ezviz Cloud Proprietary Protocol |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Max. Bitrate | 1.5 Mbps |
| WI-FI | |
| Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| IMAGE | |
| Max. Resolution | 2K (2304 × 1296) |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| INTERFACE | |
| Storage | MicroSD card slot (Max. 256 GB) |
| Cloud Storage | EZVIZ CloudPlay storage (Subscription required) |
| GENERAL | |
| Working Temperature | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| Working Humidity | 95% or less (non-condensing) |
| Power Supply | DC 5V / 2A Battery5200 mAh |
| Power Consumption | Max. 10W |
| IP Grade | IP65 |
| Night Vision Distance (Black/White Night Vision Mode) | Max. 15 m |
| Certifications | CE / REACH / WEEE / RoHS |
| Product Dimensions | 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Product Weight | 656g |
| Packaging Dimensions | 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Mass of unit packed | 700g |
| Warranty | 12 months limited Manufacturer’s warranty |
PLEASE NOTE: NO MICRO SD CARD INCLUDED WITH THE C3W PRO 4MP CAMERA.
WHAT’S IN THE BOX:
| - EB3 Camera |
| - Solar Panel 5W |
| - Screw Base |
| - Power Cable |
| - Drill Template |
| - Screw Kit × 2 |
| - Regulatory Information |
| - Quick Start Guide |
