PRODUCT INFORMATION
All-day, every-day security with flexible power and connection

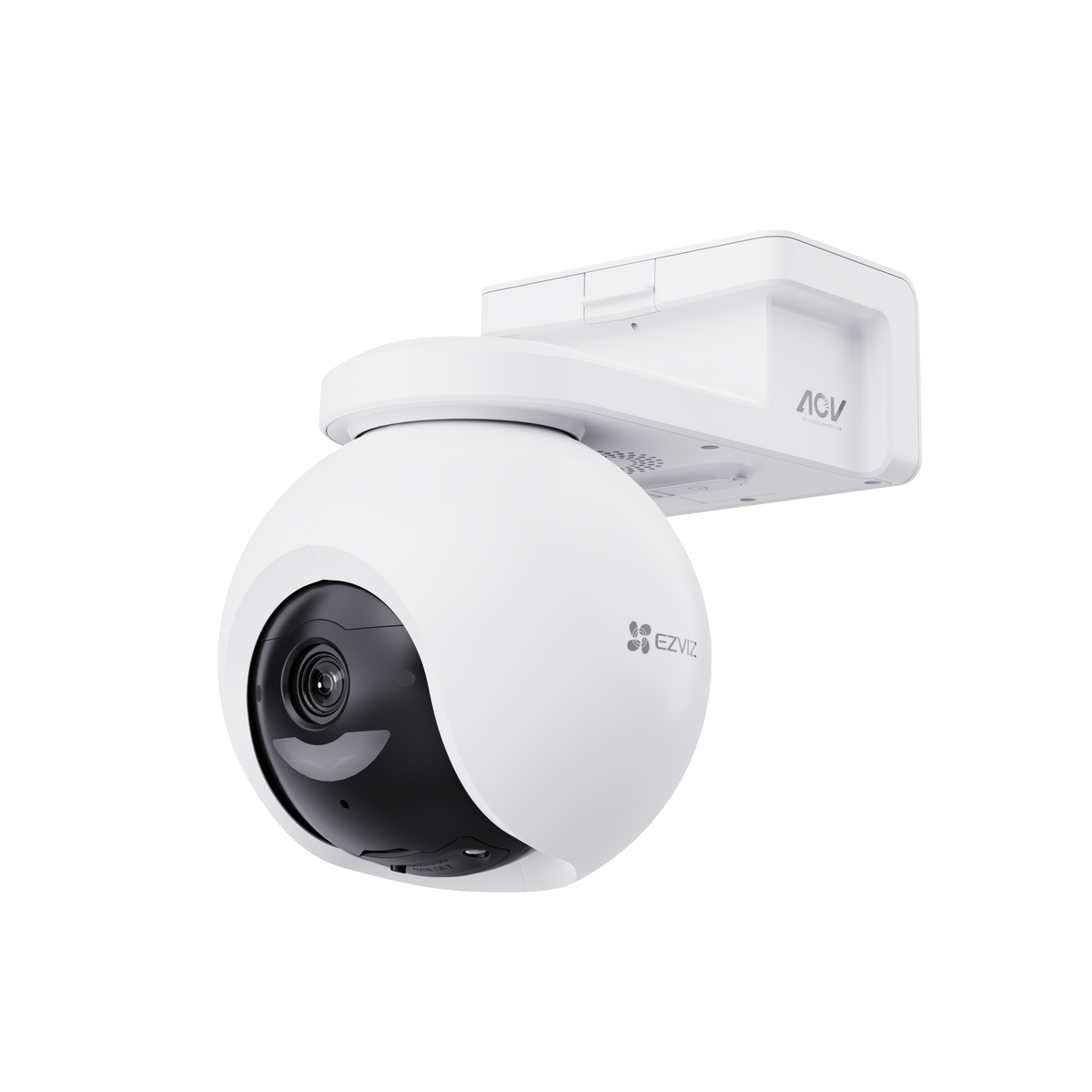

The EB8 Pro 4G Kit is a complete security bundle that includes everything you need for reliable, off-grid protection in one package. Its large-capacity solar panel powers the camera continuously, while the AOV mode 2.0 ensures that you never miss a moment. The camera automatically switches between 4G and Wi-Fi to stay connected, and advanced detection alerts you to people, vehicles, and even wild animals. This hassle-free kit delivers dependable, high-definition security — ideal for homes, cabins, farms, or any remote location.
SPECIFICATIONS ON EZVIZ EZVIZ EB8 Pro 4G 4K PT Wi-Fi Camera:
| Camera | ||
|---|---|---|
| Model |
CS-EB8-R200-1M8W4GA, CS-EB8/SP (4K,W4GA) |
|
| Camera | ||
| Image Sensor | 1/2.8'' 8-Megapixel Progressive Scan CMOS Sensor | |
| Minimum Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Speed | Self-adaptive shutter | |
| Lens |
4mm@ F1.2 Diagonal angle: 104° Horizontal angle: 83° Vertical angle:44° |
|
| PT Angle | Pan: 340°, Tilt: 75° | |
| Day & Night | IR-cut filter with auto switch | |
| DNR | 3D DNR | |
| Night Vision | 15 m | |
| Video & Audio | ||
| Max Resolution | 4K (3840 × 2160) | |
| Frame Rate | 15fps. Self-adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| Video Bit Rate | Ultra-HD; Full HD; Hi-Def; Adaptive bit rate. | |
| Audio Bit Rate | Self-adaptive | |
| Max. Bitrate | 4 Mbps | |
| Function | ||
| Smart Alarm |
AI-powered human shape detection AI-powered vehicle shape detection AI-powered wild animal detection |
|
| Two-Way Talk | Supports | |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark | |
| Network | ||
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax | |
| Frequency Range | 2.4 GHz~2.4835 GHz | |
| Channel Bandwidth | Supports 20 MHz | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Minimum Network Requirement | 8 Mbps | |
| 4G LTE Frequency Bands |
EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28, LTE TDD: B38/B40/B41 LA： LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 LTE TDD: B38/B40 |
|
| Storage | ||
| Local Storage | Supports microSD card (max. 512 GB) | |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) | |
| General | ||
| Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F) Humidity 95% or less (non-condensing) |
|
| IP Grade | IP65 | |
| Power Supply |
DC 5V/2A (Adapter needs to be purchased separately) |
|
| Battery Capacity | 10,400 mAh | |
| Power Consumption | Max.10 W | |
| Product Dimensions | 184 × 102 × 168 mm (7.24 × 4.02 × 6.61 inch) | |
| Packaging Dimensions | 205 × 145 × 194 mm (8.07 × 5.70 × 7.64 inch) | |
| Product Weight | 810 g (28.57 oz) | |
| Weight with Package | 1332 g (46.99 oz) | |
| Specifications | ||

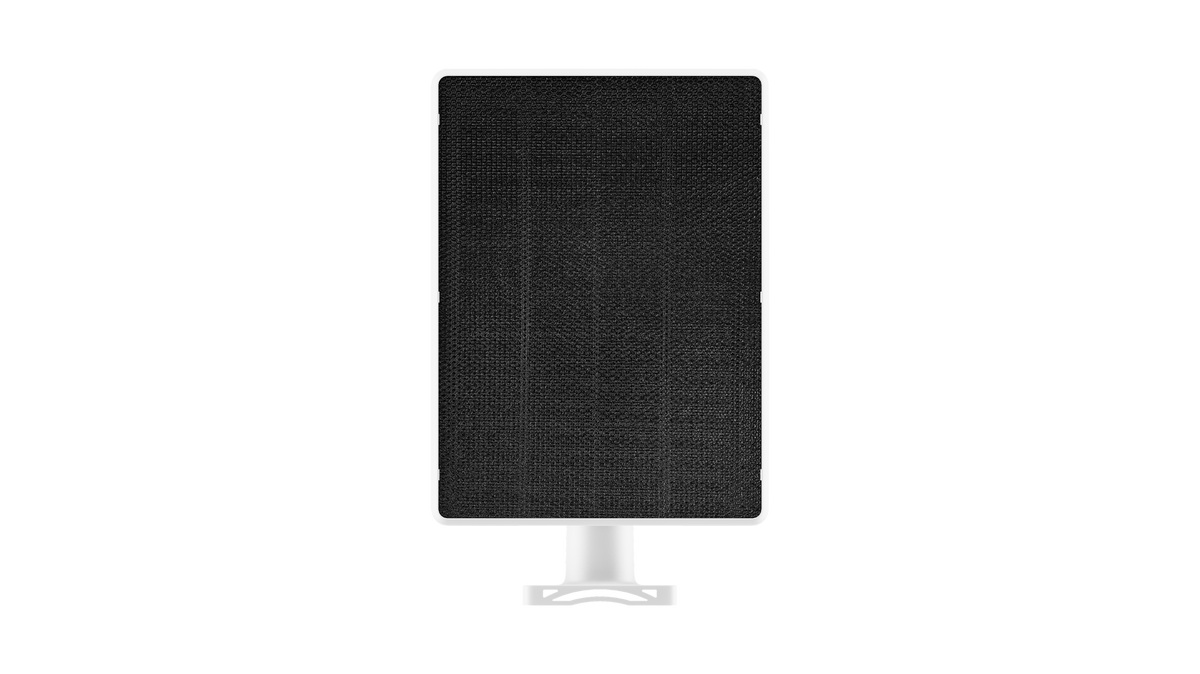

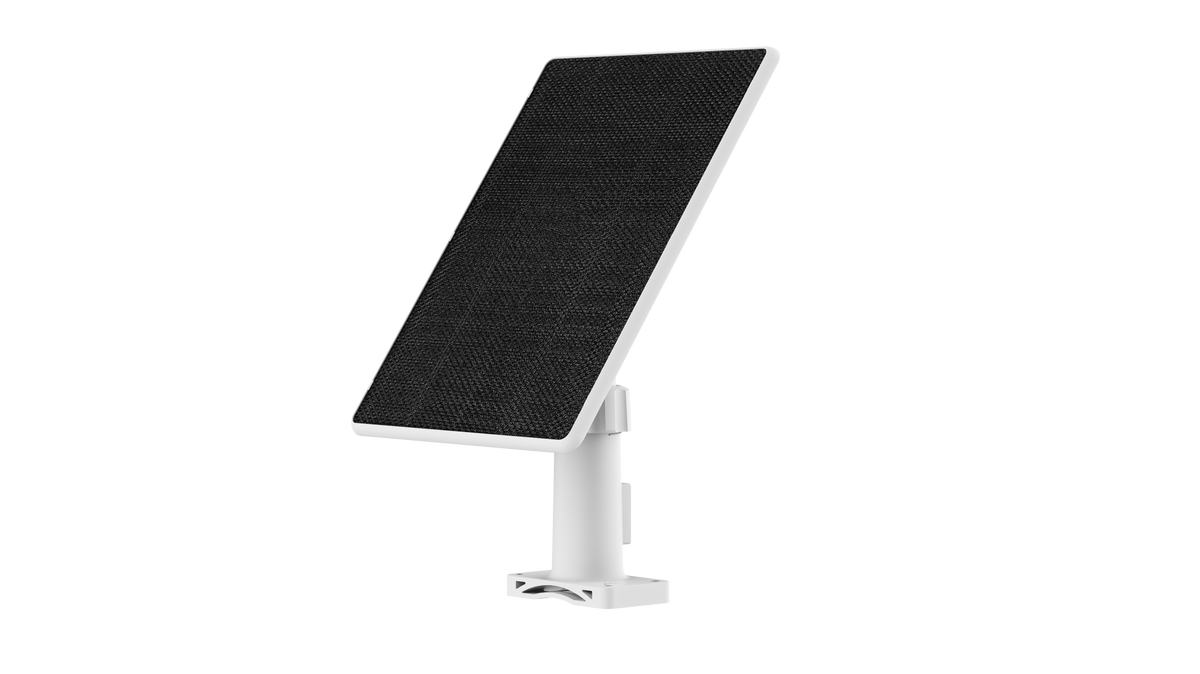

| Model | CS-PSP8-R100-3M | |
| Performance Parameter | ||
| Power Voltage | 5.4V ± 5% | |
| Power Current | 1.48A ± 5% | |
| Open Circuit Voltage | 6.8V ± 5% | |
| Short Circuit Current | 1.64A ± 5% | |
| Max. Power | 8W ± 5% | |
| Interface | Type-C | |
| Solar Cell Efficiency | ≥ 22% | |
| Operation Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) Humidity 90% or less (non-condensing) |
|
| IP Grade | IP65 | |
| Mechanical Data | ||
| Solar Cell Type | Monocrystalline solar cells | |
| Power Cable Length | 3 meters | |
| Product Dimensions | 267.3 × 186.5 × 17.5 mm (10.51 × 5.83 × 0.69 inch) | |
| Packaging Dimensions | 282 × 194 × 70 mm (11.10 × 7.64 × 2.76 inch) | |
| Weight | 907 g (32 oz) | |
- Data comes from EZVIZ Lab's test under standard conditions and may vary due to environmental factors and the frequency of camera activities.
- To use the wild animal detection feature, users need to pay for additional subscriptions stated on the EZVIZ App. The animal detection feature is currently capable of capturing the common shapes of up to 21 animal species, including horse, sheep, pig, goose, zebra, bird, elephant, bear, crocodile, leopard, camel, cattle, monkey, snake, hippopotamus, lion, tiger, kangaroo, raccoon, fox, deer, and wolf. Note that the function is available in certain countries, please confirm before purchasing.
- The EB8 Pro 4G camera only supports auto smart tracking on detected humans based on its AI-powered human shape algorithm.
- Amazon Alexa and Google Assistant are not available in certain languages and countries.
- The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
- To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
- When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the camera is able to detect movements distance of up to 25 meters during the day, and up to 12 meters during the night time. Other tested battery models that use PIR-based detection usually have a detection distance of up to 9 meters. The actual detection range may differ due to environmental factors.
- Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.

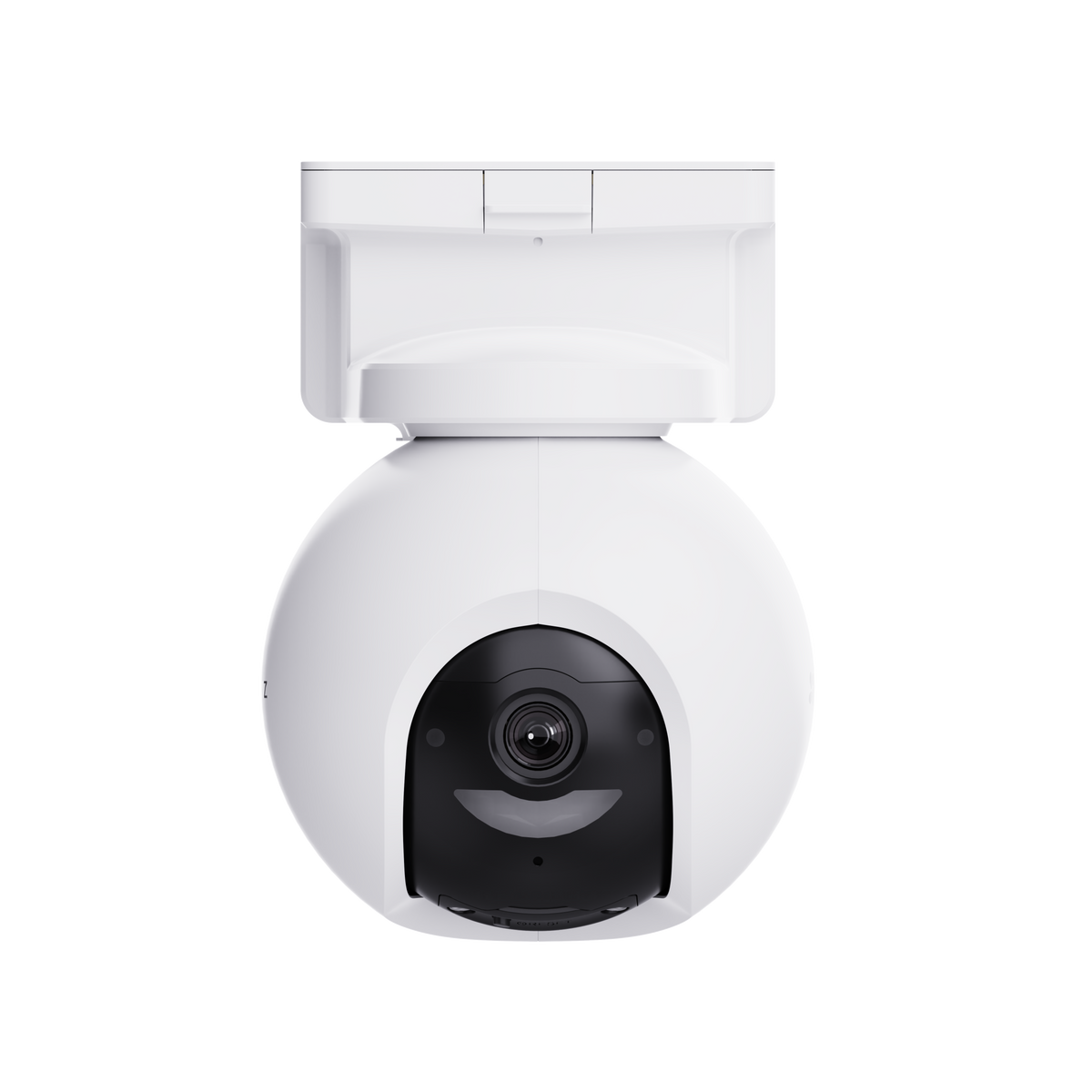

| EB8 Pro 4G Camera |
| - Solar Panel 8W |
| - Drilling Template |
| - Adjustable Mounting Bracket |
| - Screw Kit x 2 |
| - Power Cable |
| - Regulatory Information x 3 |
| - Quick Start Guide × 2 |
