PRODUCT INFORMATION
The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without committing to a subscription plan.
CS-H9c-R100-8H33WKFL

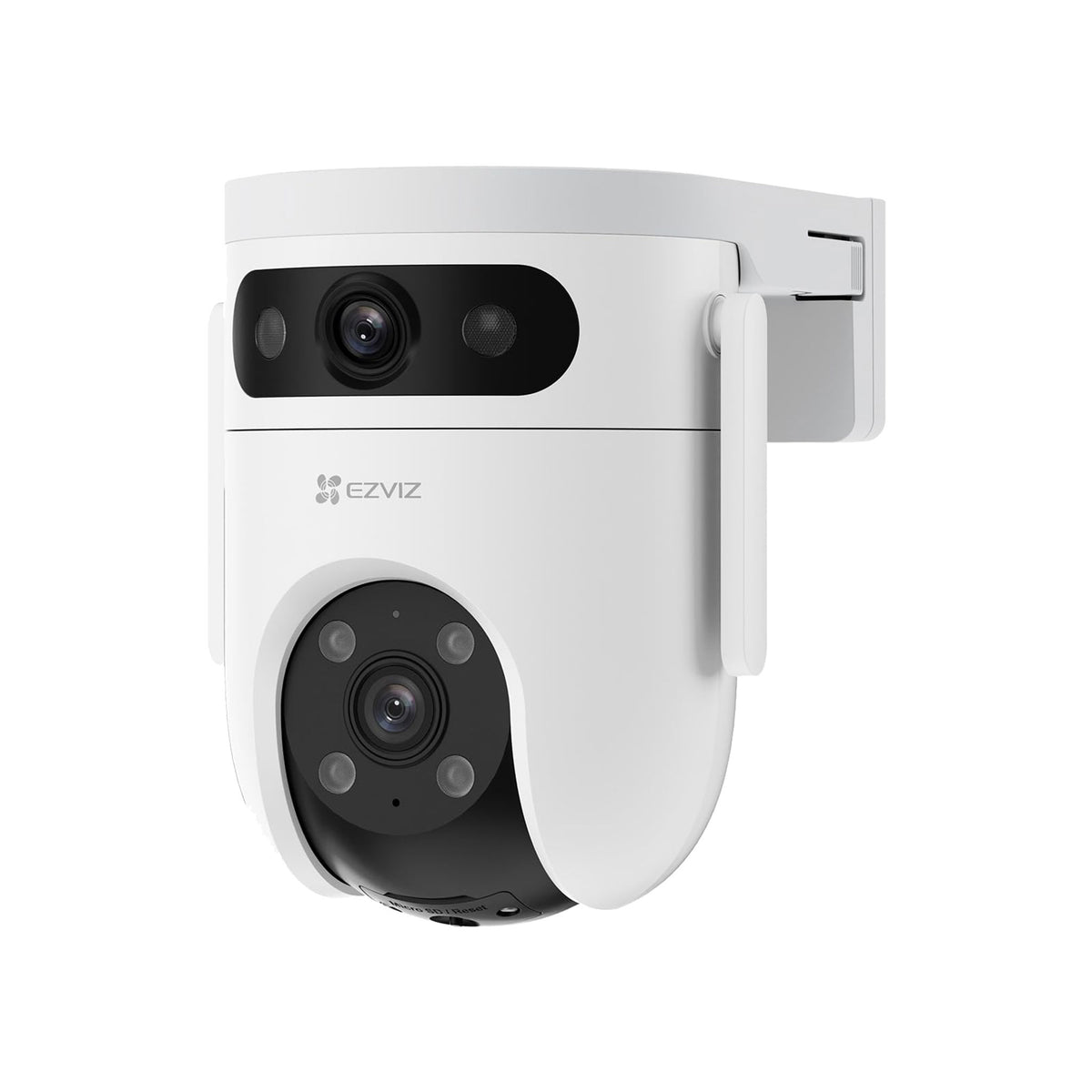

FEATURES OF THE EZVIZ H9c PT & Dual-Lens 3MP Wi-Fi Camera:
- Wi-Fi Camera
- 2K + 2K Resolution
- Intelligent Dual Lenses
- Colour Night Vision
- Motorized Pan & Tilt for 360 Visual Coverage
- AI-Powered Human/Vehicle Shape Detections
- Auto Tracking
- Two-Way Talk
- Weatherproof Design
- Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage
SPECIFICATIONS ON EZVIZ H9c PT & DUAL-LENS 3MP Wi-Fi Camera:
| Camera | |
|---|---|
| Model | CS-H9c-R100-8G55WKFL |
| Specifications | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| LensFix Lens: | Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Max Resolution | 1920 × 1080 |
| Frame Rate | Max. 15fps, self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main profile |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| NETWORK | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | Ezviz Cloud Proprietary Protocol |
| Interface Protocol | Ezviz Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| FUNCTION | |
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Customized Alert Area | Supports |
| Audio | Supports mic, Two-way Talk |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| STORAGE | |
| Local Storage | MicroSD card slot (Max. 512GB) |
| Cloud Storage | Ezviz Cloud Storage |
| GENERAL | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |
| Certifications | CE / UKCA/WEEE / RoHS / REACH |
| Product Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Product Weight | 578g |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Mass of unit packed | Net Weight: 668 g With Package: 960 g |
| Warranty | 12 months limited Manufacturer’s warranty |
WHAT'S IN THE BOX:
| - H9c Camera (x1) |
| - Drill Template (x1) |
| - Screw Kit (x1) |
| - Waterproof Kit (x1) |
| - Power Adapter (x1) |
| - Regulatory Information (x2) |
| - Quick Start Guide (x1) |
