PRODUCT INFORMATION

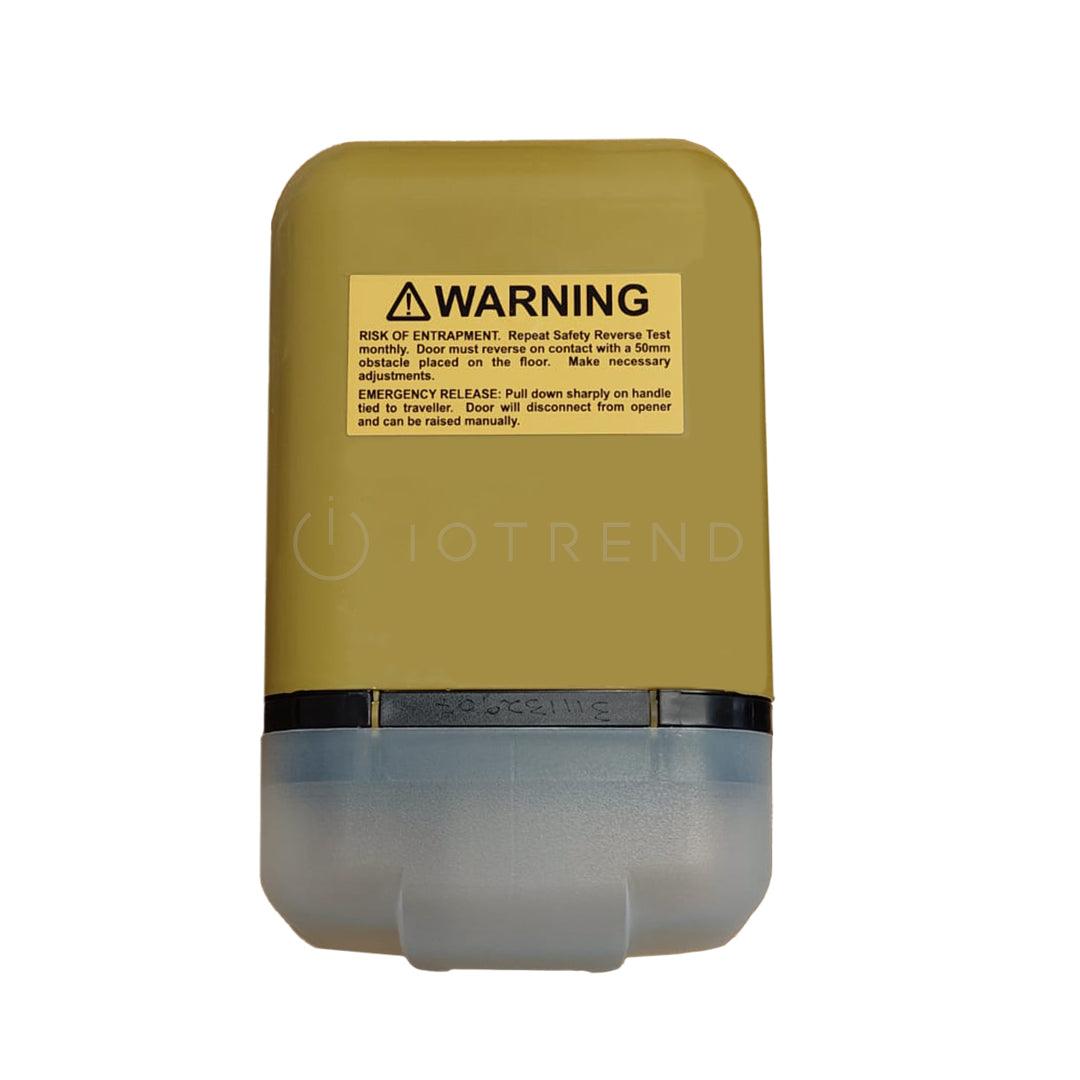

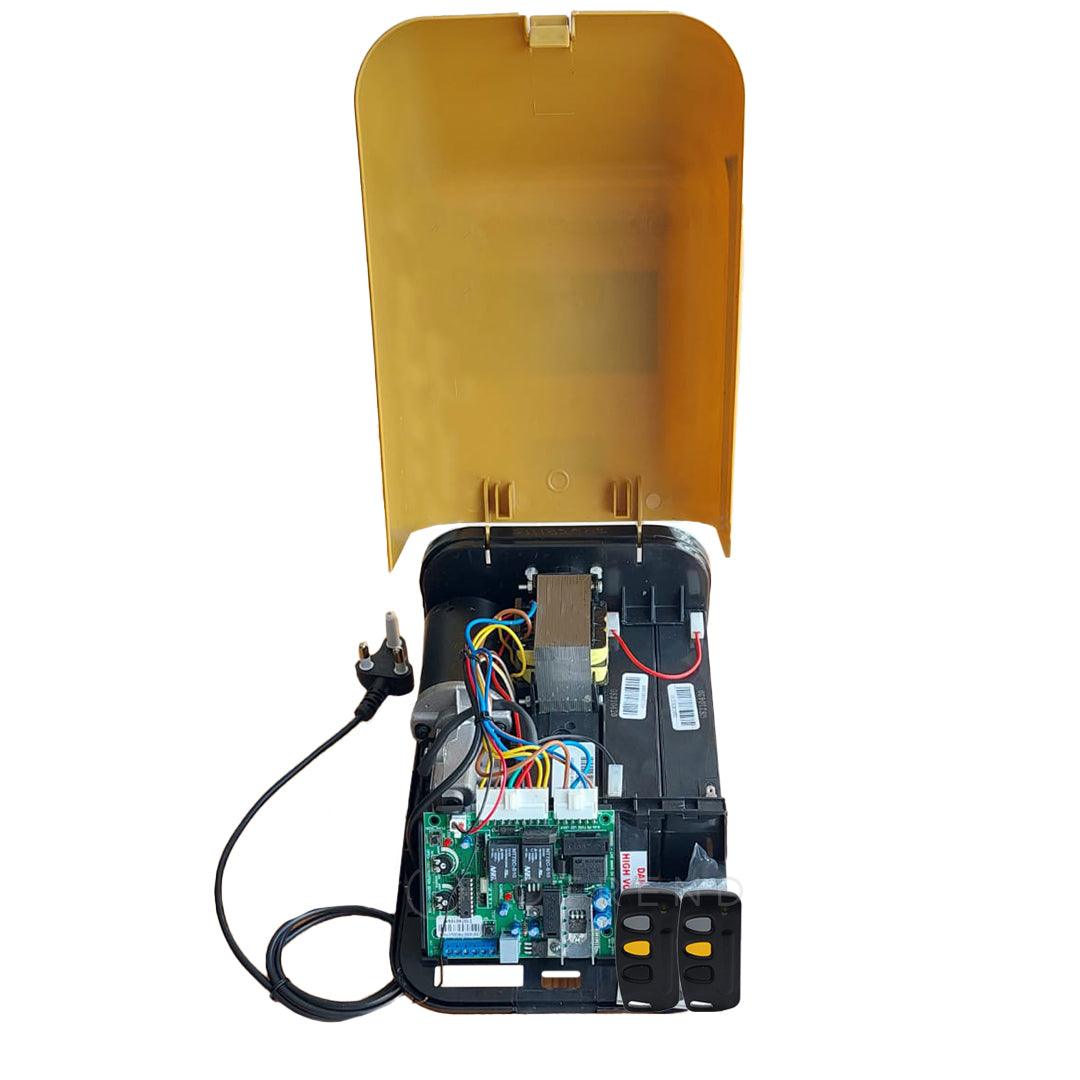

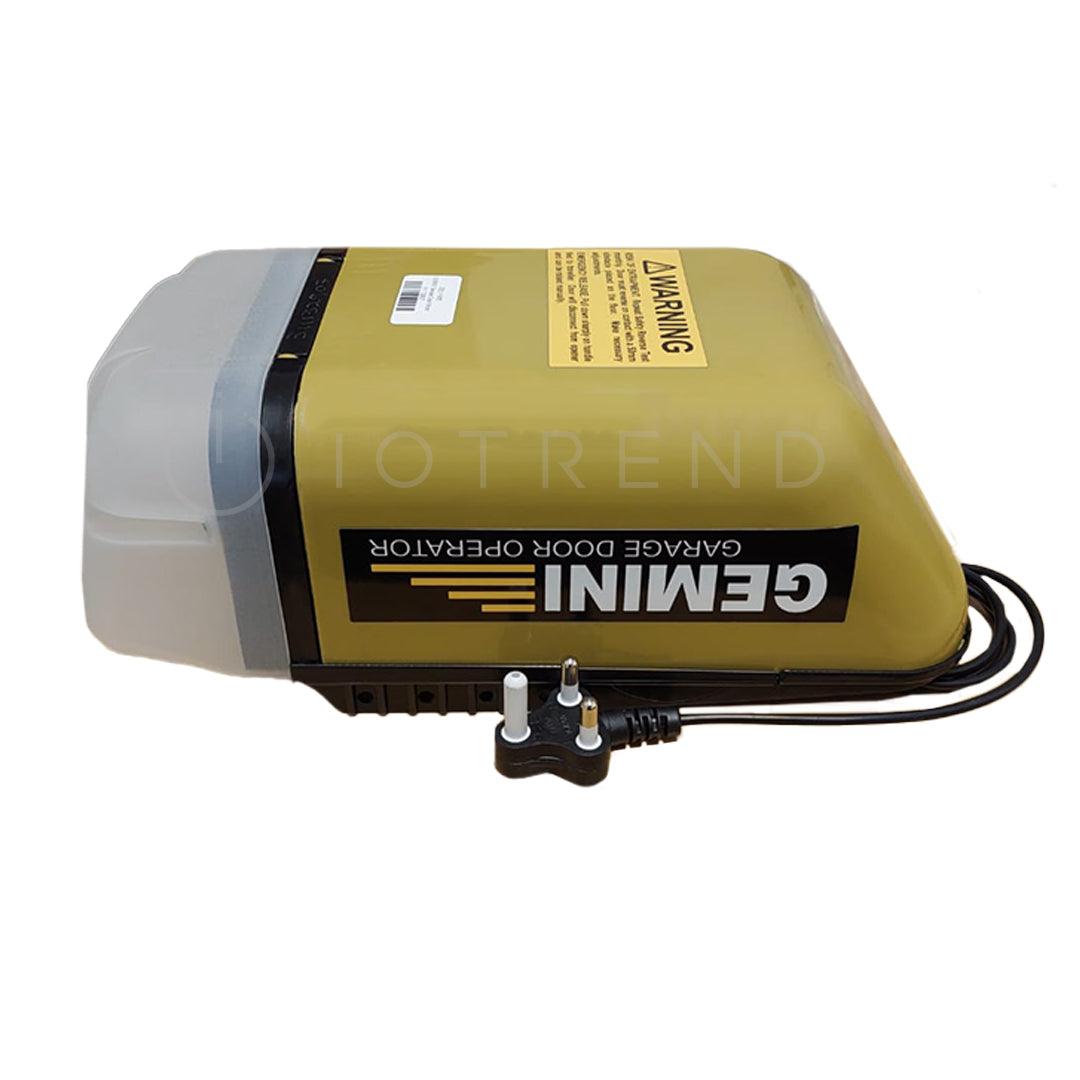

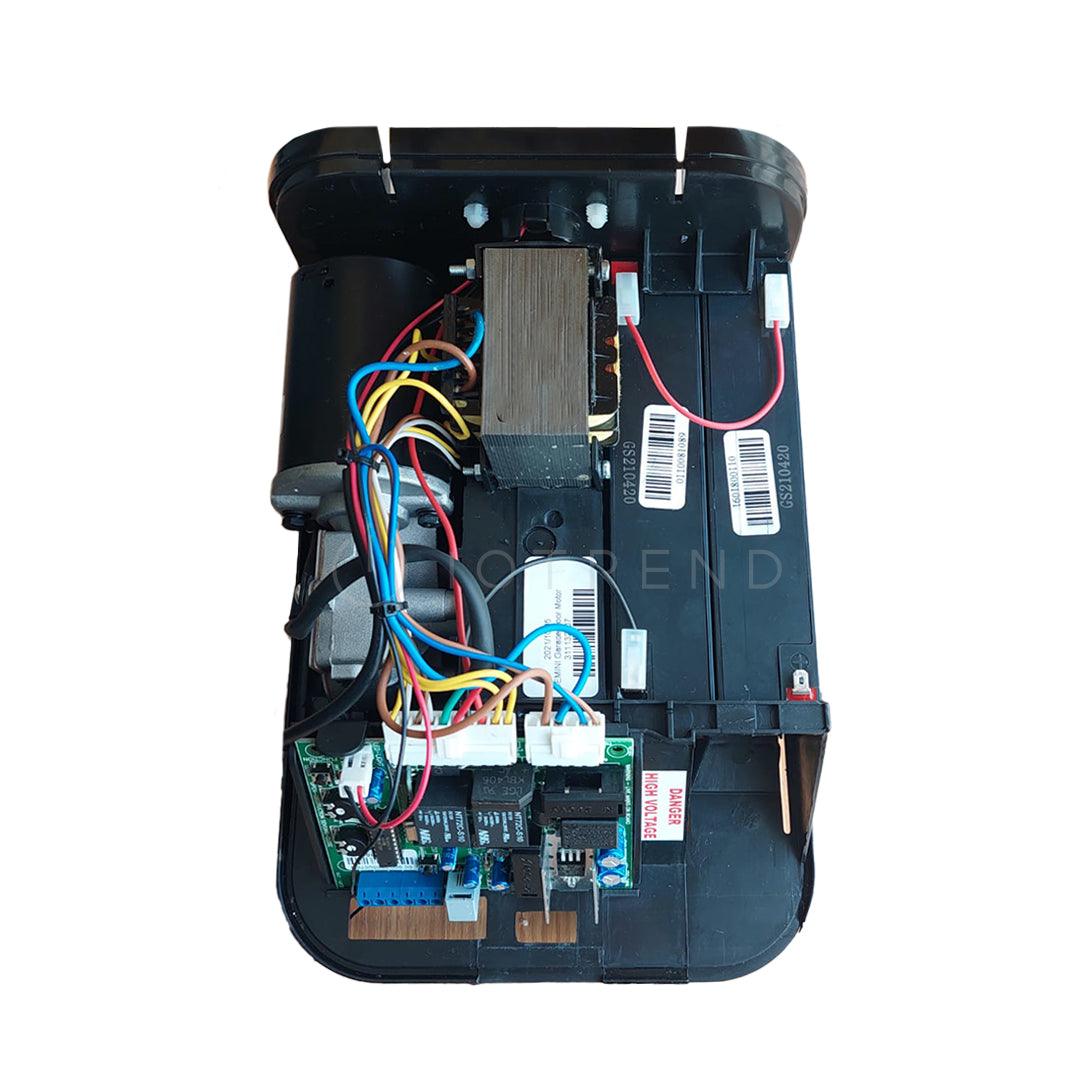

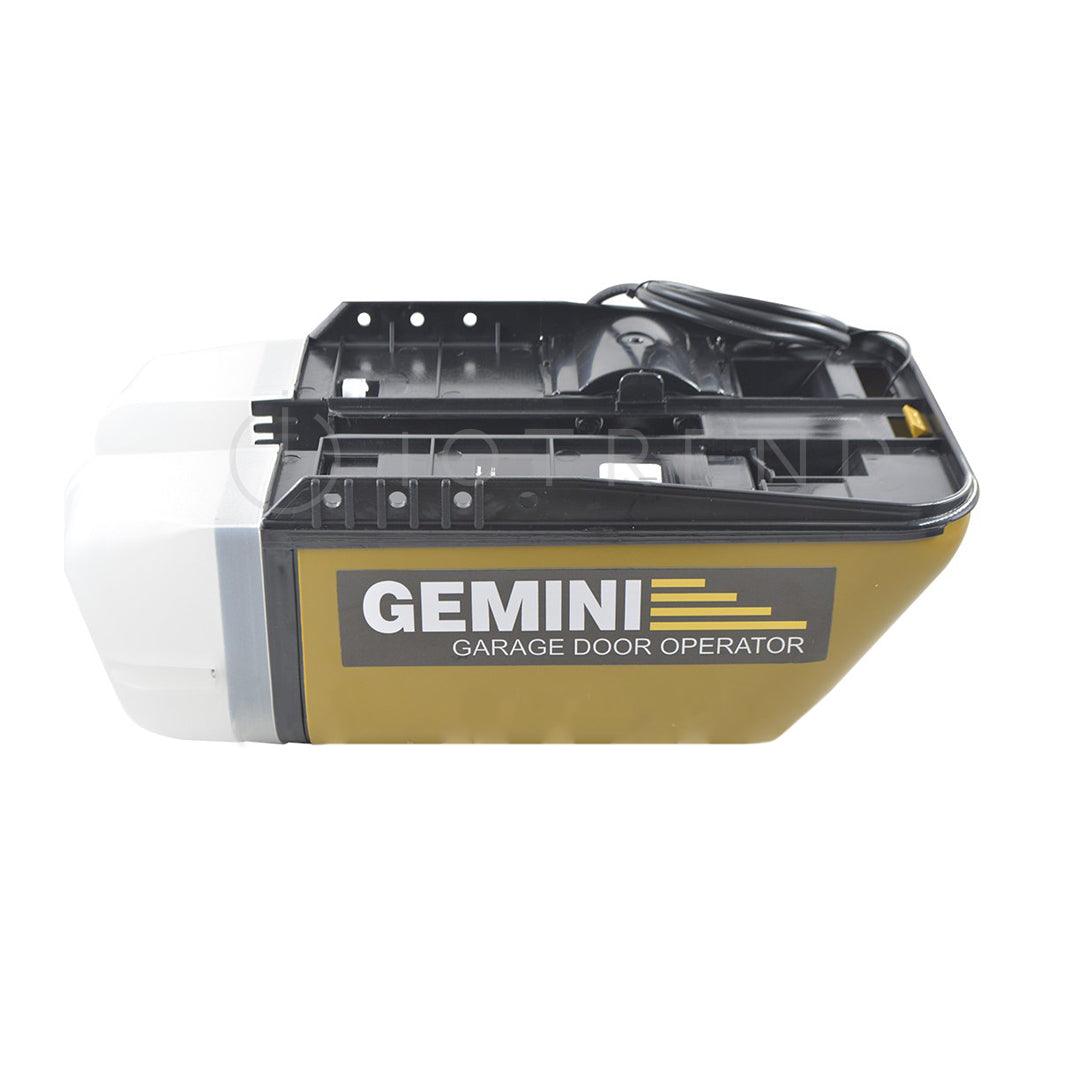

The GEMINI 24V Garage Door Motor is a self-contained unit which comprises of a single 24V DC motor that drives a maintenance free chain through a worm gear assembly. There is a bronze gear fitted inside the garage door motor which in turn improves the quality and reliability. This motor is battery driven which gives you backup in case of a power outage. The complete unit comes with a 2 year factory guarantee on all mechanical parts and 1 year on all electronic components
FEATURES:
- 24VDC Motor
- 11 meters per minute
- Independent proximity sensors in both directions
- Electronically force adjustable in both directions
- Battery backup
- Courtesy light
- Manual override
- Thermal overload motor protection
SPECIFICATIONS:
| Brand - Application | Gemini - Residential |
| Motor Size | 35 Watt |
| Motor & Battery | 24 Volt DC- 24V X2 12V 2.4 AH Batteries |
| Electrical Consumption |
220-260 Volt / 150 Milli amps |
| Mount | Vertical Mount |
| GATE/DOOR SPEED | 11 Meters per Minute |
| PULL FORCE | 10 Kgf |
| OPENINGS** | 20 per Day |
| ACTIVATION | N/O Electrical circuit |
| On board receiver | Max 30 remotes |
| Package Dimension | 400 x 220 x 190 |
| Product Weight | 5.2Kg |
| Mass of unit packed | 6Kg |
| Warranty | 24 Months Manufacturer Warranty |
** Amount of openings per day is an estimate and may vary depending
on gate and battery conditions
**All specifications are subject to change without notice
WHAT'S IN THE BOX:
1 x Gemini GDO Sectional 24VDC
2 x Gemini 3 Button Remotes

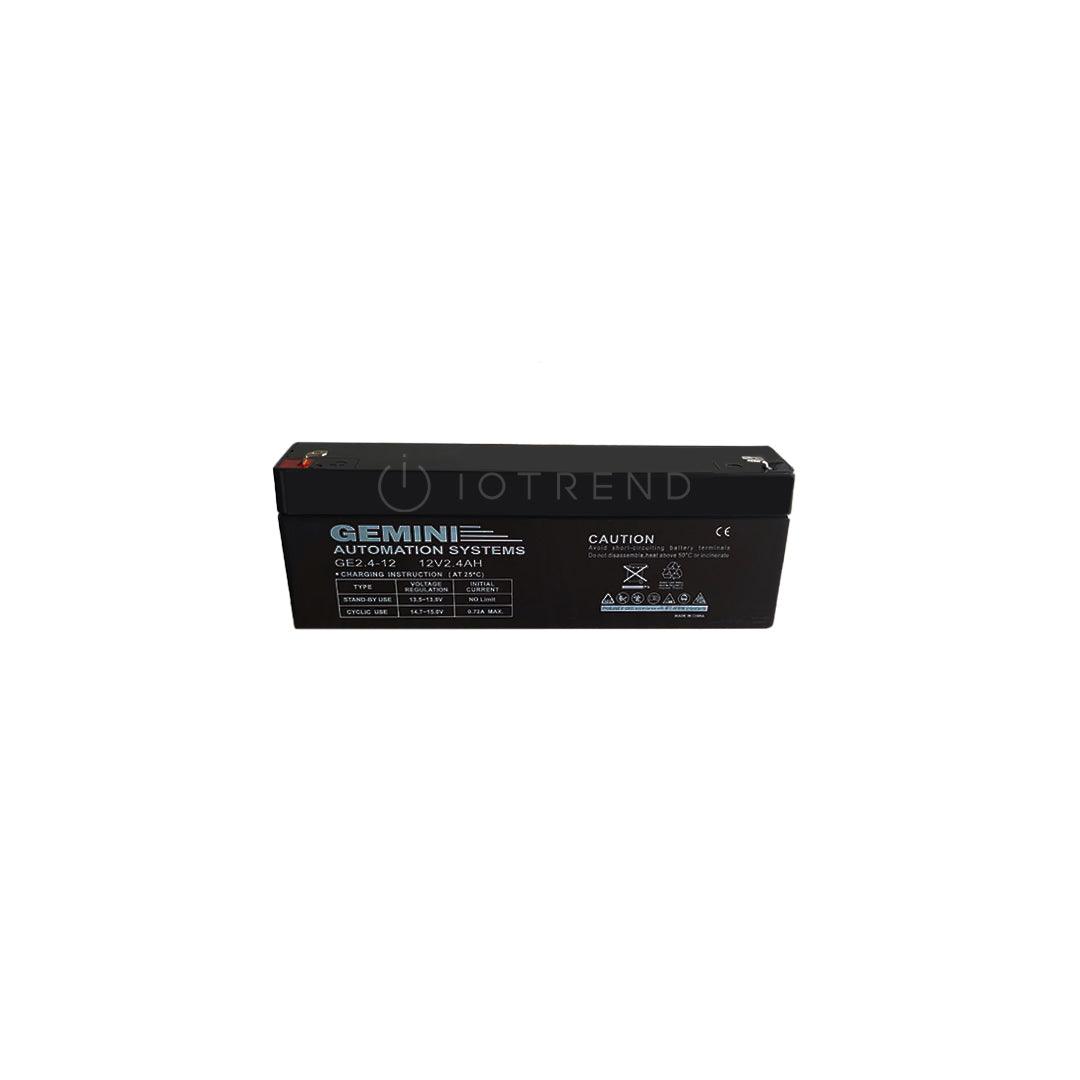

2 x 12V 2.4Ah Battery
***Does not include any extrusion arm combination this is only the motor head.
