PRODUCT INFORMATION

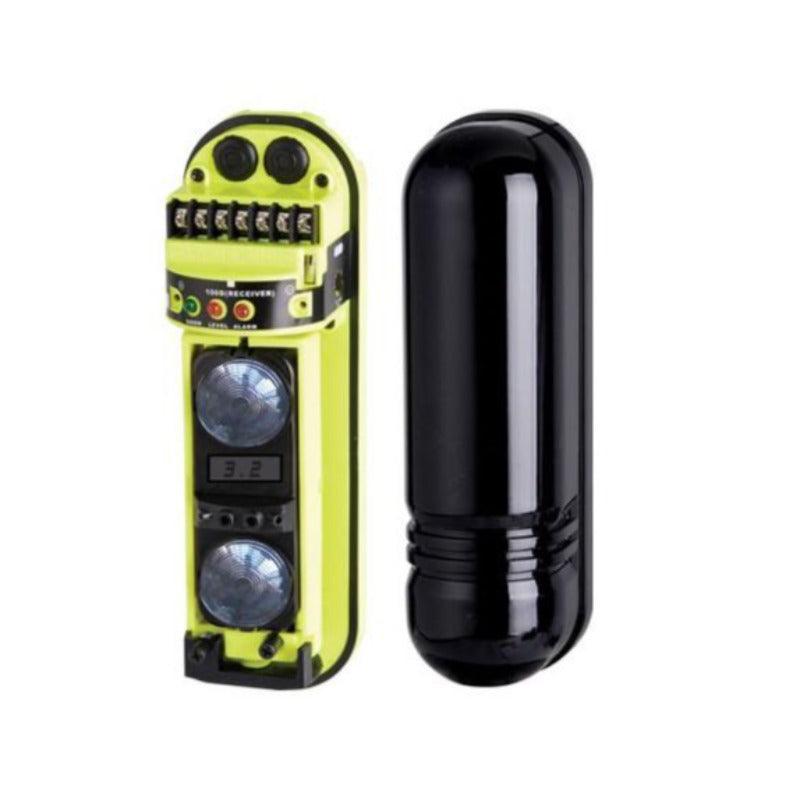

Protect your perimeter with the Securi-Prod 60m Dual IR Wired Beams.
Each set contains two dual Infrared digital pulse beams that have an outdoor detection distance of 60 meters. The beams are each fitted with a fresnel lens for defined and precise infrared beam transmission and use fuzzy logic for external interference rejection. Automatic Gain Control (AGC) Circuit - continually monitors for gradual changes in the signal’s strength caused by changing weather conditions.
The beams are crafted from ABS resin with an IP66 rating to ensure optimal operation in most environments.
In addition, they have LED Indicators for quick installation and a built-in LCD Volt-meter for quick alignment.
FEATURES OF THE DUAL INFRARED PERIMETER BEAMS:
- Outdoor detection distance of 60m
- Adjustable detection speed (Between 50 - 700msec)
- Requires both beams to be interrupted simultaneously
- Output relay: NO and NC
- Built-in LCD volt-meter for quick alignment
- LED indicators for quick installation and walk-test
- Tamper output
- Cable entry protection –rubber grommets
- Pole/wall mount kit included
SPECIFICATIONS OF THE DUAL INFRARED PERIMETER BEAMS:
| Installation method | Outdoor – 60m |
| Indoor – 180m | |
| Type | Wired |
| Material | ABS Resin |
| Number of Beams | 2 |
| Detection method | 2 Simultaneously |
| Optical Source | Infrared digital pulse beam |
| Response speed | 50 – 700msec |
| Operating Voltage | 13.8 Vdc |
| Alarm relay output | NO or NC contact rating |
| Alarm relay rating | AC/DC30V 0.5AMax |
| Power Consumption | 55mA max |
| Optical axis adjustment (H) | 180° (±90°) |
| Optical axis adjustment (V) | 20° (±10°) |
| Operating Temperature | -25℃~55℃ |
| Humidity (RH) | 5% - 95% |
| IP Rating | IP66 |
| Product Dimensions | 80(H) mm x 76(W) mm x 235(L) mm each |
| Product Weight | 815g per set |
| Packaging Dimensions | 90(H) mm x 175(W) mm x 240(L) mm |
| Mass of unit packed | 1100g |
| Warranty | 12 months limited manufacturer’s warranty |
WHAT’S IN THE BOX:
1 x Securi-Prod 60m Dual IR Wired Beams
