Ajax Wireless Hub 2 Plus White
Ajax Wireless Hub 2 Plus White
Ajax Wireless Hub 2 Plus White
Ajax Wireless Hub 2 Plus White

Ajax Wireless Hub 2 Plus White

R 6,550.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

Product Code: 20279.40.WH1

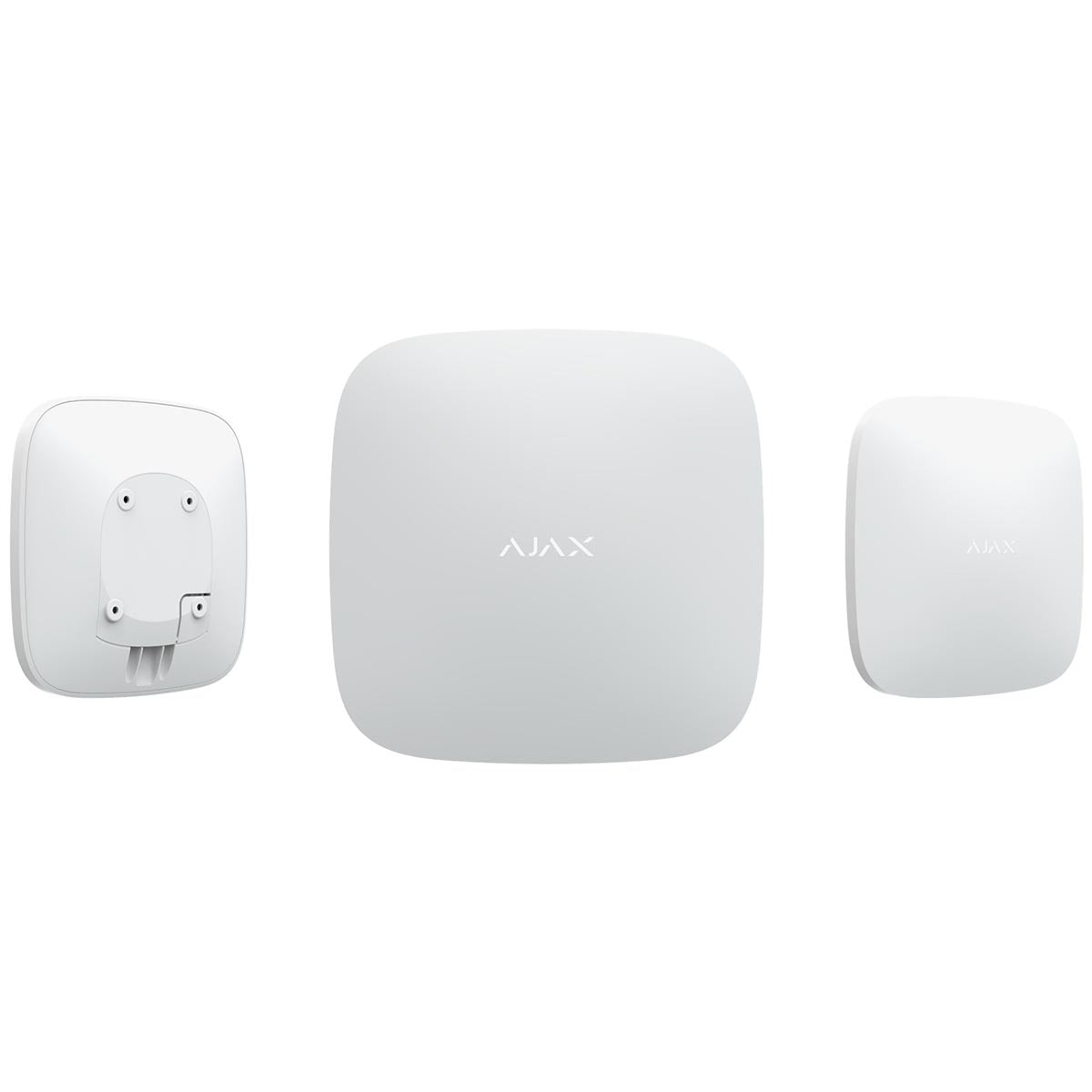

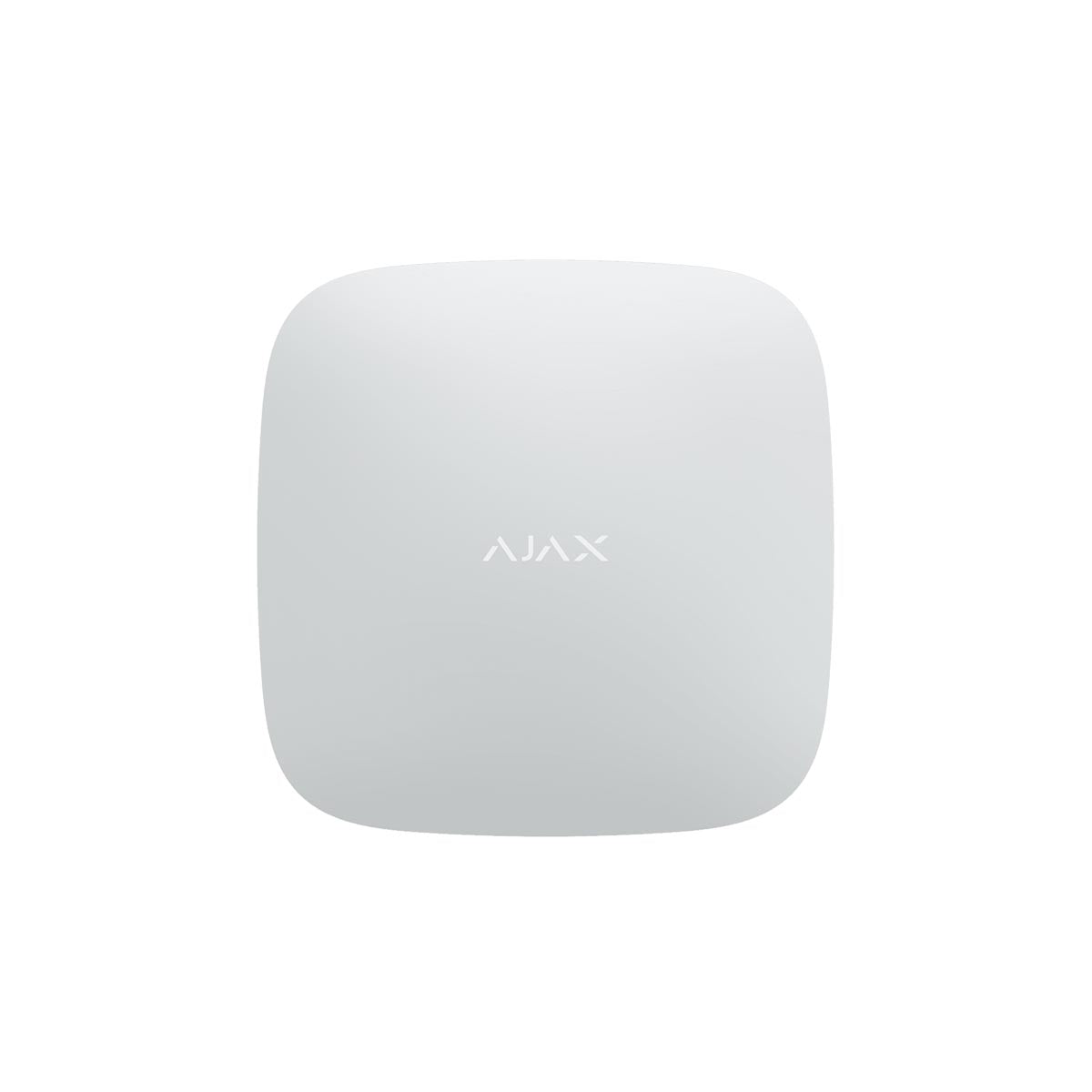

Ajax Hub 2 Plus security system control panel

Instant communication with users and alarm monitoring company.

Communication with the outer world is critical for alarm control panels as its reliability guarantees prompt delivery of alarm signals. The new Ajax control panel makes external communication stability absolute.

Hub 2 Plus is equipped with a communicator that features 4 independent channels including LTE. This configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.

Alarm verification with photo in 9 seconds

Photo verification is the future of the security industry. This technology is an optimal solution for both commercial and residential premises — it is accessible and built to respect privacy. Animated series of photos from MotionCam detectors allow users and CMS operators to evaluate the situation in action. But photo cameras are activated only in response to alarms, never by request.

Hub 2 Plus can manage up to 200 MotionCam detectors and deliver photo confirmations of alarms to users and alarm monitoring companies in just 9 seconds, even when it uses SIM cards for communication. Thanks to LTE support.

  1. Motion detected
  2. Alarm raised
  3. Situation captured

Guaranteed delivery of alarms and photo confirmations

We have developed Jeweller radio protocol to ensure the continuous operation of all devices within the security system. Jeweller provides two-way communication between hub and detectors at a distance of up to 2,000 meters. Yet it allows to remotely control Ajax devices and communicate alarm signals in less than 0.15 seconds.


Jeweller uses time frames to synchronize communication with connected devices, authentication to eliminate forgery, and encryption to protect against data leaks. Moreover, it is a highly energy-efficient radio protocol that allows detectors to operate for years from pre-installed batteries.

Wings is an innovative radio protocol developed for fast transmission of visual data over vast distances. It uses a dedicated Hub 2 Plus antenna to improve channel reliability. Built-in algorithms of package checking and re-uploading allow Wings to deliver photos at a distance of up to 1,700 meters, even if the signal level is unstable. Thanks to Wings, CMS operators and users can see the first snapshot of a situation in just 9 seconds after a motion alarm.


Automated security

Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically arm and disarm the entire security system or certain groups by schedule. Moreover, it can instantly activate a smoke security machine in case of intrusion, cut power supply and turn on emergency lighting in case of fire, or cut water in case of leakage. Using automation devices, Hub 2 Plus can control lights, electric locks, and roller shutters. Scenarios can be activated in response to security mode changes, alarm triggerings, or Button commands.

Protection of large premises with complex internal organization

  • 200 users
  • 200 devices in the system
  • 2000 meters
  • 25 security groups
  • 35 km2 maximum radio range coverage with 5 ReX

Resistant to sabotage

  • Device polling period from 12 seconds
  • Detection connection loss with a hub in 60 seconds
  • Operation on backup battery up to 15 hours

Installation without fuss

Hub 2 Plus is ready to work right out of the box. It comes with pre-installed communicators, a power supply unit, and a back-up battery. To begin the system set up, you'll need to plug the device into a power socket, connect it to the Internet, insert SIM cards, and scan the QR-code using the app. Thanks to SmartBracket, you won't even need to disassemble the device to mount it.

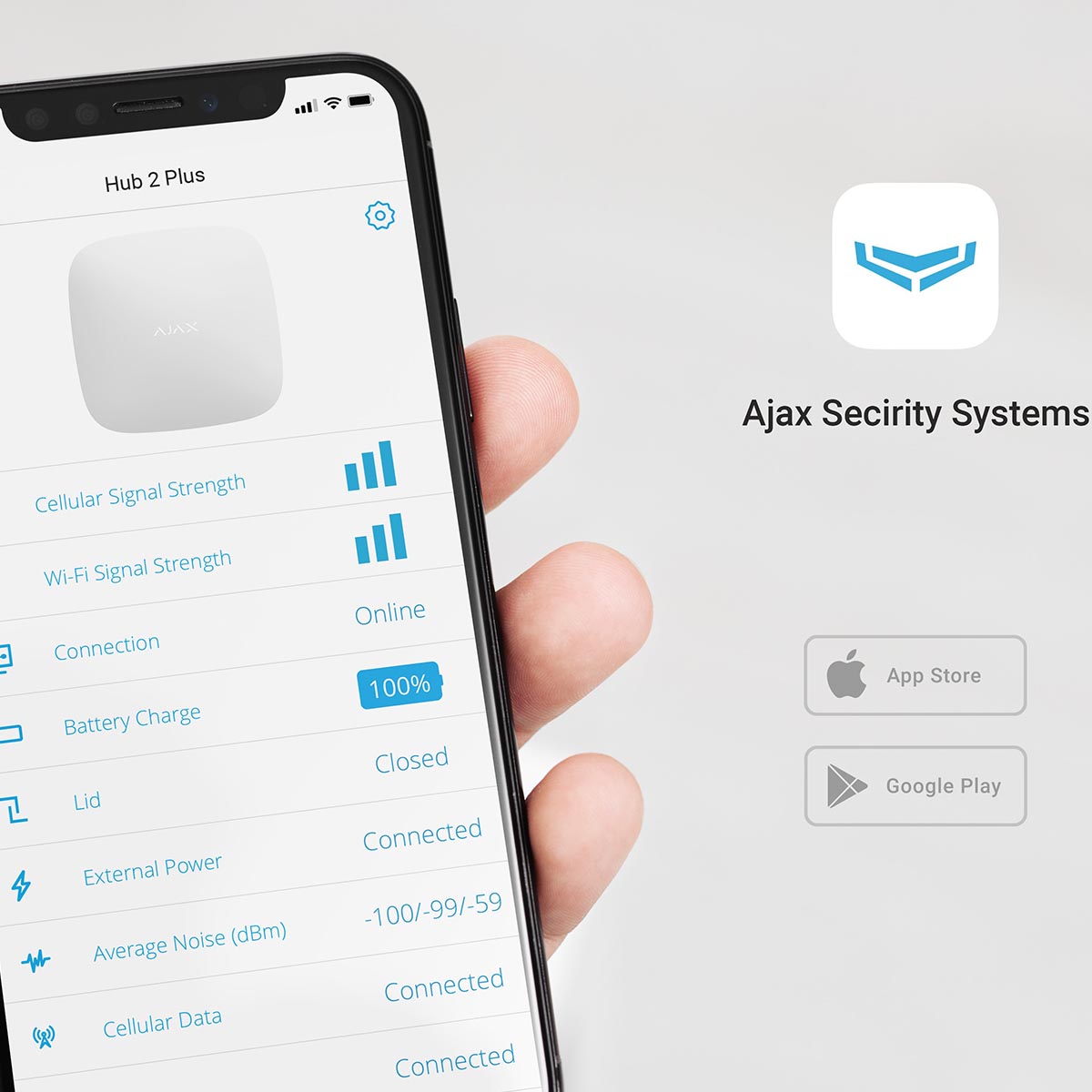

All security system settings are always available in the app. Even when you're far away from the hub, you can connect security devices or CCTV cameras, add users, test radio signal strength, create security groups and scenarios, or connect a hub to an alarm monitoring company.

Manual

Tech Specs

Classification

Security system control panel with four in-built channels for external communication and support of detectors with photo cameras

Connected devices

200

Video surveillance support

100 cameras and DVRs

Users

200

Rooms

50

Security groups

25

Connected ReX

5

Scenarios

64

MotionCam detectors support

+

Apps

iOS 11.0 and later

Android 4.4 and later

Communication channels

2 SIM cards


2G (GSM900/DCS1800 (B3/B8))

3G (WCDMA 850/900/2100 (B1/B5/B8))

LTE (FDD B1/B3/B5/B7/B8/B20)


Wi-Fi (802.11 b/g/n)


Ethernet

Alarm signals

Delivery time: 0.15 sec

Notification types: SMS, call, push-notification

Switching between 2G, 3G, LTE

Instant

Switching between the SIM-cards

4 minutes

CMS connectivity

Contact ID, SIA (DC-09)


Photo verification integrated in Manitou, ABsistemDC(NG), WBB, Horus, V1/F1, Kronos, eLipse, Sentinel, MASterMind, Stages and SBN

Operating system

OS Malevich

Power supply


110−240 V from mains


Built-in back-up battery: Li-Ion 3 А·h

Up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled

Energy consumption from mains — 10 W

Jeweller radio technology

Communication range with detectors — up to 2,000 m in an open space

Two-way communication between devices

Operating frequencies — 868,0 - 868,6 MHz

Self-adjusting RF output power — up to 25 mW

Block encryption based on AES algorithm

Detector polling period — 12−300 s

Frequency hopping

Wings radio technology

Transmission of visual confirmations

Delivery verification of packages

Operating temperature range

From −10°С to +40°С

Anti-sabotage

Forgery prevention

Notifications about jamming

Tamper to detect back lid opening and unmounting from SmartBracket

Remote set up and testing

Dimensions

163 × 163 × 36 mm

Weight

351 g

Certification

DSTU EN 50131

Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

Ajax Hub 2 Plus control panel

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

User’s guide
