Securi Prod IR Strip Beam 6 Beam 70M - IOTREND
SALE 16% OFF
Securi Prod IR Strip Beam 6 Beam 70M - IOTREND

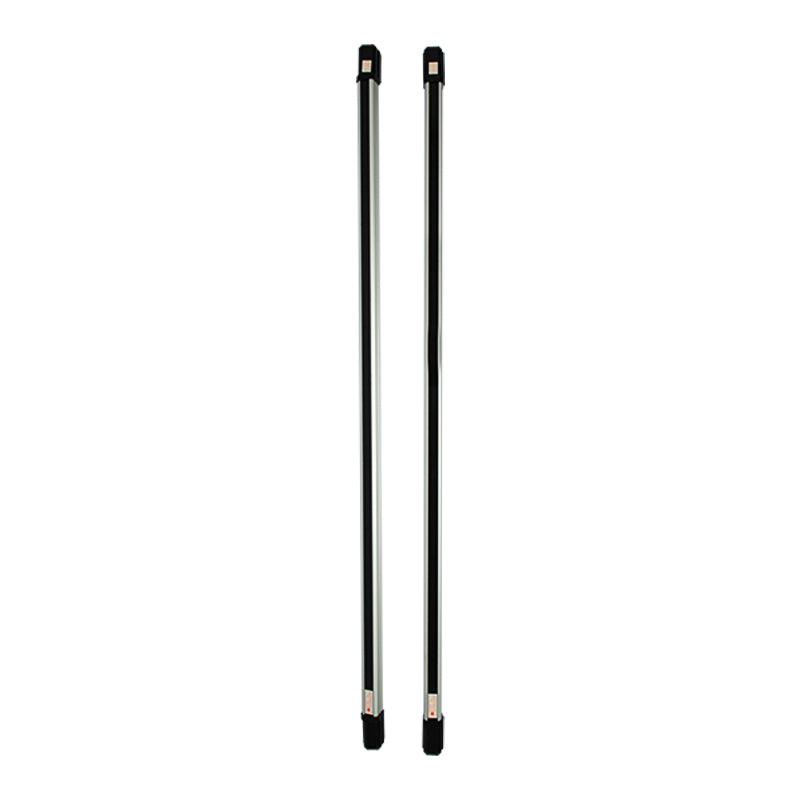

Securi-Prod IR Strip Beam 6 Beam 70m

R 1,599.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

Data Sheet Button

Enhance your perimeter protection with the Securi-Prod IR Strip Beam 6 Beam 70m set.

Designed to provide maximum protection while minimizing false alarms, the strip beams make use of photoelectric infrared beams that are invisible to potential intruders. The Securi-Prod IR strip beam has a maximum range of 70m and 6 beam sensors that ensure accurate detection to reduce false alarms caused by small animals, debris or weather.

A key feature of this system is the requirement for two adjacent beams to be interrupted simultaneously for a period of 40 milliseconds to trigger an alarm. This technology ensures that the system responds only to genuine intrusion attempts, reducing the likelihood of false alarms.

This design makes it extremely challenging for trespassers to bypass the system, as they cannot crawl under or jump over the beams. This system effectively acts as a formidable security barrier.

The slimline aluminum design of the IR strip beams is not only aesthetically pleasing but blends seamlessly with the architecture of your property.

Flexible installation as both beam strips (receiver and transmitter) do not require a common power supply. Quick and accurate alignment with its 180° horizontal axis adjustment with buzzer and LED indication.

These IR strip beams are commonly used in perimeter security systems for small and medium sized areas such as residential properties, commercial buildings and warehouses.


FEATURES OF THE 70m 6-BEAM IR STRIP BEAMS:

  • Outdoor or Indoor application
  • 6 beam sensors with a 70m sensing range
  • Alarm activation, simultaneous activation of 2 adjacent beams
  • Durable aluminium alloy housing and UV resistant lens cover
  • Automatic Gain Control (AGC) Circuit for added stability
  • Special optical technology with special glass filters for added stability and reliability
  • External wiring terminal block
  • Simple installation, no need to remove the beam PCB’s from housing to do installation or alignment (external wiring terminals)
  • Quick and accurate alignment – 180 degree horizontal axis adjustment with buzzer and LED indication
  • Flexible installation – does not require a common power supply between the receiver and transmitter
  • No sync wire required for distances greater than 5 meters
  • 3 power settings for enhanced detection stability
  • IP55 rating suitable for outdoor use
  • Tamper resistant
  • Wall/Pole mounted



SPECIFICATIONS OF THE 70m 6-BEAM IR STRIP BEAMS:

Installation method Outdoor/Indoor
Sensing Range 70m
Type Wired
Material Aluminium housing with UV resistant lenses
Number of Beams 6
Synchronization Wire < 5m
Common PSU (Negative) NO
Adjustment Angle 180°
Terminal Block External wiring terminal block
Operating Voltage 12 – 16 Vdc
Relay Output NC
Current (mA) TX 90
Current (mA) RX 70
Detection method 2 beams interrupted simultaneously
Beam Response Time 40 ms
Alignment Indicator Buzzer & LED
Tamper switch Front & Back
Operating Temperature -35℃ to 55℃
Humidity (RH) 95%
IP Rating IP55
Product Dimensions
Product Weight
Packaging Dimensions
Mass of unit packed
Warranty 12 months limited manufacturer’s warranty





WHAT’S IN THE BOX:

1 x Securi-Prod IR Strip Beam 6 Beam 70m
