PRODUCT INFORMATION

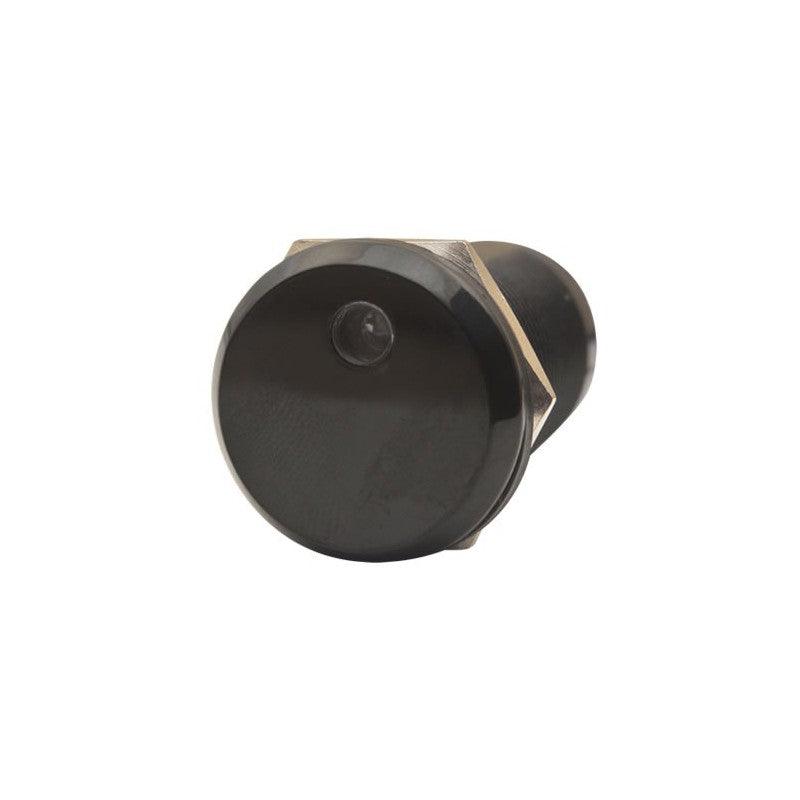

The Securi-Prod Polycarbonate Fireproof Infrared Touchless switch - 19mm provides a totally contactless solution for door Egress, Access or Request to Exit applications.
This 19mm Infrared Touchless switch features an adjustable door opening time switch that has a proximity range of 3 to 10 cm and an adjustable door opening time of 0.5 to 20 seconds.
It is equipped with both NO (Normally Open) and NC (Normally Closed) contacts, allowing the 19mm Infrared Touchless switch to be easily integrated with various access control system applications in commercial, residential, or industrial settings.
FEATURES OF THE 19mm INFRARED TOUCHLESS SWITCH:
- Infrared no touch switch
- NO and NC contact
- Polycarbonate fireproof plastic body
- Adjustable door opening time: 0.5 - 20 seconds
- Adjustable proximity range: 3 - 10 cm
- IP65 rating
SPECIFICATIONS OF THE 19mm INFRARED TOUCHLESS SWITCH:
| Brand | Securi-Prod |
| Contact | N/O and N/C |
| Switch Type | Infrared no touch switch |
| Material | Polycarbonate fireproof plastic body |
| Operating Voltage | 12 - 24VDC |
| Current draw | 30mA |
| Adjustable door opening time | 0.5 – 20 seconds |
| Adjustable proximity range | 3 - 10 cm |
| IP Rating | IP65 |
| Product Dimensions | |
| Product Weight | |
| Packaging Dimensions | |
| Mass of unit packed | |
| Warranty | 12 months limited manufacturer’s warranty |
WHAT’S IN THE BOX:
1 x Securi-Prod Polycarbonate Fireproof Infrared Touchless - 19mm
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
