PRODUCT INFORMATION
The Takex MS-12FE Dual-Zone 12m x 180 Degrees is a wired outdoor Dual-Zone PIR, that combines high-performance optics and advanced circuitry with the highest-grade components available.

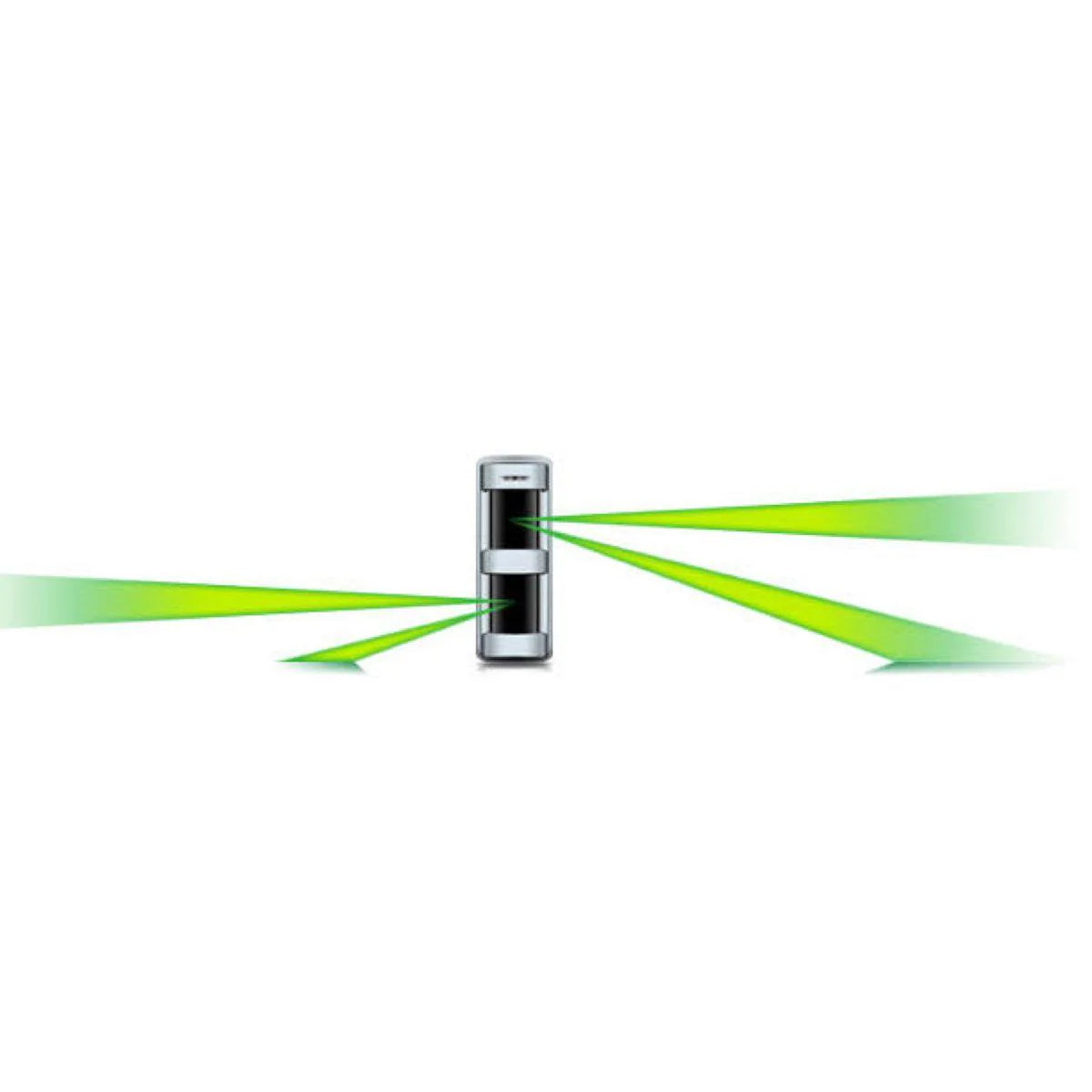

Equipped with 2 Dual Zones with variable angles of up to 180 degrees this outdoor PIR is designed to mitigate nuisance alarms from pets and small animals as it combines horizontal and downward zones that require simultaneous activation for an alarm. No alarm signal is given if only one zone is activated by a small pet, small animal, or vehicles etc.
Capable of protecting up to 226m2 from a mounting height of 1m the Takex MS-12FE provides highly reliable and versatile protection of your property before an intruder reaches your door.
The dual-zone PIR also offers various detection patterns for perimeter, window or wall detection. Simple adjust the detection zone with an area masking sheet. The MS-12FE is equipped with two sensors that can cover two perimeters or windows by itself.
These sensors are perfect for use in both domestic and industrial applications.
Product Code: MS-12FE
FEATURES OF THE DUAL-ZONE 12m x 180° PIR:
- Dual-zone detection system
- 2-12m coverage

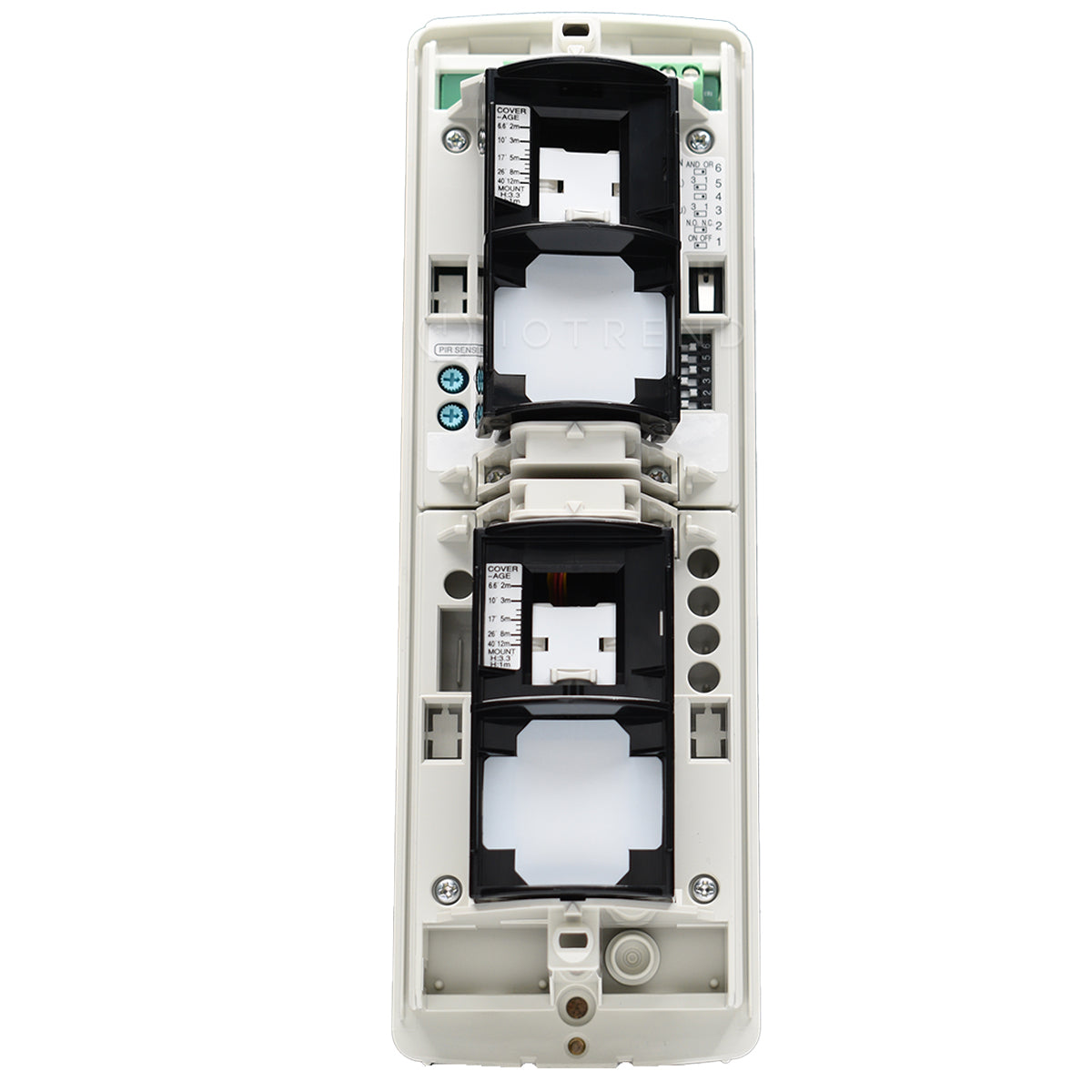

- Rotating sensor heads (±90° horizontal adjustment)
- Pet Friendly for small pets
- Selectable NO/NC relay output
- AND/OR detection modes (MS-12FE only)
- Various detection patterns
- Day/Night Sensing
- Adjustable Pulse Count & Sensitivity
- IP54 housing

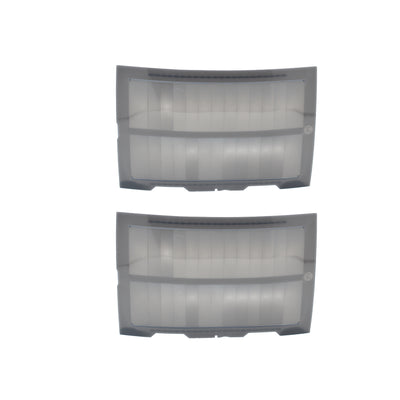

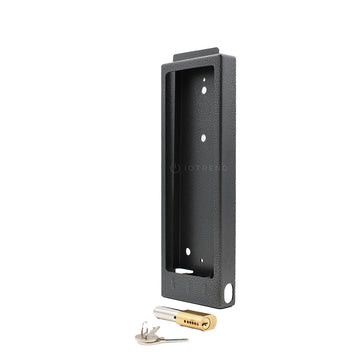

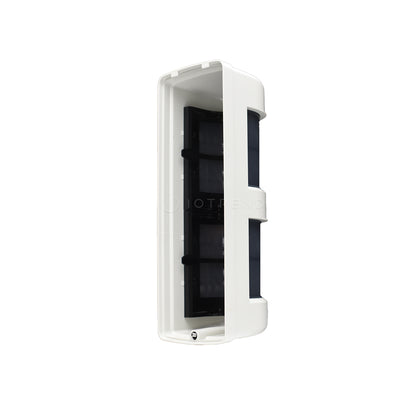

ACCESSORIES FOR THE DUAL-ZONE 12m x 180° PIR:
SPECIFICATIONS OF THE DUAL-ZONE 12m x 180° PIR:
| Detection system | Passive infrared |
| Coverage - Horizontal | +/-90° |
| Detection distance | 2 to 12m |
| (By adjusting vertical angle of downward zone) | |
| x2 | |
| Sensitive zone | Horizontal zone - 7 zones |
| Downward zone - 7 zones | |
| x2 | |
| Mounting height | 0.8 - 1.2m |
| Area adjustment - Horizontal | +/-90° |
| Detection distance | 2 to 12m |
| (By adjusting vertical angle of downward zone) | |
| Supply voltage | 12 to 30V DC (non-polarity) |
| Current consumption | 40mA MAX. |
| Alarm output | Dry contact relay output N.C./N.O. selectable |
| Contact capacity | 30V (AC/DC), 0.25A MAX. (Resistive load) |
| Contact operation | Detection time + off delay |
| Tamper output | Dry contact relay output N/C |
| Contact capacity | 30V (AC/DC), 0.1A MAX. (Resistive load) |
| LED indicator | Red LED |
| Blinking at warming up (LED disabled) | |
| Lighting at alarm (LED disabled) | |
| Pulse count | Once / three times (with a switch) |
| Sensitivity adjustment | Approx. 30% (L) - Approx. 170% (H) (By potentiometer) |
| Detection mode | AND / OR selectable |
| Mounting position | Indoor / Outdoor |
| Wiring | Terminals |
| Appearance | Body - AES resin |
| Lens - PE resin | |
| Ambient temperature | -20°C to +50°C |
| Product Dimensions | 91mm (L) x 80mm (W) x 234mm (H) |
| Product Weight | 470g |
| Packaging Dimensions | 240mm (L) x 85mm (W) x 102mm (H) |
| Mass of unit packed | 675g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the Dual-Zone 12m x 180° PIR:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex MS-12FE Dual-zone 12m x 180 Degrees
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
