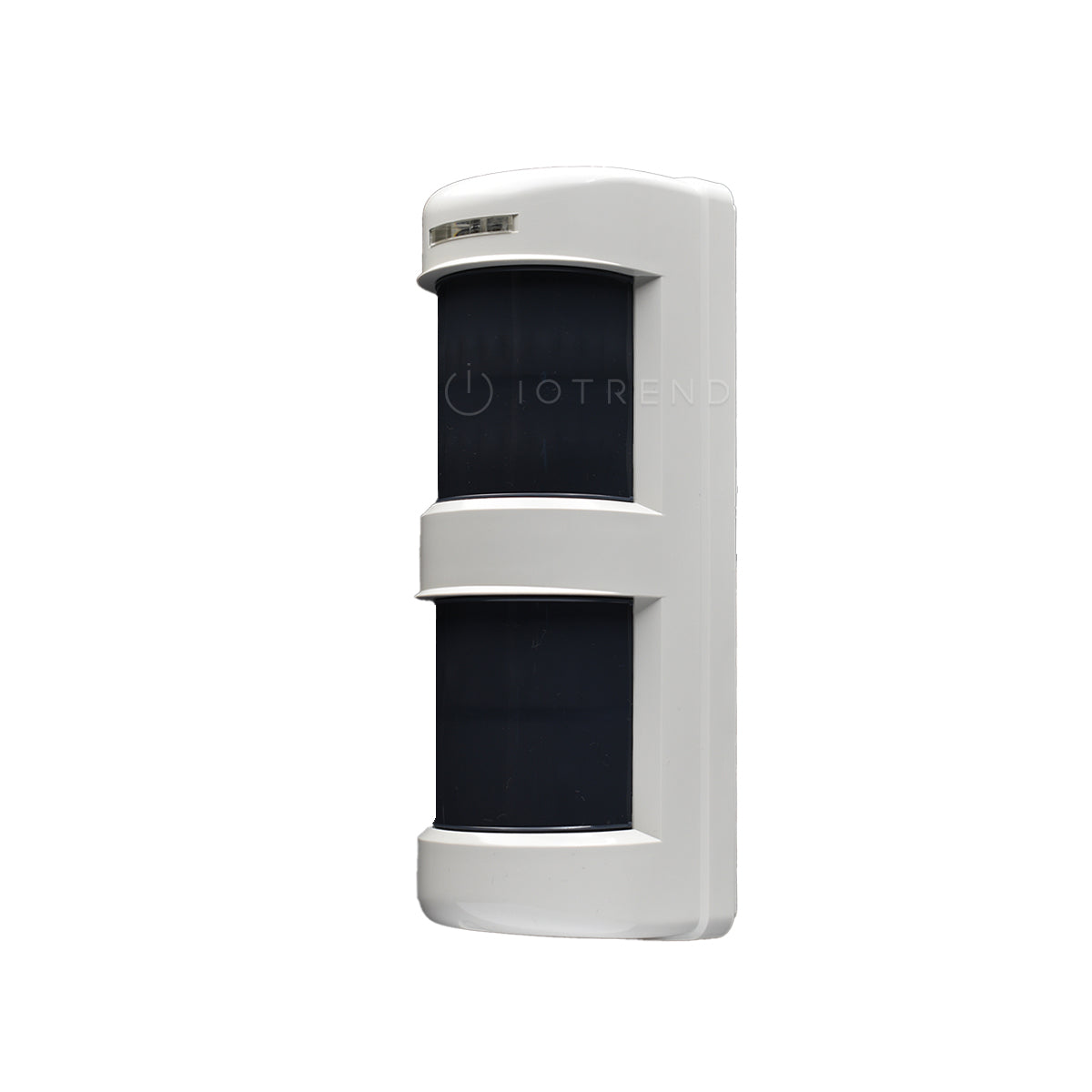

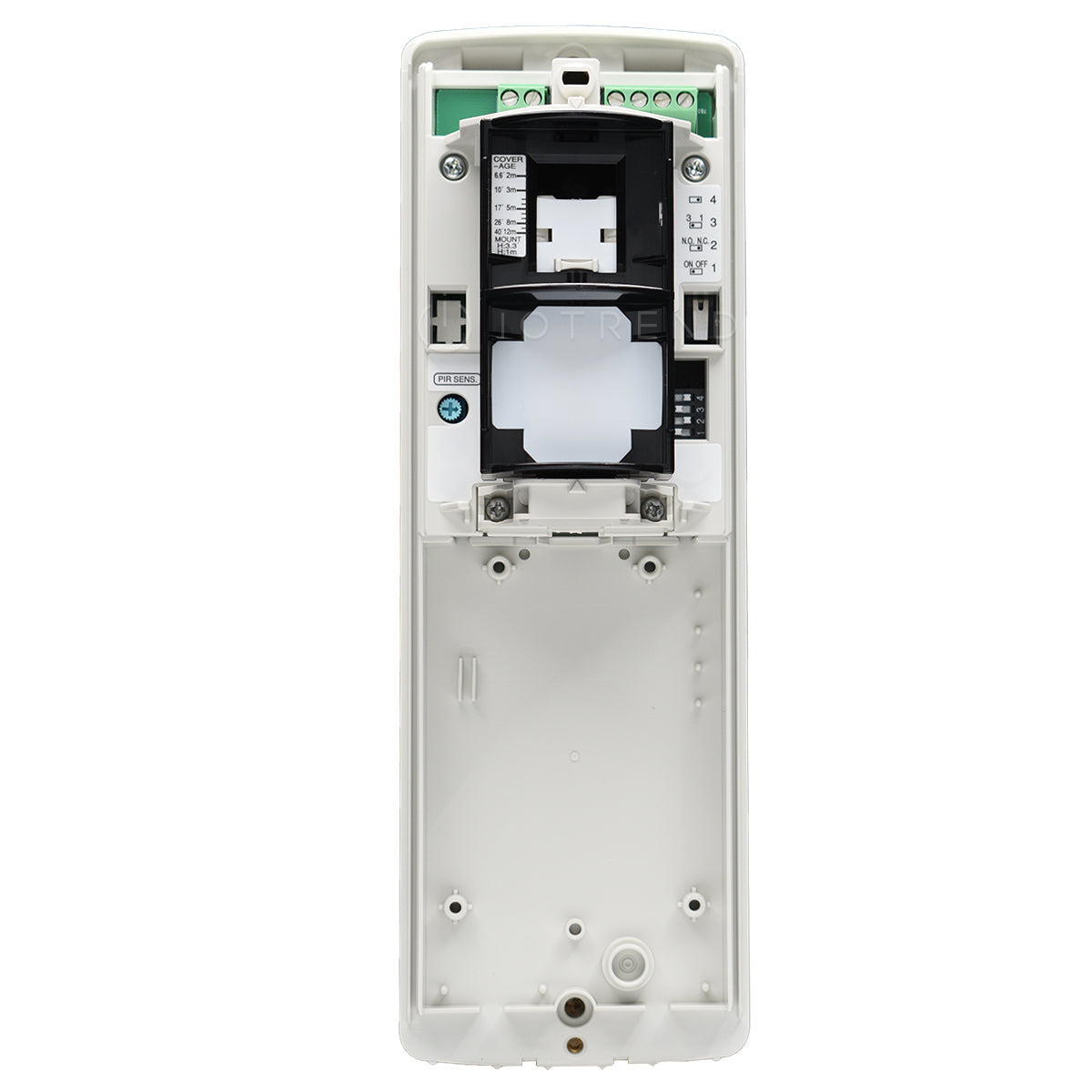

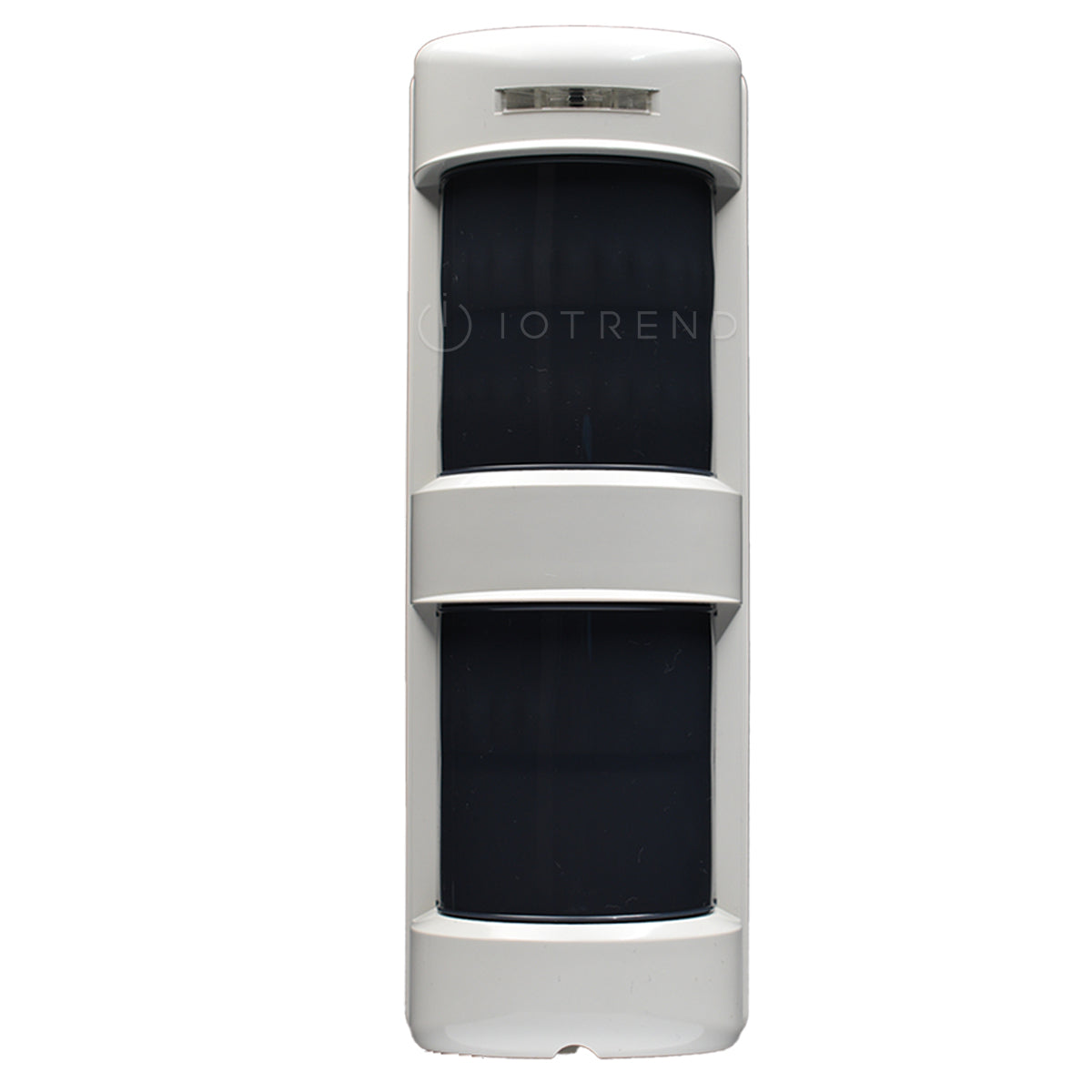

The Takex MS-12TE Dual-Zone 12m x 90 Degrees is a wired outdoor Dual-Zone PIR, that combines high-performance optics and advanced circuitry with the highest-grade components available.
The MS-12TE sensor is equipped with a dual zone system which initiates an alarm only when detection occurs in both horizontal and downward zones simultaneously, this helps to mitigate nuisance alarms from pets and small animals. No alarm signal is given if only one zone is activated by a small pet, small animal, or vehicles etc.
Perimeter, window or wall detection can be made by adjusting detection zone with area masking sheet.
The MS-12TE provides highly reliable and versatile protection of your property before an intruder reaches your door. The sensor is suitable for both domestic and industrial applications.
Product Code: MS-12TE
FEATURES OF THE DUAL-ZONE 12m x 90° PIR:
- Dual-zone detection system
- 2-12m coverage
- Rotating sensor heads (±90° horizontal adjustment)
- Pet Friendly for small pets
- Selectable NO/NC relay output
- Various detection patterns
- Day/Night Sensing
- Adjustable Pulse Count & Sensitivity
- IP54 housing
ACCESSORIES FOR THE DUAL-ZONE 12m x 90° PIR:
SPECIFICATIONS OF THE DUAL-ZONE 12m x 90° PIR:
| Detection system | Passive infrared |
| Coverage | Horizontal: +/-90° |
| Detection distance: 2 to 12m | |
| (By adjusting vertical angle of downward zone) | |
| Sensitive zone | Horizontal zone: 7 zones |
| Downward zone: 7 zones | |
| Mounting height | 0.8 - 1.2m |
| Area adjustment | Horizontal: +/-90° |
| Detection distance: 2 to 12m | |
| (By adjusting vertical angle of downward zone) | |
| Supply voltage | 12 to 30V DC (non-polarity) |
| Current consumption | 35mA MAX. |
| Alarm output | Dry contact relay output N.C./N.O. selectable |
| Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) | |
| Contact operation: Detection time + off delay | |
| Tamper output | Dry contact relay output N/C |
| Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load) | |
| LED indicator | Red LED |
| Blinking at warming up (LED disabled) | |
| Lighting at alarm (LED disabled) | |
| Pulse count | Once / three times (with a switch) |
| Sensitivity adjustment | Approx. 30% (L) - Approx. 170% (H) (By potentiometer) |
| Mounting position | Indoor / Outdoor |
| Wiring | Terminals |
| Body | AES resin |
| Lens | PE resin |
| Ambient temperature | -20°C to +50°C |
| Product Dimensions | 91 mm (L) x 80 mm (W) x 234 mm (H) |
| Product Weight | 390g |
| Packaging Dimensions | 240 mm (L) x 85 mm (W) x 102 mm (H) |
| Mass of unit packed | 595g |
| Warranty | 12 months limited Manufacturer’s warranty |
