PRODUCT INFORMATION

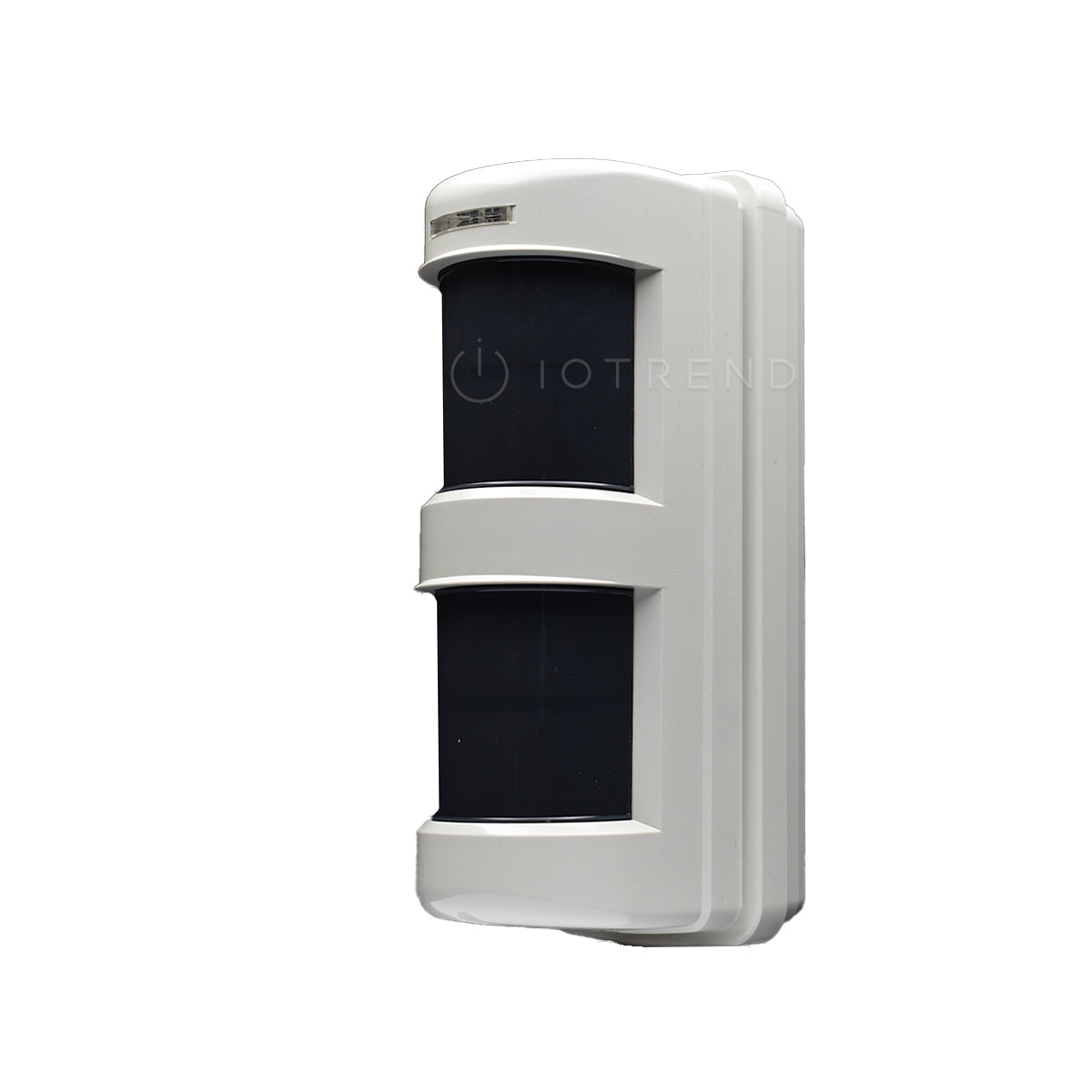

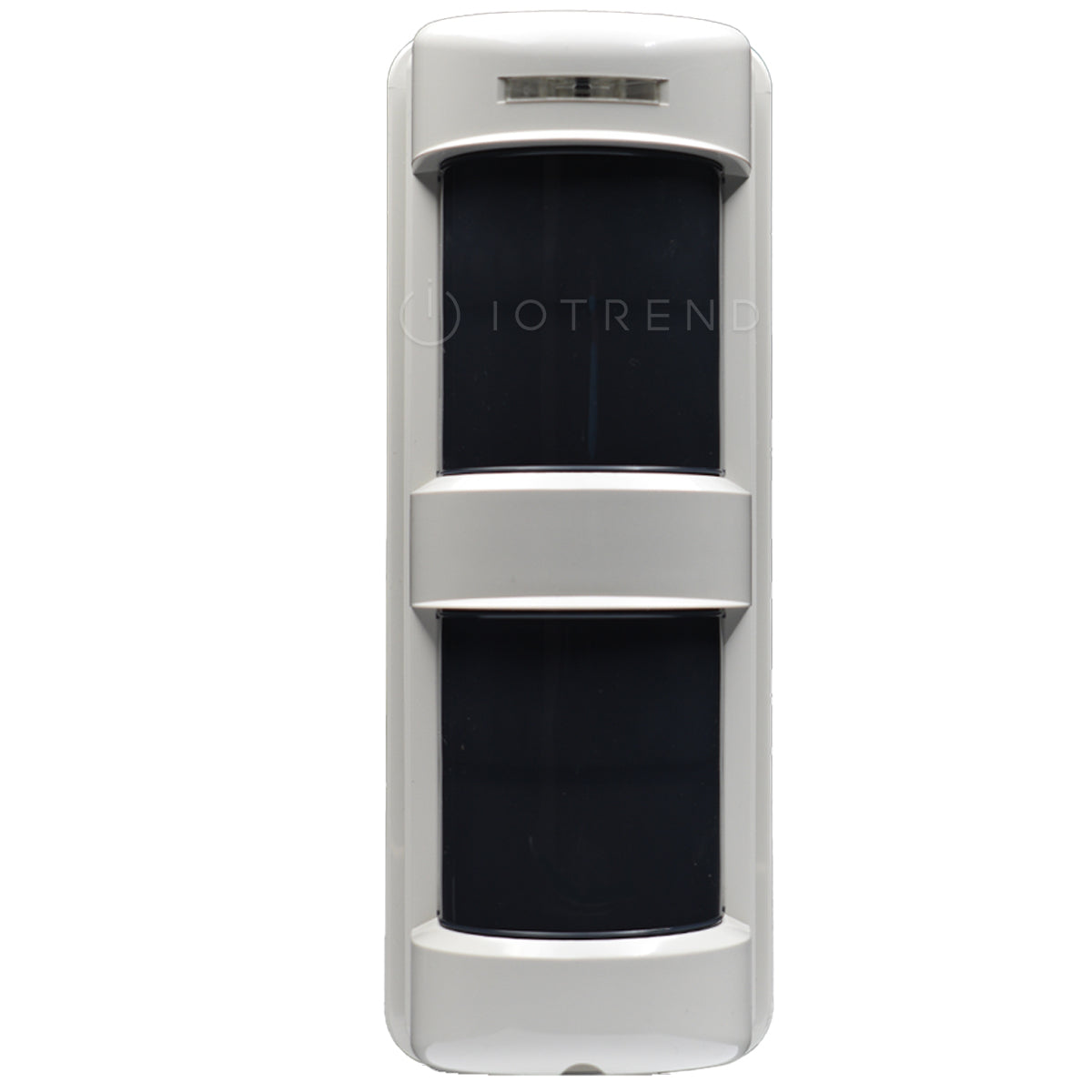

The Takex TX-114FR Wireless Dual-Zone 12m x 180 Degrees is a wireless indoor/outdoor Dual-Zone PIR, that combines high-performance optics and advanced circuitry with the highest-grade components available.
With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, the TX-114FR detector is compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas.
The TX-114FR sensor is equipped with a dual zone system which initiates an alarm only when detection occurs in both horizontal and downward zones simultaneously, this helps to mitigate nuisance alarms from pets and small animals. No alarm signal is given if only one zone is activated by a small pet, small animal, or moving vehicles outside the detection range of the downward zone, etc.

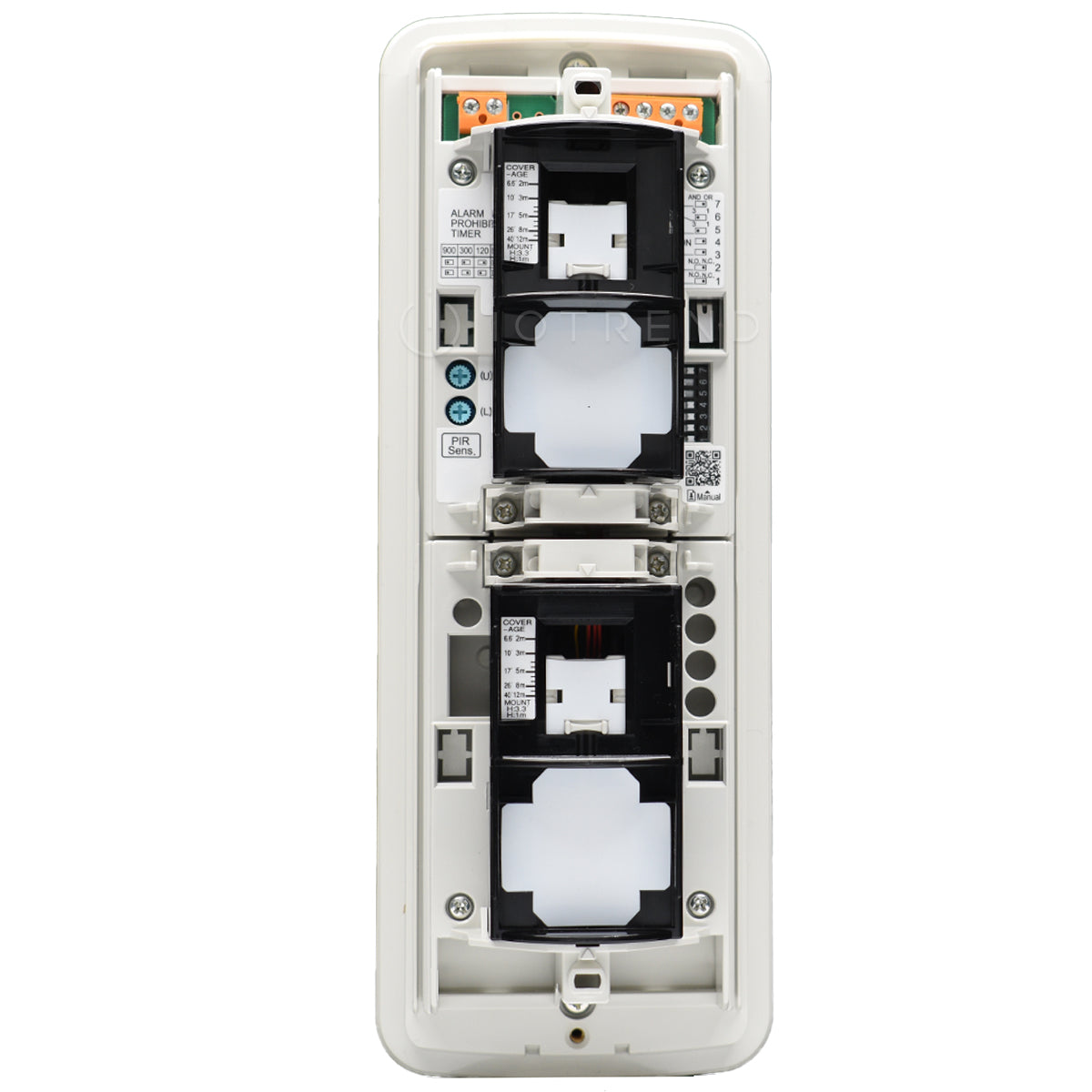

With two discrete Dual PIRs in a single housing, 2 detection areas - upper and lower can be covered respectively. Each detection direction can be moved 180 degree respectively.
The TX-114FR provides highly reliable and versatile protection of your property before an intruder reaches your door. The sensor is suitable for both domestic and industrial applications.
Product Code: TX114FR (excludes Tx)
FEATURES OF THE WIRELESS DUAL-ZONE 12m x 180° PIR:
- Dual-zone detection system
- 2-12m coverage
- Rotating sensor heads (±90° horizontal adjustment)
- Powered by 3V to 9VDC alkaline or lithium battery
- Compatible with numerous wireless transmitter units

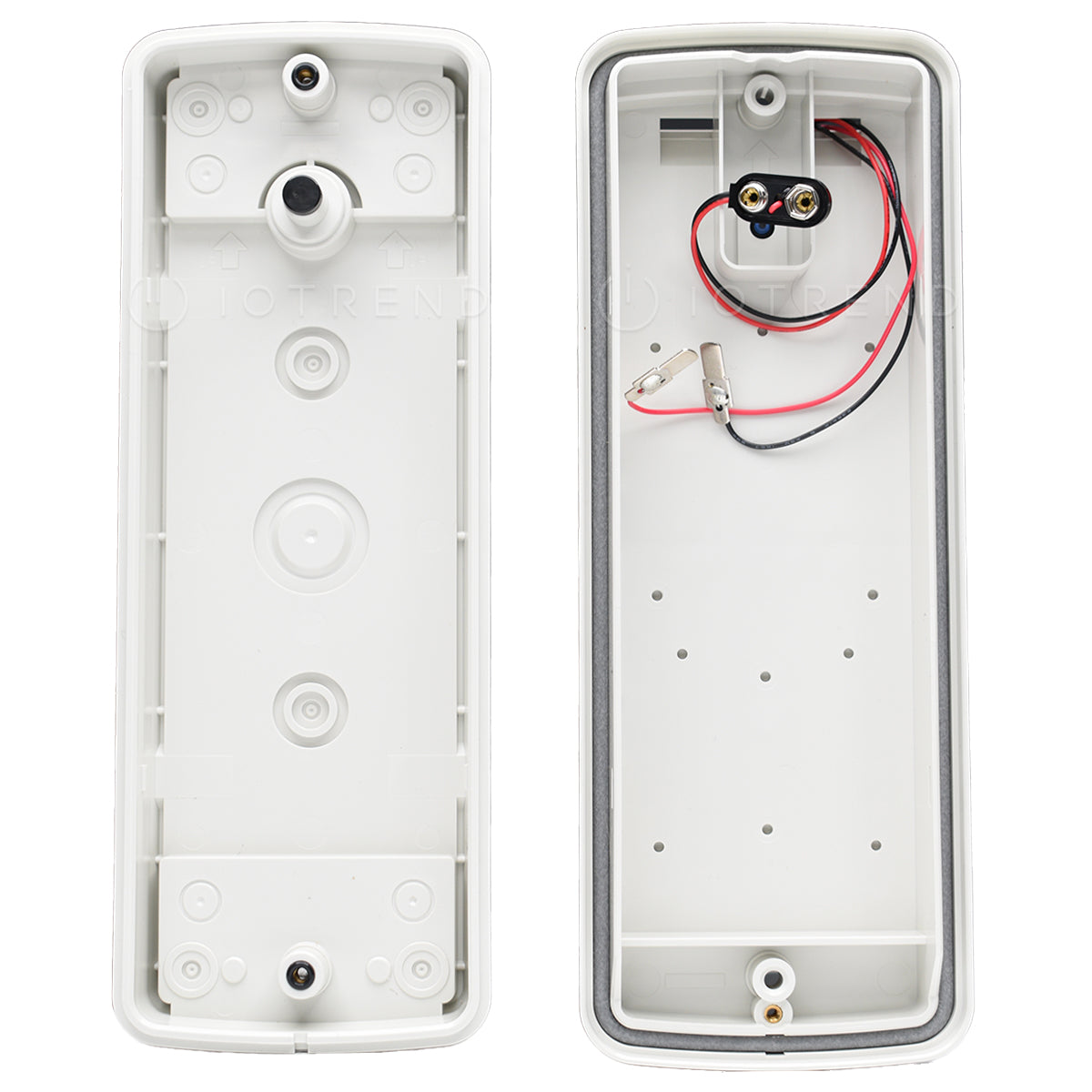

- Back box with back-tamper (TX-114TR/FR only)
- Selectable NO/NC relay output with 2 sec. to 5min. timer function
- AND/OR detection modes (TX-114FR only)
- IP54 housing
ACCESSORIES FOR THE WIRELESS DUAL-ZONE 12m x 180° PIR:
SPECIFICATIONS OF THE WIRELESS DUAL-ZONE 12m x 180° PIR:
| Detection system | Passive infrared |
| Coverage | Horizontal detection Angle - 90° |
| Detection distance | 12m |
| Horizontal zone | 7 zones |
| Downward zone | 7 zones |
| ×2 | |
| Mounting height | 0.8 - 1.2m |
| Area adjustment | Horizontal – 90° |
| Detection distance | 2m to 12m |
| (Adjustable by changing the vertical angle of downward curtain) | |
| Supply voltage | 3V to 9VDC Alkaline or Lithium Battery |
| (2.3V to 10VDC operation voltage) | |
| Current consumption | 35μA |
| 5mA/3V (Test mode) | |
| Alarm output | Solid State Switch N.C./N.O. selectable |
| 10VDC · 0.01A Max | |
| One shot output when detecting objects (approx. 2sec) | |
| Trouble output | Real time output |
| when the unit suffers functional trouble. (from terminal of Alarm) | |
| Tamper output | Real time output |
| when the cover is detached from the unit | |
| when the unit is detached from the installed wall or pole | |
| when compartment is separated from back plate | |
| LED indicator | Red LED |
| Blinking for approx. 1min during warm-up | |
| Lighting for 1sec at detection during walk-test (LED lights only in a test-mode) | |
| Blinking when trouble alarm is issued (Lights once every 5 sec) | |
| Pulse count | Once/Three times selectable (by dip switch) |
| Sensitivity adjustment | Approx. 30% to 170% (by rotary switch) |
| Alarm prohibition time | 10sec/120sec/300sec/900sec selectable (by dip switches) |
| Detection mode | AND/OR selectable |
| Mounting position | Indoor/Outdoor [Wall or Pole] |
| Wiring | Terminals |
| Body | AES resin |
| Lens | PE resin |
| Ambient temperature | -20°C to +50°C |
| IP Rating | IP54 |
| Product Dimensions | 91 mm (L) x 119.5 mm (W) x 245 mm (H) |
| Product Weight | 620g |
| Packaging Dimensions | 287 mm (L) x 105 mm (W) x 130mm (H) |
| Mass of unit packed | 845g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the Wireless Dual-Zone 12m x 180° PIR:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be changed in any way.
WHAT’S IN THE BOX:
1 x Takex TX-114FR Wireless Dual-Zone 12m x 180 Degrees
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
