PRODUCT INFORMATION

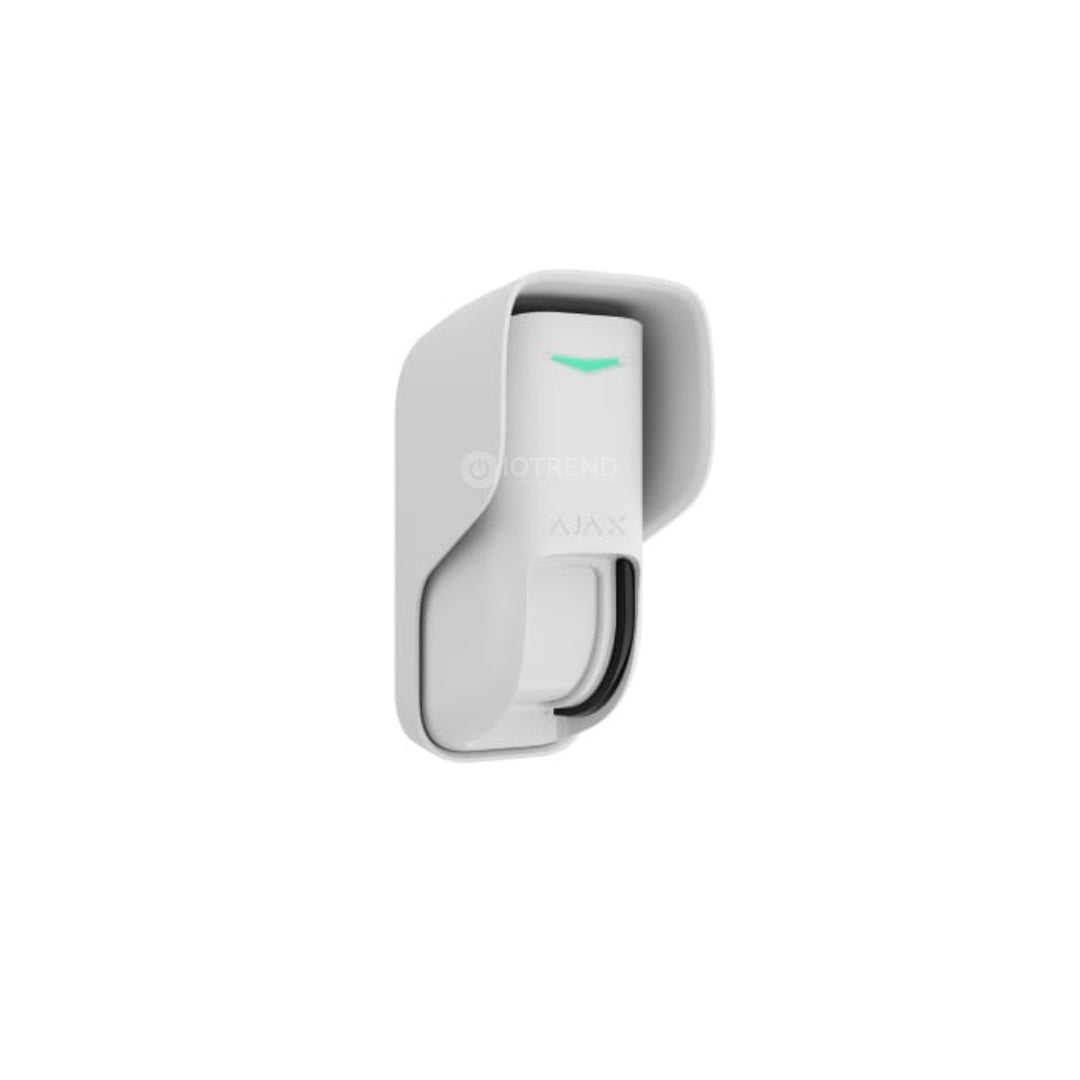

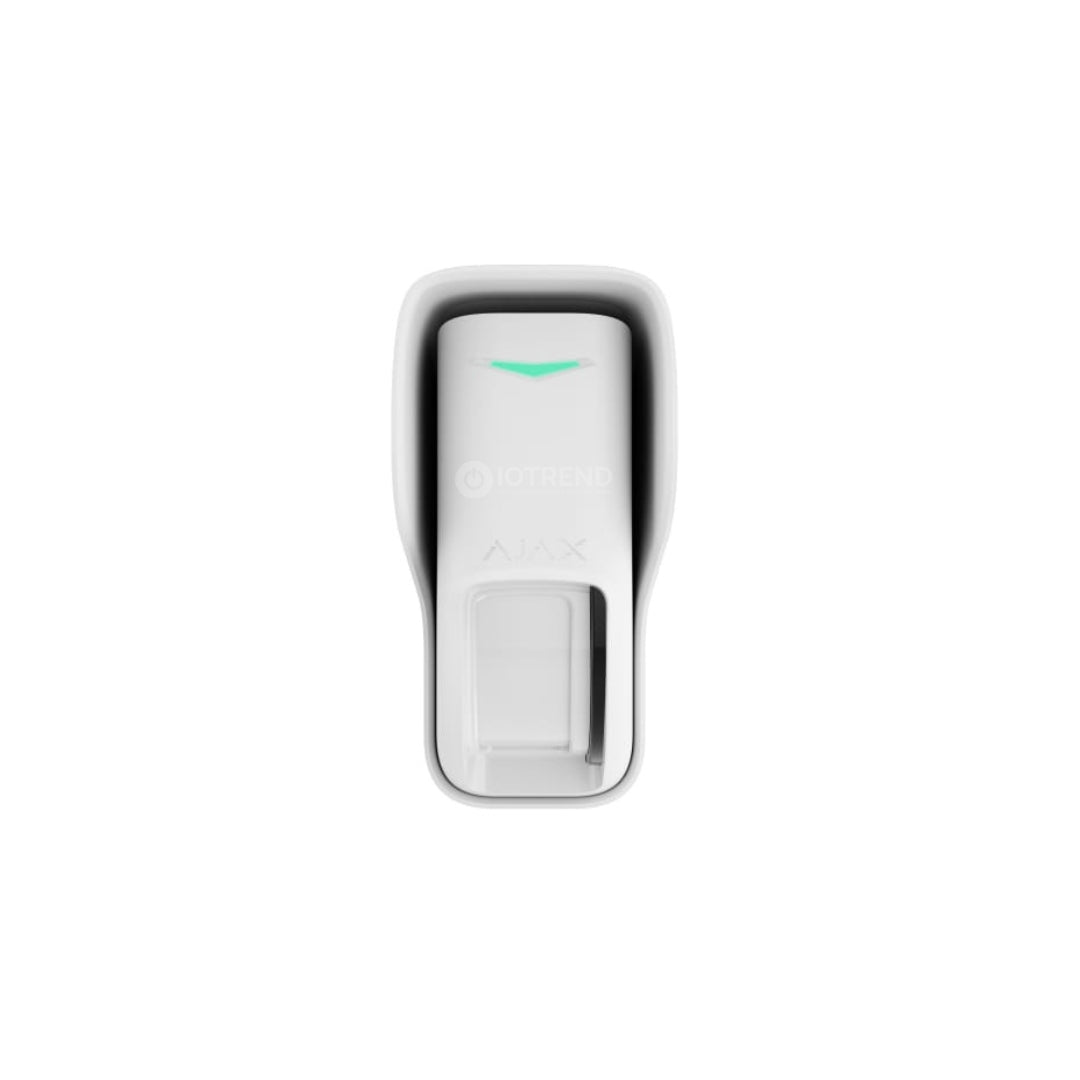

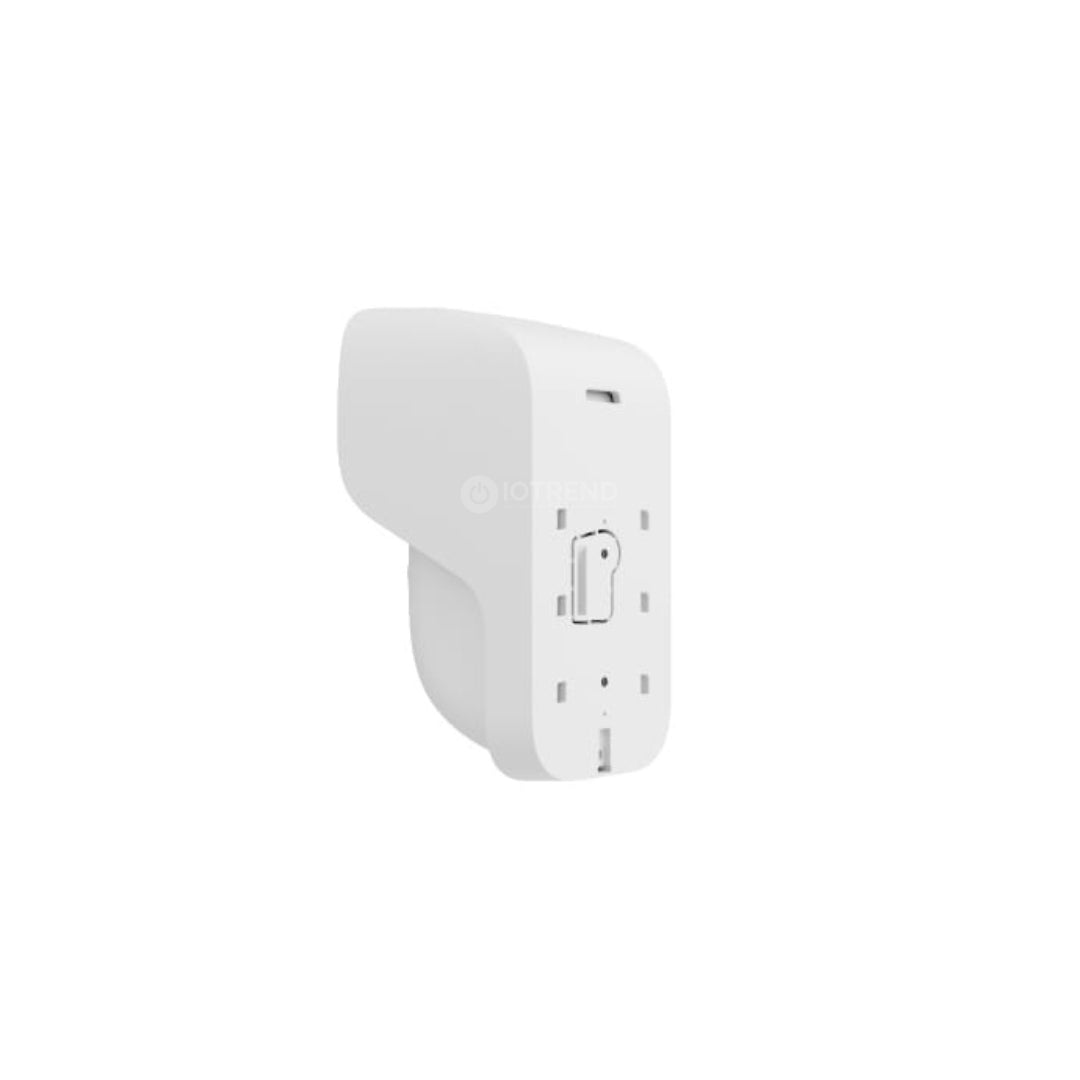

Protect your property's perimeter with the Ajax Curtain Outdoor Jeweller, an advanced wireless curtain-style motion detector designed for precise outdoor intrusion detection. Ideal for securing windows, doors, gates, fences, balconies, and narrow passageways, it creates an invisible detection barrier while allowing free movement inside the protected area.
Featuring dual detection technology, the Curtain Outdoor Jeweller combines two PIR sensors with a built-in K-band microwave sensor to accurately detect human movement while significantly reducing false alarms caused by weather, moving vegetation, insects, or temperature fluctuations. Intelligent signal processing and anti-masking technology provide dependable performance in demanding outdoor environments.
With a detection range of up to 12 metres and a narrow 8° horizontal detection angle, the detector is perfect for perimeter protection without monitoring unnecessary areas. Pet immunity can be configured when installed correctly, helping prevent false alarms from animals up to approximately 1 metre tall.
The Curtain Outdoor Jeweller communicates securely with the Ajax Hub using Jeweller and Wings wireless technologies, delivering encrypted communication with a wireless range of up to 1,700 metres in open space. Pre-installed batteries provide up to 3 years of operation, reducing maintenance requirements.
Key Features
- Wireless outdoor curtain motion detector
- Dual PIR and K-band microwave detection
- Detection range up to 12 metres
- Narrow 8° horizontal detection angle
- Advanced anti-masking protection
- SmartDetect algorithm minimises false alarms
- Configurable pet immunity
- Up to 1,700m wireless communication (open space)
- Jeweller & Wings encrypted communication protocols
- Up to 3-year battery life
- Tamper protection against removal or sabotage
- Suitable for outdoor and indoor installations
- IP-rated weather-resistant housing
- Fully compatible with Ajax security systems
Ideal Applications
- Windows
- Doors
- Sliding doors
- Gates
- Boundary fences
- Balconies
- Patios
- Driveway entrances
- Commercial premises
- Residential perimeter protection
The Ajax Curtain Outdoor Jeweller delivers professional-grade perimeter security with exceptional accuracy, fast alarm transmission, and industry-leading protection against false alarms, making it an excellent choice for homes and businesses requiring reliable outdoor intrusion detection.
SPECIFICTIONS OF THE AJAX CURTAIN OUTDOOR:
| Compatibility |
Compatible only with the following: https://ajax.systems/tools/devices-compatibility/?models=CO.Y.J |
| Type of detector | Wireless |
| Installation method | Indoors/outdoors |
| Sensors | 3 x IR sensor |
| Motion detection distance | From 4 to 12 m (depending on settings) for each optical system |
| Protection against false alarms | Available (ELSA software algorithm) |
| Alarm signal delivery time | 0.15 s |
| Detection angle |
horizontal: 8° vertical: 85°/75°/15° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Pet Immunity | Height up to 100 cm |
| Power supply | 2 x CR123А batteries, 3 V |
| Battery life | Up to 4 years |
| Temperature sensor | Available |
| Communication range with the central unit | Up to1,700 m line-of-sight |
| Two-way communication between devices | Yes |
| Operating frequencies |
866.0–866.5 MHz Depends on the sales region. |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Detector polling period | 12–300 s |
| Frequency hopping | Yes |
| Operating temperature range | From −25°С to +60°С |
| Permissible humidity | Up to 95% |
| Protection class | IP54 |
| Protection against forgery | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Product Dimensions with Hood | 155mm× 77mm × 85 mm |
| Product Weight | 299g |
| Packaging Dimensions | 200mm × 90mm × 100 mm |
| Mass of unit packed | 320g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
Recommendations
It is recommended to install the detector at a height of:
- 2.4 m;
- 1 m when the Pet immune mode is enabled.
The device is designed for indoor and outdoor use.
Install the hood to protect the detector’s anti-masking system from rain and snow.
WHAT’S IN THE BOX:
X1 - Curtain Outdoor Jeweller
X1 - SmartBracket mounting panel
X2 - CR123A battery (pre-installed)
X1 - Angle mount
X1 - Hood
X1 - Installation kit
X1 - Quick start guide
