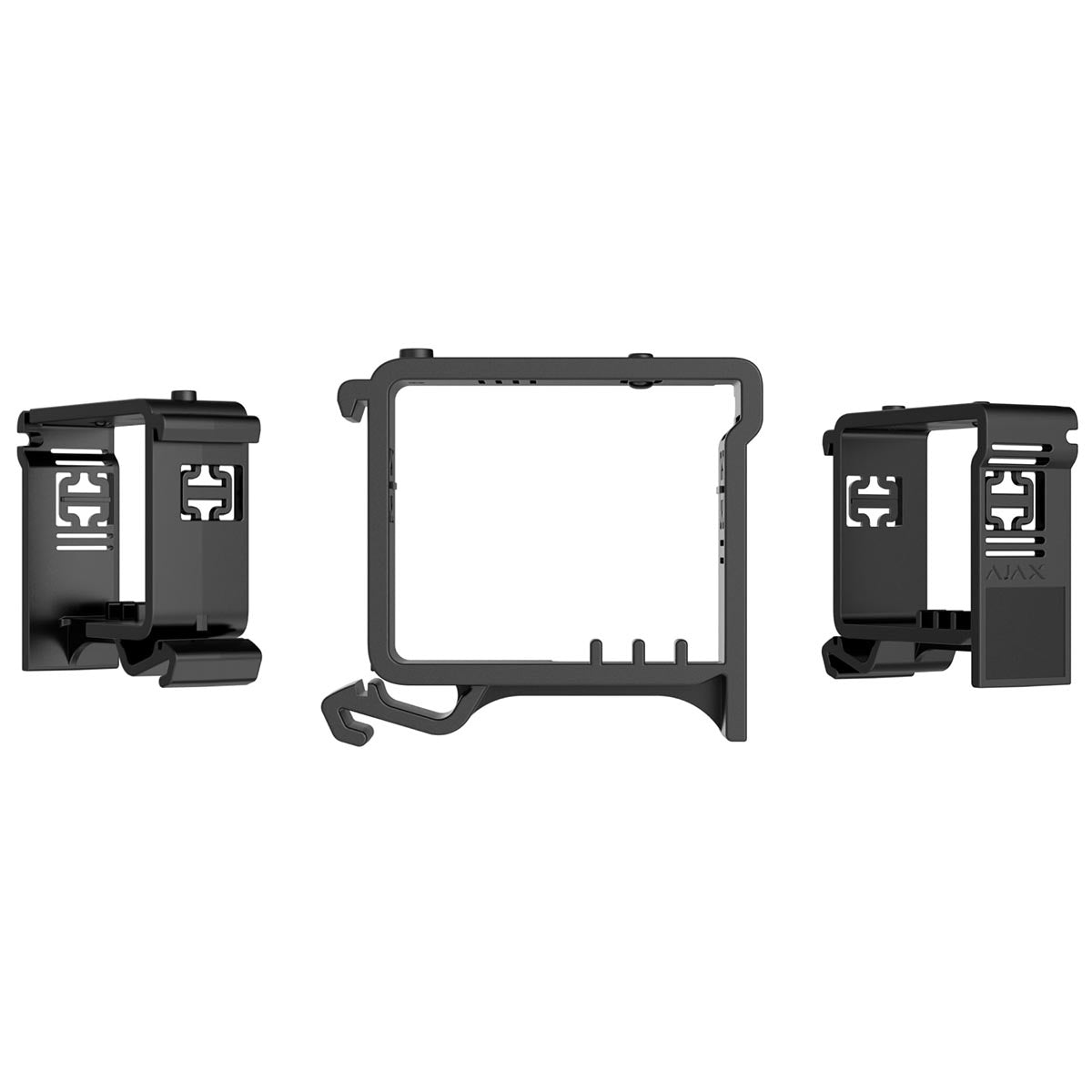

The Ajax DIN holder is ideal for securing a Relay or WallSwitch and is made of durable black polycarbonate weighing only 9 grams. Measuring 52 × 41 × 18mm, the holder with the relay installed is the same width as a single-phase circuit breaker.
The holder can be installed in places with humidity up to 75%. Included with the holder is a set of stickers that will help identify which circuit or device the relay controls and brief instructions.
Installing Ajax DIN Holder for Ajax WallSwitch and Ajax Relay

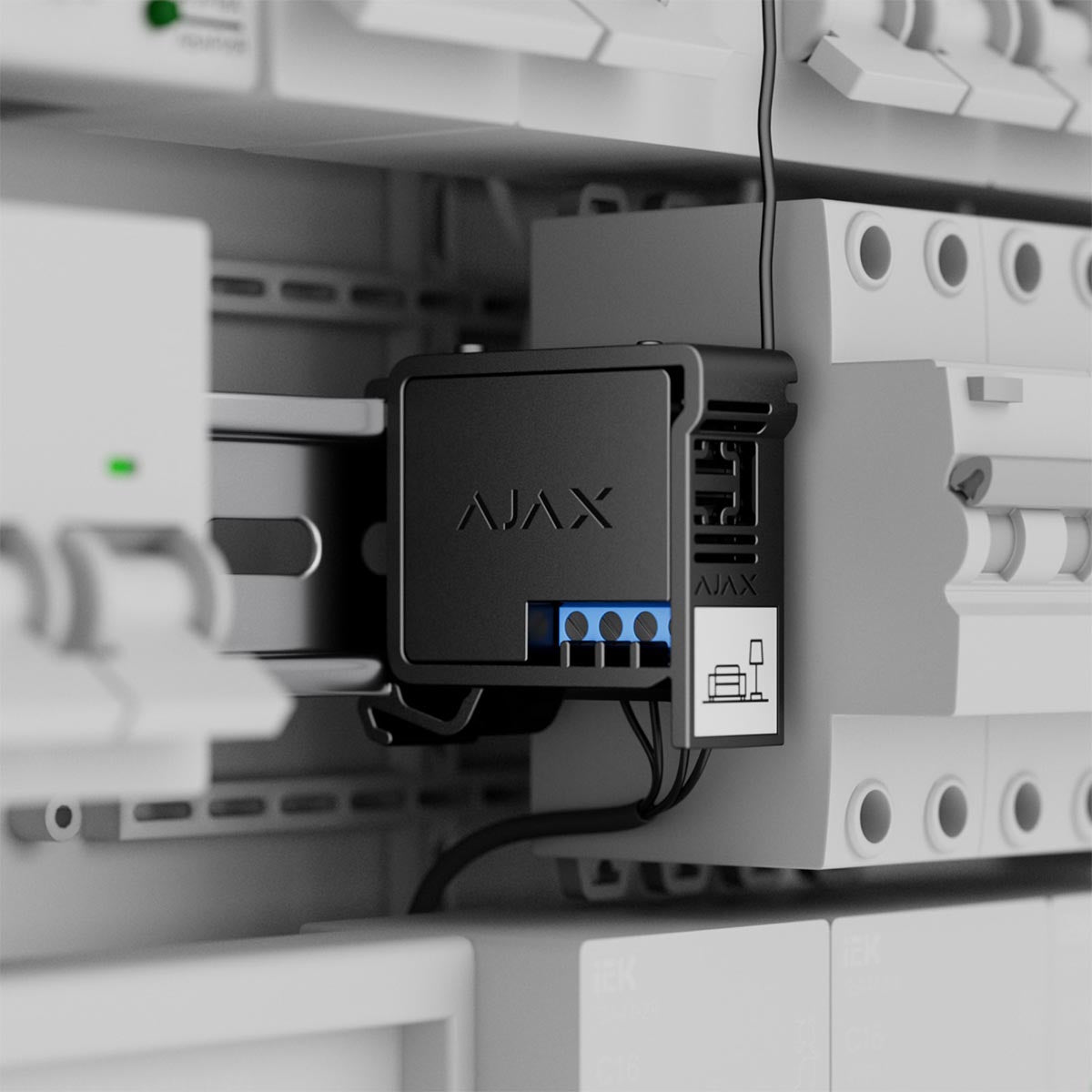

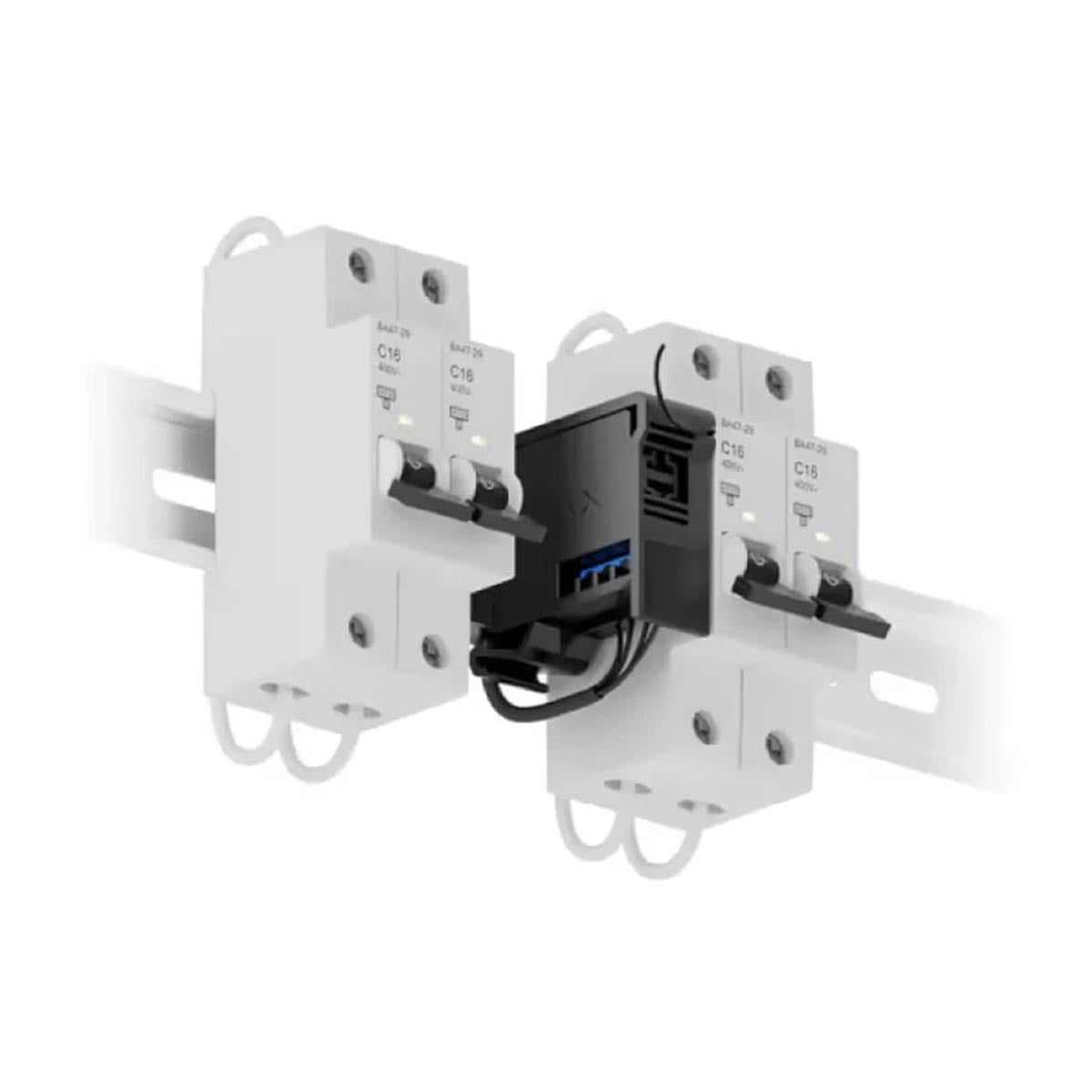

The Relay and WallSwitch Power Management Device Holder is mounted on a rail using side hinges and does not require the use of third-party tools. The holder housing securely fixes the devices on a 35 mm DIN rail and follows the shape of the relay. Neighbouring circuit breakers will also not cause inconvenience.
The holder hole system provides passive ventilation of the case allowing the relay to operate at air temperatures up to +60°C.
Product Code: 40696.132.BL
The Ajax DIN Holder casing has a built-in button to control the power supply manually. Press the button to change the state of the contacts to the opposite in bistable mode and change the state for the time specified in the settings in the pulse mode.
FEATURES OF THE AJAX DIN HOLDER
- The holder casing has a built-in button to control the power supply via relay.
- Openings in the casing help to cool down the relay, keeping the operating temperature up to +60°С.
- Sticker set to mark which device or circuit the relay controls.
SPECIFICATIONS OF THE AJAX DIN HOLDER
|Compatibility||Ajax Relay and Ajax WallSwitch|
|Installation method||Mounting on DIN Rail|
|Operating temperature||−25°C to +60°C|
|Operating humidity||Up to 75%|
|Product dimensions||52mm x 41mm x 18mm|
|Packaging dimensions||70mm x 65mm x 40mm|
|Mass of unit packed||50g|
|Warranty||24 Months limited Manufacturer’s warranty|
