Ajax GlassProtect White Front View BD428W
SALE 16% OFF

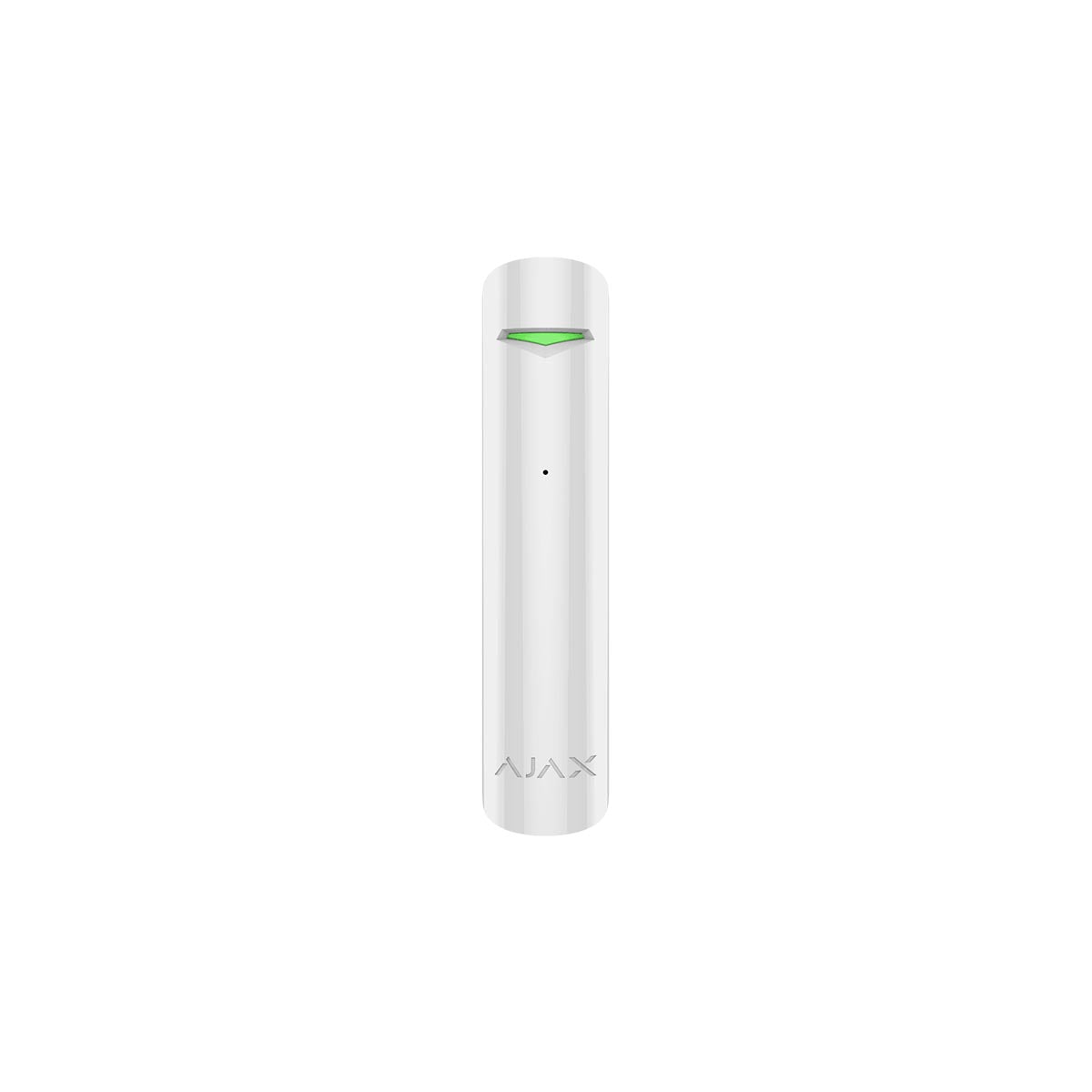

Ajax GlassProtect White Front View BD428W

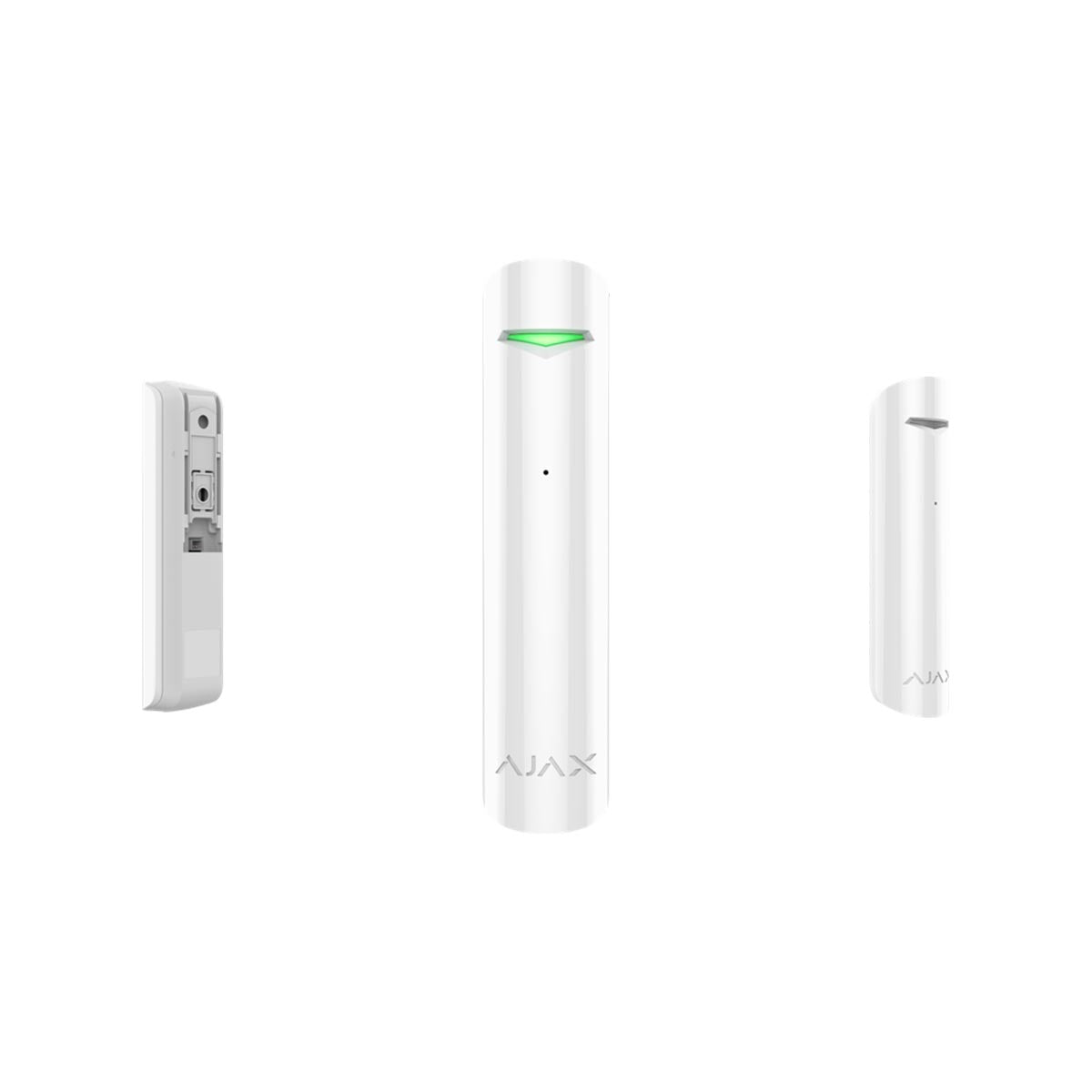

Ajax GlassProtect White 3-Way View BD428W

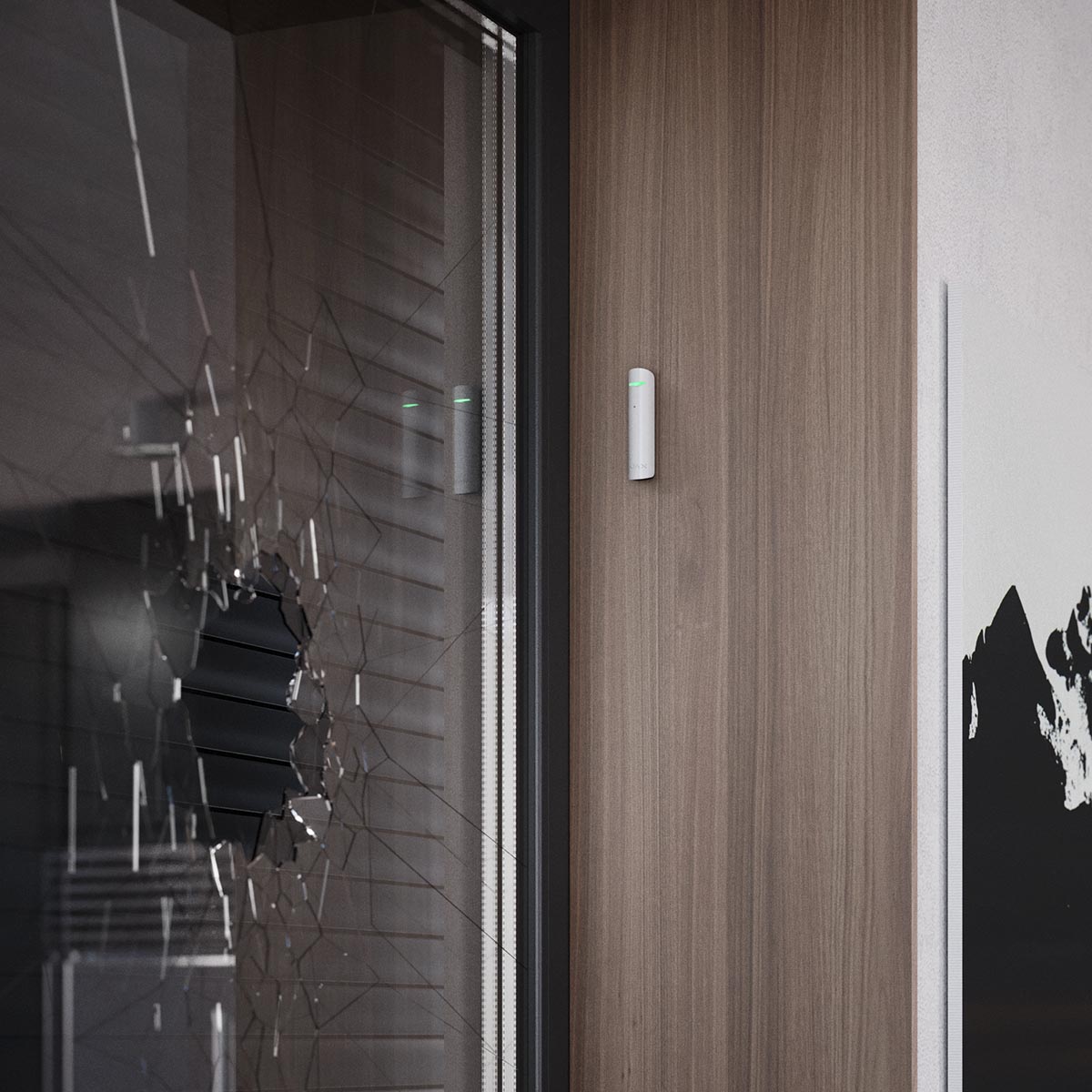

Ajax GlassProtect White Indoor Application BD428W

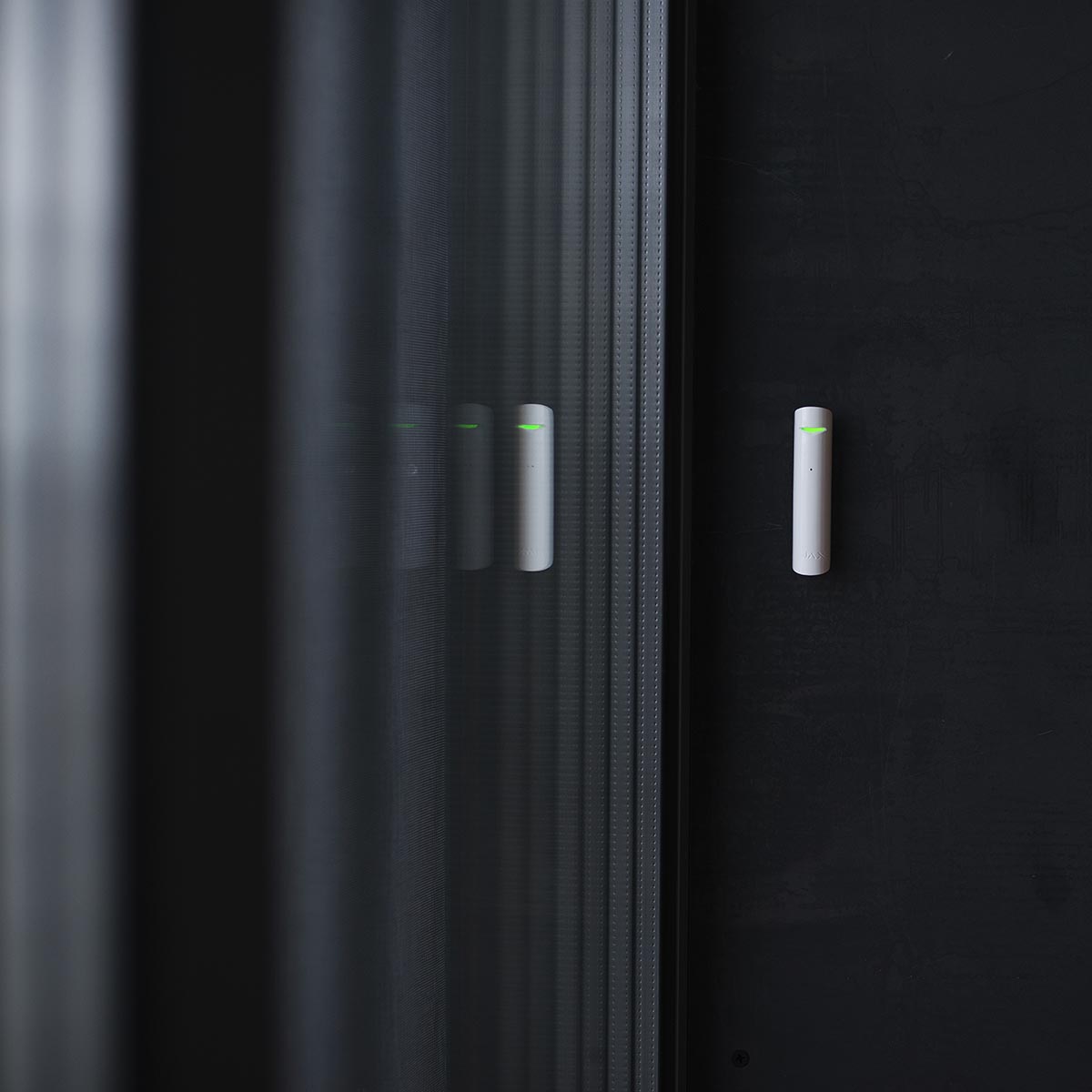

Indoor Application 2 BD428W

Ajax GlassProtect White

R 1,229.00 Incl. VAT
R 0.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

Spec Data Sheet Button

Ajax GlassProtect White is a miniature wireless indoor glass break detector that recognizes the sound of glass breaking from a distance of up to 9 meters. At the same time, passing cars or barking dogs do not cause false alarms.

The GlassProtect can operate up to 7 years from a pre-installed battery and has a socket for connecting a third-party wired detector.

GlassProtect operates within the Ajax system, connected to the hub via the protected Jeweller protocol.

The detector is compatible only with Ajax Hub, Ajax Hub Plus, Ajax ReX, Ajax ocBridge Plus and Ajax uartBridge.

Product Code: 5288.05.WH1



FEATURES OF THE AJAX GLASSPROTECT:

  • Indoor wireless detector
  • Built-in battery (lasts up to 7 years)
  • Detects breakage at a distance of up to 9 m
  • Communication range is up to 1000m (line of sight)
  • Ignores thunder, dogs barking and noise outside the window
  • Detector can be used as a part of third-party security central units via the uartBridge or ocBridge Plus integration modules.
  • Detector is set up via the Ajax app for iOS, Android, macOS and Windows
  • System notifications delivered via push notifications, SMS and calls (if activated).
  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Tampering alarm
  • The user can connect the Ajax system to the central monitoring station of a security company.


Please Note: GlassProtect detector does not react to the breaking of the film-covered glass: shockproof, sunscreen, decorative, or any other type of film. To detect the breaking of such kind of glass, we recommend using the DoorProtect Plus wireless opening detector with shock and tilt sensors.


INSTALLATION AND SET-UP

The Ajax GlassProtect Plus comes ready to operate straight out the box.

The battery is pre-installed, so there is no need to disassemble the detector. The Ajax GlassProtect can be mounted on the SmartBracket in just a few minutes.
Connect the GlassProtect to the hub via the mobile application.



SPECIFICATIONS OF THE AJAX GLASSPROTECT:

Compatibilty Compatible only with Ajax Hub, Ajax Hub Plus, Ajax ReX, Ajax ocBridge Plus and Ajax uartBridge.
Classification Surface sound radio channel security detector
Type of detector Wireless
Installation method Indoors
Sensing element Electret microphone
Break detection distance Up to 9 m
Alarm signal delivery time 0.15 s
Sensitivity Adjustable, 3 levels
Detection angle 180°
Power supply CR123A battery, 3V
Battery life Up to 7 years
Communication range with central unit Up to 1,000 m in an open space
Two-way communication between devices Yes
Operating frequencies 868.0-868.6 MHz
Self-adjusting RF output power Up to 20 mW
Block encryption based on AES algorithm Yes
Detector polling period 12−300 s
Temperature sensor Available
Operating temperature range From -10°С to +40°С
Permissible humidity Up to 75%
Remote setting and testing Yes
Certification Grade 2, CE
Product Dimensions 90 mm x 20 mm x 20 mm
Product Weight 30g
Packaging Dimensions 110 mm x 30 mm x 30mm
Mass of unit packed 100g
Warranty 24 months limited Manufacturer’s warranty. The warranty does not cover batteries.





WHAT’S IN THE BOX:

1 x Ajax GlassProtect White
