PRODUCT INFORMATION

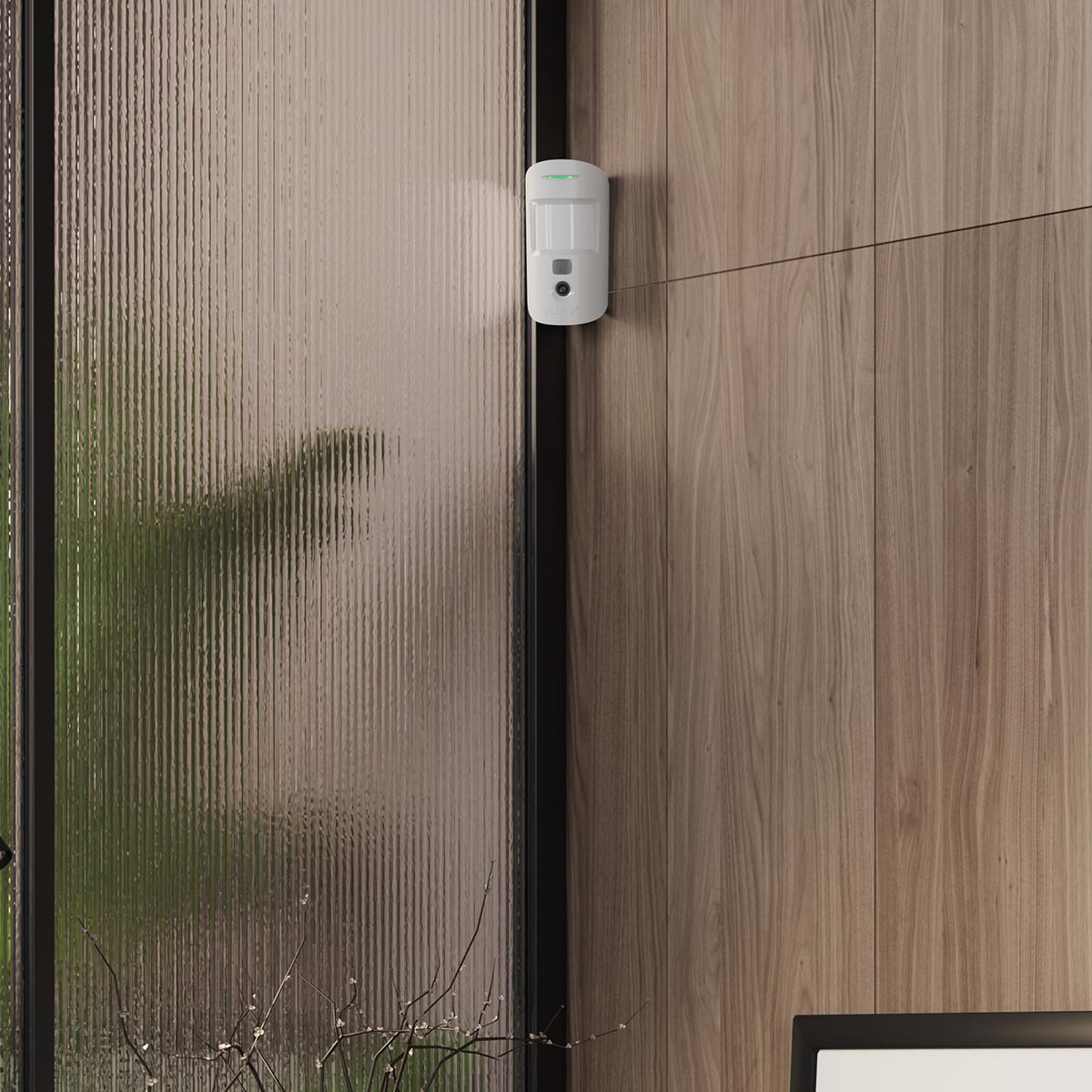

The Ajax MotionCam (PhOD) White is a wireless motion detector that takes photos by alarm and on demand.
The MotionCam (PhOD) has the latest in wireless security technology, offering advanced intrusion detection capabilities. Its built-in photodetector captures high-quality images with better color accuracy and detail, even in low-light conditions.
With improved PIR sensors, false alarms are reduced, allowing system users and monitoring company operators to verify alarms in real-time. This is especially helpful in distinguishing between actual security threats and false alarms. technology.
Please note: MotionProtect operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with Hub 2, Hub 2 Plus, Hub Hybrid and ReX 2.
Product Code: 36489.120.WH1
Peace of mind on demand
MotionCam (PhOD) needs only seconds to show the actual situation on the scene and dispel the user’s doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, the detector will automatically take a series of photos if it captures motion or when FireProtect or FireProtect Plus fire detector triggers.
Photo by Alarm
Photo by Scenario
Photo on Demand
FEATURES OF THE AJAX MOTIONCAM (PhOD):
- Wireless Indoor detector
- Built-in battery (lasts up to 4 years)
- Motion detection distance of up to 12m
- Communication range of 1700m (in an open space/line of sight)
- Pet Immune (ignores pets with weight of up to 20 kg and height up to 50 cm)
- Photo on Demand
- Adjustable image resolution
- Photo verification in 9 seconds without privacy concerns
- Smart Detect – Software filter for false alarms
- IR Backlight for photos taken in the dark
- Temperature compensation – effective in hot and cold environments
- Detector is set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated).
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax MotionCam (PhOD) comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. The Ajax MotionCam (PhOD) can be mounted on the SmartBracket in just a few minutes.
Easy to pair with a QR-code and you can use the Mobile app to adjust, test, and control the unit.
SPECIFICATION OF THE AJAX MOTIONCAM (PhOD):
| Compatibility | Hub 2, Hub 2 Plus, Hub Hybrid |
| Classification | Electro-optical combined radio channel security detector with a photo camera |
| Detector Type | Wireless |
| Installation | Indoors |
| Motion detection distance | Up to 12m |
| Pet Immunity | Weight up to 20kg and Height up to 50 cm |
| Sensing element | PIR-sensor |
| Alarm signal delivery time | 0.15 sec |
| Detection angles | Horizontal - 88.5° and Vertical - 80° |
| Camera view angle | 90° |
| Time to deliver a photograph with default settings | Up to 9 sec |
| Photo quality | Up to 640 × 480 |
| Pictures in a series | 1-5 pcs |
| IR-backlight for night mode pictures | Available |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4m |
| Power Supply | 2 x CR123A, 3V |
| Battery life | Up to 4 years |
| Communication range with detectors | Up to 1,700 m in the line of sight |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0-868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Detector polling period | 12−300 s |
| Frequency hopping | Yes |
| Wings radio technology | Transmission of visual alarm verifications |
| Temperature sensor | Available |
| Operating temperature range | From 0°С to +40°С |
| Operation humidity | Up to 75% |
| Fraud protection | Yes |
| Jamming notification | Yes |
| Tamper-resistant | Yes |
| CMS compatibility | Motion alarms are transmitted to CMSs that support SIA and Contact ID protocols |
| Visual alarm verifications | Transmitted to the Manitou CMS and Ajax PRO Desktop app |
| Remote configuration and testing | Yes |
| Protection class | Yes |
| Certification | Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131 |
| Product Dimensions | 135 mm x 70 mm x 60 mm |
| Product Weight | 167g |
| Packaging Dimensions | 137 mm x 84 mm x 71 mm |
| Mass of unit packed | 300g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax MotionCam (PhOD) White
