PRODUCT INFORMATION

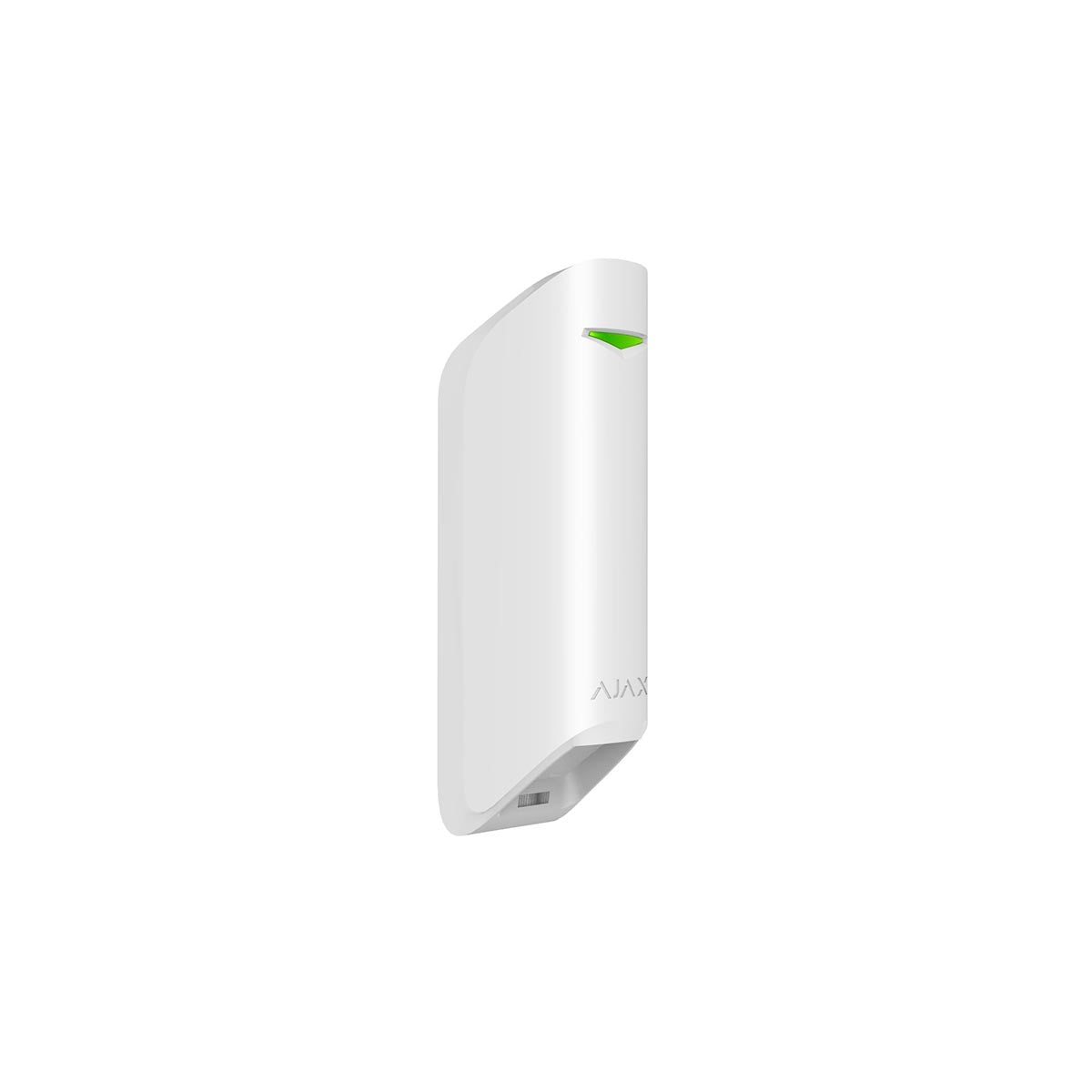

The Ajax MotionProtect Curtain White is a curtain type wireless motion detector with a narrow horizontal detection angle designed for indoor perimeter control of windows, doorways, passages, other entrances or exits and valued goods i.e expensive artworks, sculptures etc.
The Ajax MotionProtect Curtain allows you to secure the perimeter of your house whilst freely moving around indoors and if set-up correctly can ignore pets, even if you own a Saint Bernard.
Please note: MotionProtect Curtain integrates into Ajax systems, connecting to the hub via the protected Jeweller protocol.
The Ajax MotionProtect Curtain is compatible with all Ajax hubs and Ajax ReX.
Product Code: 13268.36.WH1
FEATURES OF THE AJAX MOTIONPROTECT CURTAIN:
- Wireless Indoor Motion Detector
- Built-in battery (lasts up to 3 years)
- Detects motion with a range of up to 15 meters
- Wireless coverage may reach up 1,700 m line-of-sight.
- Detector will continue to operate even if the temperature drops to -10°C.
- Detector is set up via the Ajax app for iOS or Android
- System notifications delivered via push notifications, SMS and calls (if activated).
- Quick and Easy installation
- Ajax can be connected to the central monitoring station of a security company.
INSTALLATION AND SET-UP
The Ajax MotionProtect Curtain comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. The Ajax MotionProtect Curtain connects to the security system via the Ajax app, simply scan the QR code, add the detector to the room, and proceed to installation.
SPECIFICATIONS OF THE AJAX MOTIONPROTECT CURTAIN:
| Compatible | Operates with all Ajax hubs and Ajax ReX |
| Classification | Radio-interlinked photoelectric security detector |
| Type of detector | Wireless |
| Motion detection distance | Adjustable (from 6 m to 15 m) |
| Installation | Indoors only |
| Sensing element | Two PIR sensors |
| False alarm reduction | Available, Correlation Signal Processing |
| Alarm signal delivery time | 0.15 seconds |
| Detection angles | Horizontally: 6° & Vertically: 90° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 meters |
| Power supply | CR123A, 3V |
| Battery life | Up to 3 years |
| Communication range with detectors | Up to 1,700 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0 - 868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Detector polling period | 12−300 s |
| Frequency hopping | Yes |
| Temperature sensor | Available |
| Operating temperature range | From −10°С to +40°С |
| Operating humidity | Up to 95% |
| Fraud protection | Yes |
| Jamming notification | Yes |
| Tamper-resistant | Yes |
| Remote configuration and testing | Yes |
| Protection class | IP54 |
| Product Dimensions | 134 mm х 44 mm х 34 mm |
| Product Weight | 118g |
| Packaging Dimensions | 153 mm x 67 mm x 63 mm |
| Mass of unit packed | 200g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax MotionProtect Curtain White
