PRODUCT INFORMATION
Product Code: L90451

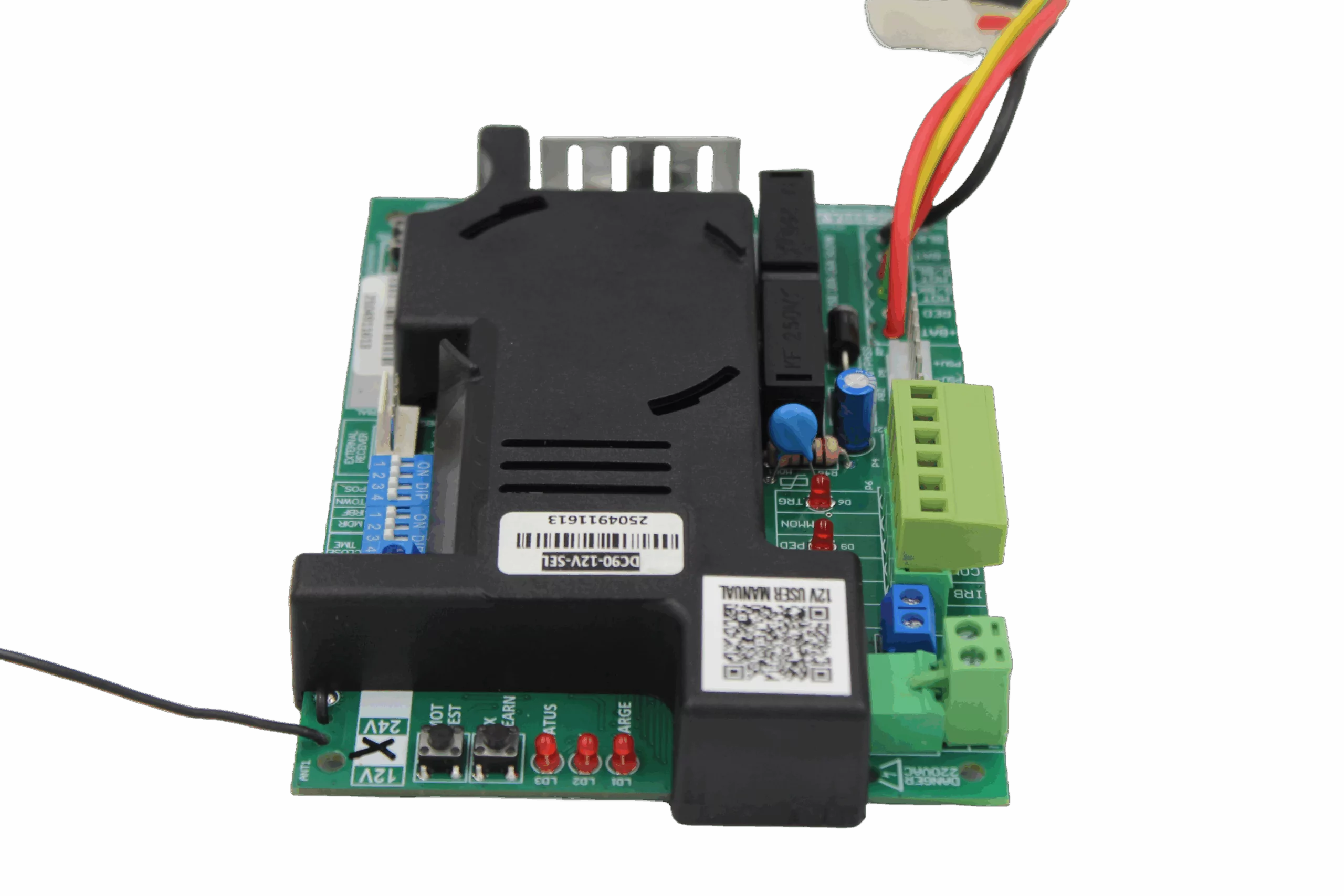

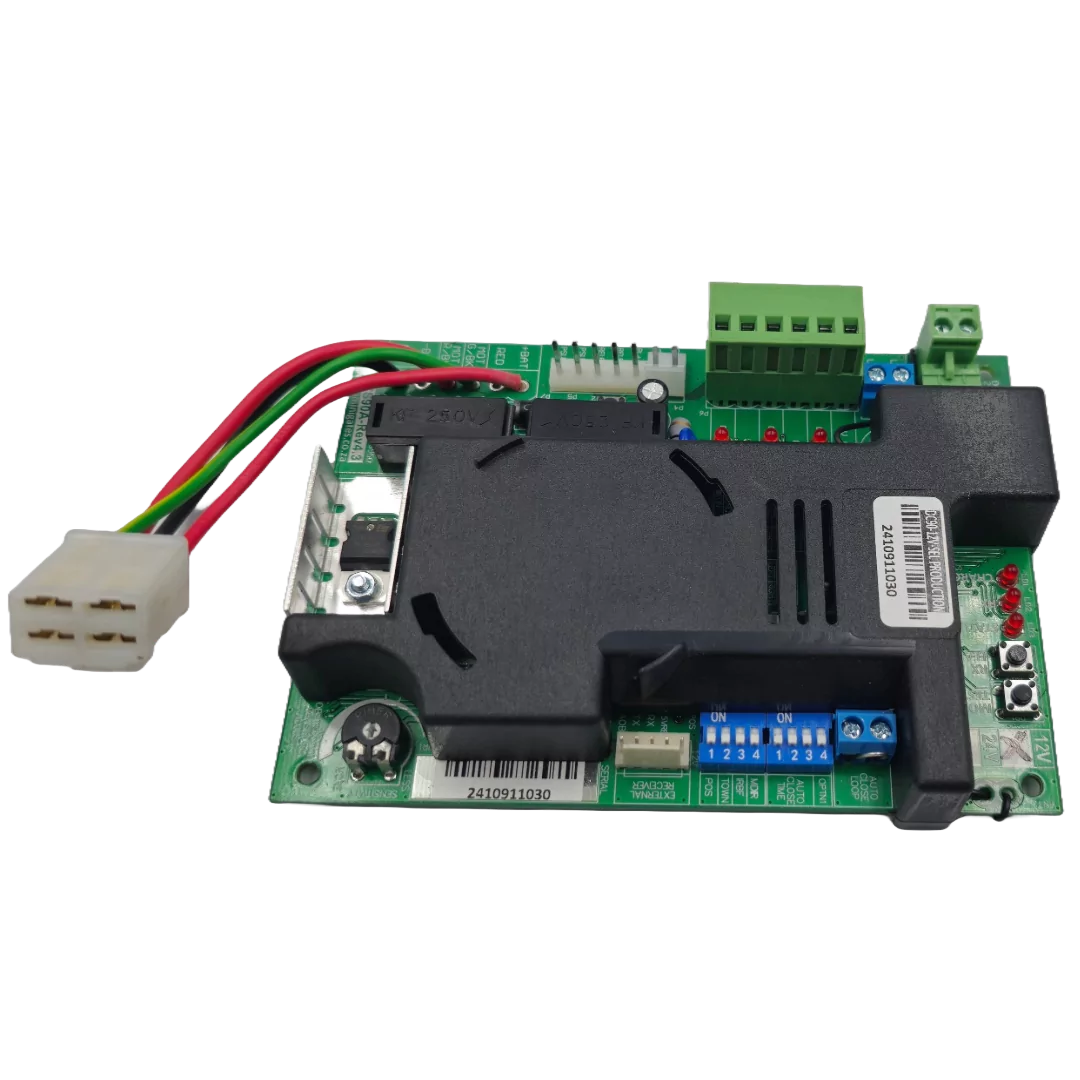

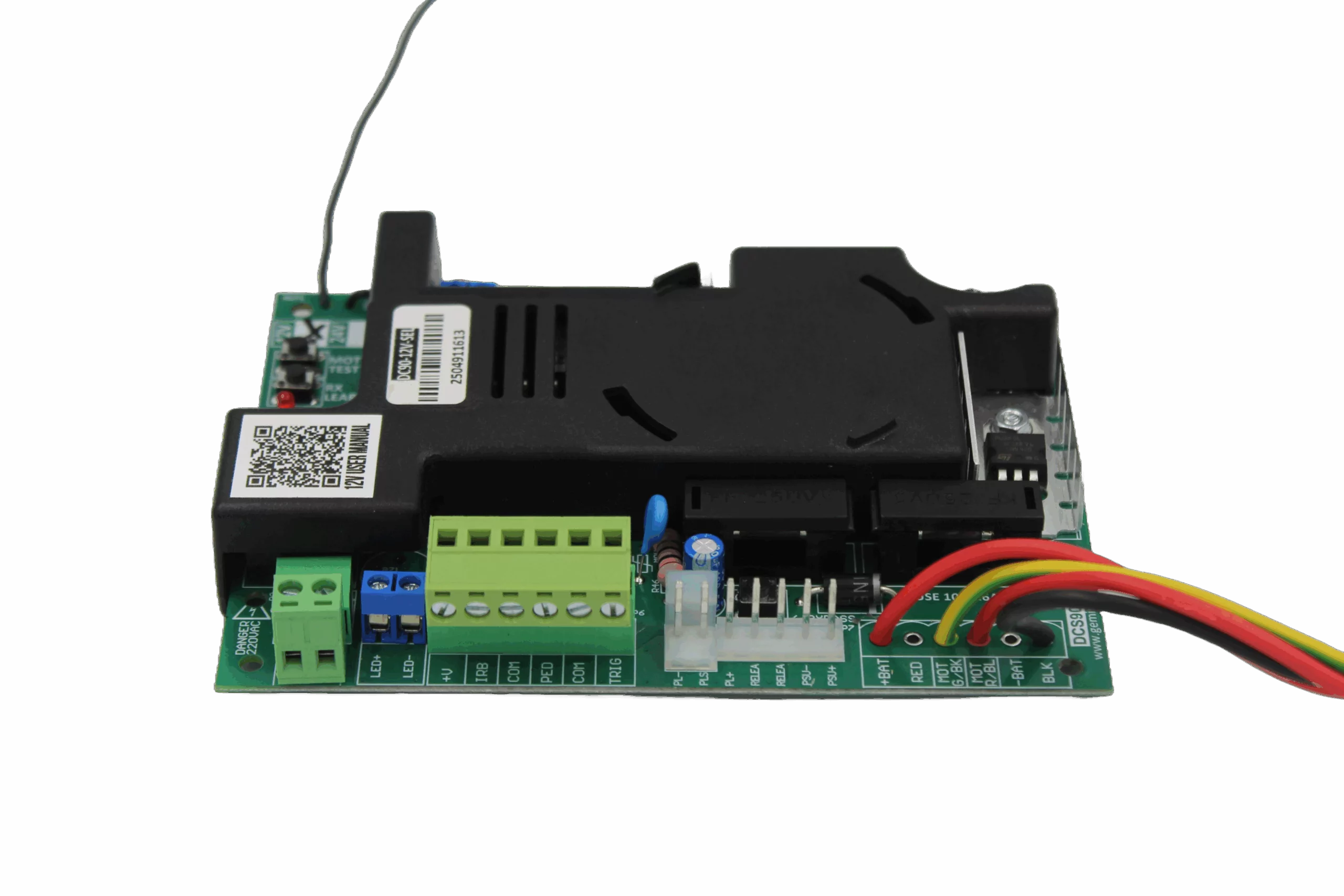

The DC 12 volt SEL PC Board is fitted to the latest DC Sliding gate motors with “shaft encoding” capabilities to learn the position of the gate. Manufacturing started in 2024 however this PCB is compatible with all 12V SEL motors with a red release lever since 2006 .It also has its own on-board receiver incorporated onto the PC board, as well as connections for a loose receiver and a connector for accessories. When replacing your motor with this particular PCB your motor will be Smart compatible and all you need is a GEMLINK SMART DEVICE.
Applications
• Gemini DC Slider Gate Motor 7Ah
Features
• Plug and play.
• Gemlink Smart Compatible.
• Easy to install
• The DC 12 volt SEL PC Board is fitted to the latest DC Sliding gate operators with shaft encoding capabilities to learn the position of the gate.
• It also has its own on-board receiver incorporated onto the PC board, as well as connections for a loose receiver and a connector for accessories.
Specifications
| Brand | Gemini |
| Model | SEL 12V PCB |
| Controller for motor type | Gemini DC Slider Gate Motor 7Ah |
| Motor Voltage | 12V |
| Replacement unit | New |
| Product Dimensions | 138mm(l) x 100mm(w) x 35mm(h) |
| Product weight | 160g |
| Packaging Dimensions | 175mm(l) x 115mm(w) x 40mm(h) |
| Mass of unit packed | 185g |
| Warranty | 12 Month Manufacturers warranty |
Warnings and limitations
• compatible with all 12V SEL motors with a red release lever since 2006
• Installation must be done by a suitable qualified technician
• Under no circumstances may any of the components be modified
What's in the box
1 x Gemini 12V DC Slider PCB SEL P02455
