PRODUCT INFORMATION

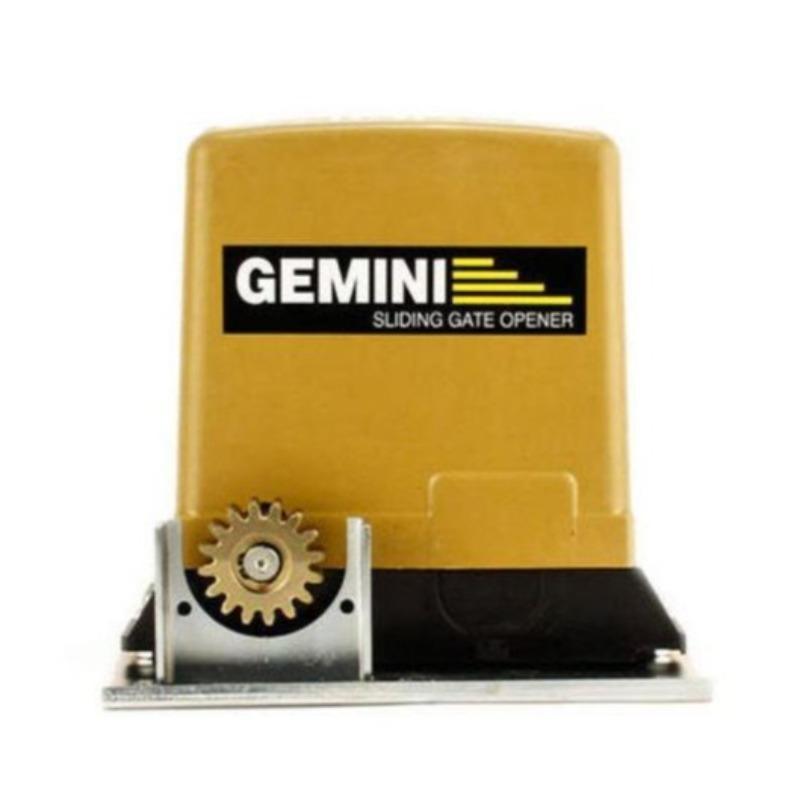

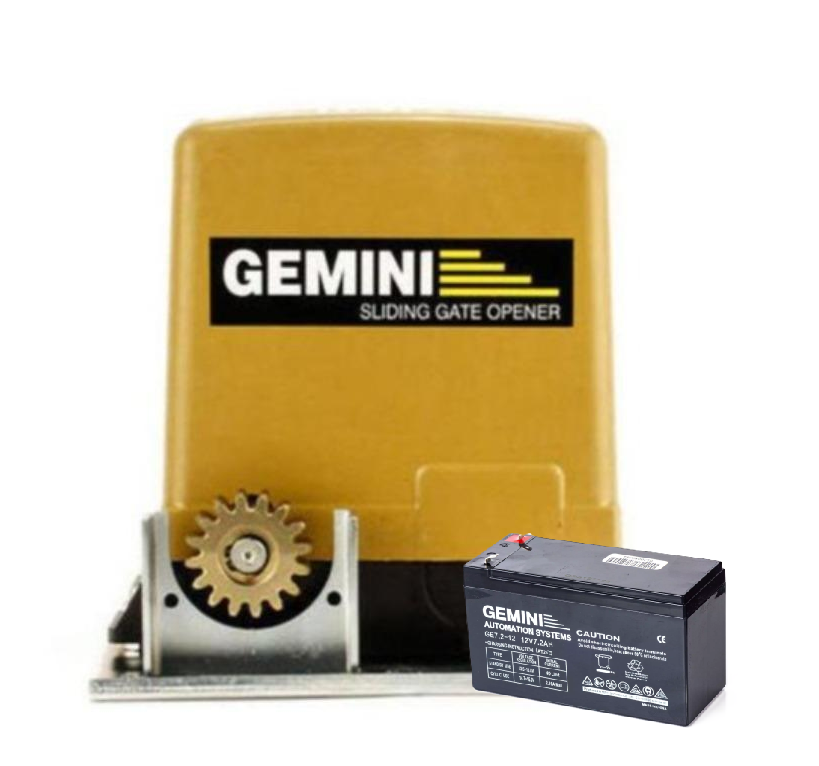

The Gemini DC Slider Gate Motor 7Ah is ideal for domestic use with sliding gates up to 5 meters not weighing more than 500Kg. The Operator is a 12V system and uses a 12v 7.2Ah Securi-Prod Battery for backup power in the event of power failures or load shedding. The unit comes with a baseplate, 2 x 3 Button remotes, 12V 7.2Ah Securi-Prod battery, learning stoppers, instruction manual and 50ml oil to be put into the gearbox before operation.
Features
• Easy to install and user friendly setup
• Reliable battery backup will allow the gate to operate in the event of power outages and load shedding
• Built in receiver with 2 x Gemini 3 Button remotes included
• Auto close adjustable time
• Pedestrian facility
• Manual override
• Soft start and close
• Direction change option
• GSM Compatibility
• Affordable
• Safe and reliable
• Maintenance is effortless
Specifications
| Brand | Gemini |
| Model | Gemini Slider 7AH |
| Input voltage | 220V |
| Motor voltage | 12V DC |
| Motor size | 120 Watt |
| Electrical consumption | 220-260 V / 150 Milli amps |
| Backup power | Securi-Prod 12V 7.2AH Battery |
| PCB Controller | Gemini DC Slider 12V SEL Controller PCB |
| Power Supply | Gemini DC Slider Power Supply SEL 12V |
| Compatible remotes | 1 Button and 3 Button |
| Compatible receiver | Single channel code hopping |
| Compatible anti theft bracket | Gemini DC Slider Anti Theft Bracket |
| Pull force | 15 Kgf |
| Gate speed | 22 meter/min |
| Maximum daily cycle | 30 cycles per day |
| Motor dimensions | 340mm(l) x 265mm(w) x 340mm(h) |
| Motor weight | 10.2Kg |
| Packaging dimensions | 360mm(l) x 285mm(w) x 400mm(h) |
| Mass of unit packed | 14Kg |
| Warranty - Mechanical & Workmanship | Manufacturers 24 Months warranty |
| Warranty - Electrical | Manufacturers 12 Months warranty |
Instructions for use
• Refer to detailed installer manual.
Maintenance and care
• Ensure that the track is kept clear from stones, dirt or any obstruction. Gate brushes can be installed to assist in clearing the obstructions.
• Ensure that the Gate wheels V profile, Gate wheels U profile or GateshoX run freely.
• Manual override the motor and check that the gate runs freely without any obstruction.
• Check that the rack is properly secured to the gate and that it does not press down on the operator pinion at any point while opening or closing.
• Clean around the motor area to ensure that vegetation does not grow to close to the motor and pinion.
• Check that the key still opens and closes the lock barrel and lubricate if necessary.
• Inspect the inside of the motor by removing the cover and ensure that it is clear of any insects and dust.
Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.

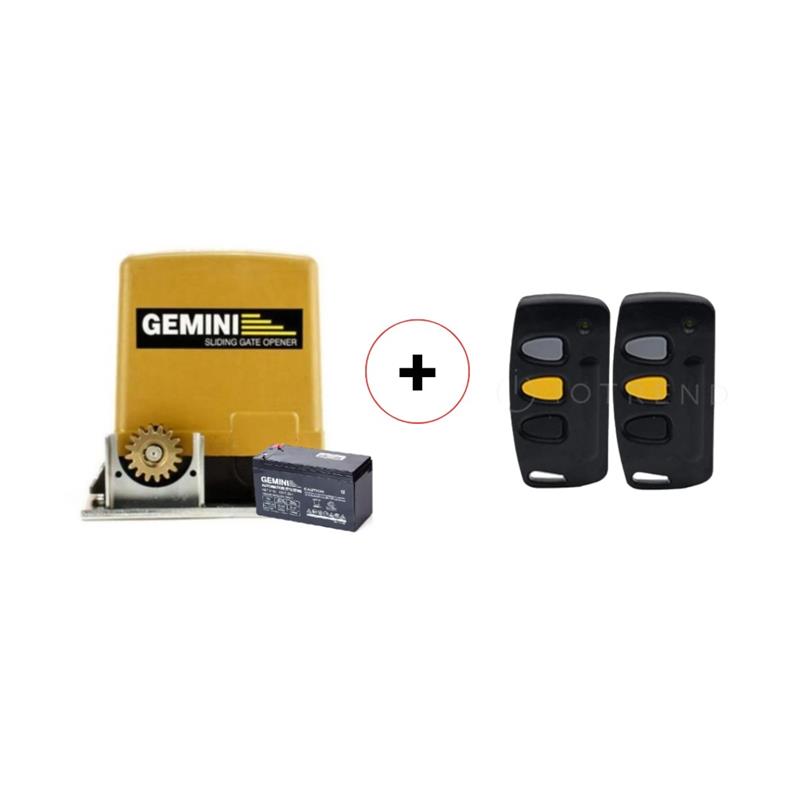

What's in the box
1 x Gemini Slider DC Gate Motor 7Ah
1 x 12V 7.2Ah Securi-Prod Battery
2 x Gemini 3 Button 433Mhz code hopping remotes
1 x Base Plate and mounting accessories
1 x Learning Stoppers
1 x 50ml Gearbox oil
1 x Instruction Manual
