Gemini DC Slider 7AH Gate Motor Kit with Anti-Theft Bracket (No Rack)
Regular price
R 5,299.00
R 6,299.00
15% OFF
Collection in 24 hours
Ready for collection in 24 hours, subject to stock availability
Linbro Business Park 6 Cosmic Street Linbro Park Johannesburg 2090 Get directions on Google Maps
Choose your payment plan, and pay from as little as
R 1,324.75
today.
Pay with Payflex
Payflex lets you split your purchase into 2, 3 or 4 equal interest-free instalments.
Pay the first instalment today at checkout. The remaining instalments are debited automatically every 30 days. 0% interest, no hidden fees when paid on time. Quick sign-up — just an ID and a SA debit or credit card. Your order ships immediately, no waiting.
Ask about Gemini DC Slider 7AH Gate Motor Kit with Anti-Theft Bracket (No Rack)
Mon to Fri, 07:30 to 16:00. Closed weekends and public holidays.
or send us a message

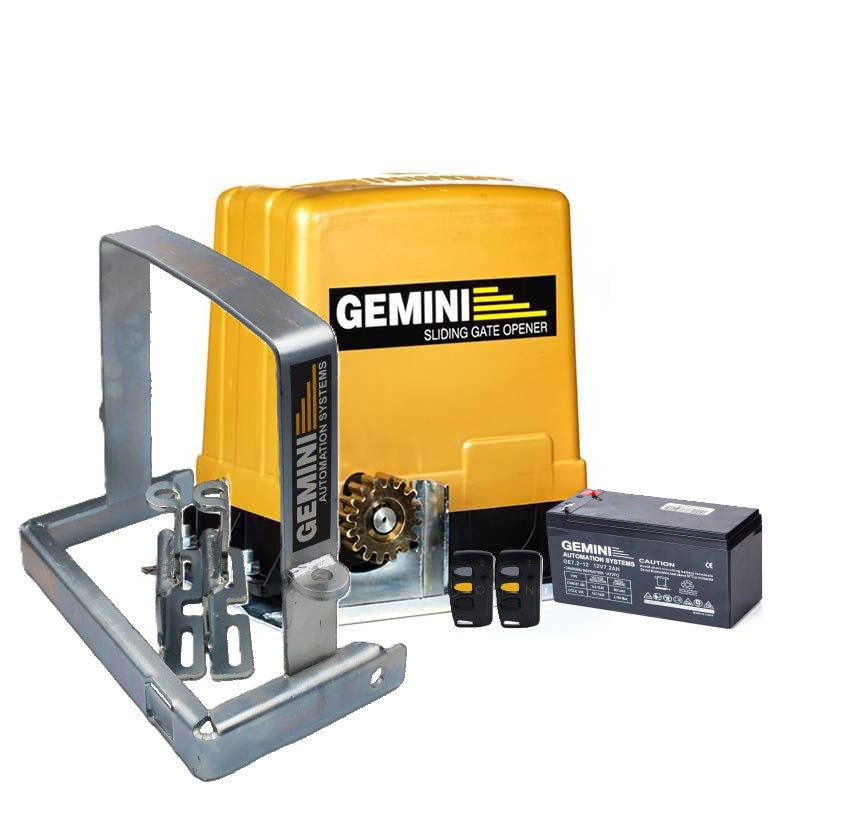

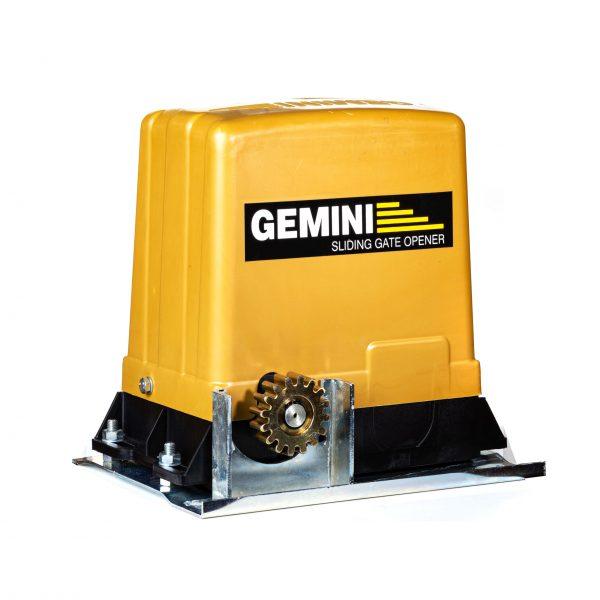

The Gemini DC Slider Gate Motor 7Ah is ideal for domestic use with sliding gates up to 5 meters not weighing more than 500Kg. The Operator is a 12V system and uses a 12v 7.2Ah Gemini Battery for backup power in the event of power failures or load shedding. The unit comes with a baseplate, 2 x 3 Button remotes, 12V 7.2Ah Gemini battery, learning stoppers, instruction manual and 50ml oil to be put into the gearbox before operation. This Kit includes the Gemini Anti-Theft Bracket.
Features
• Easy to install and user friendly setup
• Reliable battery backup will allow the gate to operate in the event of power outages and load shedding
• Built in receiver with 2 x Gemini 3 Button remotes included
• Auto close adjustable time
• Pedestrian facility
• Manual override
• Soft start and close
• Direction change option
• GSM Compatibility
• Affordable
• Safe and reliable
• Maintenance is effortless
Specifications
| Brand | Gemini |
| Model | Gemini Slider 7AH |
| Input voltage | 220V |
| Motor voltage | 12V DC |
| Motor size | 120 Watt |
| Electrical consumption | 220-260 V / 150 Milli amps |
| Backup power | 12V 7.2ah Gemini Battery |
| PCB Controller | Gemini DC Slider 12V SEL Controller PCB |
| Power Supply | Gemini DC Slider Power Supply SEL 12V |
| Compatible remotes | 1 Button and 3 Button |
| Compatible receiver | Single channel code hopping |
| Compatible anti theft bracket | Gemini DC Slider Anti Theft Bracket |
| Pull force | 15 Kgf |
| Gate speed | 22 meter/min |
| Maximum daily cycle | 30 cycles per day |
| Motor dimensions | 340mm(l) x 265mm(w) x 340mm(h) |
| Motor weight | 10.2Kg |
| Packaging dimensions | 360mm(l) x 285mm(w) x 400mm(h) |
| Mass of unit packed | 16Kg |
| Warranty - Mechanical & Workmanship | Manufacturers 24 Months warranty |
| Warranty - Electrical | Manufacturers 12 Months warranty |
Instructions for use
• Refer to detailed installer manual.
Maintenance and care
• Ensure that the track is kept clear from stones, dirt or any obstruction. Gate brushes can be installed to assist in clearing the obstructions.
• Ensure that the Gate wheels V profile, Gate wheels U profile or GateshoX run freely.
• Manual override the motor and check that the gate runs freely without any obstruction.
• Check that the rack is properly secured to the gate and that it does not press down on the operator pinion at any point while opening or closing.
• Clean around the motor area to ensure that vegetation does not grow to close to the motor and pinion.
• Check that the key still opens and closes the lock barrel and lubricate if necessary.

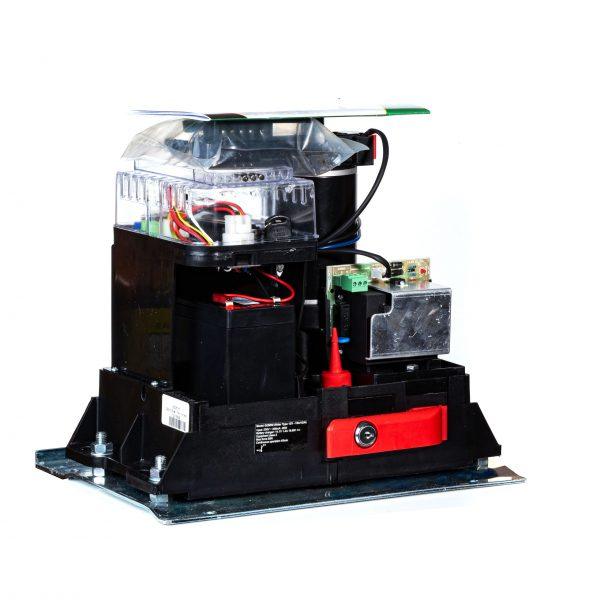

• Inspect the inside of the motor by removing the cover and ensure that it is clear of any insects and dust.
Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.

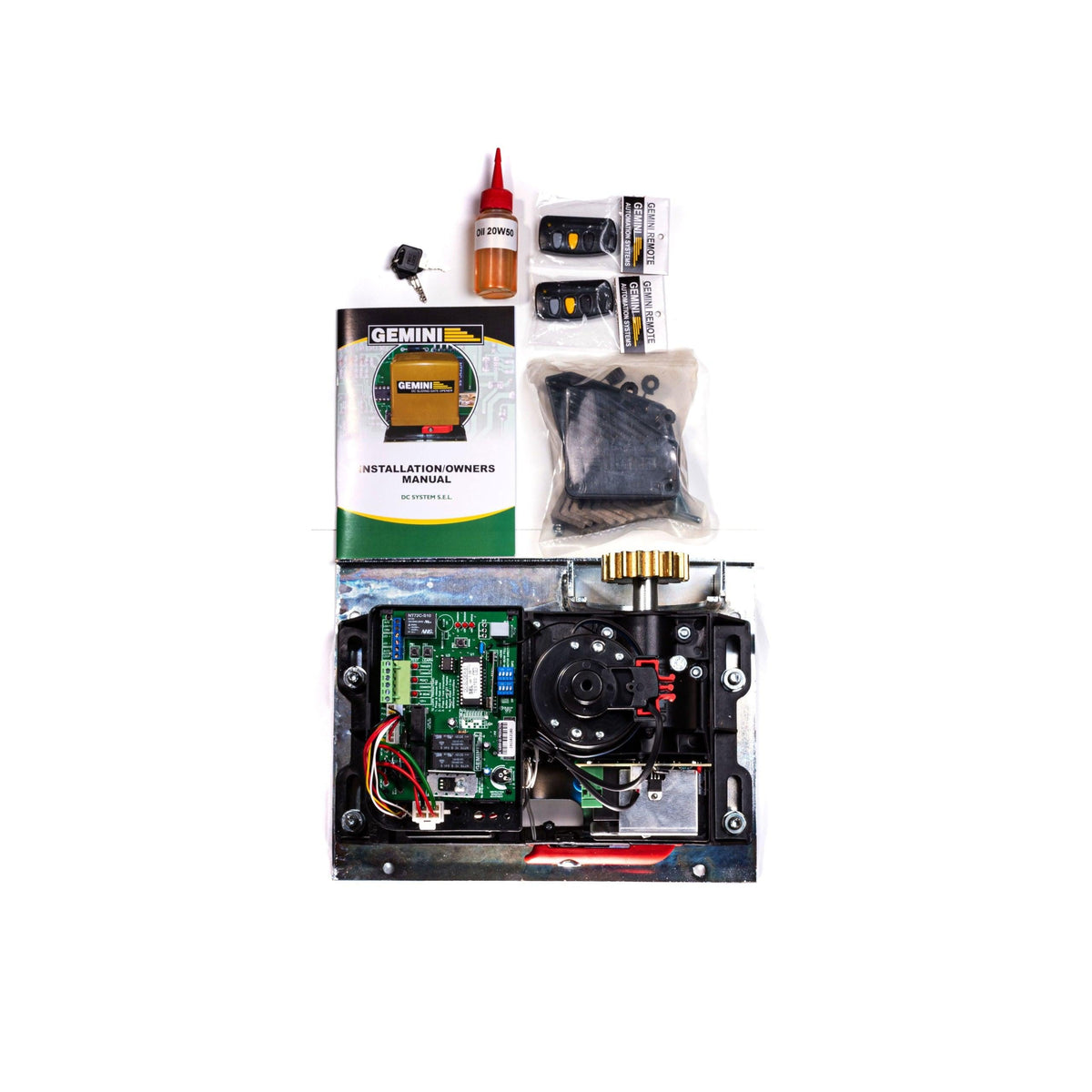

What's in the Kit

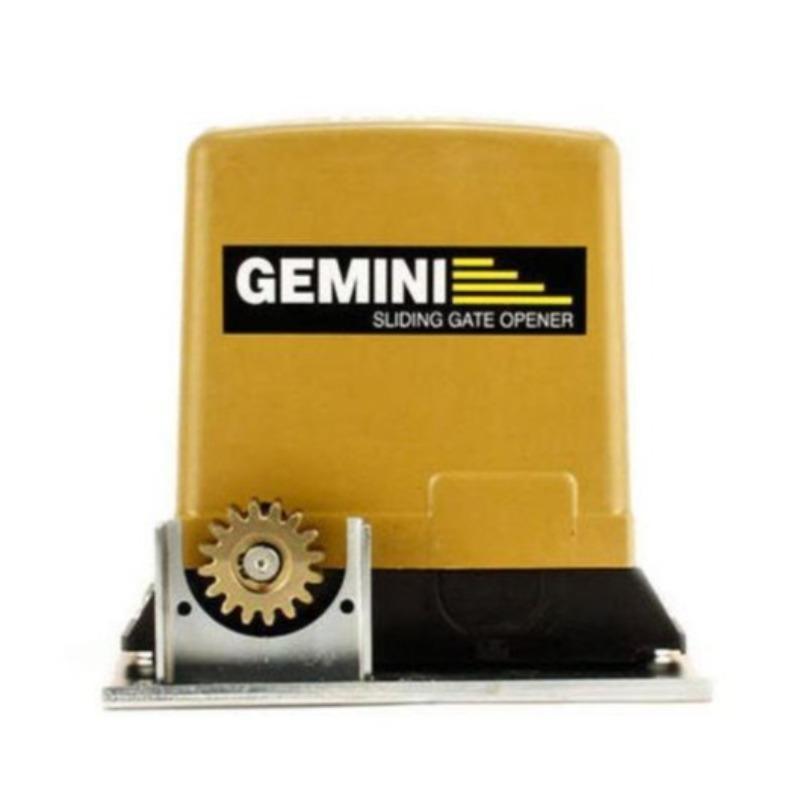

1 x Gemini Slider DC Gate Motor 7Ah

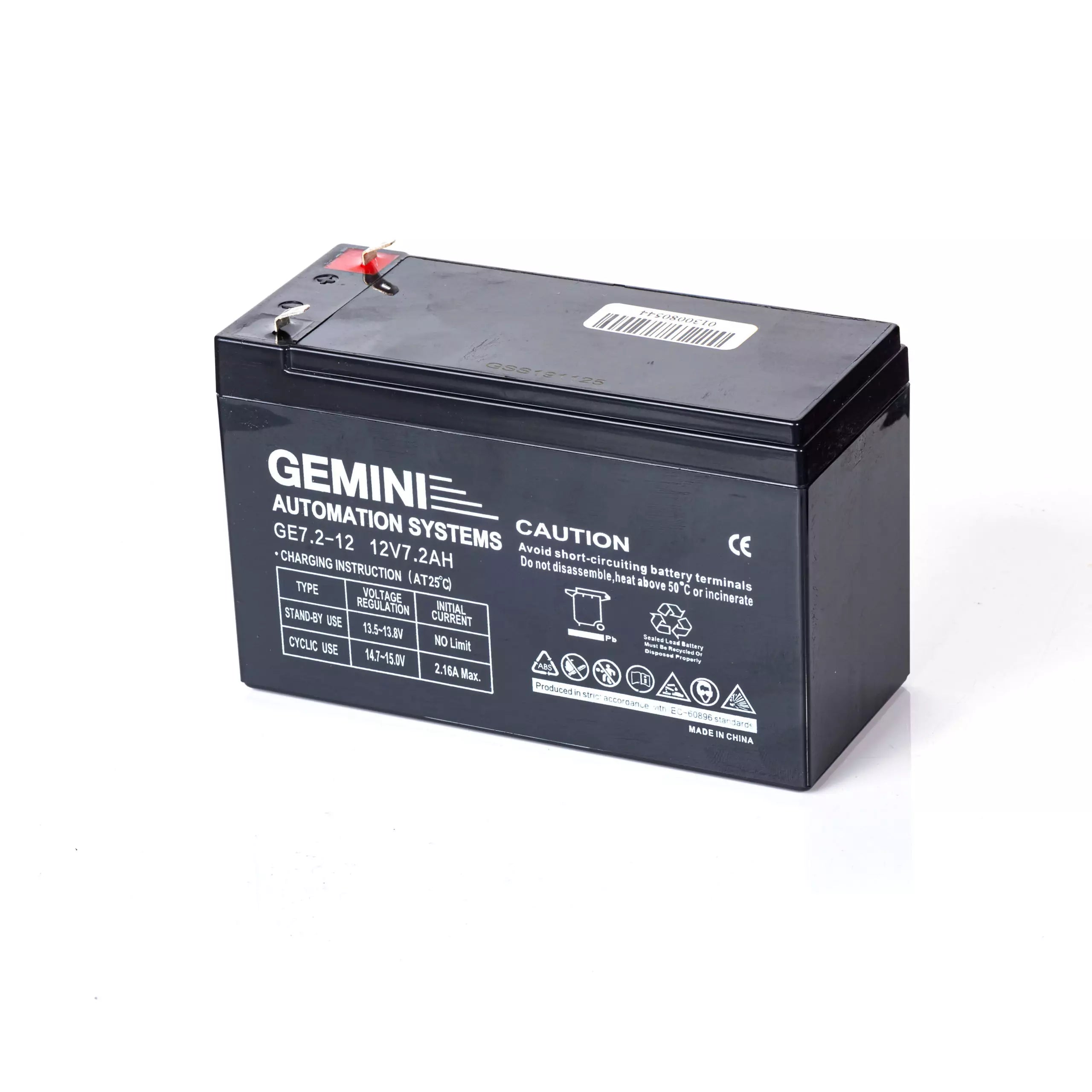

1 x 12V 7.2Ah Gemini Battery

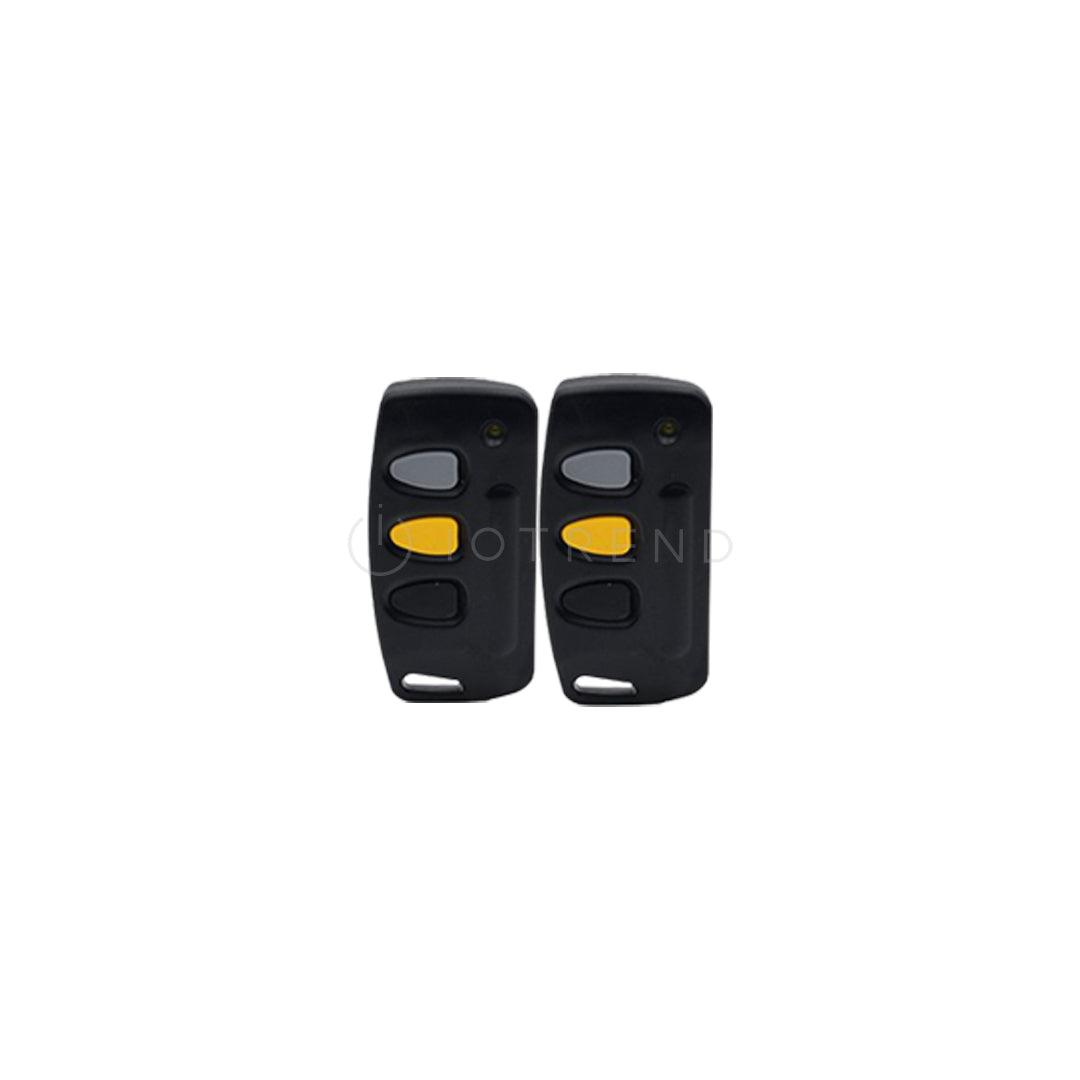

2 x Gemini 3 Button 433Mhz code hopping remotes
1 x Base Plate and mounting accessories

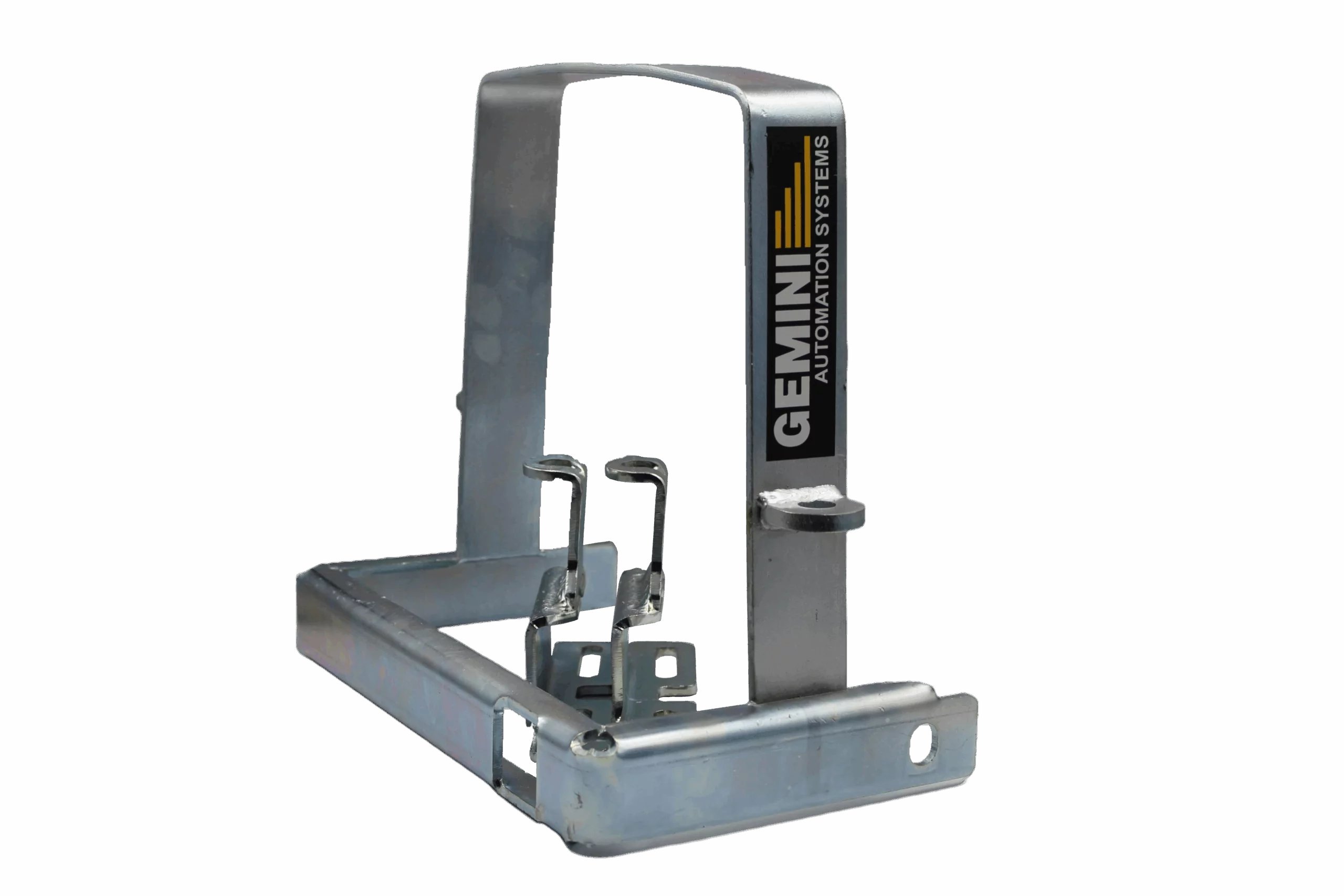

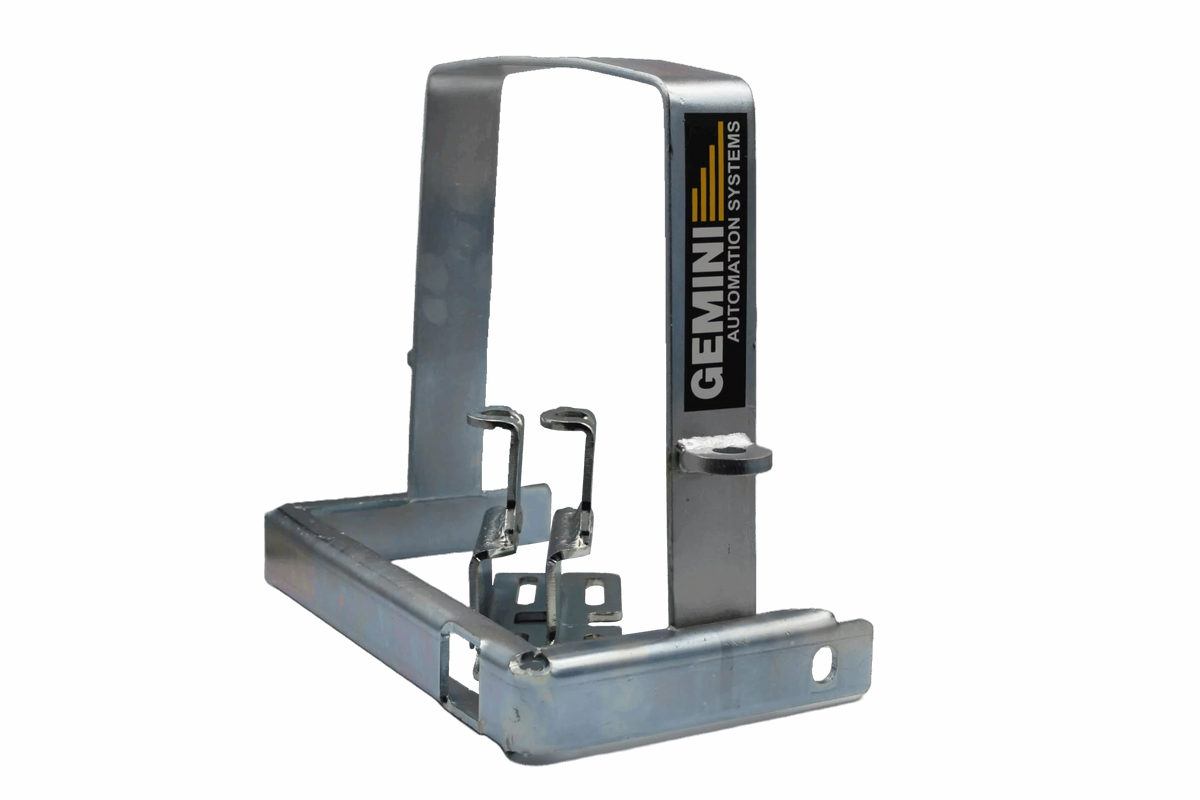

1 x Anti-Theft Bracket

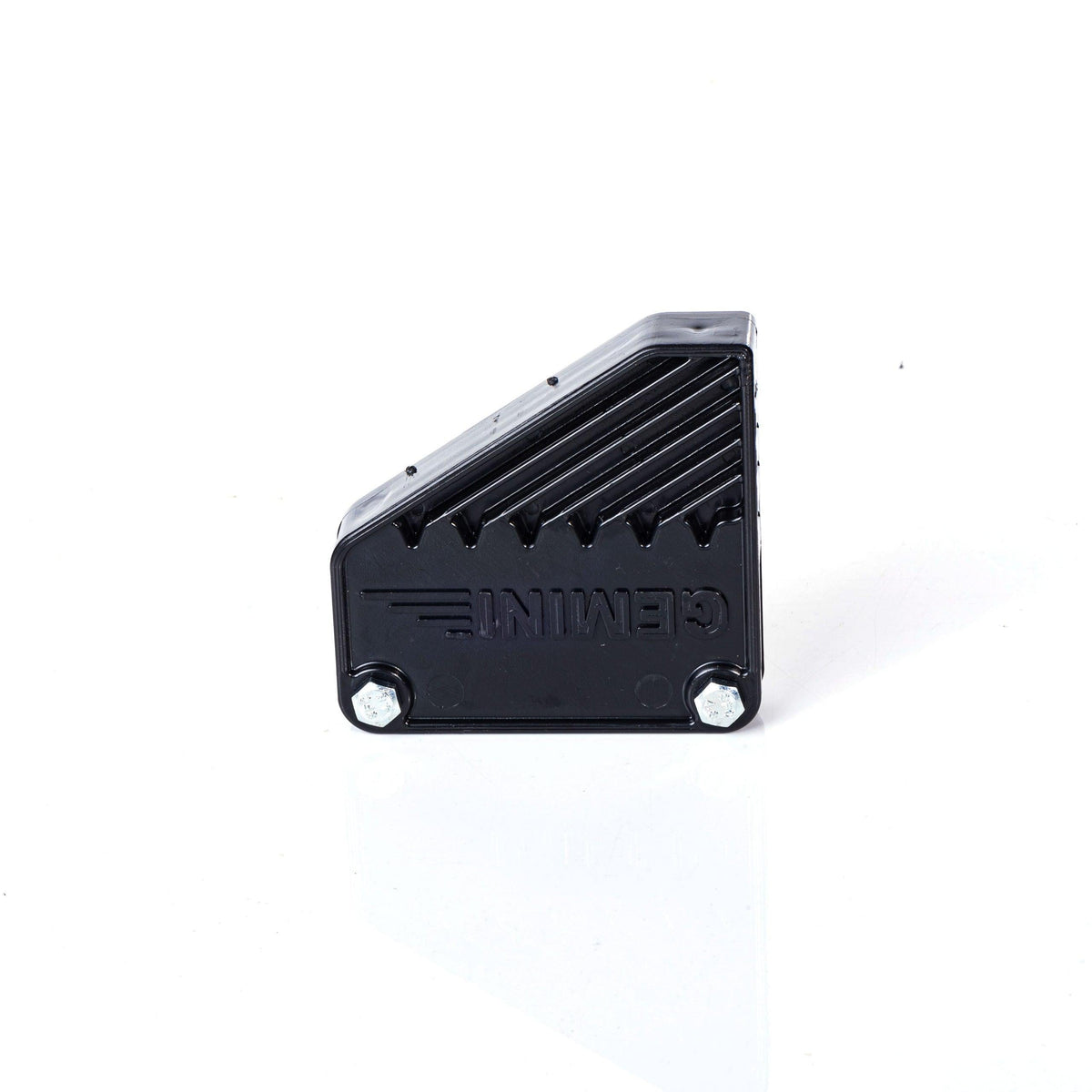

1 x Learning Stoppers
1 x 50ml Gearbox oil
1 x Instruction Manual
| SKU | RGA85-100 |
|---|---|
| Installation | Installer recommended |
| Warranty | 24-month limited manufacturer warranty |
| Max gate weight | 500 kg |
| Max gate length | 6 m |
| Speed | 26 m/min |
| Duty cycle | 75 % |
| Operations per day | 150 operations/day |
| Push force (rated) | 17 kgf |
| Battery / backup | 1 x 12V 7.2Ah |
| Smart connectivity | None (optional GemLink app module, sold separately) |
| Remote capacity | 30 remotes (max) |
| Input voltage | 220V |
| Motor voltage | 12V DC |
| Motor size | 120 Watt |
| Electrical consumption | 220-260 V / 150 Milli amps |
| Backup power | 12V 7.2ah Gemini Battery |
| PCB Controller | Gemini DC Slider 12V SEL Controller PCB |
| Power Supply | Gemini DC Slider Power Supply SEL 12V |
| Compatible remotes | 1 Button and 3 Button |
| Compatible receiver | Single channel code hopping |
| Compatible anti theft bracket | Gemini DC Slider Anti Theft Bracket |
| Pull force | 15 Kgf |
| Gate speed | 22 meter/min |
| Maximum daily cycle | 30 cycles per day |
| Motor dimensions | 340mm(l) x 265mm(w) x 340mm(h) |
| Motor weight | 10.2Kg |
| Packaging dimensions | 360mm(l) x 285mm(w) x 400mm(h) |
| Mass of unit packed | 16Kg |
| Warranty - Mechanical & Workmanship | Manufacturers 24 Months warranty |
| Warranty - Electrical | Manufacturers 12 Months warranty |
Specifications verified against manufacturer documentation. Confirm critical requirements with our team before purchase.
