PRODUCT INFORMATION

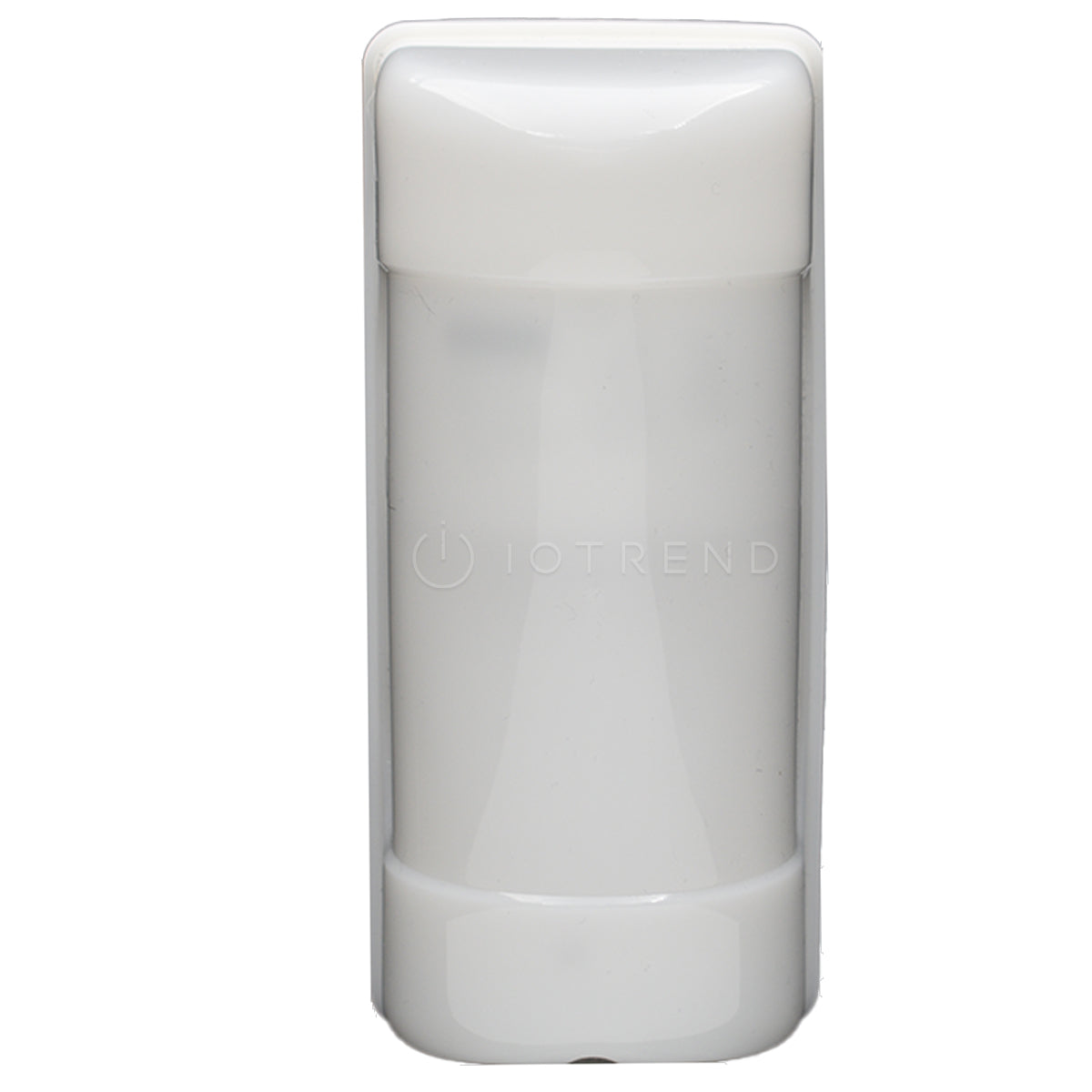

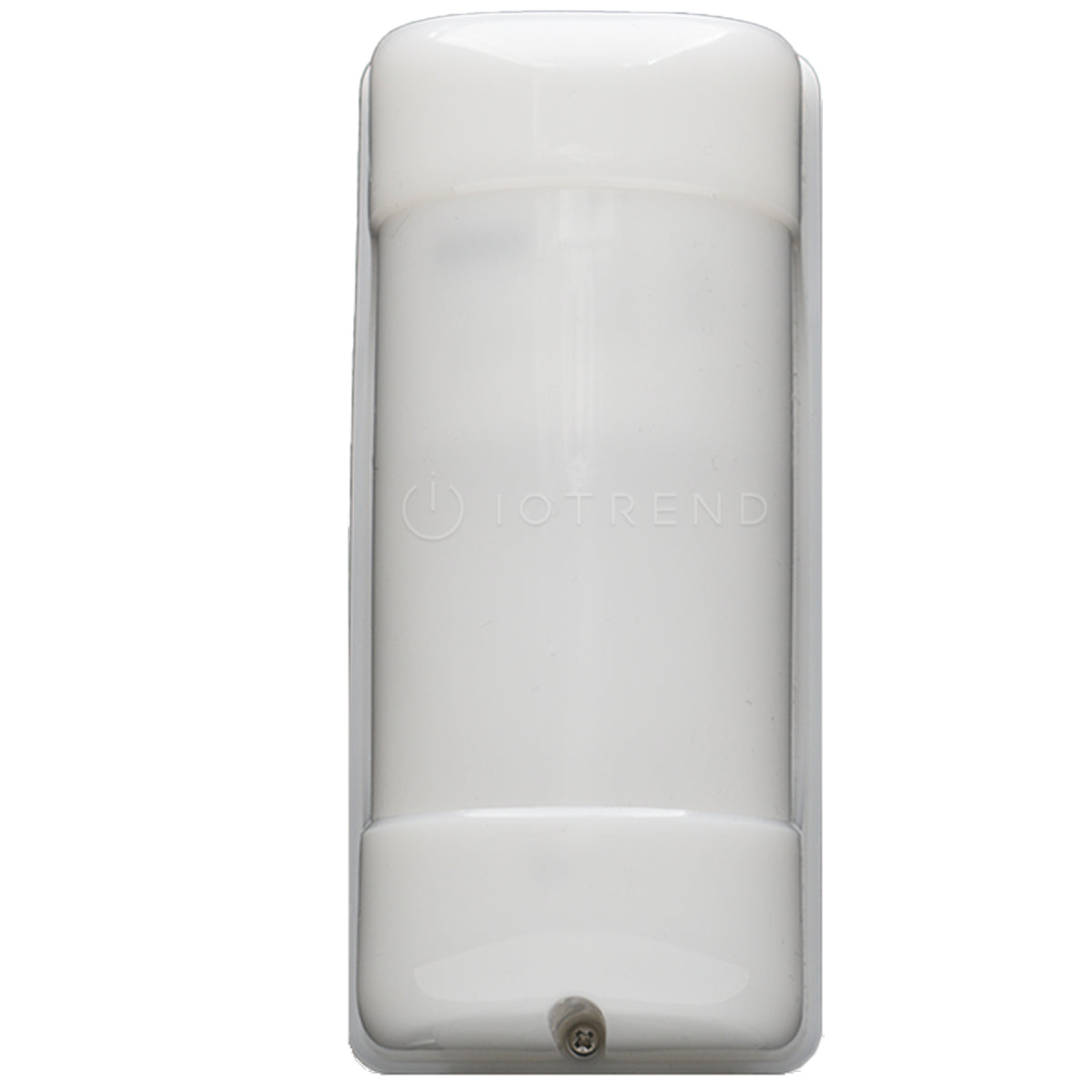

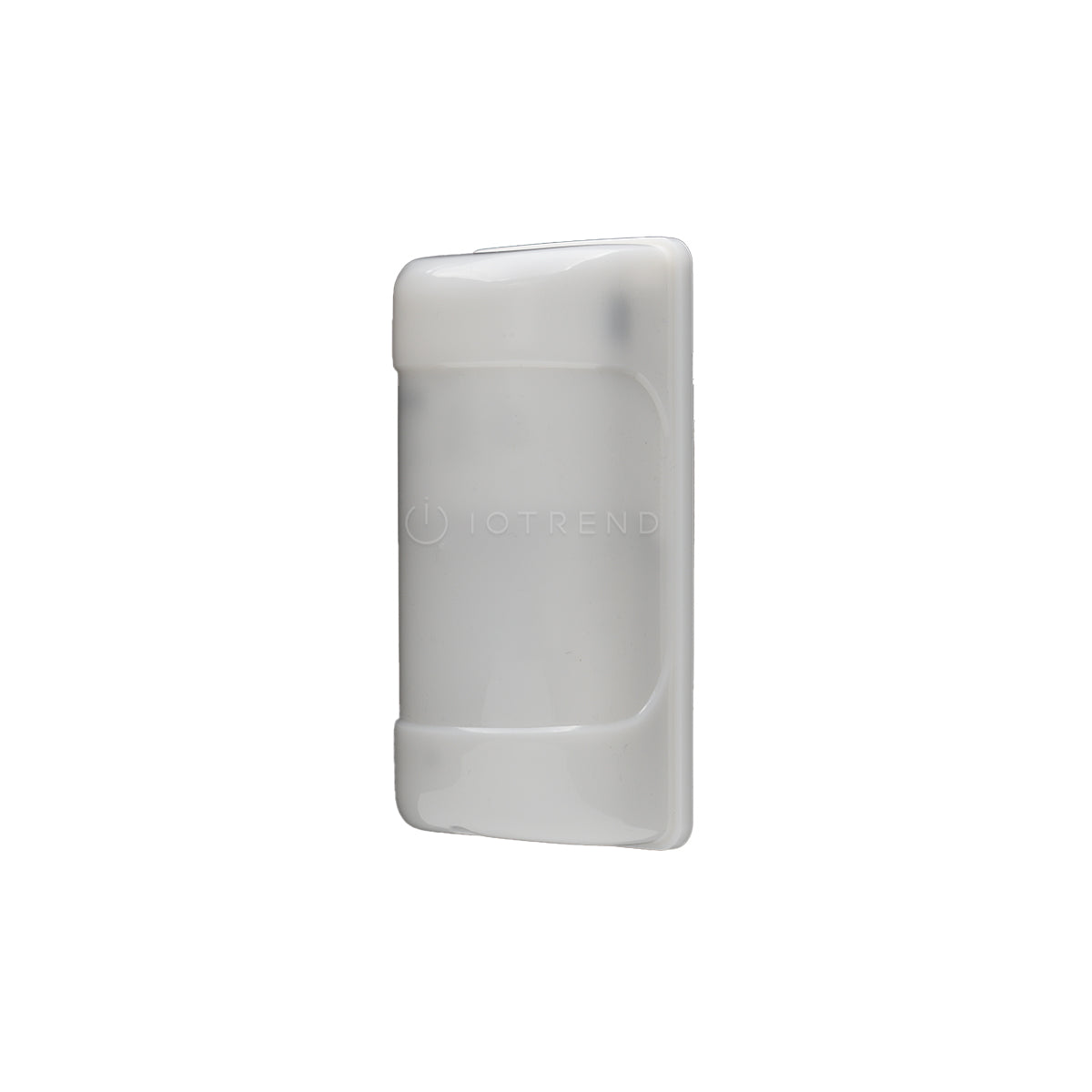

The Takex MS-100E Outdoor 1 Lense 90 Degree PIR is a versatile passive sensor designed for indoor and outdoor use that offers the choice of Wide Angle, Horizontal Curtain, Vertical Curtain and Long Range detection up to 20m from within a single discreet housing.

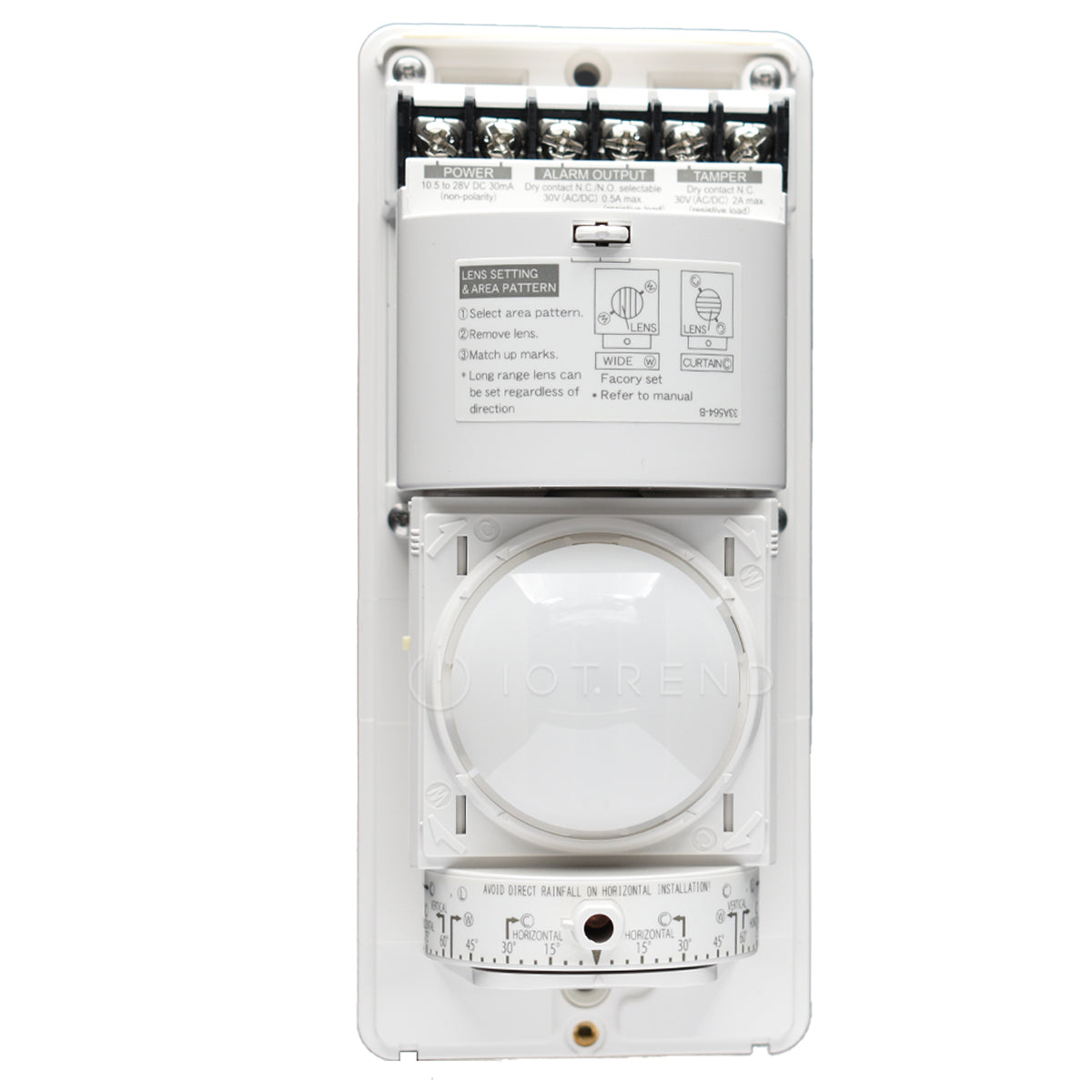

180° Rotatable optics allow the Takex MS-100E PIR to be installed in almost any position - mount vertically for standard detection or horizontally as a door sensor.
These outdoor passive sensors are perfect for use in both domestic and industrial applications.
Product Code: MS-100E
FEATURES OF THE OUTDOOR PASSIVE SENSOR:
- 10m Wide Angle / 10m Curtain / 20m Long Range
- 180° Rotating sensor head for vertical or horizontal mount
- Designed for indoor and outdoor use
SPECIFICATIONS OF THE OUTDOOR PASSIVE SENSOR:
| Detection system | Passive infrared |
| Coverage | Vertical Installation |
| Wide Angle [Max. 10m] (5 pairs) | |
| Curtain [Max. 10m] (5 pairs) | |
| Long Range [Max. 20m] (1 pair) | |
| Horizontal Installation | |
| Vertical Curtain [Max. 3m] (5 pairs) | |
| Supply voltage | 10.5VDC to 28VDC (Non polarity) |
| Current consumption | 30mA or less |
| Alarm output | Dry contact relay output Form N.C./N.O. selectable |
| Contact capacity | 30V (AC･DC), 0.5A MAX. (Resistance load) |
| Contact operation | Detection time + delay time (Approx. 2 sec.) |
| Tamper output | Dry contact relay output N.C. |
| Contact capacity | 30V (AC･DC), 2A MAX. (Resistance load) |
| LED indicator | Light at alarm |
| Sensitivity adjustment | Approx. 30% (L)～Approx. 170% (H) (100% set at factory) |
| Mounting position | Vertical Installation |
| Indoor / outdoor (pole/wall, height 0.8-1.5m) | |
| Horizontal Installation | |
| Indoor / (wall / ceiling, height 3m Max) | |
| Wiring | Terminals |
| Appearance | Cover - PE resin (white) |
| Body - AES resin (white) | |
| Ambient temperature | -20°C to +50°C |
| Product Dimensions | 170mm (L) x 77mm (W) x 70mm (H) |
| Product Weight | 238g |
| Packaging Dimensions | 200mm (L) x 88mm (W) x 80mm (H) |
| Mass of unit packed | 330g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the Outdoor Passive Sensor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex MS-100E Outdoor 1 Lense 90 Degree PIR
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
